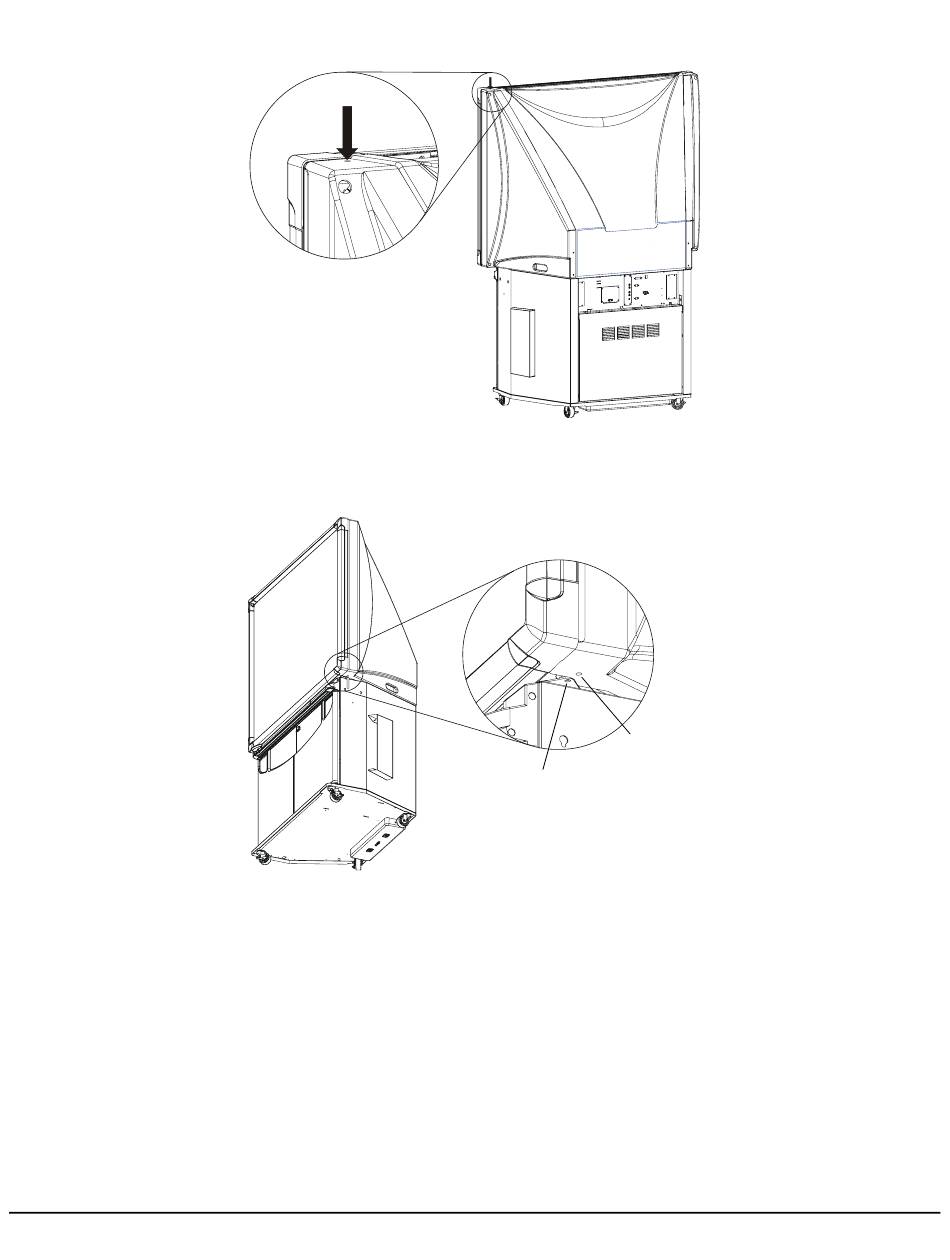

3. On the left side of the cabinet (as you face the rear), use the provided 5/32" hex key (located in the accessory kit) to
remove the hex screw on the top corner of the interactive whiteboard.
4. Using the same hex key, remove the hex screw underneath the bottom corner of the interactive whiteboard. Be careful
to remove the hex screw shown in the following figure, as there is another safety hex screw closer to the inside corner,
which you should not remove at this time.
2 of 6 Removing the Side Panel, Screen and Cabinet Top of a 3000i
Remove
this screw
Do not remove
this screw
