Appendix F Physical dimensions
The dimensions listed are for the following items, all of which are required to complete a Regen system. Note that the dimensions given apply only to
the parts specified in this guide.

Regen inductor

Soft start resistor
Switching frequency filter capacitor
Switching frequency filter inductor
RFI filter (Refer to the Unidrive Size 1 to 5 User Guide)
Varistors

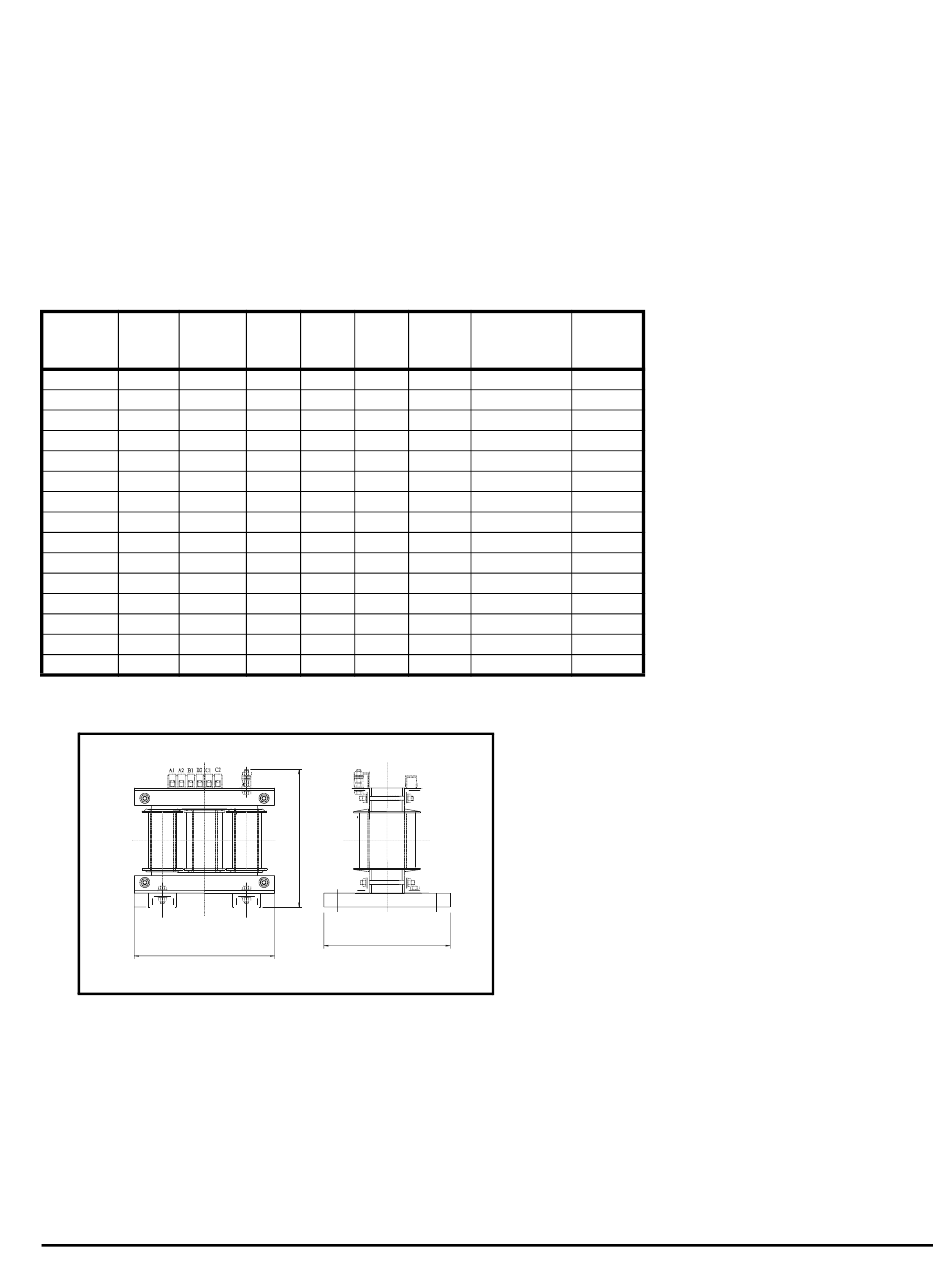

F.1 Regen inductor
Table F-1 Specifications
Drive
rating Amps mH
(kW)
4 9.5 6.32
5.5 12 5.00
7.5 16 3.75
11 25 2.40
15 34 1.76
18.5 40 1.50
22 46 1.30
30 60 1.00
37 70 0.78
45 96 0.63
55 124 0.48
75 156 0.38
90 180 0.33
110 220 0.30
160 300 0.24
Figure F-1 Type 1 dimensions
APPX WEIGHT: 12kg
120 fixing centres
L
200
Unidrive Regen Installation Guide
Issue Number: 2
WT
L D H
Kg
200 180 215 12
200 180 215 14
240 180 270 17
240 180 270 24
320 220 325 32
320 220 325 33
320 220 325 39
360 260 370 55
360 260 370 65
360 280 370 75
360 280 370 95
410 300 430 110
410 300 430 120
480 320 490 130
480 320 490 140
6 way terminal block
for lead termination.
SKOT TRANSFORMER LTD.
(mk6)
COPYRIGHT
C
2 way terminal
block for thermister
termination (mk3)
H
FIXING HOLE
140 fixing centres
180 D
www.controltechniques.com
CT part Type
number number
4401-0001 1
4401-0002 1
4401-0003 1
4401-0004 2
4401-0005 2
4401-0006 2
4401-0007 2
4401-0008 2
4401-0009 2
4401-0010 3
4401-0011 3
4401-0012 3
4401-0013 3
4401-0014 3
4401-0015 3
PROJECTION
4 OFF 9
