Summers ULTRA Operator's Manual page 170

3
2
1
Repair Parts Kit No. 3430-0332
Contains: One o-ring (Ref. 5),
one rubber gasket (Ref. 6),
and one mechanical seal (Ref. 7).
Ref. Qty. Part
No. Req'd. No.
1 4 2406-0007 Drain/Vent Plug (9303C)
1 4 2406-0016 Drain/Vent Plug (9303S)
2 1 0150-9000C Pump Casing (Model 9303C)
2 1 0150-9000S Pump Casing (Model 9303S)
2A 1 0153-9000C Pump Casing (Universal Flange)
3 1 2253-0002 Impeller Nut (9303C)
3 1 2253-0006 Impeller Nut (Model 9303S)
4 1 0401-9100P Impeller (Nyglass, std.)(9303C)
4 1 0402-9100P Impeller (Optional Polypropylene) (Std 9303S)
5 1 1720-0083 O-ring
6 1 1700-0100 Rubber Gasket (9303C)
7 1 2120-0009 Mechanical Seal (Viton) (Std 9303C)
7 1 3430-0589 Mechanical Seal (Silicon Carbide) (Std 9303S)
8 1 0750-9300C Mounting Flange
8 1 0756-9300S Mounting Flange (Model 9303S)
9 4 2210-0020 Hex Head Cap Screw (9303C)
9 4 2210-0125 Hex Head Cap Screw (Model 9303S)
10 1 1410-0056 Slinger Ring
11 1 1820-0013 Retaining Ring
12 1 1810-0014 Snap Ring
13 1 2000-0010 Ball Bearing
14 1 1410-0073 Spacer
15 1 2104-0005 Shaft Seal
16 1 1410-0074 Seal Spacer
17 1 2029-0014 Thrust Bearing Assembly—Consists of:
(1) Thrust Bearing & (2) Thrust Brg. Races
18 1 1810-0026 Snap Ring
19 1 0509-2500 Shaft (HM2C & HM4C Models) 6-3/4" Long
19 1 0511-2501 Shaft (HM1C & HM5C Models) 7" Long
19 1 0510-2500 Shaft (HM3C Models) 7 -1/2" Long
20 1 0151-2500C Motor Body (Includes Main Bearing)
21 4 2210-0005 Hex Head Cap Screw
22 2 1720-0110 O-ring
23 1 0701-2500C1 Gerotor Housing (HM2C Models) 1/4" Wide
16
Source: Form # L-0325C (10/05)

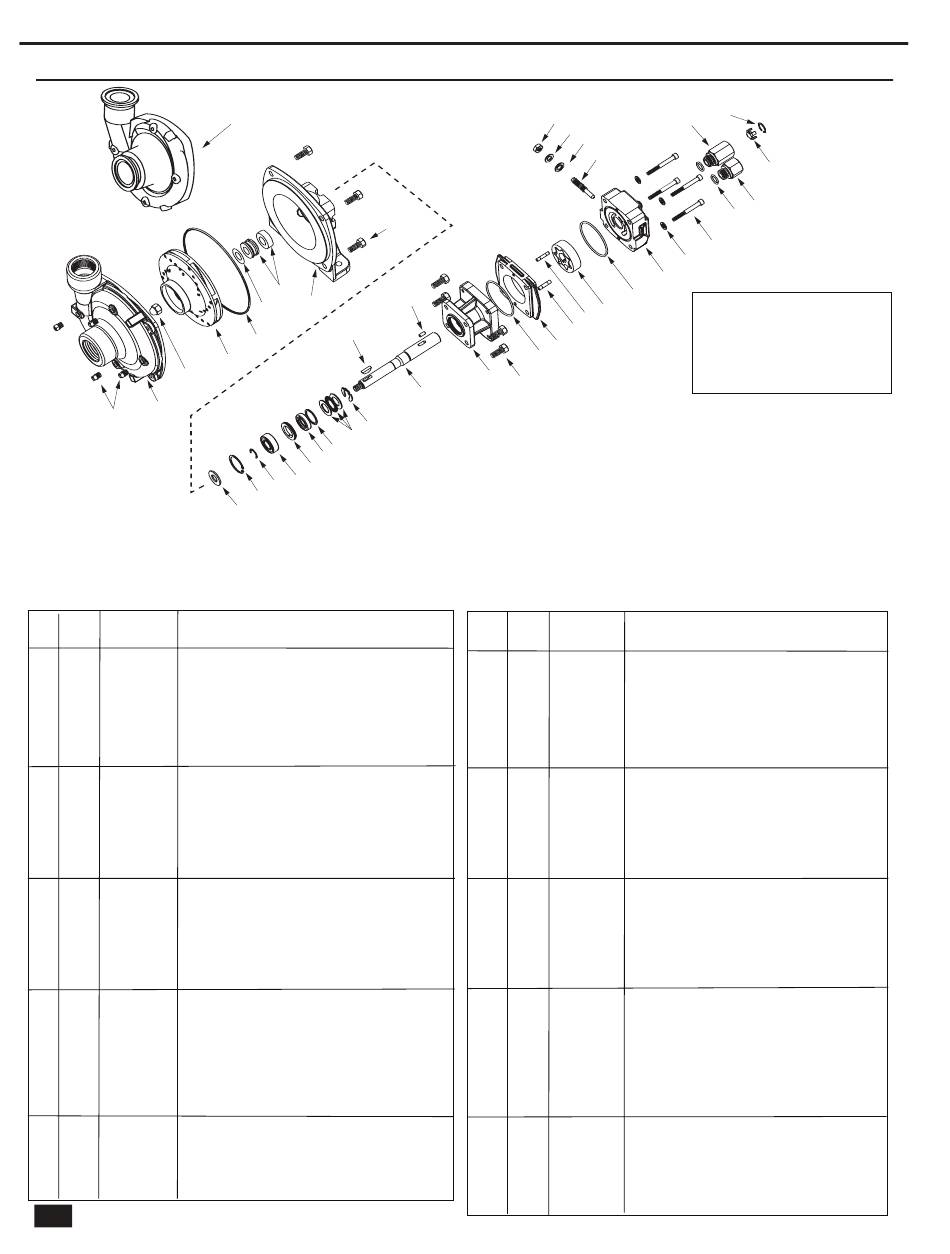

SECTION 8 - PARTS SECTION 8 - PARTS
All 9303C and 9303S Series Pumps
2
A
9
7
39
8
6
40
5
4
18
17
16
15
14
12 13
11
10
Silicon Seal Kit No. 3430-0589
Contains one each:
1720-0083 o-ring (Ref. 5)
and one mechanical seal (silicon
carbide) (Ref.7).
Description
38
37
36
25 26
24
23
22
20 21
19
Adapter Kit No. 3430-0187
(HM2 and HM4 Models Only):
Contains one each:
No. 3360-0021 Pressure Port Adapter
No. 3373-0020 (Size #1)
No. 3373-0021 (Size #2)
No. 3373-0022 (Size #3).
No. 1720-0108 Adapter O-ring and
No. 1720-0105 Orifice O-ring (Qty 3).
Ref. Qty. Part
No. Req'd. No.
23 1 0700-2500C1 Gerotor Housing (HM1C Models) 1/2" Wide
23 1 0703-2500C1 Gerotor Housing (HM4C Models) 5/16" Wide
23 1 0702-2500C1 Gerotor Housing (HM3C Models) 1" Wide
23 1 0704-2500C1 Gerotor Housing (HM5C Models) 5/8" Wide
24 1 1600-0045
24 1 1600-0044
24 1 1600-0052
25 1 1600-0042
25 1 1600-0037
25 1 1600-0068
26 1 3900-0022
26 1 3900-0023
26 1 3900-0024
26 1 3900-0025
26 1 3900-0048
27 1 0251-2500C2 Motor End Plate (Includes Main Bearing)
28 4 2270-0039
29 4 2220-0045
29 4 2220-0021
29 4 2220-0044
29 4 2220-0032
30 2 1720-0108
31 1 3360-0021
32 1 3260-0068
33 1 1820-0038
34 1 3320-0049
35 1 3220-0029
36 1 1700-0047
37 1 2270-0027
38 1 2250-0038
39 1 1610-0032
39 1 1610-0031
39 1 1610-0055
40 1 1610-0012
40 1 04432
8.97
33
34
35
32
31
30
29
28
27
22
NOTE: When ordering parts, give
QUANTITY, PART NUMBER,
DESCRIPTION, and COMPLETE
MODEL NUMBER. Reference
numbers are used ONLY to identify
parts in the drawing and are NOT
to be used as order numbers.
Parts Kit No. 3430-0178
Contains: One each ball bearing
(Ref. 13), motor shaft seal (Ref. 15),
thread seal gasket (Ref. 36), and
washer (Ref. 37); two each motor
housing o-rings (Ref. 22), and port
adapter o-rings (Ref. 30).
Hydraulic Motor Part Nos.
2500-0009C (HM1C Models)
2500-0010C (HM2C Models)
2500-0011C (HM3C Models)
2500-0012C (HM4C Models)
2500-0018C (HM5C Models)
Description
Dowel Pin (HM2C & HM4C Models)
Dowel Pin (HM1C & HM5CModels)
Dowel Pin (HM3C Models)
Dowel Pin (HM2C & HM4C Models)
Dowel Pin (HM1C & HM5C Models)
Dowel Pin (HM3C Models)
Gerotor (HM1C Models)
Gerotor (HM2C Models)
Gerotor (HM3C Models)
Gerotor (HM4C Models)
Gerotor (HM5C Models)
Washer
Cap Screw (HM2C & HM4C Models)
Cap Screw (HM1C)
Cap Screw (HM3C Models)
Cap Screw (HM5C)
O-ring
Pressure Port Adapter
Poppet
Retaining Ring
Tank Port Adapter
Bypass Adjusting Screw
Gasket
Washer
Lock Nut
Roll Pin (HM2C & HM4C Models)
Roll Pin (HM1C & HM5C Models)
Roll Pin (HM3C)
Woodruff Key (9303C)
S.S. Woodruff Key (Model 9303S)
