2.2 INITIAL SET-UP AND ADJUSTMENT OF MECHANICAL (CONVERT FROM TRANSPORT
TO FIELD OPERATION)
1. COMPLETE WARRANTY REGISTRATION CARD
A. Complete and return WARRANTY REGISTRA-
TION CARD located at the beginning of this
manual. RETURNING CARD ENTITLES YOU
TO A FREE GIFT.
B. Complete the OWNER REGISTER also located at the beginning of this manual (Serial Number
is located by the hitch piece). REMEMBER TO BRING OWNER REGISTER INFORMA-
TION WHEN ORDERING PARTS.
2. LEVEL THE CART
Before connecting to tractor, determine best vertical location of hitch piece in order to run a level cart:
A. Level the cart front to back.
B. Measure tractor drawbar to determine best vertical location of hitch piece.
3. MAKE TRACTOR TO SPRAYER HOOKUPS
A. Make hitch connection using a draw pin with keeper and safety chain. A spacer between sprayer
tongue and tractor clevis will minimize hitch noise and shock.
B. Retract jack and rotate into storage position.
C. Plug in hydraulics to tractor remote outlets for boom and hydraulic pump operation.

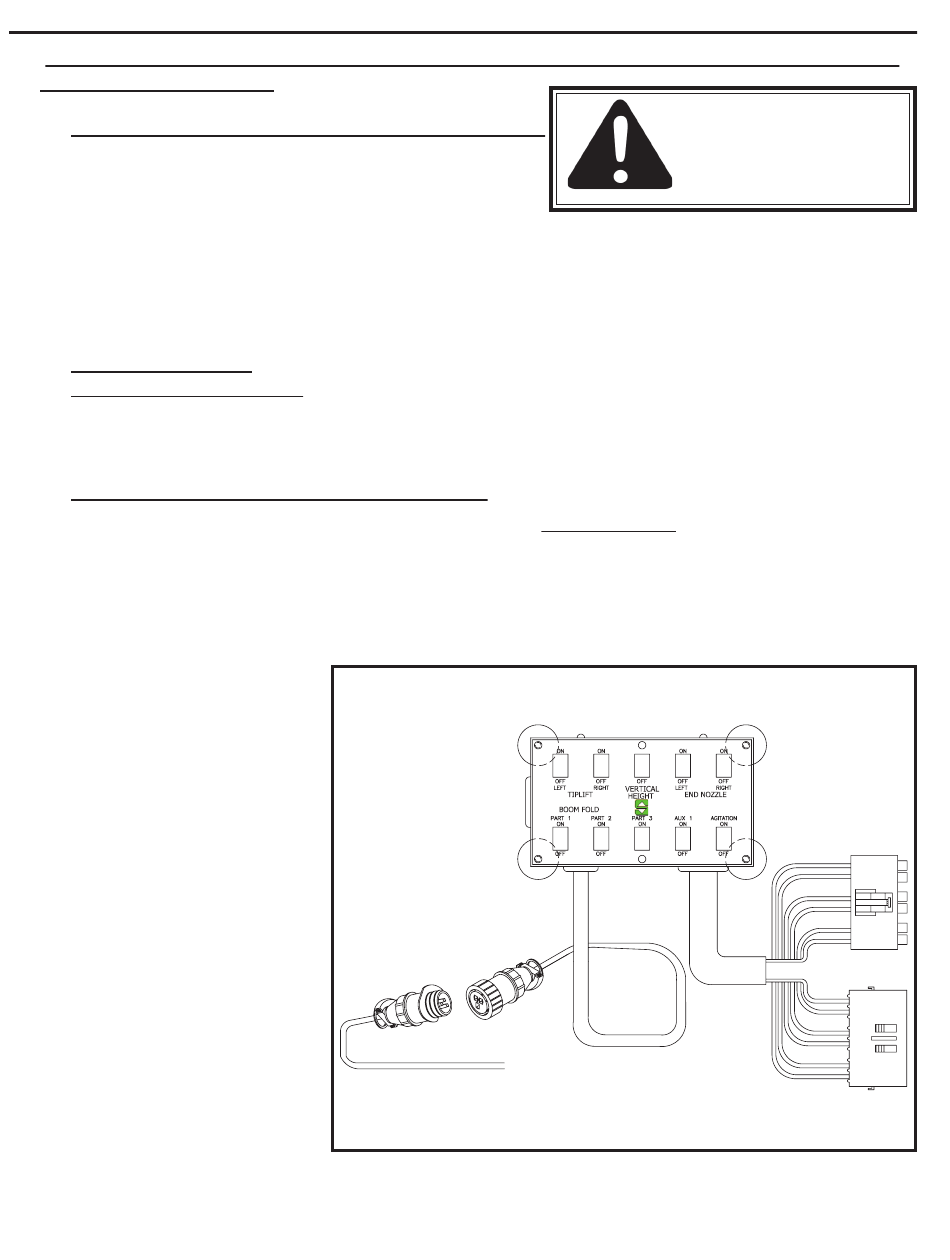

D. Prepare to mount hydraulic switch control box in cab and run cable to rear of tractor.
1. Select a convenient
location. Surface
must be smooth and
clean for suction cups
to attach.
2. If tractor is equipped
with factory accessory
power plug, discon-
nect 3-foot pigtail
lead from control box
and couple to tractor
power plug.
3. For tractors not
equipped with a pow-
er plug connect black
lead to a good ground
and the other wire to a
12-volt keyed power
supply.
4. Route 6 pin connectors through tractor cab to drawbar area and secure in a safe place.
E. Hook all electrical leads to mating connectors near hitch.
SECTION 2 - SPRAYER OPERATION
2.2
CAUTION
REVIEW SECTION 2.1 SPRAYER
OPERATION SAFETY BEFORE
PROCEEDING
