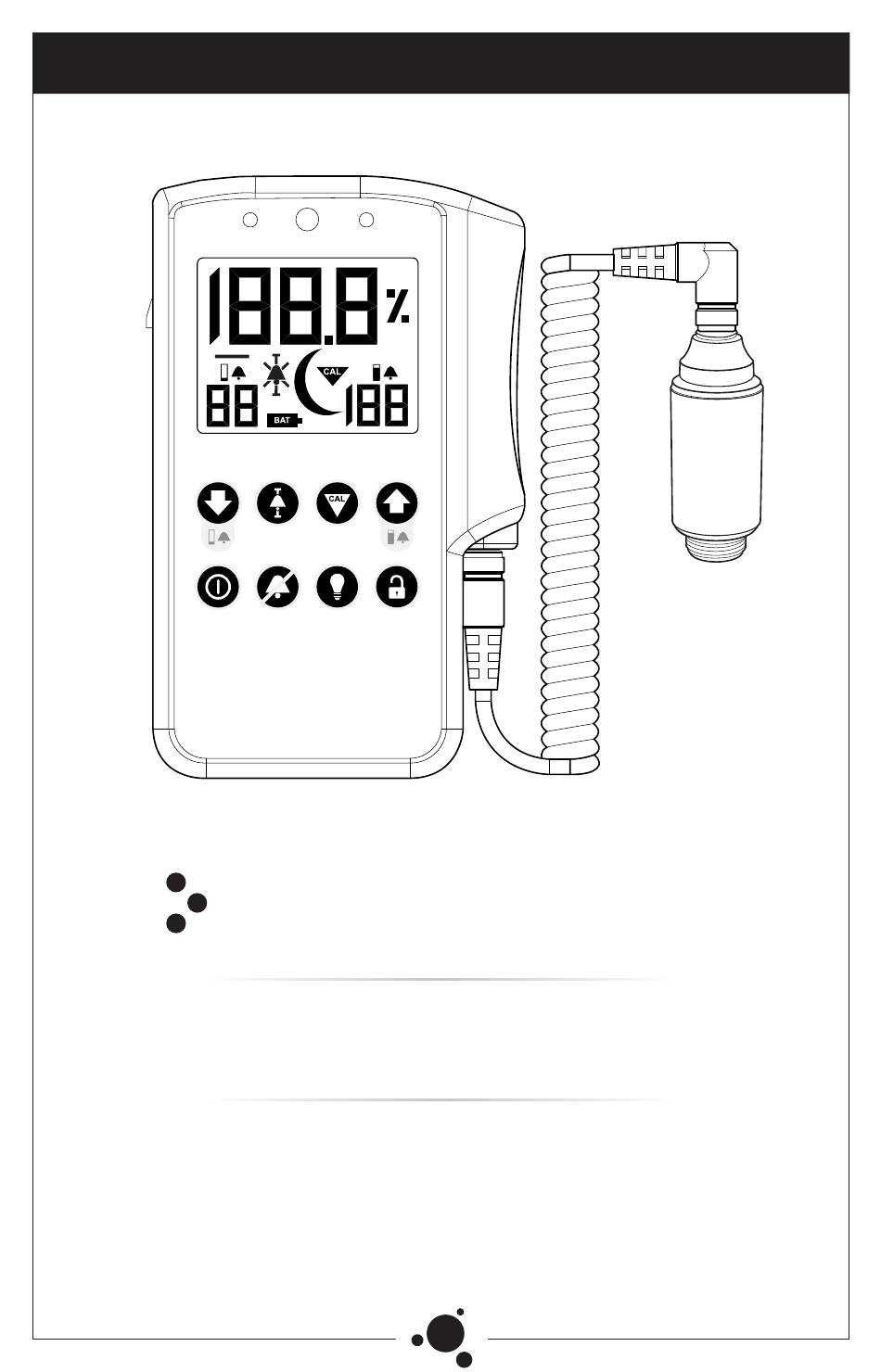

- Page 1 MaxO O P E R A T I N G M A N U A L & I N S T R U C T I O N S F O R U S E R 2 3 0 P 0 1 R230M01 Rev.
-
Page 3: Classification
ME Monitor to be free from defects of workmanship or materials for a period of two (2) years from the date of receipt from Maxtec, provided that the unit is properly operated and maintained in accordance with Maxtec’s operating instructions. - Page 4 (electrolyte) is never exposed. In case of a leak or if DO NOT use the oxygen sensor. damaged, » Use only genuine Maxtec accessories and replacement parts. Failure to do so may seriously impair the monitor’s performance. Repair or alteration of the MaxO ME beyond the scope of the maintenance instructions or by anyone other than an authorized Maxtec service person could cause the product to fail to perform as designed.
- Page 5 ME. Standard sterilization techniques may damage the monitor. » If the MaxO ME does not function as outlined in section 2.0, contact a Maxtec trained service technician or Maxtec for service. DO NOT allow the sensor to come in contact with exhaled patient gases or other potential sources of contamination.
-
Page 6: Table Of Contents
9.0 SPARE PARTS AND ACCESSORIES ......16 Electromagnetic Compatibility ........17 866.4.Maxtec www.maxtec.com... -
Page 7: Symbol Guide
Do not throw away. Follow local Complies with Direective 2011/65/EU RoHS guidelines for disposal. Power Supply Meets CEC Tier 3 and EU Phase 2 Standards Conforms to EU requirements For use in dry indoor locations Combined UL / CSA Mark 866.4.Maxtec www.maxtec.com... -
Page 9: System Overview

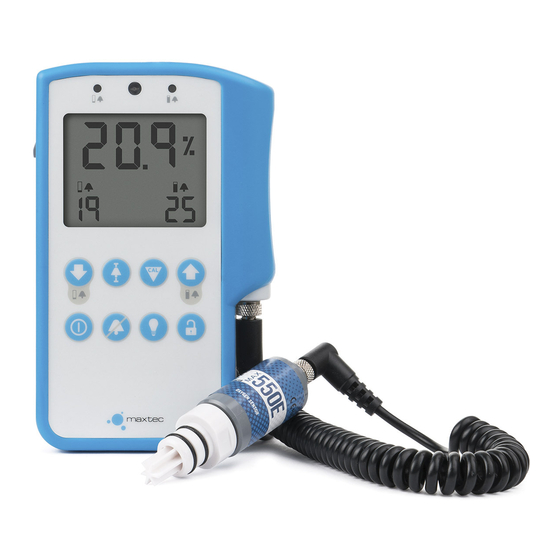

ME oxygen monitor is intended for continuous monitoring of the concentration of oxygen being delivered to patients ranging from newborns to adults. It can be used in the pre-hospital, hospital and sub-acute settings. The MaxO ME is not a life supporting device. 866.4.Maxtec www.maxtec.com... -
Page 10: Components Identification
T-bars to alert condition. Low Battery Indicator - The low battery indicator is located at the middle of the display and is only activated when the voltage on the batteries is below a normal operating level. 866.4.Maxtec www.maxtec.com... - Page 11 See section 3.5 Sleep Mode Operation. External Supply Port - The port provides connection for the external power supply. See section 3.6 for more information on the power adapter. Locking Shroud - Threaded coupler that locks cable to sensor and monitor. 866.4.Maxtec www.maxtec.com...
-
Page 12: Max-550E Oxygen Sensor
CAUTION: The MAX-550E oxygen sensor is a sealed device containing a mild acid electrolyte, lead (Pb), and lead acetate. Lead and lead acetate are hazardous waste constituents and should be disposed of properly, or returned to Maxtec for proper disposal or recovery. -
Page 13: Calibrating The Maxo Me Monitor
If you are reading a 50% oxygen mix and the barometric pressure drops from 1000mbar to 990mbar the reading will drop to: 50% x (990/1000) = 49.5%). Maxtec recommends that you re-calibrate after changing point-of-use elevation by more than 500 feet (150m). -
Page 14: To Calibrate The Maxo 2 Me Monitor To 100% Oxygen
ME Monitor are proportional to the partial pressure of oxygen. The partial pressure of Oxygen (PO ) is equal to the percentage of oxygen (%O ) times the absolute pressure (AP) at which the sample environment is measured (PO x AP). 866.4.Maxtec www.maxtec.com... -
Page 15: Operating Instructions
1 second the display will scroll at a rate of 1% per second. NOTE: If 30 seconds elapse between key actuations, the system will store the latest low alarm value and will revert to normal operation. If this occurs inadvertently, simply repeat the alarm setting procedure. 866.4.Maxtec www.maxtec.com... -
Page 16: High Alarm Setting
+3% (rounded to the nearest interger). The low alarm will now be set to be equal to the current oxygen reading -3% (rounded to the nearest integer but never lower than 18%). 866.4.Maxtec www.maxtec.com... -
Page 17: Basic Operation
A high alarm condition will remain until the the actual concentration is 0.1% lower than the high alarm setting. To help differentiate the level of severity, the Monitor provides three unique audible sequences. 866.4.Maxtec www.maxtec.com... -
Page 18: Backlight Operation
3.6 External Power Supply Operation To extend the life of the batteries a Maxtec approved external power supply can be purchased. Once connected to the unit, total power is supplied by the external power supply. -
Page 19: Sensor Removal And Replacement
NOTE: Use only the Maxtec approved external power supply in Section 9.0 Spare Parts and accessories. NOTE: The power supply is not a battery charger. DO NOT use rechargeable batteries. 4.0 SENSOR REMOVAL AND REPLACEMENT The MaxO ME is shipped with a new MAX-550E oxygen sensor. -
Page 20: Cleaning And Maintenance
If these steps do not correct the error, contact Maxtec for technical support. NOTE: Use only a Maxtec approved Max-550E sensor called out in Section 9.0 of the Spare Parts List. The Max550E sensor is equipped with an authentication chip to ensure the monitor is used with an approved sensor. -
Page 21: Alarm Testing
The cable can be removed and replaced by disconnecting the threaded locking shroud at the sensor and monitor ends of the cable. Use only the Maxtec approved cable called out in Section 9.0 of the Spare Parts List. -
Page 22: Sensor Specifications
Sensor Type: ........ -
Page 23: Calibration Errors
Sensors come supplied with a flow diverter. The flow diverter helps direct the gas in a T-adapter up to the sensor for analysis. The flow diverter should be only used with a flowing gas. When using the sensor in a non-flowing environment, remove the diverter tip. 866.4.Maxtec www.maxtec.com... -
Page 24: Spare Parts And Accessories
Sensor Flow Diverter R230P10 Maxtec Approved External Power Supply Repair of this equipment must be preformed by a Maxtec Certified Service Technician experienced in repair of portable hand held medical equipment. Equipment in need of repair should be sent to:... -
Page 25: Electromagnetic Compatibility
EMISSIONS ELECTROMAGNETITC ENVIRONMENT ACCORDING TO Group 1 The MaxO2ME uses RF energy only for its internal function. RF emissions (CISPR 11) Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.*... - Page 26 NOTE 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. 866.4.Maxtec www.maxtec.com...
- Page 27 RF compliance level above, the equipment should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the equipment. 866.4.Maxtec www.maxtec.com...
