PCE Americas Inc.
PCE Instruments UK Ltd.
711 Commerce Way
Units 12/13
Suite 8
Southpoint Business Park
Jupiter
Ensign way
FL-33458
Hampshire / Southampton
USA
United Kingdom, SO31 4RF
From outside US: +1
From outside UK: +44
Tel: (561) 320-9162
Tel: (0) 2380 98703 0
Fax: (561) 320-9176
Fax: (0) 2380 98703 9
info@pce-americas.com
info@pce-instruments.com
www.pce-instruments.com/english
www.pce-instruments.com
Manual

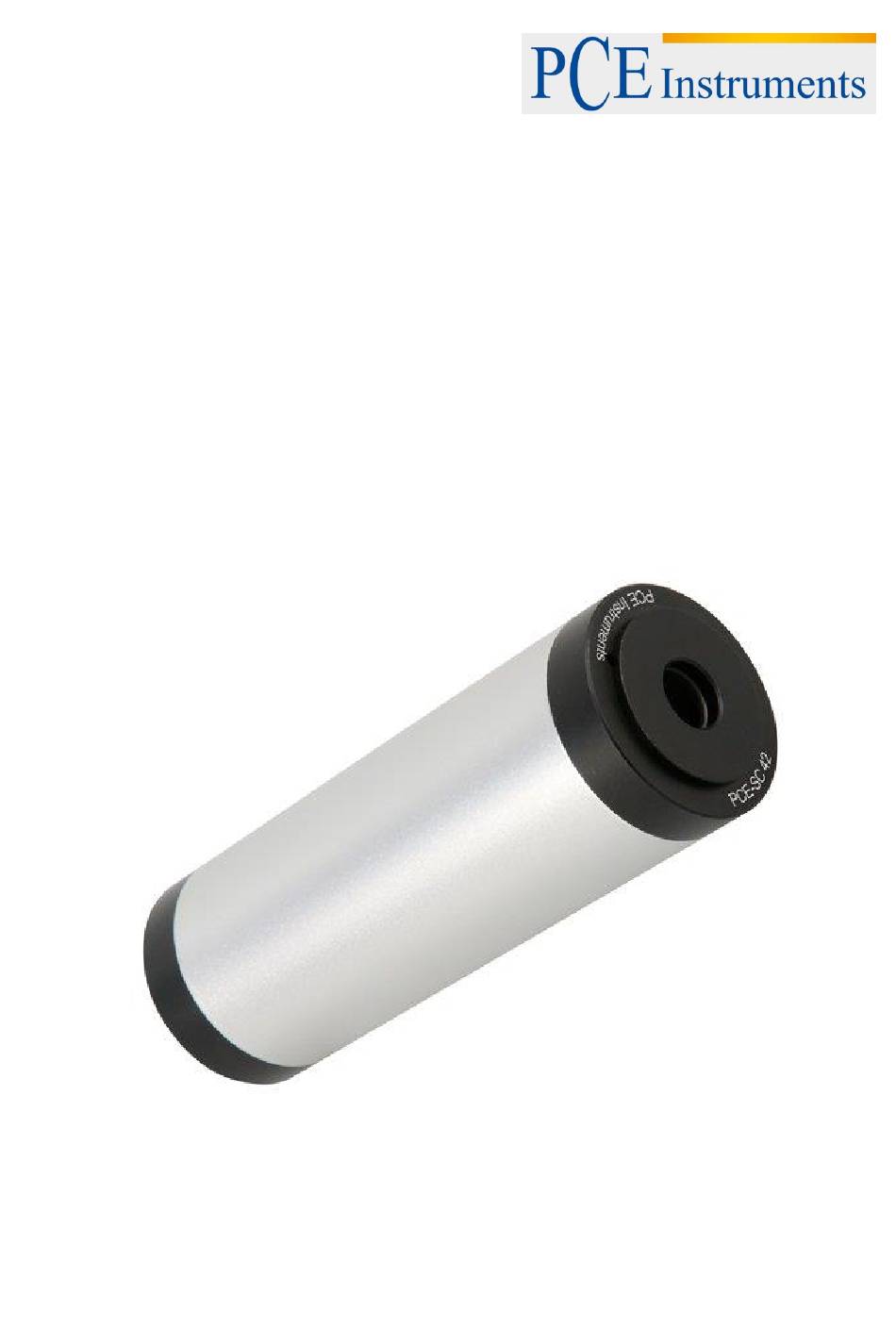

Sound Calibrator PCE-SC 42
Version 1.0
Date of creation: 30.03.2016
Date of last change: 31.03.2016
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PCE Instruments PCE-SC 42
Summary of Contents for PCE Instruments PCE-SC 42
- Page 1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0 Fax: (561) 320-9176 Fax: (0) 2380 98703 9 info@pce-americas.com info@pce-instruments.com www.pce-instruments.com/english www.pce-instruments.com Manual Sound Calibrator PCE-SC 42 Version 1.0 Date of creation: 30.03.2016 Date of last change: 31.03.2016...
-
Page 2: Table Of Contents
Specification ......................4 System description ....................4 Instructions ......................5 Calibration........................... 5 Replacing the batteries ....................... 5 Influence of the atmospheric pressure and temperature ........5 Disposal ........................6 Contact ........................6 PCE Instruments UK ........................6 PCE Americas ..........................6... -
Page 3: Introduction
This sound calibrator is light weight, small, handy and easy to transport. Despite its complexity, it is easy to operate. If the safety notes are adhered to, then the PCE-SC 42 will give you many years of service, due to its robust construction. The calibrator is mostly used to calibrate sound level meters, sound measurement systems and microphones and can be used on-site as well as in laboratories. -
Page 4: Specification
Manual Specification Frequency 1 kHz ±0.1 % Sound pressure level 94 dB and 114 dB Accuracy ±0.3 dB (at 20 °C and 760 mm Hg) 1/2” and 1” microphone opening Microphone IEC 942 class 2 Standard Power supply 9 V block battery NEDA 1604, Burgess 2U6 or similar Battery life Approx.100 hours... -
Page 5: Instructions
Calibration The PCE-SC 42 can be used to test various sound devices. If a device with a 1 inch microphone is being tested, then the appropriate adapter ring for a 1 inch microphone head should be used. Ensure that the microphone is inserted into the adapter and is resting on the bottom edge, thereby supporting the microphone and providing an inner seal. -
Page 6: Disposal
In order to comply with the EU directive 2012/19/EU we take our devices back. We either re-use them or give them to a recycling company which disposes of the devices in line with law. If you have any questions, please contact PCE Instruments. Contact If you have any questions about our range of products or measuring instruments please contact PCE Instruments.
