NVF5 Series User Manual
Chapter 2 Product Overview
An optional Top Protective Cover may be selected to realize IP 22 protection level.The Top
Protective Cover consists of two parts:Protective Cover and Bracket.You can refer to the figure 2-6-3
to install（ a Installing Bracket ；b InstallingProtective Cover） ，Apperance after being installed
shown as Figure 2-6-4

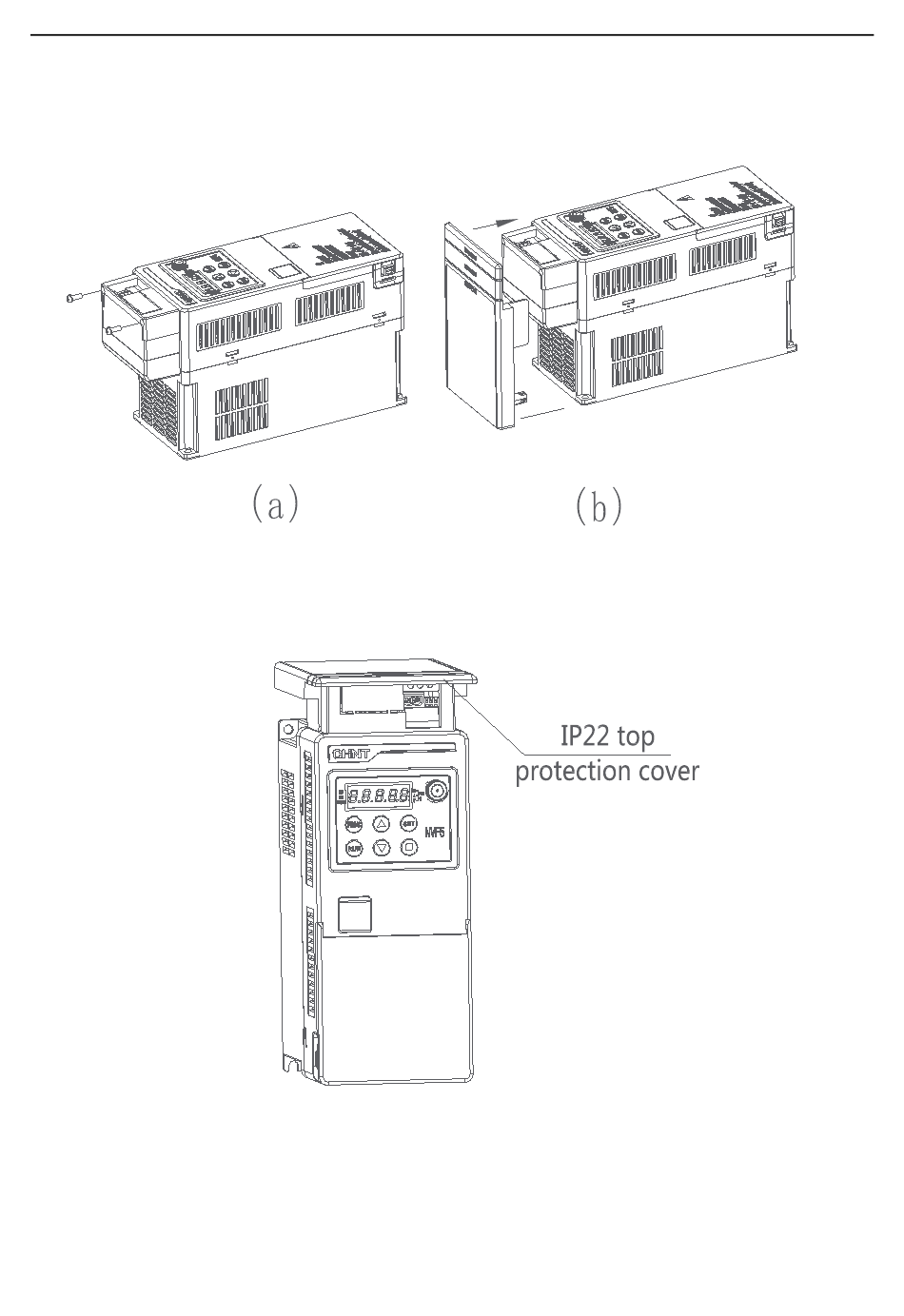

Figure 2-6-3 Installing Bracket and Proctive Cover diagram
Figure 2-6-4 Apperance after being installed
- 12 -
