Assembly and operating instructions
TFZ901.02
Racing Bike
Z9
TF-Z9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Taurus Z9

Summary of Contents for Taurus Z9

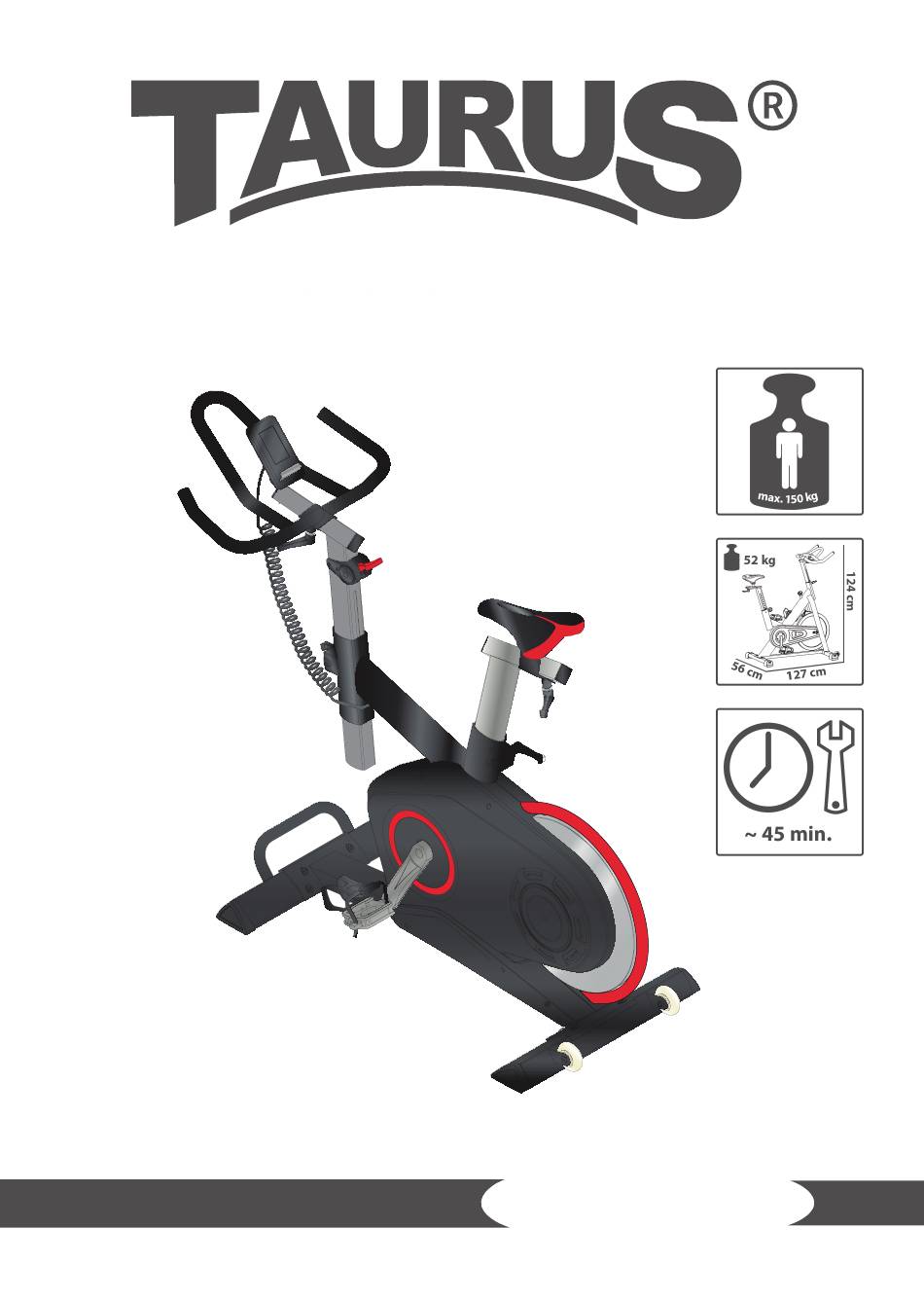

  • Page 1 Assembly and operating instructions TFZ901.02 Racing Bike TF-Z9...
  • Page 3 Dear Customer, Thank you for deciding for a high-quality training equipment of the brand Taurus, the brand that makes athlete‘s hearts beat faster. Taurus offers a wide range of home fitness equipment like elliptical cross trainers, ergometers, tread-mills and rowing machines. Taurus equipment is the optimal equipment for all those who want to train at home independent of goals and fitness level.

  • Page 4: Table Of Contents

    CONTENTS GENERAL INFORMATION 1.1 Technical data 1.2 Personal safety 1.3 Electrical safety 1.4 Set-up place ASSEMBLY INSTRUCTIONS, MAINTENANCE AND CARE 2.1 General instructions 2.2 Errors and error diagnosis 2.3 Maintenance and service calendar ASSEMBLY 3.1 Assembly instructions 3.2 Equipment setting OPERATING INSTRUCTIONS 4.1 Console display 4.2 Button function...

  • Page 5: General Information

    GENERAL INFORMATION Technical data LCD display of speed in km/h training time in min training distance in km cadence (rotations per minute) calories burnt heart rate (when using a chest strap) Watt Total number of training programs: Pre-set programs: Heart rate controlled programs: User defined programs: Balance mass: 14 kg...

  • Page 6: Personal Safety

    Personal safety Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year.

  • Page 7: Electrical Safety

    Electrical safety The equipment requires a 220 - 230V / 50 Hertz mains power supply. The equipment should be connected directly to a grounded plug socket only by means of the power cable supplied. The use of multi-socket adapters or similar is not recommended. Extension leads must comply with local electrical safety guidelines.

  • Page 8: Assembly Instructions, Maintenance And Care

    Please contact your contract partner in such a case. The equipment should no longer be used until it has been repaired. When needed, only use original Taurus spare parts. Check the tightness of all screw connections once a month.

  • Page 9: Errors And Error Diagnosis

    Faults and Troubleshooting The equipment runs through regular quality controls during production. Nevertheless, errors or malfunctions on the equipment may occur. Individual parts are often the cause of faults and replacement is usually sufficient. Please use the following overview to see the most common errors and how to repair them.

  • Page 10: Assembly

    ASSEMBLY Assembly instructions The package contains the parts represented in the illustration, including a power cable with mains plug. If one of the illustrated parts is missing, please contact your contract partner. Overview 1. Main frame 2. Front base 3. Rear base 10.
  • Page 11 Step 1: Mounting the front and rear base (1) Mount the rear base (3) to the main frame (1) with Allen screws (5), washers (7), and spring washers. Make that the transport wheels point outwards or away from the equipment. (2) Mount the front base (2) to the main frame with Allen screws (5), washers (7), and spring washers.
  • Page 12 Step 2: Mounting the handlebar and the saddle The connecting rod (8) and the saddle post (9) are already pre-mounted and both can be infinitely adjusted in height with the knob. Pay attention to the fact that the safety lines on connecting rod (handlebar) and saddle post must not be exceeded when adjusting.
  • Page 13 Step 4: Mounting the console (1) Mount the console mount (14) to the connecting rod (handlebar) with a screw (86) (fig. a). (2) Insert the console cable (105) through the hole of the console mount (fig. b). (3) Connect the cable (41) (fig. c). (4) Mount the console (85) to the mount with a screw (84) (fig.
  • Page 14 Step 5: Mounting the pedals Screw the pedals (25R, 25L) very carefully clockwise or counter-clockwise to the pedal crank arms. Some lubricating grease or oil might facilitate screwing and can avoid damages to the thread. The right as well as the left pedals are marked with letters R (= right) or L (= left).

  • Page 15: Equipment Setting

    Step 7: Transport The rear base has integrated transport wheels. In order to move the equipment, stand in front and lift it until the weight of the equipment is on the transport wheels. Now you can easily move the equipment. Equipment setting Operating the emergency brake: Push the emergency brake (34) for safety reasons, whenever it is required to get off the equipment and/or...
  • Page 16 Adjustment When you take a moment to adjust your indoor cycle correctly to your body, you increase the comfort and the safety of your training. The indoor cycle offers diverse adjusting possibilities for saddle and handlebar. Use these adjusting possibilities for an optimal sitting comfort and a maximum training efficiency. A wrong position while training can cause avoidable pain and might increase the risk of injury.
  • Page 17 Horizontal adjustment • Get on the indoor cycle and rotate the pedal crank to the 3-and-9 o‘clock position. The horizontal adjustment of the seat is correct, when the knee joint of the leg, which points forward, is above the axle of the pedal.

  • Page 18: Operating Instructions

    OPERATING INSTRUCTIONS Console display Time Setting from 0:00 to 99:00, Display from 0:00 to 99:59 Speed Display from 0.0 to 99.9 Distance Setting from 0.00 to 99.90 km, Display from 0.00 to 99.99 Calories Setting from 0 to 9990, Display from 0 to 999 Heart rate Setting from 0-30 to 230, Display from 30 to 230 Display from 0 to 999...

  • Page 19: Button Function

    Button function Recovery Test for determining the recovery heart rate. Reset Hold the button for two seconds to start the console again. Return to the main menu while setting. Down Selecting programmes and value settings. Selecting programmes and value settings. Start/Stop Start and stop your training.

  • Page 20: Manual Programme

    4.4.1 Manual programme When you have chosen the manual programme (MANUAL), you can set various target values for: time, distance, calories and watt. The first three are being counted down. For example if you set your target distance to 20 km, the system will count down until zero is reached and an acoustical signal will be heard (fig.

  • Page 21: User-Defined Programme

    Profiles of pre-set training programmes: P 01 Peak P 02 Longitudinal Valley P 03 Valley P 04 Hill P 05 Hill cli P 06 High land P 07 Canyon P 08 Hill valley P 09 Hills P 12 Hig land longitudinal valley P 10 Mountain P 11 High land valley 4.4.3...

  • Page 22: Target Heart Rate

    4.4.4 Target heart rate When you have chosen the target heart rate programme (HRC Mode), you can set your age with the arrow buttons (fig. 9). Then you choose from 55%, 75%, 90%, and target heart rate (TAG). The system calculates the respective pulse value and displays it in the pulse window (fig.

  • Page 23: Heart Rate Measuring

    Heart rate measuring Note: For some people, the skin resistance change caused by the heart rate is so minimal that the measurements do not allow for usable values. Strong callus or sweat on the hands may also impair a correct measurement. In such cases, the heart rate will not be shown at all or only incorrectly.
  • Page 24 Anaerobic (maximum) load training: The main goal of maximum load training is to improve recovery after short, intense loads in order to be able to quickly return to the aerobic zone. In order to achieve this training goal, a high intensity (approximately 90% of the maximum heart rate) with short, intense load is required, which is followed by a recovery phase in order to prevent muscle fatigue.

  • Page 25: Warranty Information

    WARRANTY INFORMATION Taurus training fitness equipment is subject to strict quality controls. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
  • Page 26 Warranty service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.

  • Page 27: Disposal

    ORDERING ACCESSORIES Sport-Tiedje floor mat size XL Art. No. ST-FM-XL Fitness equipment care set Art. No. HF-500 Taurus SPD combo pedal system Art. No. TF-SPD...

  • Page 28: Ordering Spare Parts

    9:00 - 18:00 10:00 - 17:00 Serial number and model name Before assembling your equipment, find the serial number on the white sticker and enter it in the appro- priate space. Serial number: Brand / category: Model name: Taurus / Indoor bike...

  • Page 29: Parts List

    Parts list Description Specifications Qty. Main Frame Front Stabilizer Rear Stabilizer Left Triangle Cap 95.7*57.2*51.3 Right Triangle Cap 95.7*57.2*51.3 Allen Bolt M8x1.25x20L,8.8level Spring Washer D15.4xD8.2x2T Flat Washer D16xD8.5x1.2T Front Post Seat Post Seat 150*260*65,clamp,DD2681 Seat Adjustable Tube L Knob 25L M12*25L Handlebar Computer Fixing Plate...
  • Page 30 Description Specifications Qty. M10*1.5*8T Round Cross Bolt M5x0.8x15L D6*26.5*7.7 Cross Screw ST4.2*1.4*20L Left Cover Of Brake 95.4*53*33.4 Right Cover Of Brake 95.4*53*31.2 Brake Handlebar 101.1*48.2*37 Belt PK,J5,1295L Puelly D239.8*23,PK,J6 Bb Sets 127.5L Flat Washer D25*D8.5*2T Outer Flywheel D420*14 Inner Flywheel D290*34.3 Cable Plug D4*D12*13...
  • Page 31 Description Specifications Qty. Nylon Nut M8*1.25*8T Screw ST4*1.41*12L Idle Wheel Fixing Plate Carriage Bolt M8*1.25*20L,8.8level Adjustable Bolt M6*1.0*46 M6*1*5T Bearing 6203-2RS plastic cover Flat Washer D18*D8.5*1.2T C Ring S-17(1T) Curved Washer D17*D22*0.3T M8*1.25*6T Screw M8*1.25*16L Spring D1.4*55L Fixing Plate Of Brake Strap 100*63*3.0T Bolt M8*52L 15MM...
  • Page 32 Description Specifications Qty. Round Magnet Round Screw M5*10L Sensor Bracket 24*22*2.5T Sensor Cable Adaptor output:9V.500MA Electric Cable 700L Cable Buckle 17.5*8.2*2.2 Cross Screw ST4.2x1.4x12L Motor Upper Computer Cable 300L...

  • Page 33: Exploded Drawing

    Exploded drawing...
  • Page 34 DISCLAIMER ©2011 TAURUS® is a registered brand of the company Sport-Tiedje GmbH. All rights re- served. Any use of this trademark without the explicit written permission of Sport-Tiedje is prohibited. Product and instructions are subject to change. Technical data can be changed without advance notice.
  • Page 36 Racing Bike...
