Sirio Antenne HP 2000 Installation Manual

Vhf 2m radialless mobile antennas
Hide thumbs
1
2

Advertisement

Quick Links

Download this manual
Enlarged version

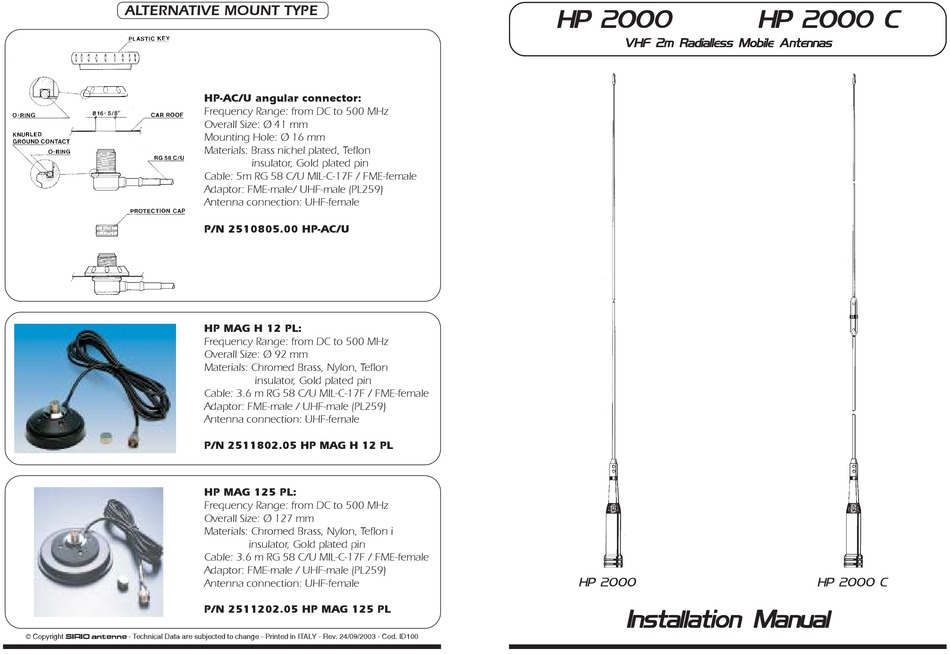

ALTERNATIVE MOUNT TYPE
HP-AC/U angular connector:
Frequency Range: from DC to 500 MHz
Overall Size: Ø 41 mm
Mounting Hole: Ø 16 mm
Materials: Brass nichel plated, Teflon
Cable: 5m RG 58 C/U MIL-C-17F / FME-female
Adaptor: FME-male/ UHF-male (PL259)
Antenna connection: UHF-female
P/N 2510805.00 HP-AC/U
HP MAG H 12 PL:
Frequency Range: from DC to 500 MHz
Overall Size: Ø 92 mm
Materials: Chromed Brass, Nylon, Teflon
Cable: 3.6 m RG 58 C/U MIL-C-17F / FME-female
Adaptor: FME-male / UHF-male (PL259)
Antenna connection: UHF-female
P/N 2511802.05 HP MAG H 12 PL
HP MAG 125 PL:
Frequency Range: from DC to 500 MHz
Overall Size: Ø 127 mm
Materials: Chromed Brass, Nylon, Teflon i
Cable: 3.6 m RG 58 C/U MIL-C-17F / FME-female
Adaptor: FME-male / UHF-male (PL259)
Antenna connection: UHF-female
P/N 2511202.05 HP MAG 125 PL
B Copyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 24/09/2003 - Cod. ID100
insulator, Gold plated pin
insulator, Gold plated pin
insulator, Gold plated pin
HP 2000
HP 2000
HP 2000
HP 2000
HP 2000
VHF 2m Radialless Mobile Antennas
VHF 2m Radialless Mobile Antennas
VHF 2m Radialless Mobile Antennas
VHF 2m Radialless Mobile Antennas
VHF 2m Radialless Mobile Antennas
HP 2000
Installation Manual
Installation Manual
Installation Manual
Installation Manual
Installation Manual
HP 2000 C
HP 2000 C
HP 2000 C
HP 2000 C
HP 2000 C
HP 2000 C
