ALTERNATIVE MOUNT TYPE
HP-AC/U angular connector:
Frequency Range: from DC to 500 MHz
Overall Size: Ø 41 mm
Mounting Hole: Ø 16 mm
Materials: Brass nichel plated, Teflon
Cable: 5m RG 58 C/U MIL-C-17F / FME-female
Adaptor: FME-male/ UHF-male (PL259)
Antenna connection: UHF-female
P/N 2510805.00 HP-AC/U
HP MAG H 12 PL:
Frequency Range: from DC to 500 MHz
Overall Size: Ø 92 mm
Materials: Chromed Brass, Nylon, Teflon
Cable: 3.6 m RG 58 C/U MIL-C-17F / FME-female
Adaptor: FME-male / UHF-male (PL259)
Antenna connection: UHF-female
P/N 2511802.05 HP MAG H 12 PL
HP MAG 125 PL:
Frequency Range: from DC to 500 MHz
Overall Size: Ø 127 mm
Materials: Chromed Brass, Nylon, Teflon i
Cable: 3.6 m RG 58 C/U MIL-C-17F / FME-female
Adaptor: FME-male / UHF-male (PL259)
Antenna connection: UHF-female
P/N 2511202.05 HP MAG 125 PL
B Copyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 22/09/2003 - Cod. ID248
insulator, Gold plated pin
insulator, Gold plated pin
insulator, Gold plated pin
HP 140-175
HP 140-175
Model HP 140-175
HP 140-175
HP 140-175

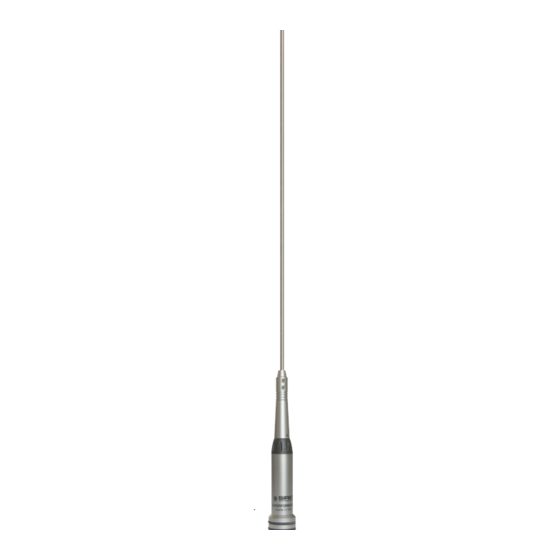

VHF Mobile Antenna 140-175 MHz
