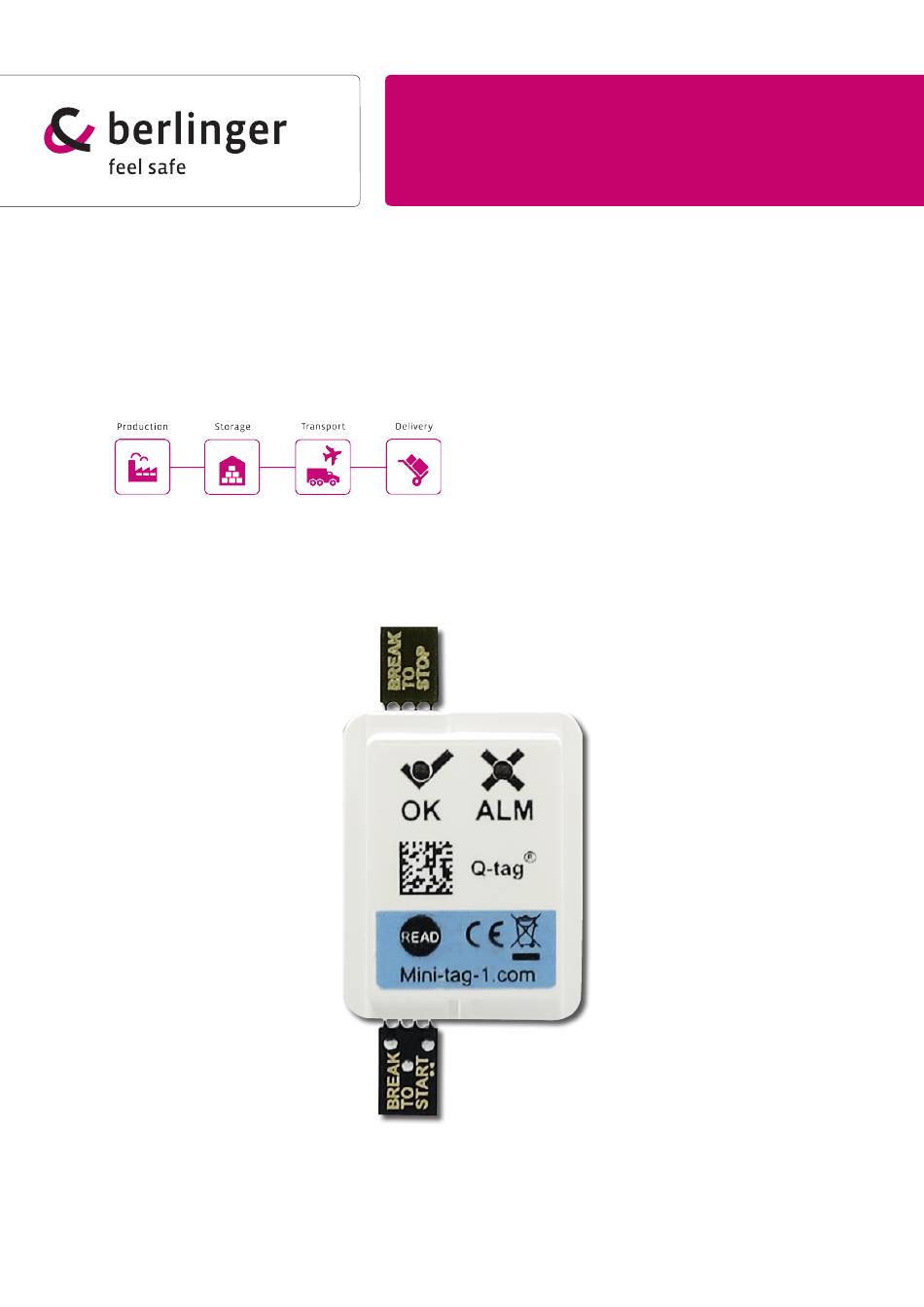

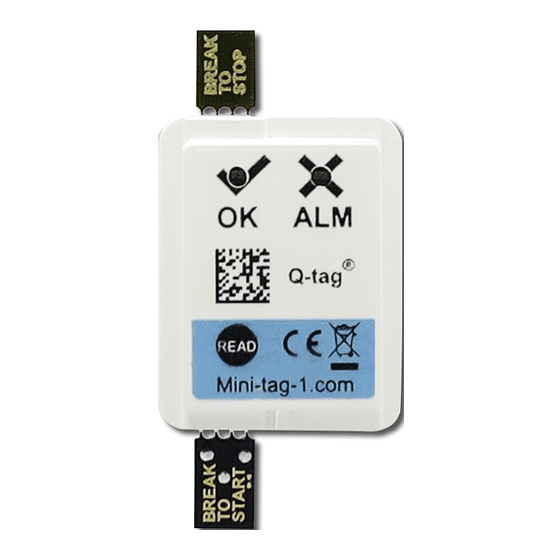

- Page 1 Berlinger Mini-tag ® User manual Multi-alarm temperature indicator 20160715_Release_1.1...
-
Page 2: Table Of Contents
Inhaltsverzeichnis 1) Foreword / introduction ................3 2) Before commissioning................3 2.1) Delivery status ......................3 2.2) Quality test ........................3 2.3) Device Explanation ...................... 3 2.4) Alarm programming ..................... 3 3) Activation ....................4 3.1) Activation process ......................4 Activation option 1: ......................4 By breaking the START break-off tab (standard) .............. -
Page 3: Foreword / Introduction
(see Chapter 3: Activation) 2.2) Quality test The device has passed the necessary high-quality controls at the manufacturer. For the avoidance of transport damage, we recommend checking the following points before using the Berlinger Mini-tag ® • The LED displays on the front of the panel are not blinking •... -
Page 4: Activation
Start sequences) confirmation: green blinks 10 times Note: Once the device is activated, the Berlinger Mini-tag immediately monitors the programmed ® temperature limits and registers any violation of a temperature limit. 3.2) Start delay (optional) If a start delay has been configured at the factory, the countdown starts immediately after activation of the device. -
Page 5: Led Sequence During Measurement Operation
LED sequence during measurement operation 4.3) Option 1: Status display only on query The LEDs only light up when a request is performed. By pressing the READ button once, the status request / alarm identification can be performed at any time. Thus, the status / alarm identification is displayed again every 10 seconds for a duration of one minute (see Chapters 5 and 6: LED indicators . -
Page 6: Leds: Explanation Of The Blink Sequences
5) LEDs: Explanation of the blink sequences Anzahl blinken Descrip- 1 2 3 4 5 6 7 8 9 10 11 12 Time Query Repeat tion between with every x blink READ seconds interval button during long-term display Possible displays during the measurement operation Blink green 1 seconds Start confirmation... -
Page 7: Leds: Alarm Identification (Optional)
*Duration reserve (optional) With cumulative alarm events, it is also possible to set a duration reserve for the cumulative alarms. This serves as a warning, at least on a cumulative alarm, that the duration of the remaining alarm time is less than the programmed duration reserve. Example: Cumulative alarm at >8 °C for 60 minutes with a duration reserve of 10 minutes. -
Page 8: Ending Of The Measurement Operation
7) Ending of the measurement operation The measurement operation of the Berlinger Mini-tag temperature indicator can be stopped by either ® breaking off the STOP break-off tab or by pressing and holding the READ button for 6 or 10 seconds. -
Page 9: Led Sequence After Stop Confirmation
8) LED sequence after stop confirmation 8.1) Option 1: Display of the device status only on query The LEDs do not light up after stopping the device. By pressing the READ button once, the status request / alarm identification can be performed at any time. Thus, the status / alarm identification is displayed again every 10 seconds for a duration of one minute. -
Page 10: Technical Specifications
Its purpose is to ® signal if product quality evaluation or testing is required. 12) Contact If you have any problems with the Berlinger Mini-tag , please do not hesitate to contact our support: ® www.berlinger.com / support@berlinger.com Subjet to change. - Page 11 Berlinger & Co. AG Berlinger USA LLC Mitteldorfstrasse 2 222 Turnpike Road 9608 Ganterschwil Suite 3 Switzerland Westborough, MA 01581 Tel. +41 71 982 88 11 Tel. +1 508 366 0084 Fax +41 71 982 88 39 Fax +1 508 366 0087 info.us@berlinger.com...
