- Page 1 Operating instructions GK45TEPS | GK45TEAS Toptronic hob...
- Page 2 The product family (model number) corresponds to the first alphanumerics on the identification plate. These operating instructions apply to: Type Product family GK45TEPS/C/F GK45TEAS/C/F/U 977, 31026 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2017...
-
Page 3: Table Of Contents
Contents 1 Safety precautions 4 Symbols used ...................... 4 General safety precautions ................. 5 Appliance-specific safety precautions............... 6 Instructions for use .................... 7 2 Disposal 9 3 Using for the first time 10 4 Your appliance 11 Appliance overview..................... 11 Operating and display elements .............. 12 Cookware ...................... 13 5 Operating the appliance 14... -
Page 4: Safety Precautions
Safety precautions Symbols used Denotes important safety precautions. Failure to observe said precautions can result in injury or in damage to the appliance or fittings! Information and precautions that should be observed. Information on disposal Information about the operating instructions ▸... -
Page 5: General Safety Precautions
1 Safety precautions General safety precautions ▪ Read the operating instructions before using the appliance for the first time! ▪ This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental cap- abilities, or lack of experience and/or knowledge, provided they are supervised or have been instructed on the safe use of the appliance and have understood the hazards involved. -
Page 6: Appliance-Specific Safety Precautions
1 Safety precautions Appliance-specific safety precautions ▪ WARNING: If the surface has a crack running through the thickness of the material, switch the appliance off and discon- nect it from the mains to avoid possible electric shock. ▪ WARNING: The appliance and its accessible parts get hot during use. -
Page 7: Instructions For Use
1 Safety precautions Instructions for use Before using for the first time ▪ The appliance must be installed and connected to the electricity supply in accordance with the separate installation instructions. Have a qualified fitter/ electrician carry out the necessary work. Correct use ▪... - Page 8 1 Safety precautions Caution: Risk to life ▪ Packaging materials, e.g. plastic film and polystyrene, can be dangerous for children. Danger of suffocation! Keep packaging material away from chil- dren. How to avoid damaging the appliance ▪ In case of overheating, switch the hotplate off and allow it to cool down completely.
-
Page 9: Disposal
Disposal Packaging ▪ All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection ▪ Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety ▪... -
Page 10: Using For The First Time
Using for the first time The appliance must be installed and connected to the electricity sup- ply in accordance with the separate installation instructions. Have a qualified fitter/electrician carry out the necessary work. During the first few hours of use, a cooking zone can give off an un- pleasant smell. -
Page 11: Your Appliance

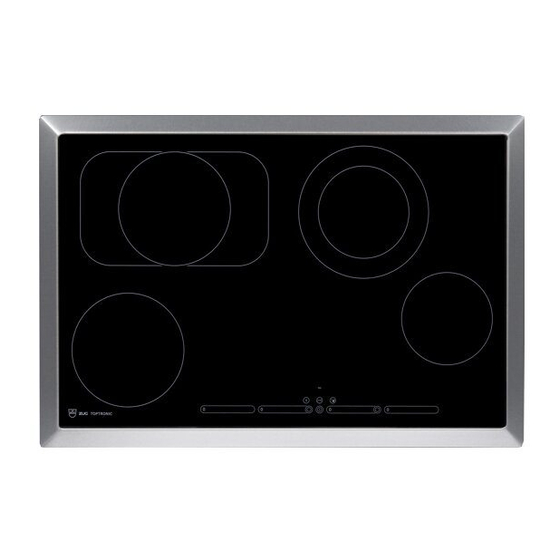

Your appliance Appliance overview GK45TEAS, GK45TEASC, GK45TEASF, GK45TEASU 1 frying zone Ø 170/290 mm 1 dual ring cooking zone Ø 140/210 mm 1 cooking zone Ø 180 mm 1 cooking zone Ø 140 mm GK45TEPS, GK45TEPSC, GK45TEPSF 1 frying zone Ø 170/290 mm 1 dual ring cooking zone Ø 140/210 mm 1 cooking zone Ø... -
Page 12: Operating And Display Elements
4 Your appliance Operating and display elements Buttons Appliance ON/OFF Slider (for setting the power levels) Dual ring cooking zone ON/OFF and frying zone ON/OFF Pause cooking ON/OFF and restore function Operating time / timer Wipe protection ON/OFF Displays 1 Cooking zone power level 2 Operating time activated 3 Frying zone / dual ring cooking zone activated 4 Pause activated / possibility for restoring saved settings... -
Page 13: Cookware
4 Your appliance Cookware Suitable cookware Cookware should have a stable bottom. When heated, the base of the cook- ware must lie flat on the surface of the cooking zone. Cookware made of metal is more suitable than that made of glass or ceramic as with metal the heat is distributed evenly quicker. -
Page 14: Operating The Appliance
Operating the appliance The individual cooking zones are all operated in the same way. When the ap- pliance is switched off, all the displays are dark (stand-by mode), except for the residual heat indicator should any cooking zone still be hot. Switching the appliance on and off All the appliances are operated in the same way. -
Page 15: Switching A Cooking Zone Off
5 Operating the appliance Switching a cooking zone off ▸ Touch power level « » on the slider. – If no other entry is made and the other cooking zones are switched off, the appliance switches off after 10 seconds. Residual heat indicator After a cooking zone is switched off, remains illuminated as long as there is a risk of burns. -
Page 16: Automatic Boost
5 Operating the appliance Automatic boost Do not leave the hob unattended when using the automatic boost. Risk of boiling over, burning on and igniting! All the cooking zones are equipped with a selectable automatic boost. With this function, a cooking zone heats at power level for a certain length of time (see table). - Page 17 5 Operating the appliance Setting the operating time ▸ Select the required cooking zone. ▸ Press the button. – flashes in the display. – The cooking zone indicator lights flash. ▸ Press the slider for the required cooking zone and slide your finger along it to set the operating time.
-
Page 18: Timer
5 Operating the appliance Several operating times If operating times are set for several cooking zones, – the shortest operating time illuminates in the display – the corresponding cooking zone indicator light illuminates – the symbol illuminates with the set operating time for each cooking zone. -
Page 19: Childproof Lock
5 Operating the appliance 5.10 Childproof lock The childproof lock is to prevent the appliance from being accidentally switched on. Switching the childproof lock on ▸ Switch the appliance on. Ensure all cooking zones are switched off. ▸ Touch the buttons at the same time. -
Page 20: Pause Cooking
5 Operating the appliance 5.12 Pause cooking With this function, the power level of all cooking zones that are switched on can be temporarily reduced to for up to 10 minutes. After pause cooking, the appliance can continue to be operated using the pre- vious settings. -
Page 21: User Settings
User settings The following user settings can be set and stored individually: User settings Setting value Factory setting P0 Loudness of acoustic No acoustic signal signal 1–8 Adjustable gradually (1 = quiet, 8 = loud) Acoustic signal at No acoustic signal end of operating Automatically off after time / timer... -
Page 22: Changing User Settings
6 User settings Changing user settings ▸ With the hob switched off, hold the button depressed and touch 3 slider fields from left to right within 2 seconds. – An acoustic signal is emitted each time a slider field is touched. A double acoustic signal is emitted in the case of an erroneous entry. -
Page 23: Care And Maintenance
Care and maintenance Clean the appliance only when it has completely cooled down. Burns hazard! Always clean the hob after use. This prevents food residue from burning on. Dried-on or burned-on food residue is harder to clean off. Use of improper cleaning techniques can result in damage to the markings or surface. -
Page 24: Trouble-Shooting
Trouble-shooting What to do if … … the appliance is not working and all the displays are dark? Possible cause Solution ▪ The fuse or circuit breaker ▸ Change the fuse. for electrical installations ▸ Reset the circuit breaker. in the home is defective. ▪... - Page 25 8 Trouble-shooting flash alternately in the display? Possible cause Solution ▪ The automatic safety shut-off ▸ Switch the cooking zone back on again if was triggered. required. If a cooking zone has been running for longer without any settings be- ing changed, the appliance switches the cooking zone off automatic- ally, after how much time depends on the power level set.
-
Page 26: Technical Data
Technical data Product fiche In accordance with EU Regulation No. 66/2014 Model number GK Type designation GK GK46TEPS/C/F/F Spez. Number of cooking zones Heating technology Radiant cooking zone Diameter of round cooking zones Energy consumption per Wh/kg 192.9 197.1 190.3 cooking zone Energy consumption for Wh/kg... -
Page 27: Index
Index Changing .......... 17 End............ 17 Appliance Setting .......... 17 Switching on and off ...... 14 Several operating times .... 18 Appliance overview ........11 Switching off before time .... 17 Appliance-specific safety Outer cooking ring........15 precautions ..........6 Overview of power levels ...... - Page 28 Warranty extensions ........31 Where is the identification plate?....10 Wipe protection ..........20...
-
Page 29: Notes
Notes... -
Page 31: Service & Support
V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive ser- vice agreements. - Page 32 ▸ Press the slider for the desired cooking zone or slide your finger along it to set the power level. To switch cooking zone off ▸ Press on the slider. To switch appliance off ▸ Press the button. J976352-R06 V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug info@vzug.com, www.vzug.com...
