Mass; Identification And Markings; Internal Components; Figure 3-4 - Injector Identification And Markings - Delphi Multec 3.5 Applications Manual

Multec 3.5 Fuel Injector Application Manual
3.3.2

Mass

3.3.3

Identification and Markings

Injector ID Location
3.3.4

Internal Components

Delphi Energy and Chassis Systems
The mass of the Multec 3.5 Fuel Injector varies slightly with fuel injector
length and type. An approximate value for mass is 35.2 grams for a
"long" version, and 31.5 grams for a "mini" version (includes clip and seal
rings).
Each injector is identified with permanent markings for traceability that
include the date code, build location identification, and the Delphi or
customer part number see Figure 3-4 below).
The 2D symbology pattern provides a machine readable version of the part
number and build information.

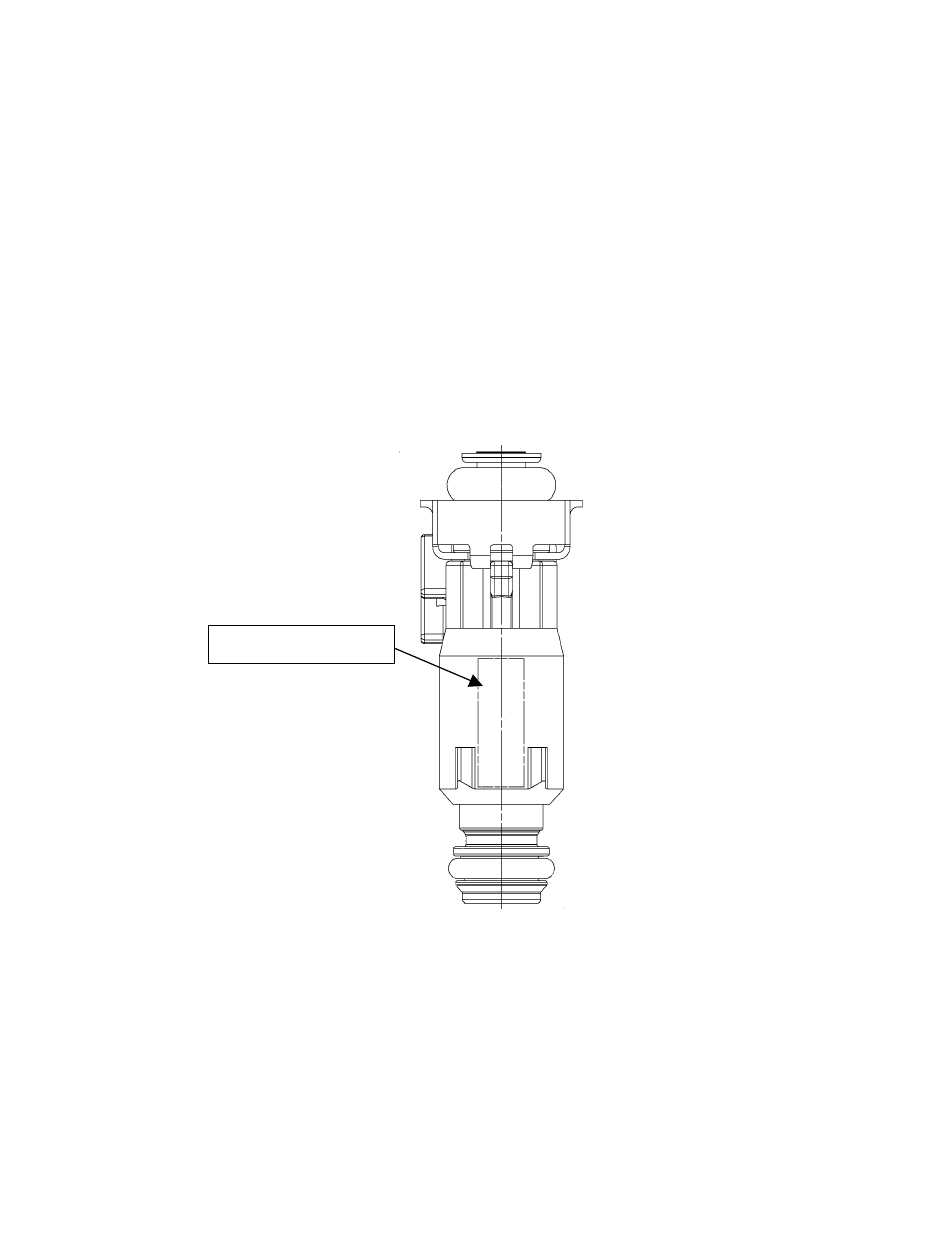

Figure 3-4 - Injector Identification and Markings

Internal components of the Multec 3.5 Fuel Injector are shown in Figure
3-5.
