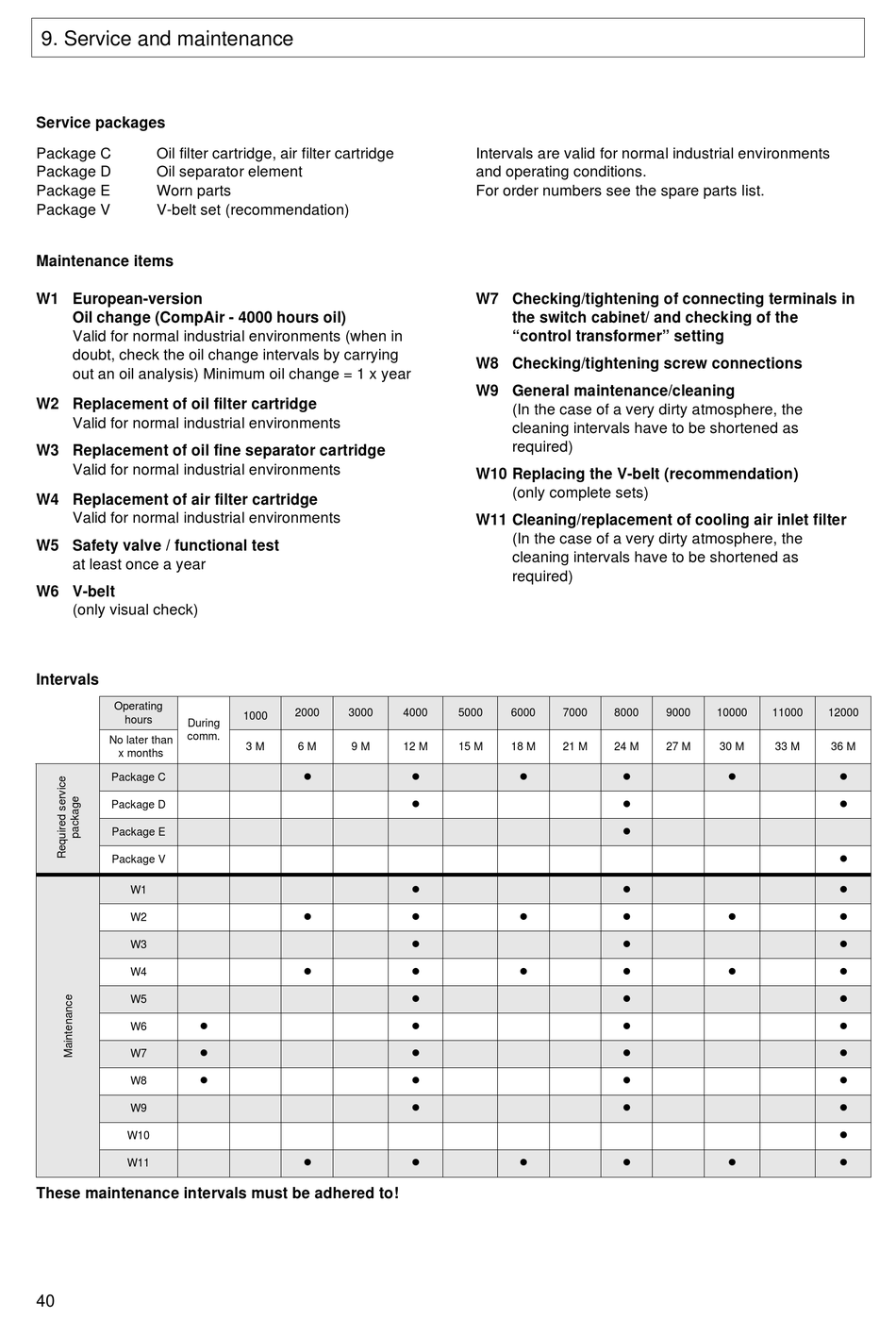

9. Service and maintenance
Service packages
Package C Oil filter cartridge, air filter cartridge
Package D Oil separator element
Package E Worn parts
Package V V-belt set (recommendation)
Maintenance items
W1 European-version
Oil change (CompAir - 4000 hours oil)
Valid for normal industrial environments (when in
doubt, check the oil change intervals by carrying
out an oil analysis) Minimum oil change = 1 x year
W2 Replacement of oil filter cartridge
Valid for normal industrial environments
W3 Replacement of oil fine separator cartridge
Valid for normal industrial environments
W4 Replacement of air filter cartridge
Valid for normal industrial environments
W5 Safety valve / functional test
at least once a year
W6 V-belt
(only visual check)
Intervals
Operating
hours
During
comm.
No later than
x months
Package C
Package D
Package E
Package V
W1
W2
W3
W4
W5

W6

W7

W8
W9
W10
W11
These maintenance intervals must be adhered to!
40
2000 3000 4000
1000
3 M 6 M 9 M 12 M




Intervals are valid for normal industrial environments
and operating conditions.
For order numbers see the spare parts list.
W7 Checking/tightening of connecting terminals in
the switch cabinet/ and checking of the
"control transformer" setting
W8 Checking/tightening screw connections
W9 General maintenance/cleaning
(In the case of a very dirty atmosphere, the
cleaning intervals have to be shortened as
required)
W10 Replacing the V-belt (recommendation)
(only complete sets)
W11 Cleaning/replacement of cooling air inlet filter
(In the case of a very dirty atmosphere, the
cleaning intervals have to be shortened as
required)
5000 6000 7000
15 M 18 M 21 M
 


 

 





 
8000 9000 10000 11000
24 M 27 M 30 M 33 M
 



 

 





 
12000
36 M














