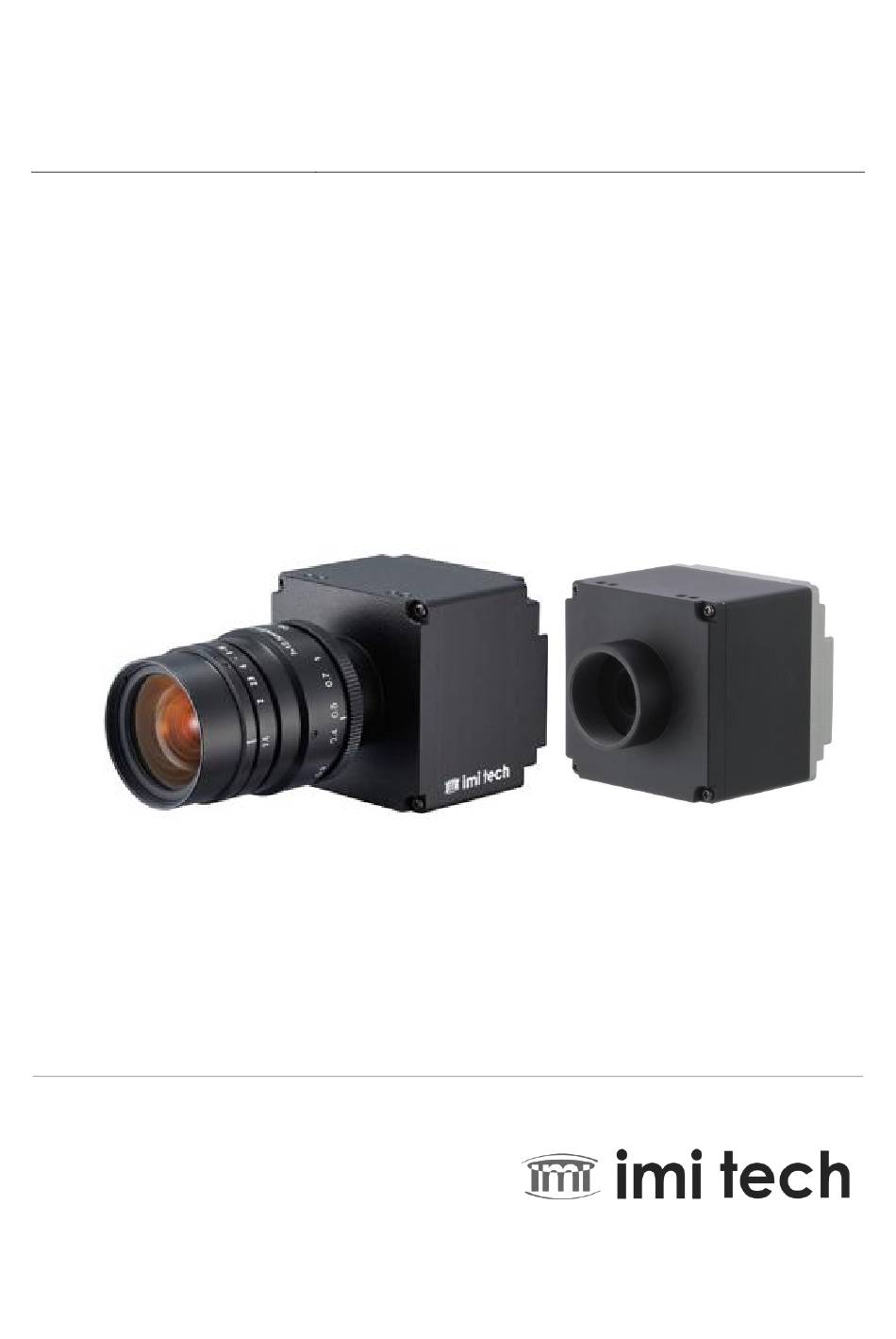

- Page 1 AMAZON SERIES User Operation Manual For GigE Cameras IMx-xxxxG Models USER MANUAL VERSION 1.23 Released Jul. 2012 #616, Mega Valley, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-767, Korea Phone 82-31-423-9801 Fax : 031-423-9803...
- Page 2 Legal Notice. For Customers in U.S.A. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 3 All the materials in this document are protected by copyright and other laws for intellectual property. They are not allowed to be copied, reproduced or modified for any use without the permission of IMI Tech. IMI TECH reserves the right to make changes in specifications, functions or designs at any time and without any notice.
-
Page 4: Table Of Contents
Amazon Series Operation Manual Introduction ........................1 1.1. Overview ................................1 1.2. Components ................................2 1.3. Optional Accessories............................... 3 1.4. Dimension and Description ............................. 4 1.5. Camera Interface ..............................6 1.5.1. Trigger/Strobe/Power Connector Port ......................6 1.5.2. Status LED ..............................7 1.5.3. - Page 5 3.2.2. IMC-7020GH Specification ........................... 23 3.2.3. IMC-7020G Specification ..........................24 3.2.4. IMC-7018G Specification ..........................25 3.2.5. IMC-7017G Specification ..........................26 3.2.6. IMC-7016G Specification ..........................27 3.2.7. IMC-7015G Specification ..........................28 3.2.8. IMC-7012G Specification ..........................29 3.2.9. IMC-7011G Specification ..........................30 3.3.
- Page 6 4.9.6. Trigger Mode 1 ............................49 4.9.7. Trigger Mode 2 ............................49 4.9.8. Trigger Mode 4 ............................49 4.9.9. Trigger Mode 5 ............................50 4.9.10. Trigger Mode 12............................50 4.9.11. Trigger Mode 13............................51 4.9.12. Trigger Mode 15............................51 4.10. Strobe Control Register .............................
- Page 7 STEP4 If there is data to be transmitted repeat from Step 1 ......... 60 5.5.6. SIO(RS232) Registers ..........................60 Base address: F2F22000h, default baud rate is 57600 ............60 5.5.7. SIO(RS232) IMI TECH Commands ......................63 5.6. LUT (Lookup table) .............................. 65 5.6.1. 4 step knee lookup table ..........................65 5.6.2.
- Page 8 Video Formats and Modes ................... 74 7.1. Supported Video Modes by Camera Models ......................76 7.1.1. IMB-7050G ..............................76 7.1.2. IMC-7050G ..............................76 7.1.3. IMB-7020GH ............................... 76 7.1.4. IMC-7020GH ............................... 76 7.1.5. IMB-7020G ..............................76 7.1.6. IMC-7020G ..............................77 7.1.7. IMB-7018G ..............................
-
Page 9: Introduction
AMAZON SERIES Operation Manual Page 1 Introduction 1.1. Overview IMI’s Amazon Family of cameras is compliant with the GigE Vision standard and supports Genicam Standard. Fairly new in the image processing industry, GigE is gaining more interest thanks to users who are familiar with the Ethernet interface and technology. -
Page 10: Components
Page 2 AMAZON SERIES Operation Manual AMAZON SERIES’ unique features include a lookup table and external trigger mode 0, 1, 2, 4, 5 plus 12, 13, 15, one-shot and multi-shot, a wide range of shutter speeds (1us~3600s), partial scan, and binning modes (2x2 for B&W). -
Page 11: Optional Accessories
AMAZON SERIES Operation Manual Page 3 http://www.imi-tech.com 1.3. Optional Accessories Machine Vision CCD Lens 1000/100/10Mbps Gigabit PCI Adapter GigE Cable (CAT5 , CAT6) Tripod Plate P i o n e e r i n D i g i t a l V i s i o n T e c h n o l o g y... -
Page 12: Dimension And Description
Page 4 AMAZON SERIES Operation Manual 1.4. Dimension and Description Camera Body Size : 40(w) x 40(H) x 48(D) mm (for IMx-7011G/IMx-7012G/IMx-7015G/IMx-7016G/IMx-7017G) Camera Body Weight: approx. 125 gram Camera Body Size : 40(w) x 40(H) x 48(D) mm (for IMx-7018G) Camera Body Weight : approx. - Page 13 AMAZON SERIES Operation Manual Page 5 Camera Body Size : 55(w) x550(H) x 48.5(D) mm (for IMx-7020G/IMx-7020GH /IMx-7050G) Camera Body Weight : approx. 125 gram P i o n e e r i n D i g i t a l V i s i o n T e c h n o l o g y...
-
Page 14: Camera Interface
Page 6 AMAZON SERIES Operation Manual 1.5. Camera Interface The AMAZON series camera interfaces are located on the back of the camera (assuming the lens mount is up front) as per the following: Auto Iris Lens Control Port Trigger/Strobe/Power 12 Pin Connector GigE port 1.5.1. -
Page 15: Status Led
AMAZON SERIES Operation Manual Page 7 1.5.2. Status LED When the Yellow LED is lit, it indicates that an active network connection is available. When the Green LED is lit, it indicates that data is being transmitted via the network connection. Remark : When the power off, the LED is OFF 1.5.3. -
Page 16: Pixel Data
Page 8 AMAZON SERIES Operation Manual Strobe Power Strobe falling delay Strobe rising delay 26.8 us 2.16 us 12 V 7.6 us 2.8 us 24 V 3.6 us 3.4 us 1.7. Pixel Data The AMAZON series complies with the AIA GigE Vision version 1.0 where data packets are transmitted by a Gigabit Ethernet interface. - Page 17 AMAZON SERIES Operation Manual Page 9 Y-(K+Pn-3) V-(K+Pn-4) Y-(K+Pn-2) Y-(K+Pn-1) <Mono 8/GR8 Format> Y-(K+0) Y-(K+1) Y-(K+2) Y-(K+3) Y-(K+4) Y-(K+5) Y-(K+6) Y-(K+7) Y-(K+Pn-8) Y-(K+Pn-7) Y-(K+Pn-6) Y-(K+Pn-5) Y-(K+Pn-4) V-(K+Pn-3) Y-(K+Pn-2) Y-(K+Pn-1) <Mono 12/ GR12 Format> High Byte Low Byte Y-(K+0) Y-(K+1) Y-(K+2) Y-(K+3) Y-(K+Pn-4) Y-(K+Pn-3)
-
Page 18: Environmental Requirements
Page 10 AMAZON SERIES Operation Manual 0x81 Lowest 0x80 0x7F -127 0x01 Lowest -128 0x00 <Y(Mono16)> Y component has 16 bits of data. The data type is “Unsigned Short (big-endian)” Signal Level (Decimal) Data (Hexadecimal) Highest 65535 0xFFFF 65534 0xFFFE 0x0001 Lowest 0x0000... -
Page 19: Basic Installation
Standard Gigabit Ethernet Cable (RJ45) Power Supply DC 8V ~ 30V. Software DirectX 9.0 or higher, IMI Tech Digital Imaging CD Remark: Other software or hardware may be required for user specific applications. 2.2. Hardware Installation Basic camera installation is a very simple 3 step process as follows. ( Also check the figure below. ) Step 1. -
Page 20: Software Installation
Page 12 AMAZON SERIES Operation Manual 2.3. Software Installation Important! DO NOT CONNECT THE CAMERA BEFORE INSTALLING THE SOFTWARE!! Insert the IMI Digital Imaging CD which would auto install the camera drivers and demo applications. Or download the camera drivers and demo applications from the IMI website at www.imi-tech.com. ( For details of the application and driver please refer to the demo application manual.) IMI Digital Imaging CD(WebSite) Driver... -
Page 21: Amazon Series Camera Specifications
AMAZON SERIES Operation Manual Page 13 AMAZON Series Camera Specifications. 3.1. Black and White Camera 3.1.1. IMB-7050G Specification Features Image Sensor Type 2/3-inch Interline CCD (ICX625ALA) Effective pixels 5,054,448 pixels 2456(H) x 2058(V) Picture Size 2448x2048 Cell Size(um) 3.45x3.45 (2448x2048 mono 8) (2448x2048 mono 12) Real Frame Rate (1220x1020 mono 8, 2x2 Binning) -
Page 22: Imb-7020Gh Specification
Page 14 AMAZON SERIES Operation Manual 3.1.2. IMB-7020GH Specification Features (IMB-7020GH) Image Sensor 1/1.8” Interline CCD(ICX274AL) Effective Pixels 2,012,208 pixels 1628(H) x 1236(V) Picture Size 1600x1200 Cell Size 4.4 um x 4.4 um 30 (1600x1200, Mono 8) (1600x1200, Mono 12_Not support Jumbo packet) Real Frame Rate Not Support (800x600, 2x2 binning, Mono 8) Not Support (800x600, 2x2 binning, Mono 12) -
Page 23: Imb-7020G Specification
AMAZON SERIES Operation Manual Page 15 3.1.3. IMB-7020G Specification Features (IMB-7020G) Image Sensor 1/1.8” Interline CCD(ICX274AL) Effective Pixels 2,012,208 pixels 1628(H) x 1236(V) Picture Size 1624x1232 Cell Size 4.4 um x 4.4 um 16 (1624x1232, Mono 8) (1624x1232, Mono 12) Real Frame Rate 30 (800x600, 2x2 binning, Mono 8) 15 (800x600, 2x2 binning, Mono 12) -
Page 24: Imb-7018G Specification
Page 16 AMAZON SERIES Operation Manual 3.1.4. IMB-7018G Specification Features (IMB-7018G) Image Sensor 2/3” Interline CCD(ICX285AL) Effective Pixels 1,447,680 pixels 1392(H) x 1040(V) Picture Size 1388x1040 Cell Size 6.45um x 6.45 um 31 (1388x1040, Mono 8) 15 (1388x1040,Mono 12) Real Frame Rate 56 (688x516, 2x2 binning, Mono 8) 28 (688x516, 2x2 binning, Mono 12) Lens Mount... -
Page 25: Imb-7017G Specification
AMAZON SERIES Operation Manual Page 17 3.1.5. IMB-7017G Specification Features (IMB-7017G) Image Sensor 1/2” Interline CCD(ICX267AL) Effective Pixels 1,447,680 pixels 1392(H) x 1040(V) Picture Size 1388x1040 Cell Size 4.65 um x 4.65 um 31 (1388x1040, Mono 8) 15 (1388x1040,Mono 12) Real Frame Rate 58 (688x516, 2x2 binning, Mono 8) 29 (688x516, 2x2 binning, Mono 12) -
Page 26: Imb-7016G Specification
Page 18 AMAZON SERIES Operation Manual 3.1.6. IMB-7016G Specification Features( IMB-7016G) Image Sensor Type 1/3” Interline CCD (ICX445AL) Effective pixels 1,251,936 pixels 1296(H) x 966(V) Picture Size 1288 x 964 Cell Size(um) 3.75 um x3.75 um 30 (1288x964, Mono 8) 15 (1288x964,Mono 12) Real Frame Rate 55 (640X476, 2x2 binning, Mono 8) -
Page 27: Imb-7015G Specification
AMAZON SERIES Operation Manual Page 19 3.1.7. IMB-7015G Specification Features(IMB-7015G) Image Sensor Type 1/3” Interline CCD (ICX204AL) Effective pixels 805,486 pixels 1034(H) x 779(V) Picture Size 1032 x 776 Cell Size(um) 4.65 um x4.65 um 36 (1032x776, Mono 8) 18 (1032x776,Mono 12) Real Frame Rate 65 (512x384, 2x2 binning, Mono 8) 33 (512x384, 2x2 binning, Mono 12) -
Page 28: Imb-7012G Specification
Page 20 AMAZON SERIES Operation Manual 3.1.8. IMB-7012G Specification Features( IMB-7012G) Image Sensor Type 1/2” Interline CCD (ICX414AL) Effective pixels 325,546 pixels 659(H) x 494(V) Picture Size 656 x 484 Cell Size(um) 9.9 um x9.9 um 86 (656 x 484, Mono 8) 43 (656 x 484,Mono 12) Real Frame Rate 160 (324 x 236, 2x2 binning, Mono 8) -
Page 29: Imb-7011G Specification
AMAZON SERIES Operation Manual Page 21 3.1.9. IMB-7011G Specification Features (IMB-7011G) Image Sensor 1/3” Interline CCD (ICX424AL) Effective Pixels 325,546 pixels 659(H) x 494(V) Picture Size 656 x 488 Cell Size 7.40 um x7.40 um 85 (656 x 488, Mono 8) 42 (656 x 484,Mono 12) Real Frame Rate 157 (324 x 240, 2x2 binning, Mono 8) -
Page 30: Color Cameras
Page 22 AMAZON SERIES Operation Manual 3.2. Color Cameras 3.2.1. IMC-7050G Specification Features(IMC-4018) Image Sensor Type 2/3-inch Interline CCD (ICX625AQA) Effective pixels 5,054,448 pixels 2456(H) x 2058(V) Picture Size 2448x2048 Cell Size(um) 3.45x3.45 15 (2448x2048, Format 7 mode 0,GR8) TBD (2448x2048, Format 7 mode 0, GR12) Real Frame Rate TBD (2448x2048, Format 7 mode 0, YUV411) TBD (2448x2048, Format 7 mode 0, YUV422) -
Page 31: Imc-7020Gh Specification
AMAZON SERIES Operation Manual Page 23 3.2.2. IMC-7020GH Specification Features (IMC-7020GH) Image Sensor 1/1.8” Interline CCD(ICX274AQ) Effective Pixels 2,012,208 pixels 1628(H) x 1236(V) Picture Size 1600x1200 Cell Size 4.4 um x 4.4 um 30 (1600x1200, BayerGR8) 15 (1600x1200, Bayer GR12_Not support Jumbo packet ) Real Frame Rate 27 (1600x1200, YUV411) 15 (1600x1200, YUV422_Not support Jumbo packet) -
Page 32: Imc-7020G Specification
Page 24 AMAZON SERIES Operation Manual 3.2.3. IMC-7020G Specification Features (IMC-7020G) Image Sensor 1/1.8” Interline CCD(ICX274AQ) Effective Pixels 2,012,208 pixels 1628(H) x 1236(V) Picture Size 1624 x 1232 Cell Size 4.4 um x 4.4 um 16 (1624x1228, GR8) (1624x1228, GR12) 14 (1624x1228, YUV411) Real Frame Rate (1624x1228, YUV422) -
Page 33: Imc-7018G Specification
AMAZON SERIES Operation Manual Page 25 3.2.4. IMC-7018G Specification Features (IMC-7018G) Image Sensor 2/3” Interline CCD(ICX285AQ) Effective Pixels 1,447,680 pixels 1392(H) x 1040(V) Picture Size 1388x1036 Cell Size 6.45um x 6.45 um 30 (1388x1036, GR8) 15 (1388x1036, GR12) Real Frame Rate 23 (1388x1036, YUV411) 15 (1388x1036, YUV422) Lens Mount... -
Page 34: Imc-7017G Specification
Page 26 AMAZON SERIES Operation Manual 3.2.5. IMC-7017G Specification Features (IMB-1140FT) Image Sensor 1/2” Interline CCD(ICX267AK) Effective Pixels 1,447,680 pixels 1392(H) x 1040(V) Picture Size 1388x1040 Cell Size 4.65 um x 4.65 um 30 (1388x1036, GR8) 15 (1388x1036, GR12) Real Frame Rate 27 (1388x1036, YUV411) 15 (1388x1036, YUV422) Lens Mount... -
Page 35: Imc-7016G Specification
AMAZON SERIES Operation Manual Page 27 3.2.6. IMC-7016G Specification Features( IMC-7016G) Image Sensor Type 1/3” Interline CCD (ICX445AQ) Effective pixels 1,251,936 pixels 1296(H) x 966(V) Picture Size 1288 x 964 Cell Size(um) 3.75 um x3.75 um 30 (1288x960, GR8) Real Frame Rate 27 (1288x960, YUV411) 15 (1288x960, YUV422) Lens Mount... -
Page 36: Imc-7015G Specification
Page 28 AMAZON SERIES Operation Manual 3.2.7. IMC-7015G Specification Features(IMC-7015G) Image Sensor Type 1/3” Interline CCD (ICX204AK) Effective pixels 805,486 pixels 1034(H) x 779(V) Picture Size 1028 x 772 Cell Size(um) 4.65 um x4.65 um 36 (1028x772, GR8) 18 (1028x772,GR12) Real Frame Rate 31 (1028x772, YUV411) 18 (1028x772, YUV422) -
Page 37: Imc-7012G Specification
AMAZON SERIES Operation Manual Page 29 3.2.8. IMC-7012G Specification Features( IMC-7012G) Image Sensor Type 1/2” Interline CCD (ICX414AQ) Effective pixels 325,546 pixels 659(H) x 494(V) Picture Size 652 x 480 Cell Size(um) 9.9 um x9.9 um 87 (652x480, GR8) 43 (652x480,GR12) Real Frame Rate 75 (652x480, YUV411) 43 (652x480, YUV422) -
Page 38: Imc-7011G Specification
Page 30 AMAZON SERIES Operation Manual 3.2.9. IMC-7011G Specification Features (IMC-7011G) Image Sensor 1/3” Interline CCD (ICX424AQ) Effective Pixels 325,546 pixels 659(H) x 494(V) Picture Size 652 x 484 Cell Size 7.40 um x7.40 um 87 (652x484, GR8) 43 (652x484,GR12) Real Frame Rate 73 (652x484, YUV411) 44 (652x484, YUV422) -
Page 39: Spectral Sensitivity
AMAZON SERIES Operation Manual Page 31 3.3. Spectral Sensitivity Excludes lens and light source characteristics 3.3.1. Amazon Series B&W Cameras Spectral Sensitivity for IMB-7050G Spectral Sensitivity for IMB-7020GH / IMB-7020G P i o n e e r i n D i g i t a l V i s i o n T e c h n o l o g y... - Page 40 Page 32 AMAZON SERIES Operation Manual Spectral Sensitivity for IMB-7018G Spectral Sensitivity for IMB-7017G P i o n e e r i n D i g i t a l V i s i o n T e c h n o l o g y...
- Page 41 AMAZON SERIES Operation Manual Page 33 Spectral Sensitivity for IMB-7016G Spectral Sensitivity for IMB-7015G P i o n e e r i n D i g i t a l V i s i o n T e c h n o l o g y...
- Page 42 Page 34 AMAZON SERIES Operation Manual Spectral Sensitivity for IMB-7012G Spectral Sensitivity for IMB-7011G P i o n e e r i n D i g i t a l V i s i o n T e c h n o l o g y...
-
Page 43: Amazon Series Color Cameras
AMAZON SERIES Operation Manual Page 35 3.3.2. Amazon Series Color Cameras Spectral Sensitivity for IMC-7050G Spectral Sensitivity for IMC-7020GH / IMC-7020G P i o n e e r i n D i g i t a l V i s i o n T e c h n o l o g y... - Page 44 Page 36 AMAZON SERIES Operation Manual Spectral Sensitivity for IMC-7018G Spectral Sensitivity for IMC-7017G P i o n e e r i n D i g i t a l V i s i o n T e c h n o l o g y...
- Page 45 AMAZON SERIES Operation Manual Page 37 Spectral Sensitivity for IMC-7016G Spectral Sensitivity for IMC-7015G P i o n e e r i n D i g i t a l V i s i o n T e c h n o l o g y...
- Page 46 Page 38 AMAZON SERIES Operation Manual Spectral Sensitivity for IMC-7012G Spectral Sensitivity for IMC-7011G P i o n e e r i n D i g i t a l V i s i o n T e c h n o l o g y...
-
Page 47: Basic Operation And Features
AMAZON SERIES Operation Manual Page 39 Basic Operation and Features The Amazon Series employs a progressive scan CCD sensor which provides features according to each model. Basic functions and features are similar while each camera has its own specific function support. The Amazon Series fully supports the GigE Vision Standard with regard to registers, video format, mode of operation and control. -
Page 48: Auto Exposure Control
Page 40 AMAZON SERIES Operation Manual 0: Control with value in Value field 1: Control with value in Absolute value CSR if this bit =1, value in Value filed is ignored [2..4] Reserved One_Push Write ‘1’: begin to work (Self cleared after the operation) Read : Value=’1’... -
Page 49: Sharpness
AMAZON SERIES Operation Manual Page 41 Read: read a status 0: OFF, 1: ON If this bit=0, other fields will be read only. A_M_Mode Write: set the mode, Read: read a current mode 0: Manual, 1: Auto [8..19] Reserved Value [20..31] Value: Write the value in Auto mode, this filed is ignored. - Page 50 Page 42 AMAZON SERIES Operation Manual If this bit = 1, value in the Value field is ignored. [2..4] Reserved One_Push Write ‘1’ :begin to work (Self cleared after operation) Read: Value=’1’ in operation Value=’0’ not in operation If A_M_Mode =1, this bit is ignored ON_OFF Write: ON or OFF this feature, Read: read a status...
-
Page 51: Gamma
AMAZON SERIES Operation Manual Page 43 4.5. Color models support Hue control which changes the color phase of the picture by adjusting the Green gain. You may use this feature when white balance correction, adjusting the Red and Blue values, does not give a satisfying result. -
Page 52: Shutter
Page 44 AMAZON SERIES Operation Manual 4.7. Shutter Shutter is defined as the integration time of the incoming light where both the Manual and Auto Shutter are supported. The shutter range varies from 1us ~ 3600 sec. For Shutter control inquiry and status register, follow the same definition as “BRIGHTNESS”... -
Page 53: Gain
AMAZON SERIES Operation Manual Page 45 4.8. Gain Gain refers to the amount of the CCD output signal amplification where gain and shutter have similar effect on the image. Manual and Automatic gain mode are supported and manual adjustment is possible for the following range. For Gain control inquiry and status register, follow the same definition as “BRIGHTNESS”... -
Page 54: Trigger And Strobe Signal Relation
Page 46 AMAZON SERIES Operation Manual Status Control Register Address Name Field Description F0F00830h TRIGGER Presence_Inq Presence of this feature _MODE 0: N/A, 1: Available Abs_Control Absolute value control 0: Control with value in the Value field 1: Control with value in the Absolute value CSR If this bit = 1, value in the Value field is ignored. -
Page 55: Timing Diagram For External Trigger And Shutter And Strobe
AMAZON SERIES Operation Manual Page 47 4.9.3. Timing Diagram for External Trigger and Shutter and Strobe This diagram shows the necessary time related to each signal for External trigger and Shutter and Strobe. P i o n e e r i n D i g i t a l V i s i o n T e c h n o l o g y... -
Page 56: Trigger & Strobe Delay
Page 48 AMAZON SERIES Operation Manual 4.9.4. Trigger & Strobe delay For Amazon series, the strobe signal starting point is almost the same as the exposure starting point Trigger Delay / Strobe Delay External Trigger Internal Trigger Strobe Shutter Exposure time The trigger delay start time is strobe delay start time. -
Page 57: Trigger Mode 1
AMAZON SERIES Operation Manual Page 49 4.9.6. Trigger Mode 1 The camera starts integration of the incoming light from the external trigger input falling edge. Integration time is equal to the low state time of the external trigger input. No parameter is needed. 4.9.7. -
Page 58: Trigger Mode 5
Page 50 AMAZON SERIES Operation Manual 4.9.9. Trigger Mode 5 This mode is “multiple shutter pulse width mode”. The camera starts the integration of the incoming light from the first external trigger input falling edge and exposes incoming light until the trigger is inactive. It repeats this sequence for the ‘N’th (parameter) external trigger input falling edge and then finishes the integration. -
Page 59: Trigger Mode 13
AMAZON SERIES Operation Manual Page 51 4.9.11. Trigger Mode 13 The user can capture the multi frame rates with one trigger signal. Users can control the Gain and Shutter by the Parameter Table which has a range from 1 to 255. However, we recommend that the trigger mode 12 be used. -
Page 60: Strobe Control Register
Page 52 AMAZON SERIES Operation Manual 4.10. Strobe Control Register Base Address : 0xF2F23000h Address Name Field Description 000h Strobe_CTRL_Inq Strobe_0_Inq Presence of strobe 0 signal Strobe_1_Inq Presence of strobe 1 signal Strobe_2_Inq Presence of strobe 2 signal Strobe_3_Inq Presence of strobe 3 signal [4..31] Reserved 004h... -
Page 61: Trigger Delay Control
AMAZON SERIES Operation Manual Page 53 If Polarity_Inq is “0” Read only ( 0: lowa active output, 1: High active output) Delay after start of exposure until the Delay_Value [8..19] strobe signal asserts Duration of the strobe signal Duration_Value [20..31] A value 0 means dessert at the end of exposure function if required. -
Page 62: Status Control Register
Page 54 AMAZON SERIES Operation Manual Status Control Register Address Name Field Description F0F00834h TRIGGER_DELAY Presence_Inq Presence of this feature 0: N/A 1: Available Abs_Control Absolute value control 0: Control with value in Value field 1: Control with value in Absolute value CSR if this bit =1, value in Value filed is ignored [2..5]... -
Page 63: Color (Bayer) Patterns Conversions
AMAZON SERIES Operation Manual Page 55 4.11.2. Color (Bayer) Patterns Conversions Color sensors capture images through an optical low pass filter which is coated over the individual pixels in Bayer mosaic layout. Imaged data is transferred to the PC for color processing of the Bayer Pattern; which saves bandwidth and achieves higher frame rate and flexibility. -
Page 64: Advanced Features
Page 56 AMAZON SERIES Operation Manual Advanced Features 5.1. Binning Mode Binning is defined as reading neighboring pixel from the CCD and combining them to create one pixel value. Binning has an advantage in the following situations as well as in various applications. Relative binning mode per camera model is described in each camera specification. -
Page 65: One-Shot And Multi-Shot
AMAZON SERIES Operation Manual Page 57 Left + Width < = Hmax Initial Values System Dependant Top + Height < = Vmax Read Values Last Update Value (n1,n2, m1, m2 are integers) Write Effect Stored 5.3. One-Shot and Multi-Shot This camera supports One-Shot and Multi-Shot features. The camera should be in ISO disabled mode before the execution of these commands. -
Page 66: Serial Interface
GigE Vision address range. SIO can be further used as RS232 interface which supports the IMI tech commands. Please note that “SIO Pass Through” is disabled by default. To enable “SIO Pass Through” please refer to section 5.5.7. -
Page 67: Tbuf_St: Current Tx Data Buffer(Unit:byte) Of The Camera
AMAZON SERIES Operation Manual Page 59 If ((TBUF_ST == Buffer_Size_Inq) or (TBUF_TDRD ==1)) then TX is COMPLETE else TX is INCOMPLETE TBUF_ST: Current TX Data buffer(Unit:byte) of the camera TBUF_CNT: Read : Number of data transmitted by RS232 TX Buffer_Size_Inq: Defined in Serial_Mode_Reg( Addr. : F2F22000h) Ex) 20050000h: valid data buffer size = 20 number of data sent : 05 STEP 2. -
Page 68: Rs232Tx Start
Page 60 AMAZON SERIES Operation Manual If (write data number > = TBUF_CNT) RS232TX Start Write Data number larger than TBUF_CNT is discarded. For example if TBUF_CNT = 5 , write is done by a unit of 4 bytes where 8 bytes shall be written at SIO_Data_Register but only 5 bytes are transmitted and the 3 bytes remaining shall be discarded. - Page 69 AMAZON SERIES Operation Manual Page 61 004h Serial_Control_Reg Receive enable Read: Current status Write: 0: Disable, 1: Enable Transmit enable Read: Current status Write: 0: Disable, 1: Enable [2..7] Reserved Serial_Status_Reg TDRD Transmit data buffer ready Read only 0: Not ready, 1: Ready Reserved RDRD [10]...
- Page 70 Page 62 AMAZON SERIES Operation Manual padding data if data is invalid Char_2 [8..15] Chracter_2 Read: Read character from receive buffer +2 Padding data, if data is not available Write: Character to transmit buffer +2 padding data if data is invalid Char_3 [16..31] Chracter_3...
-
Page 71: Sio(Rs232) Imi Tech Commands
0xF2F10018 Read/Write Bit 30: SIO enable mode (0 : IMI-TECH mode, 1) IMI Tech Commands are valid when the Bit30 is set to “0”(zero). SIO(RS232) IMI Tech commands are a specific mode for IMI cameras. Before using these commands, serial communication parameters must be set at Serial_Mode_Reg (F2F22000h). - Page 72 Page 64 AMAZON SERIES Operation Manual SIO(RS232) Commands Data Command Return Value Function Length Gain control (0x000 ~ 0x30F(BW Model) or 2D3(Color Model)) 3 Bytes (see gain mapping graph) Ex) SA0200Z: Gain index value 512 (18dB) Shutter speed control 3 Bytes (0x001 ~ 0xCFB) (see shutter speed table) Set/Clear auto shutter speed and auto gain...
-
Page 73: Lut (Lookup Table)
AMAZON SERIES Operation Manual Page 65 5.6. LUT (Lookup table) The Amazon series supports an LUT, which provides the user with an image comprised of the user’s defined dynamic range. Through the LUT, the user can process the images from saturation to dark. The LUT can be used optionally with Brightness, Sharpness and Gamma. -
Page 74: User Defined Lookup Table
Page 66 AMAZON SERIES Operation Manual Before Image (before 4 points LUT) After Image (after 4 points LUT) 5.6.2. User defined lookup table The user can set defined points (data file) for the images and apply them to the LUT. User’s defined LUT running procedure is as follows. -
Page 75: User Defined Ae
AMAZON SERIES Operation Manual Page 67 The user defined LUT save procedure is as follows: Check the save ready bit (bit1) status of the LUT save control register (0xF2F10140). If bit 1 is 0, wait. Write 1 at the LUT buffer address init bit (bit7) of the LUT save control register (0xF2F10140): 0xF2F10140 (<= 0x01000000). -
Page 76: One Pixel Snow Noise Remove
Page 68 AMAZON SERIES Operation Manual 5.8. One Pixel Snow Noise Remove This is to average the value of snow noise per pixel by using the neighboring pixel values. The operation scheme is as follows: If ((Pi-Pi-1) > Threshold*16) and ((Pi-Pi+1) > (Threshold*16)), Pi is a bad pixel. Color cameras have no bad pixel remove function. - Page 77 AMAZON SERIES Operation Manual Page 69 Before snow noise image After snow noise removal P i o n e e r i n D i g i t a l V i s i o n T e c h n o l o g y...
-
Page 78: Pio Control Register
Page 70 AMAZON SERIES Operation Manual 5.9. PIO Control Register The Programmed Input / Output provides a set of I/O ports which can be configured by the defined address. The PIO control register address, for strobe and trigger signal, is as follows. Address Description (bit 0: msb) Read/Write... -
Page 79: User Defined Registers
AMAZON SERIES Operation Manual Page 71 User Defined Registers User defined registers are IMI specific feature registers which IMI cameras are capable of implementing. The user can utilize extended features of the IMI specific register for an application. 6.1. User Defined Address Address Description( bit : msb*) Read/Write... - Page 80 Page 72 AMAZON SERIES Operation Manual Mode control register 0xF2F10018 Bit 30: SIO enable mode (0: IMI-TECH mode, 1: path through) Read/Write Trigger noise filter register (External trigger only) 0xF2F10110 Read/Write Bit 22~Bit 31: trigger masking range (M, unit: usec, range: 0~999) Power on default memory channel 0xF2F1011C Read/Write...
- Page 81 AMAZON SERIES Operation Manual Page 73 Bit 7~Bit 11: reserved Bit 12~Bit 15: run LUT index Bit 16~Bit 31: reserved LUT save control register Bit 0: save command Bit 1: save ready status( read only) 0xF2F10140 Read/Write Bit 2~Bit 6: reserved Bit 7: set LUT write buffer address to 0 Bit 8~Bit 11: save LUT index Bit 12~Bit 31: reserved...
-
Page 82: Video Formats And Modes
Page 74 AMAZON SERIES Operation Manual DAC Control register Bit 0: Presence inquiry (read only) Bit 4: Exposure feature value DAC output enable for calibration or test Bit 5: Exposure feature reference mode enable [Bit 4: Bit 5] 00: DAC output = Frame Brightness 0xF2F10154 Read/Write 01: DAC output = Frame Brightness –... - Page 83 AMAZON SERIES Operation Manual Page 75 03Ch TOTAL_BYTE_LO_INQ Lower quadlet of total bytes of image data per frame 040h PACKET_PARA_INQ Unit (Minimum) bytes per packet Multiple by 4 Maximum bytes per packet Multiple by UnitBytePerPacket 044h BYTE_PER_PACKET Packet size, Recommended bytes per packet. If this value is zero, this field will be ignored.
-
Page 84: Supported Video Modes By Camera Models
Page 76 AMAZON SERIES Operation Manual 7.1. Supported Video Modes by Camera Models 7.1.1. IMB-7050G Resolution Remark 2448 x 2048 15 fps Max at Mono 8 2448 x 2048 7.5 fps Max at Mono 12 1220 x 1020 27 fps 2x2 binning at Mono 8 1220 x 1020 13.5 fps 2x2 binning at Mono 12 7.1.2. -
Page 85: Imc-7020G
AMAZON SERIES Operation Manual Page 77 800 x 600 15 fps 2x2 binning ( H&V Binning ) at Mono 12 7.1.6. IMC-7020G Resolution Remark 1624 x 1228 16 fps Max at GR8 1624 x 1228 8 fps Max at GR12 1624 x 1228 14 fps Max at YUV411 1624 x 1228... -
Page 86: Imc-7017G
Page 78 AMAZON SERIES Operation Manual 7.1.10. IMC-7017G Resolution Remark 1388 x 1036 30 fps Max at GR8 1388 x 1036 15 fps Max at GR12 1388 x 1036 27 fps Max at YUV411 1388 x 1036 15 fps Max at YUV422 7.1.11. -
Page 87: Imc-7015G
AMAZON SERIES Operation Manual Page 79 7.1.14. IMC-7015G Resolution Remark 36 fps Max at GR8 1028 x 772 18 fps Max at GR12 1028 x 772 31 fps Max at Y411 1028 x 772 1028 x 772 18 fps Max at Y422 7.1.15. -
Page 88: Imc-7011G
Page 80 AMAZON SERIES Operation Manual 7.1.18. IMC-7011G Resolution Remark 87 fps Max at GR8 652 x 484 43 fps Max at GR12 652 x 484 73 fps Max at Y411 652 x 484 652 x 484 42 fps Max at Y422 P i o n e e r i n D i g i t a l V i s i o n T e c h n o l o g y... -
Page 89: Firmware Update
AMAZON SERIES Operation Manual Page 81 Firmware Update You my download the latest firmware from the IMI website as follows: http://www.imi-tech.com When updating the firmware, please carefully follow the instruction provided on our website for firmware update. Also, ensure both power and GigE interface connection and DO NOT disconnect the cable in any case during the update.
