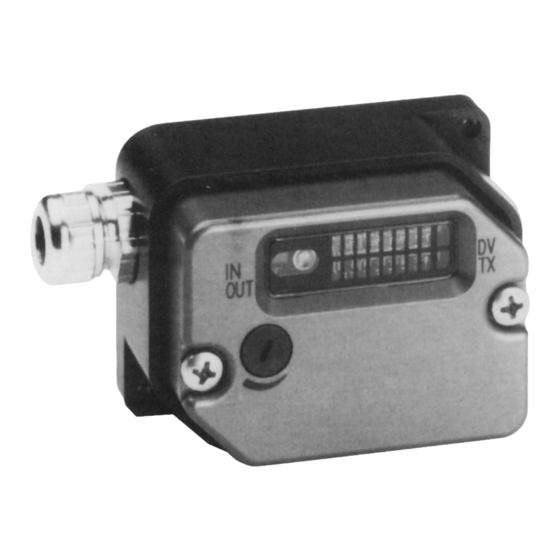

- Page 1 Parallel optical data transmission DLSP 160S Technical Description...
- Page 2 © All rights reserved, in particular the rights of reproduction, and translation. Duplication or reproduction in any form (print, microfilm or data) may only be carried out with the expressed written consent of Leuze electronic GmbH + Co. We reserve the right to make changes for the Technical improvement of the product.
-
Page 3: Table Of Contents
Electrical data................... 14 Installation and commissioning..............16 Installation ....................16 Commissioning..................17 6.2.1 Setting the DLSP ................17 6.2.2 Performance test................. 17 6.2.3 Sensitivity adjustment ................. 17 Maintenance....................18 Faults and their remedy................18 Order designations ..................19 Leuze electronic DLSP 160S... -
Page 4: General
To permit you to find information quickly, key words are listed in the left-hand col- umn in italics. Important terms DLSP Type designation for Leuze electronic data transmission units with parallel inter- face. The transmitter and receiver are accommodated in a single housing. DLSP 160S Type designation for the electronic and display unit. -
Page 5: Declaration Of Conformity
Notice The corresponding declaration of conformity can be requested from the manufactu- rer. The manufacturer of the product, Leuze electronic GmbH + Co. in D-73277 Owen/Teck, possesses a certified quality management system in accord- ance with ISO 9001. Leuze electronic... -
Page 6: Safety Notices
Electrical work may only be carried out by qualified electricians. Maintenance and repair All maintenance work on the DLSP must be carried out in accordance with the in- structions in this manual. Repairs may only performed by the Leuze electronic after- sales service. DLSP 160S... -
Page 7: Description
• Transmitter and receiver in a single housing (same units) • Simple, rapid alignment with wide beam angle • Simple commissioning with display of inputs and outputs • No transmission parameter setting work required Leuze electronic DLSP 160S... -
Page 8: Structure
Cable feed-in is either at the side or through the rear wall by means of a cable gland. Fig. 2 DLSP structure 1 Electronic and display unit DLSP 160S 2 Sensitivity setting 3 Transmit/receive window 4 Input/output status displays... -
Page 9: Functional Characteristics
DLSP. Benefit Both the units forming a transmission path operate on an identical basis, i.e. no master/slave operation and no need for different settings. Fig. 3 Transmit/receive principle Leuze electronic DLSP 160S... -
Page 10: Addressing
The setting "save (0) / do not save (1)" is carried out using a DIP switch. Benefit Following a data exchange, the outputs can be scanned at any time. DLSP 160S Leuze electronic... -
Page 11: Signal Profile
This output signals the presence of valid data at the receiver. In the event of a faulty transmission or if the light beam has been interrupted, the output remains in- active ("O"). Data outputs (DO) In the no-signal status, the outputs are set at "O", active signals are indicated by "l". Leuze electronic DLSP 160S... - Page 12 "0" at all the outputs and the green indicator LEDs. Benefits The status of output drivers can easily be automatically checked by a programm- able control system. "O" at the OE generally forces a signal change at the outputs. DLSP 160S Leuze electronic...
-
Page 13: Applications
• By using different addresses, it is possible to prevent transmission between the fixed stations (1). • By using different addresses, it is possible to prevent transmission between fixed stations positioned opposite each other (2). Fig. 8 Several DLSPs with addressing Leuze electronic DLSP 160S... -
Page 14: Bus Operation
These data are further directed to a corresponding fixed station. DLSP setting - storage device • Storage mode • Connect inputs with outputs • Transmit address: same as station receive addres • Receive address: same as fixed station transmit address (output point) DLSP 160S Leuze electronic... -
Page 15: Specifications
5 Specifications Characteristic data Manufacturer Leuze electronic GmbH + Co. D-73277 Owen-Teck Transmission medium IR modulated light Modulation Pulse Pause Modulation (PPM) Range 0 - 1.8 m < 400 μs Time per data exchange Resistance to outside light 30 klux Optical beam angle +/- 20°... -
Page 16: Mechanical Data
Mounting holes ø4,2 (2x) 66,6 17,6 ca.95 Befestigungsbohrungen Mounting holes ø4,2 (2x) 66,6 10,5 ca.93 Blanking plug PG9 Blindstopfen 37,5 Fig. 11 Dimensions (mm) Ambient conditions Ambient temperature -20°C to +60°C Storage temperature -30°C to +70°C DLSP 160S Leuze electronic... -
Page 17: Electrical Data
Kurzschluß – Kurzschluß – Schutz Schutz protection protection 6,8 k Transient Transienten- protection schutz Yellow gelb Green grün Data valid (DV) High side driver, short circuit proof max. load 250 mA Fig. 13 Output circuit Leuze electronic DLSP 160S... -
Page 18: Installation And Commissioning
DO 5 Data output 5 Spring-type terminal DO 4 Data output 4 Fig. 14 Plug assignment DO 3 Data output 3 DO 2 Data output 2 DO 1 Data output 1 Output enable Transmit data 24/NC 25/NC DLSP 160S Leuze electronic... -
Page 19: Commissioning
Then turn the potentiometer slowly to the left until the display "Data valid" goes out at the unit positioned opposite. ➜ Turn the potentiometer around back to the right by around 1/4 turn. ➜ Replace the cover over the potentiometer. ➜ Repeat the process at the other DLSP. Leuze electronic DLSP 160S... -
Page 20: Maintenance
Check transmit and receive addresses at consecutive transmission paths. all DLSPS. For every transmission path, a different address must be selected. Power supply earth is connected Isolate the power supply earth from the to housing. housing. DLSP 160S Leuze electronic... -
Page 21: Order Designations
9 Order designations Electronic unit Order designation: DLSP 160S Connection unit with solder terminal Order designation: AT 160 - 01 PG 9 Connection unit with terminals for ribbon cable Order designation: AT 160 - 02 PG 9 Connection unit with spring-type terminals...
