5.6 Busbar switch function with earth connection

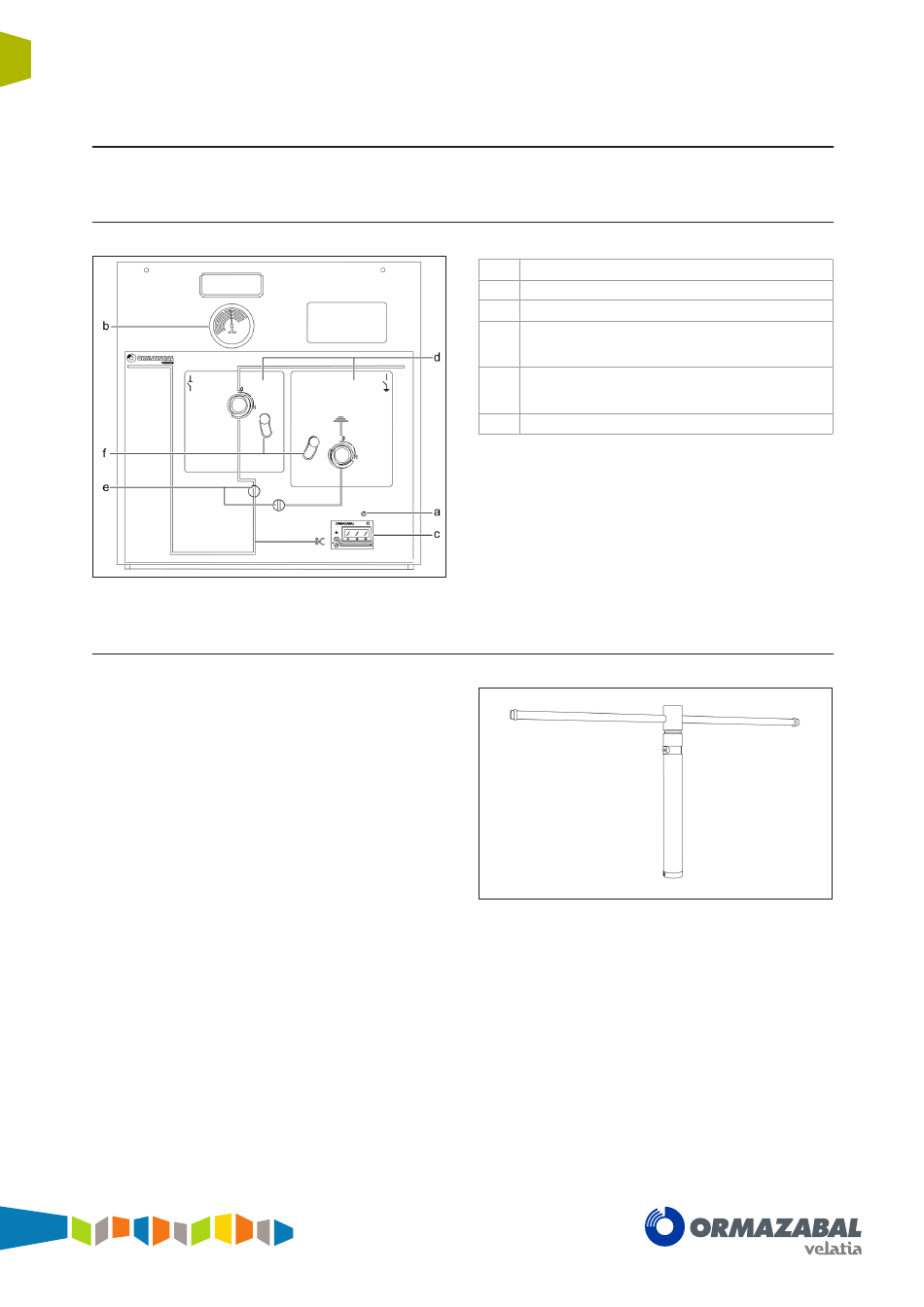

5.6.1 Mimic diagram

5.6.2 Driving lever

The driving lever to be used to operate the switch –
disconnector – earthing switch of the feeder function with
B or BM driving mechanisms is:
a
b
c
d
e
f
Figure 5.23
Figure 5.24
IG-136-EN version 10; 23/06/2016
ekor.sas, acoustic earthing prevention alarm
Pressure gauge window
ekor.sas, acoustic earthing prevention alarm
Operation area:
• GREY for switch-disconnector
• YELLOW for earthing switch
Status indicator
• BLACK for switch-disconnector
• RED for earthing switch
Driving shaft access handles
Mimic diagram cubicle cgmcosmos-s-pti
B, BM driving mechanism lever
General instructions
.
cgm 3 system
