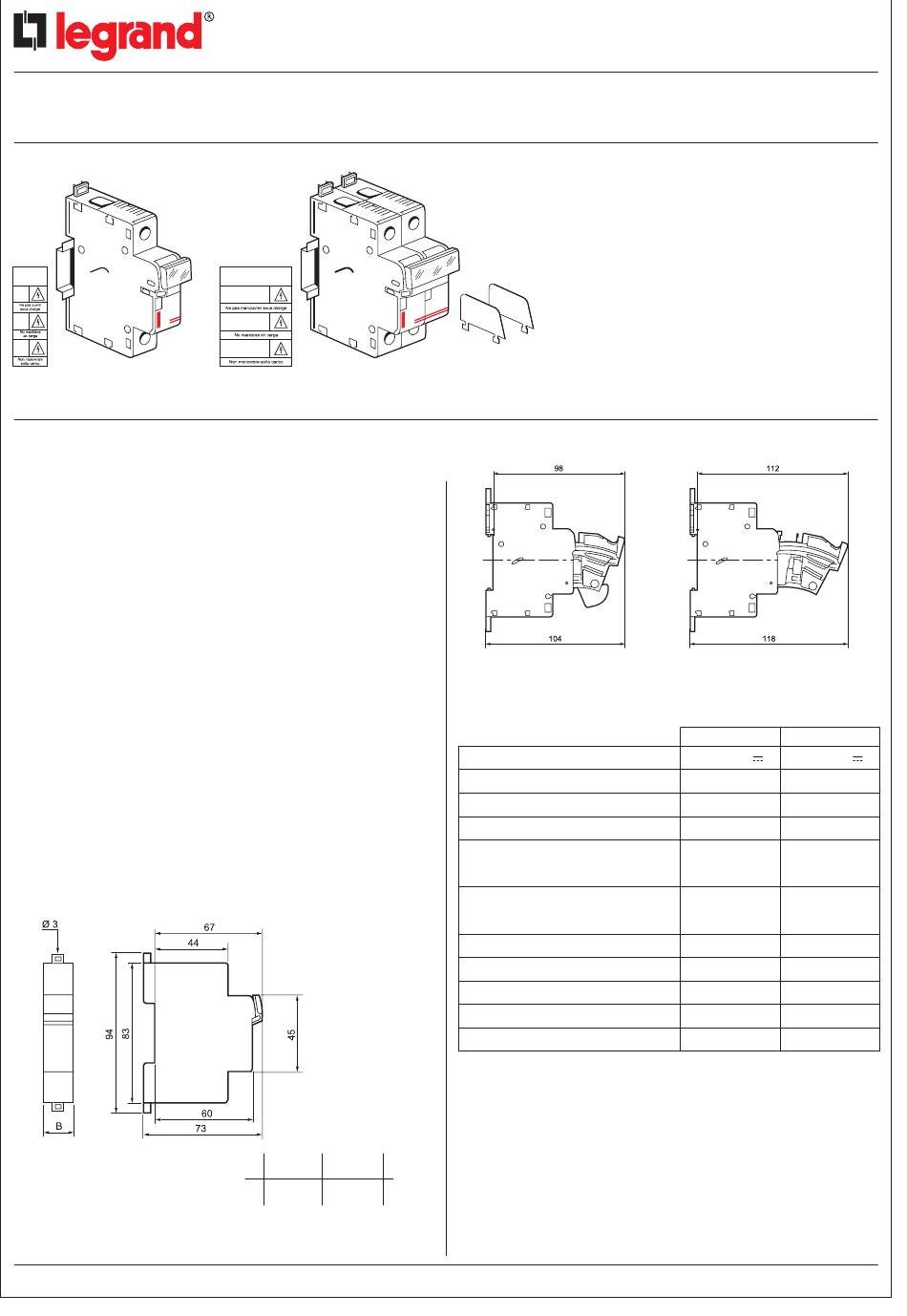

1. GENERAL FEATURES
1-1 Brief description

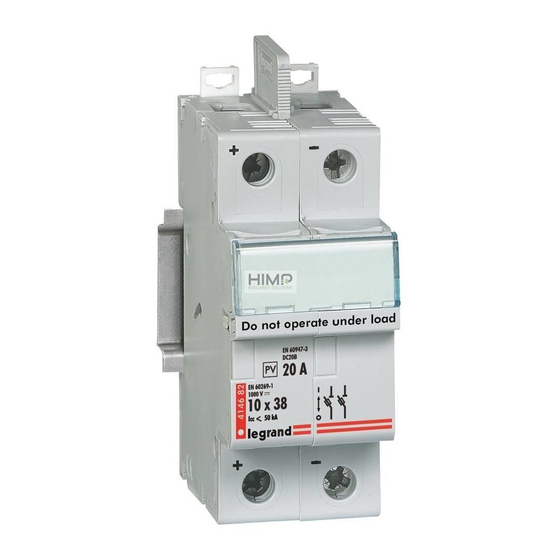

- Single pole (1P) and 2-pole (2P) photovoltaic (PV) fuse carrier
for isolating and protecting DC circuits from PV panels for
applications up to 1000 V.
- For 10 x 38 mm cylindrical fuses
- Supplied with dividers (4146 82) and safety labels:
"Do not operate under load"
1-2 Use
- Use recommended according to recommendations in guide
UTE C 15-712-1
- Use with fuses specifically designed for the DC side of
PV applications
Recommended use:
- 1P fuse carrier: For installations with polarised PV panels
(with earthing of one of the polarities), protection of the poles
not connected to earth for each PV string
- 2P fuse carrier: For protection of both poles of each string
of non-polarised PV panels
2. OVERALL DIMENSIONS
Technical data sheet: F01248EN/01
Do not operate under load
414 682
1 pole
2 poles
B
17.7
35.5
87045 LIMOGES Cedex
Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88
Catalogue number(s): 4146 81/82
CONTENTS
1. General features
2. Overall dimensions
3. Technical features
2. OVERALL DIMENSIONS (continued)
3. TECHNICAL FEATURES
Operating voltage (Ue)*
Operating current (le)
Number of protected poles
Utilisation category
Max. short-circuit current
(Isc)
Rated impulse withstand
voltage Uimp
Degree of pollution
Usage temperature
Storage temperature
Mechanical performance
Protection
2013-07-02
Updated on:
PAGES
1
1
1
2
2
2
2-3
3-4
4-5
4146 81
4146 82
1000 V
1000 V
20 A
20 A
1
2
DC 20B
DC 20B
50 kA
50 kA
6 kV
6 kV
2
2
-5°C +40°C
-5°C +40°C
-25°C +70°C -25°C +70°C
IK04
IK04
IP2X
IP2X
Created on: 13/01/2012
1/5
