Spectra PowerTwin-Pix-6x00 Series User Manual

Mini-pc with skylake cpu
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

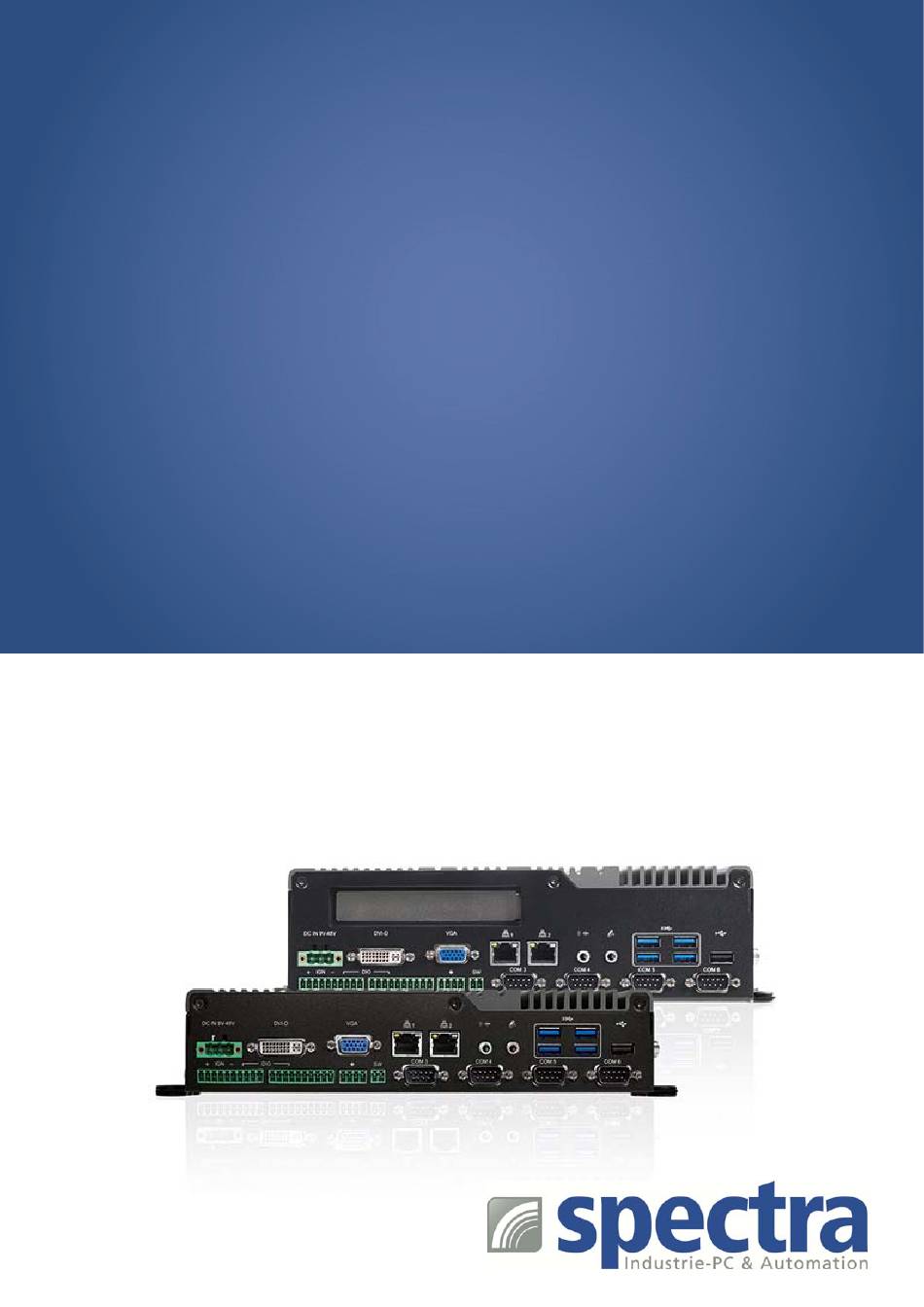

Spectra PowerTwin‐Pix‐6x00
Mini‐PC with Skylake CPU
USER MANUAL
Version 1.6 – April 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerTwin-Pix-6x00 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Spectra PowerTwin-Pix-6x00 Series

Summary of Contents for Spectra PowerTwin-Pix-6x00 Series

  • Page 1 Spectra PowerTwin‐Pix‐6x00 Mini‐PC with Skylake CPU USER MANUAL Version 1.6 – April 2019...

  • Page 2: Table Of Contents

    3.11 Installing the Top Cover ………………………...…..….……………..50 3.12 Installing a SATA Hard Drive at Front Pane………..….……………… 51 3.13 Installing a SATA Hard Drive on Bottom Side …..…….……………... 54 3.14 Installing a SIM Card ……………………….………..….……………… 56 Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 3 4.7.9 Restore User Defaults ..………………….……………………… 85 Chapter 5 Product Application 5.1 Digital I/O (DIO) application …..…………………….…..….………….. 87 5.1.1 Digital I/O Programming Guide ………………………………... 87 Digital I/O (DIO) Hardware Specification …………………….. 5.2.1 DIO Connector Definition ……………………………..Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 4: Revision

    2019/04/19 Copyright Notice © 2019 by Spectra GmbH & Co. KG. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Spectra GmbH &...

  • Page 5: Product Warranty Statement

    (such as a fuse, battery, etc.), are not warranted Before sending your product in, you will need to fill in a Spectra RMA Request Form and obtain a RMA number from us. Please go to www.spectra.de/RMA...

  • Page 6: Technical Support And Assistance

    This indication alerts operators to an operation that, if not strictly observed, may result in safety hazards to personnel or damage to equipment. This indication provides additional information to complete a task easily. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 7: Safety Precaution

     The equipment has been dropped and damaged.  The equipment has obvious signs of breakage. 14. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 8: Package Contents

    Ordering Information Model No. Product Description Spectra PowerTwin‐ Intel® 6 Generation Core™ i5‐6300U Fanless Computer with CFM and CDS  Pi5‐6300U Interface Spectra PowerTwin‐ Intel® 6 Generation Core™ i5‐6300U Expandable Fanless Computer with CFM  Pi5‐6300UE and CDS Interface Intel® 6 Generation Core™ i3‐6100U Fanless Computer with CFM and CDS  Spectra PowerTwin‐ Pi3‐6100U Interface Spectra PowerTwin‐ Intel® 6 Generation Core™ i3‐6100U Expandable Fanless Computer with CFM  Pi3‐6100UE and CDS Interface Spectra PowerTwin‐ Intel® 6 Generation Core™ i7‐6600U Fanless Computer with CFM and CDS  Pi7‐6600U Interface Spectra PowerTwin‐ Intel® 6 Generation Core™ i7‐6600U Expandable Fanless Computer with CFM  Pi7‐6600UE and CDS Interface Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 9: Optional Modules & Accessories

    Mini‐PCIe Module with 2x RS‐232 Serial Ports, 1x Standard DB9 Cable, 1x  MEC‐COM‐M212 Universal Bracket with 2x DB9 Cutout Mini‐PCIe Module with 4x RS‐232/422/485 Serial Ports, 2x Thin DB9 Cable,1x  MEC‐COM‐M334 Universal Bracket with 4x DB9 Cutout Mini‐PCIe Module with 2x LAN Ports, 2x 30cm cable, 1x Universal Bracket with 2x  MEC‐LAN‐M002‐30 RJ45 Cutout Mini‐PCIe Module with 2x USB 3.0 Ports, 1x30 cm cable, 1x Universal Bracket  MEC‐USB‐M102‐30 with 2x USB Cutout RSC‐E4 Riser Card 1 x PCIex4 (For SPT‐Pix‐6x00UE only) RSC‐P V1.2 Riser Card 1 x PCI (For SPT‐Pix‐6x00UE only) Power Adapter,  Adapter AC/DC 12V 5A 60W, GST60A12‐CIN1, wide temp (‐30°C ~ +70°C), level VI 60W/12V, 3pin Power Adapter,  Adapter AC/DC 24V 5A 120W, GST120A24‐CIN, wide temp (‐30°C ~ +70°C), level  120W/24V, 3pin Adapter AC/DC 24V 9.2A 220W, GST220A24‐CIN, wide temp (‐30 ° C ~ +70 ° C), level  Power Adapter,  220W/24V, 3pin VI (For SPT‐Pix‐6x00UE only) Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 10: Chapter 1 Product Introductions

    Chapter 1 Product Introductions...

  • Page 11: Overview

    1x DVI-D and 1x CDS interface. Spectra PowerTwin-Pix-6x00U(E) provides great connectivity with rich I/O including 2x GbE LAN, 5x USB and 6x COM ports. Spectra PowerTwin-Pix- 6x00U(E) also supports 3 types of storage devices including 2.5" SATA HDD, CFast and mSATA.

  • Page 12: Product Pictures

    1.3 Product pictures Spectra PowerTwin-Pix-6x00U Spectra PowerTwin-Pix-6x00UE Front Front Rear Rear Side (Left) Side (Left) Side (Right) Side (Right) 1.4 key Features •  Onboard Intel® 6th Generation Core™ U Series Processor (15W) •  2x DDR4 SO‐DIMM Socket, Support Up to 32 GB •  Advanced Graphics Engine Support Triple Independent Display •  2x 2.5” SATA HDD Bay, 1x mSATA and 1x CFast Socket •  2x Full Size Mini‐PCIe Socket •  1x PCI or 1x PCIex4 Socket  (For Spectra PowerTwin‐Pix‐6x00UE only) •  Support CFM (Control Function Module) Technology •  Support 2x PoE+, Individual Port Offers Max. 25.5W (with optional CFM module) •  Support Ignition Sensing Function (IGN) (with optional CFM module) •  Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO) •  Support Instant Reboot Technology •  Support CDS Technology for Convertible Panel PC •  Wide Operating Temperature (‐25°C to 70°C) •  SuperCap integrated for Battery Maintenance‐Free Spectra GmbH & Co. KG User Manual sales@spectra.de...

  • Page 13: Hardware Specification

    Spectra PowerTwin-Pix-6x00U: 254.5 x 220 x 54 mm • 1x DVI-D (Up to 1920 x 1080 @ 60Hz) Spectra PowerTwin-Pix-6x00UE: 254.5 x 220 x 72 mm • • 1x CDS Interface, Compact PCI Connector • 2x GbE LAN (Support WoL, Teaming, Jumbo Frame and...

  • Page 14: System I/O

    Used to connect to a external speaker Used to connect to remote power on/off switch Mic-in Used to connect to a microphone Used to connect to RS-232/422/485 serial devices Spectra PowerTwin-Pix-6x00U Spectra PowerTwin-Pix-6x00UE 1.6.2 Rear CFast and SIM Card Power On/Off Switch...

  • Page 15: Left

    Press to increase brightness of the screen Reset Button - Decrease Brightness Used to reset the system Press to decrease brightness of the screen Spectra PowerTwin-Pix-6x00U Spectra PowerTwin-Pix-6x00UE 1.6.4 Right Antenna Hole Used to connect an antenna for optional Mini-PCIe...

  • Page 16: Top

    1.6.5 Top VESA Mounting Hole These are mounting holes for VESA mount (75x75mm and 100x100mm) Spectra PowerTwin-Pix-6x00U Spectra PowerTwin-Pix-6x00UE Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 17: Mechanical Dimension

    1.7 Mechanical Dimension Unit: mm Spectra PowerTwin- Pix-6x00U Unit: mm Spectra PowerTwin- Pix-6x00UE Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 18 Chapter 2 Jumpers, Switches & Connectors...

  • Page 19: Jumper Settings

    1 2 3 1 2 3 1 2 3 Open Short All pins are open Pins 1 and 2 are short Pins 2 and 3 are short 2.2 Location of Jumpers, Switches and Connectors 2.2.1 Top View Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 20: Bottom View

    2.2.2 Bottom View Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 21: List Of Jumpers, Connectors And Switches

    SPK_L1 、 SPK_R1 Internal Speaker Connector USB2_1 USB 2.0 Port USB3_1 、 USB3_2 USB 3.0 Port VGA1 VGA Connector PWR_SW1 Power Switch Connector FAN1 FAN Increase DIO1 DIO Connector DIO2 DIO Connector PCIE1 PCIE Connector Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 22: Definition Of Switches

    Clear CMOS Function Setting : Pin Define SW2 Switch Switch mode Function CMOS Clear CMOS Normal (Default) COM1/2 Voltage Function Setting : Pin Define SW2 Switch Switch mode Function ON/ON (Default) COM2 ON/OFF OFF/OFF ON/ON (Default) COM1 ON/OFF OFF/OFF Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 23 COM3/4/5/6 Voltage Function Setting : Pin Define SW1 Switch Switch mode Function ON/ON (Default) COM3 ON/OFF OFF/OFF ON/ON (Default) COM4 ON/OFF OFF/OFF ON/ON (Default) COM5 ON/OFF OFF/OFF ON/ON (Default) COM6 ON/OFF OFF/OFF Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 24 Switch Definition 1-2 (Left) AT Power Mode 2-3 (Right) ATX Power Mode（Default） BL_PWR1: Backlight Power on / off Switch Definition Push Backlight Power on / off switching BL_UP1: Backlight Increase Switch Definition Push Backlight Increase Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 25 BL_DN1: Backlight Decrease Switch Definition Push Backlight Decrease RESET1: Reset Switch Switch Definition Push Reset System Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 26: Definition Of Connectors

    2.5 Definition of Connectors CFAST1: CFast Connector Definition Definition Definition PC10 SATA_TX2+ PC11 SATA_TX2- PC12 PC13 +3.3V SATA_RX2- PC14 +3.3V SATA_RX2+ PC15 PC16 PC17 SIM1：SIM Card Socket Definition UIM_PWR UIM_RESET UIM_CLK UIM_VPP UIM_DATA Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 27 COM1_1/COM2_1/(COM3_1/COM4_1/COM5_1/COM6_1 in the BTB Board): RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS422 / 485 RS485 RS232 Full Duplex Half Duplex Definition Definition Definition DATA- DATA+ Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 28 DC_IN1: DC Power Input Connector (+9~48V) Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch Definition +9~48VIN Ignition (IGN) Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 29 Link LED Status Definition Blinking Yellow Data Activity Steady Green 1Gbps Network Link No Activity Steady Orange 100Mbps Network Link 10Mbps Network Link LED1: Power / HDD Access LED Status LED Status LED Color Yellow POWER Green Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 30 CN1: Mini PCI-Express Socket (SIM Card to Link) Definition Definition Definition WAKE# RESERVED +3.3V +3.3V USB_D+ RESERVED PERST# PERN0 +3.3V +1.5V +3.3V CLKREQ# PERN0 RESERVED SIM_DATA +1.5V REFCLK+ SIM_CLK SMB_CLK +1.5V REFCLK+ PETN0 SIM_RESET SMB_DATA PETP0 SIM_VPP +3.3V USB_D- Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 31 CN2: Mini PCI-Express Socket / mSATA Socket Definition Definition Definition WAKE# +3.3V +3.3V USB_D+ +3.3V PERST# PERN0/SATAPR0 +3.3V +1.5V +3.3VAUX CLKREQ# PERN0/SATARN0 +1.5V REFCLK+ SMB_CLK +1.5V REFCLK+ PETN0 SMB_DATA PETP0 +3.3V USB_D- Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 32 CN3: mSATA Socket Definition Definition Definition WAKE# +3.3V +3.3V USB_D+ +3.3V PERST# SATARXP +3.3V +1.5V +3.3V SATARXN +1.5V SMB_CLK +1.5V SATATXN SMB_DATA SATATXP +3.3V USB_D- Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 33 POWER4: Power Connector Connector Type: 1X4-pin Wafer, 2.0mm pitch Connector Type: 1X4-pin Wafer, 2.0mm pitch Definition Definition +12V +12V SATA1/SATA2: SATA with Power Connector Definition Definition SATA_TX+ SATA_TX- SATA_RX- SATA_RX+ +3.3V +3.3V +12V +3.3V +12V +12V Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 34 SPK_L1: Left Internal Speaker Connector Definition OUT_L SPK_R1: Right Internal Speaker Connector Definition OUT_R USB2_1: USB2.0 Connector, Type A Definition USB2_DATA1- USB2_DATA1+ USB3_1、USB3_2 : USB 3.0 Connector, Type A Definition Definition USB3_RX0+ USB2_D0- USB2_D0+ USB3_TX0- USB3_TX0+ USB3_RX0- Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 35 Definition XCOM+_1 IN5_1 IN1_1 IN6_1 IN2_1 IN7_1 IN3_1 IN8_1 IN4_1 XCOM-_1 FAN1: External PWM Fan Connector PWE_SW1: On / Off Switch Connector Type: Terminal Block 1X3 3-pin, 3.5mm pitch Definition Definition PWR_SW +12V SENSE Control Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 36 Pin 4 Definition 0 second 1 minute 5 minutes 10 minutes 30 minutes 1 hour 2 hours Reserved (0 second) 12V_24V_1: 12V / 24V Car Battery Switch Definition 24V Car Battery Input 12V Car Battery Input Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 37: Chapter 3 System Setup

    Chapter 3 System Setup...

  • Page 38: Removing The Top Cover

    1. Loosen the six screws at front and rear panel. 2. Raise the left edge of top cover(1) , and raise the other side (2) subsequently to remove it from the chassis. 3. Place the top cover aside gently. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 39: Installing A Half Size Mini Pcie Card

    2. Use two screws provided on adapter bracket to fasten the card and bracket together. 3. Tilt the Mini PCIe card at a 45-degree angle and insert it into the socket until the golden finger connector of the card seated firmly. 45° Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 40: Installing A Full Size Mini Pcie Card

    1. Locate the Mini PCIe slot on the system board. 2. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 41: Installing A Msata Card

    1. Locate the mSATA slot on the system board. 2. Tilt the mSATA card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 42: Installing Antennas

    3. Fasten the card with two screws. 3.5 Installing Antennas 1. Remove the antenna rubber covers on left and right panel. 2. Penetrate the antenna jack through the hole. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 43 3. Put on the washer and fasten the nut with antenna jack. 4. Assemble the antenna and antenna jack together. 5. Attach the RF connector at the another end of the cable onto the card. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 44: Installing A So-Dimm Module

    2. Tilt the memory module at a 45-degree angle, and insert it into SO-DIMM socket until the golden finger connector of the module is seated firmly. 45° 3. Press down the memory module until retaining clips snap back in place. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 45: Installing A Pci(E) Card

    4. For the upper SO-DIMM socket, please follow the same steps described earlier to install. 3.7 Installing a PCI(e) Card 1. Locate the retention module of PCI(e) expansion card. 2. Loosen one screw halfway as indicated to have the clamp arm slidable. clamp arm Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 46 4. Align the notch of golden fingers of PCI(e) card with the expansion slot. Insert the card horizontally, and press the card straight down into the slot until it’s seated firmly. 5..Fasten one screw to secure the PCI(e) expansion card. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 47: Installing Thermal Pad Of Thermal Block

    3.8 Installing Thermal Pad of Thermal Block Place thermal pad on the top of CPU thermal block in order to provide a seamless contact with the body of chassis to create a efficient heat dissipation. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 48: Installing A Power Ignition Daughter Board (Optional)

    1. Locate the power Ignition connector on system motherboard as indicated. 2. Insert the female connector of power ignition board to the male connector on system motherboard. 3. Fasten two screws to secure the power ignition board. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 49: Installing A Poe Daughter Board (Optional)

    1. Locate the PoE connector on system motherboard as indicated. 2. Insert the female connector of PoE daughter board to the male connector on system motherboard. 3. Fasten two screws to secure the PoE board. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 50: Installing The Top Cover

    3.11 Installing the Top Cover 1. Put on the left edge of top cover onto system, and the other side subsequently. 2. Fasten the six screws at front and rear panel to secure the top cover. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 51: Installing A Sata Hard Drive At Front Pane

    1. Turn over the system to bottom side, and remove one screw. 2. Loosen the two screws to remove the HDD bay cover bracket. 3. Pull the rotating arm of HDD bracket outward as indicated. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 52 5. Place the HDD bracket on screw-hole side of HDD. Use four screws provided to assemble HDD on the bracket. 6. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket and push it until the edge connector of HDD fully inserted into SATA slot. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 53 7. Put back HDD bay cover at front panel, and fasten it with two screws. 8. Fasten one screw to secure the HDD bracket on the system chassis. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 54: Installing A Sata Hard Drive On Bottom Side

    1. Turn over the system to bottom side. Locate the cover of HDD compartment. 2. Loosen the two screws, then pull the cover to remove it. 3. Loosen three screws and take the HDD bracket out of HDD compartment. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 55 5. Seat the HDD bracket into HDD compartment, and line up the connector of HDD with SATA slot, then push it until HDD is fully connected into slot. 6. Secure the HDD bracket with three screws. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 56: Installing A Sim Card

    7. Put back the cover and fasten the two screws. 3.14 Installing a SIM Card 1. Locate the SIM card slot at front panel. 2. Loosen two screws to remove the cover plate. 3. Insert the SIM card. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 57: Installing A Cfast Card

    3.15 Installing a CFast Card 1. Locate the CFast card slot at front panel. 2. Loosen the two screws to remove the cover plate. 3. Insert a CFast card. 4. Fasten two screws to secure the cover plate. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 58: Connecting With Powertwin Display Module

    2. Remove six screws at left and right panel of PowerTwin PC . 3. Assemble two mounting brackets to left and right panel of PowerTwin PC by fastening three screws at each side. Left Panel Right Panel Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 59 4.Turn over the system to bottom side. Locate the connector cover of display module. 5. Loosen two screws to remove the cover. The following photos indicates the male connector (on display module) and female connector (on PowerTwin PC ). Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 60 7. Align the mounting holes of PowerTwin PC with the screw holes of display module underneath. Then slide the PC carefully as indicated to have PC and display module connected together. 8. Fasten six screws to secure PowerTwin PC on the display module. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 61: Vesa Mount

    To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand. (Please refer to section 3.15 in this manual for how to attach PC to display module.) PowerTwin PC + display module VESA stand Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 62: Wall Mount

    PowerTwin PC . De-attach six rubber holes from the mounting brackets as indicated. 2. Assemble two wall mount brackets by fastening three screws at each side. The following picture indicates six wall mounting holes at each side. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 63 3. Attach the PowerTwin PC to wall by fastening six screws through mounting holes at each side as illustrated. Wall Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 64 Chapter 4 BIOS Setup...

  • Page 65: Chapter 4 Bios Setup

    ( ↑↓ ) to highlight the field and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the <Esc >. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 66: Main Setup

    Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. 4.2.1 System Date Set the date. Please use <Tab> to switch between date elements. 4.2.2 System Time Set the time. Please use <Tab> to switch between time elements. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 67: Advanced Setup

    4.3 Advanced Setup 4.3.1 ACPI Settings This item allows users to configure ACPI settings. ■ Enable ACPI Auto Configuration [Enabled] Enables or disables BIOS ACPI Auto Configuration. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 68: Amt Configuration

    Allows you to enable or disable Intel® Active Management Technology BIOS execution. ■ Un-Configure ME [Disabled] Sets this items to [Disabled] to unconfigure AMT/ME without using a password or set it to [Enabled] to use a password. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 69: Pch-Fw Configuration

    4.3.3 PCH-FW Configuration ■ Firmware Update Configuration  ME FW Image Re-Flash [Disabled] Allows you to enable or disable ME firmware image re-flash function. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 70: F81866 Super Io Configuration

    This item allows users to change the address & IRQ settings of the specified serial port.  Onboard Serial Port 1 Mode [RS232] This item allows users to select Serial Port Mode. Configuration options: [RS232] [RS422] [RS485] Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 71: Hardware Monitor

    ■ PWM Fan Mode Configuration  PWM Fan1 Duty [60%] This item allows users to change duty cycle value of PWM Fan1.  PWM Fan2 Duty [60%] This item allows users to change duty cycle value of PWM Fan2. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 72: S5 Rtc Wake Settings

    This item allows users to change the way to wake system from S5 state. [Fixed Time]: Set the specified time (HH:MM:SS) to wake system. [Dynamic Time]: Set the increase time from current time to wake system. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 73: Serial Port Console Redirection

    4.3.7 Serial Port Console Redirection ■ Console Redirection [Disabled] These items allow users to enable or disable COM0, COM1, COM2, COM3, Com4, COM5 console redirection function. 4.3.8 CPU Configuration Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 74: Sata Configuration

    RAID option ROM (OROM) / Intel® Rapid Storage Technology(RST) driver will refer to the software feature configuration to enable or disable the storage features.  RAID0 [Enabled] Enables or disables RAID0 function.  RAID1 [Enabled] Enables or disables RAID1 function. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 75  Port 1 [Enabled] Enables or disables SATA Port 1.  Hot Plug [Enabled] Enables or disables Hot Plug support for port1. ■ Serial ATA Port (CFast)  Port 2 [Enabled] Enables or disables SATA Port 2. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 76: Csm Configuration

    ■ Network PXE [Do not launch] This item allows users to enable or disable Network Preboot eXecution Environment (PXE) function. [Do not launch]: Disables option ROM. [UEFI]: Enables UEFI option ROM only. [Legacy]: Enables legacy option ROM only. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 77 This item allows users to select whether to enable the UEFI or legacy option ROM for the other PCI devices. [Do not launch]: Disables option ROM. [UEFI]: Enables UEFI option ROM only. [Legacy]: Enables legacy option ROM only. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 78: Asmedia Sata Controller Configuration

    4.3.11 Asmedia SATA Controller Configuration ■ SATA Controller 0 Configuration Settings Displays configuration information on SATA Controller 0. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 79: Usb Configuration

    USB support will be disabled automatically if no USB devices are connected. ■ XHCI Hand-off [Enabled] This item allows users to enable or disable XHCI (USB3.0) hand-off function. ■ USB Mass Storage Driver Support [Enabled] Enables or disables support for USB mass storage devices. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 80: Chipset Setup

    This section allows you to configure chipset related settings according to user’s preference. 4.4.1 System Agent (SA) Configuration ■ VT-d [Enabled] This item allows users o enable or disable Intel® Virtualization Technology for Directed I/O (VT-d) function. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 81: Pch-Io Configuration

    PCI Express x4 Slot  PCI Express Port 0 [Enabled] Allows you to enable or disable PCI Express Port 0.  PCIe Speed [Auto] Allows you to select PCI Express interface speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3]. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 82 Allows you to specify which power state system will enter when power is resumed after a power failure. [Last State]: Enter last power state before a power failure. [S0 State]: Enter power-on state. [S5 State]: Enter power-off state. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 83: Security Setup

    Administrator Password controls access to the BIOS Setup utility. 4.5.2 User Password User Password controls access to the system at boot and to the BIOS Setup utility. 4.5.3 HDD Security Configuration Allows access to set, modify and clear HDD user and master password. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 84: Boot Setup

    4.6.6 New Boot Option Policy [Default] Allows you to change New Boot Option Policy. Configuration options: [Default] [Place First] [Place Last]. 4.6.7 Hard Drive BBS Priorities [Default] Allows you to change the order of the legacy devices in the group. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 85: Save & Exit

    4.7.8 Save as User Defaults This item allows you to save the changes done so far as user defaults. 4.7.9 Restore User Defaults This item allows you to restore the user defaults to all the options. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 86 Chapter 5 Product Application...

  • Page 87: Chapter 5 Product Application

    5.1.1.1 Pins for Digital I/O for PowerTwin series product Item Standard GPIO70 (Pin103) GPIO71 (Pin104) GPIO72 (Pin105) GPIO73 (Pin106) GPIO74 (Pin107) GPIO75 (Pin108) GPIO76 (Pin109) GPIO77 (Pin110) GPIO80 (Pin111) GPIO81 (Pin112) GPIO82 (Pin113) GPIO83 (Pin114) GPIO84 (Pin115) GPIO85 (Pin116) GPIO86 (Pin117) GPIO87 (Pin118) Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 88 To disable configuration, write exit entry key 0xAA to the index port. Following is an example to enable configuration and to disable configuration by using debug. -o 4e 87 -o 4e 87 (enable configuration) -o 4e aa (disable configuration) Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 89 5.1.1.3 Relative Registers To program the F81866A configuration registers, see the following configuration procedures. Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 90 Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 91 // Set (bit 0~7) = 0 to select GP 70~77 as Input mode. <Input Value> WriteByte(AddrPort, 0x82) // Select configuration register 82h ReadByte(DataPort, Value) // Read bit 0~7 (0xFF)= GP70 ~77 as High. <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 92 // Set (bit 0~7) = 1 to select GP 80 ~87 as Output mode. <Output Value> WriteByte(AddrPort, 0x89) // Select configuration register 89h WriteByte(DataPort, Value) // Set bit 0~7=(0/1) to output GP 80~87 as Low or High <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 93 WriteByte(AddrPort, 0x60) // Select configuration register 60h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x03)) WriteByte(AddrPort, 0x61) // Select configuration register 61h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x20)) <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) default GPIO Port base address is 0xA00h Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 94 = DI3 = DO3 value value = DI4 = DO4 value value = DO5 value = DI5 value = DO6 = DI6 value value = DI7 = DO7 value value = DO8 = DI8 value value Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 95: Digital I/O (Dio) Hardware Specification

    - DO Signal have to pull up resistor to XCOM+ for external device, the resistance will affect the pull up current - Signal High Level : Pull up resistor to XCOM+ - Signal Low Level : = XCOM- - Sink Current: 1A (Max) Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...

  • Page 96: Dio Connector Definition

    5.2.1 DIO Connector Definition DIO1/DIO2 : Digital Input / Output Connector Connector Type: Terminal Block 2X10 10-pin, 3.5mm pitch DIO1(Out) DIO2(IN) Definition Definition DC INPUT DC INPUT Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
  • Page 97 Spectra GmbH & Co. KG User Manual sales@spectra.de Spectra PowerTwin Pix‐6x00 Stand‐alone Mini‐PC...
