Summary of Contents for iBaby M2C

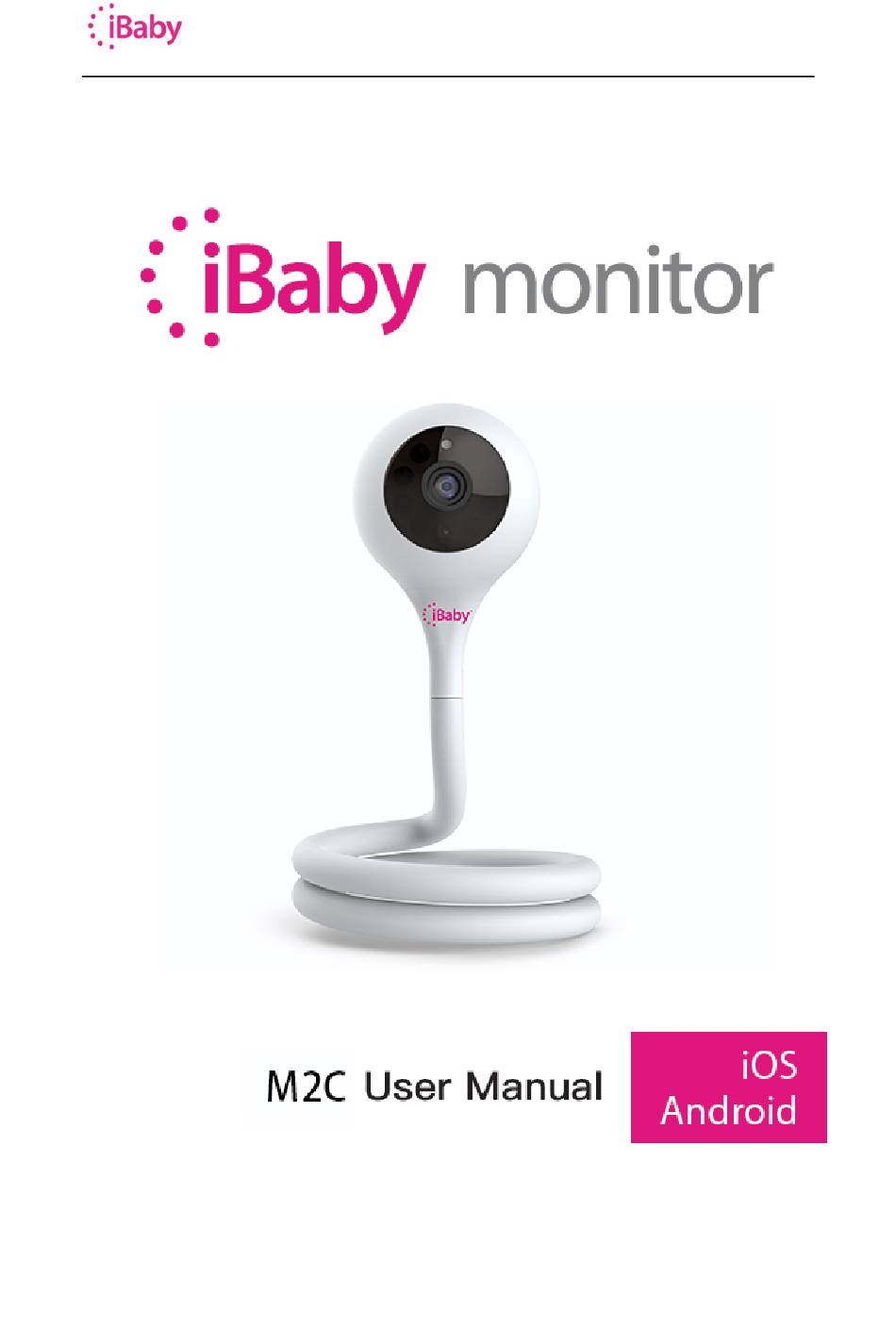

  • Page 1 Labs, Inc.

  • Page 2: Table Of Contents

    MonitorUser Manual Content PRODUCT OVERVIEW.......................... 3 ........................... 3 ACKING LIST ....................... 3 NTERFACE NTRODUCTION ......................4 RODUCT PECIFICATIONS INSTALLATION INSTRUCTIONS......................5 APP D OWNLOAD ..........................5 EVICE STARTUP ........................... 5 CCOUNT REGISTRATION AND LOGIN ....................6 EVICE CTIVATION ........................6 APP OPERATION AND FUNCTION INTRODUCTION................

  • Page 3: Product Overview

    MonitorUser Manual 1 Product Overview Packing list  iBabymonitor*1  Wall bracket *1  User manual *1  Power adapter *1 Interface Introduction Photosensitive sensor Lens Microphone LED status light Reset button Temperature&humidity sensor interface Power interface 1) LED status light: Indicates the current working status of the machine, see Table 1 of Section 4.1...

  • Page 4: Product Specifications

    MonitorUser Manual Product Specifications Model:M2C compression H.264 method Frame rate 1~12 frames Resolution Ultra (1920*1080),HD(1280*720),VGA(640*480) Video standard：4.0mm F=2.0 Lens Fixed aperture (2 million lens) Angle of view 85° Online users support 4 users to watch online compression G711 method...

  • Page 5: Installation Instructions

    2 Installation instructions APPDownload Apple users: App Store search for "iBaby Care App" Android users: Search the "iBaby Care App" on the Google Play Store The application icon is shown below: Device startup Plug the device into the power supply. After about 30 seconds, the power-on prompt sounds and the rear LED status light turns red and flashes slowly, indicating that the device startup is complete and enters the standby state.

  • Page 6: Account Registration And Login

    Device Activation After the device is booted, confirm that the phone used to activate the device is connected to Wi-Fi and can access the iBaby Care App with the registered account when it is connected to the Internet. 1. Click “Add Device” in the menu bar to enter the product selection page below, select the...
  • Page 7 MonitorUser Manual 3. After confirming that the prepared content is complete, click the "Next" button. 4. Go to the following page, enter the correct Wi-Fi password, and click the “Next” button to enter the device activation process.
  • Page 8 MonitorUser Manual 5. Activate the progress display, please wait for the activation progress to complete automatically and jump to the video control main interface (this process lasts about 1 minute), you can start normal use. Note: If you have not activated successfully, please refer to the “Installation Questions” section in...

  • Page 9: App Operation And Function Introduction

    MonitorUser Manual 3 APP operation and function introduction Video control main interface Functional navigation area Information display area Function button area 收听： 1. Functional navigation area： ：Function menu navigation button. Click on the left side to slide out the function menu page.

  • Page 10: App Function Menu

    ： Air quality icon. Display the current air quality level, click to view historical data. APP function menu Switch products: Click to select other types of iBaby products Home: Return to the viewing screen. Add device: Add new device Alarm setting: set alarm level or information such as movement, sound, etc.

  • Page 11: Introduction To Common Functions

    MonitorUser Manual My account: personal information display and settings Settings: device parameters, information settings Contact us: Contact iBaby Logout / Logout: Exit the current account Introduction to common functions 3.3.1 Alarm setting function Motion alarm: An alarm that is triggered when an object moves in the screen. The higher the sensitivity level, the more sensitive it is.
  • Page 12 MonitorUser Manual Alarm action type selection: Picture: When moving or audible alarm, capture 3 pictures and upload them to the media library for encryption. Video: When moving or audible alarm, record a short 15 second video and upload it to the media library for encryption.
  • Page 13 MonitorUser Manual amount generated per second is not more than 96kpbs Medium 128kbps: medium quality, taking up less bandwidth. The amount generated per second is not less than 128kpbs Good 256kbps: good picture quality (720P effect), occupying moderate bandwidth. The...
  • Page 14 MonitorUser Manual 3.3.6 Version Information As shown in the following figure, you can view the version of the APP, the version of the device firmware, and the serial number of the device. If a new version of the firmware is released, it can be updated to the latest firmware via the "Firmware Upgrade" button.

  • Page 15: Faqs

    Red light and green light Device startup. alternately flashes No light The device is not powered or faulty. Table 4.1 Installation issues Question 1Apple users: Prompt during installation, if you can't see any progress, please click Cancel (LED status light behind iBaby, red flashing)
  • Page 16 1) Please use the USB cable that comes with the original phone to ensure good transmission. 2) Please install iBaby in a place with good WI-FI signal. The WI-FI name and password are preferably 8-32 characters in upper and lower case letters, numbers, - or underscores.
  • Page 17 1) Please confirm the WI-FI password, and then restart the device and re-install 2) Please install iBaby in a place with good WI-FI signal. The WI-FI name and password are preferably 8-32 characters in upper and lower case letters, numbers, - or underscores.
  • Page 18 1) Please use the original iPhone data cable 2) Please make sure the phone is connected to Wi-Fi 3) The device is plugged in and the startup is completed (the LED status light behind iBaby, the red flashes slowly) 4) The device is powered up and restarted.

  • Page 19: Keep Loading

    Take the TP-Link router as an example: select the band bandwidth 20M (NETGEAR router: enable 20/40MHz coexistence). 2) iBaby is too far away from WI-FI, or there are too many middle partition walls. It is recommended to try it near the WI-FI signal.
  • Page 20 3) The APP is closed from the background of the mobile phone. 4) WI-FI is too far away from iBaby, or the nearby WI-FI is seriously interfered. If the router is 2.4G, log in to the router to optimize WI-FI. Take TP-Link router as an example: Band bandwidth is 20M (NETGEAR) Router: Enable 20/40MHz coexistence).

  • Page 21: Usage Issues

    Question 4 Why can't I find my previous alarm pictures and videos? Answer: Alarm pictures and videos are saved on the iBaby server. The default is 100 records, if it exceeds, the oldest record will be overwritten. Selecting a video will occupy a certain amount of network bandwidth.

  • Page 22: Contact Information

    The temperature and humidity module is built into the magnetic base. The iBaby and the three metal domes on the base should be aligned and placed flat. It is best to pick up the iBaby and pick up the magnetic base.
