Equipment

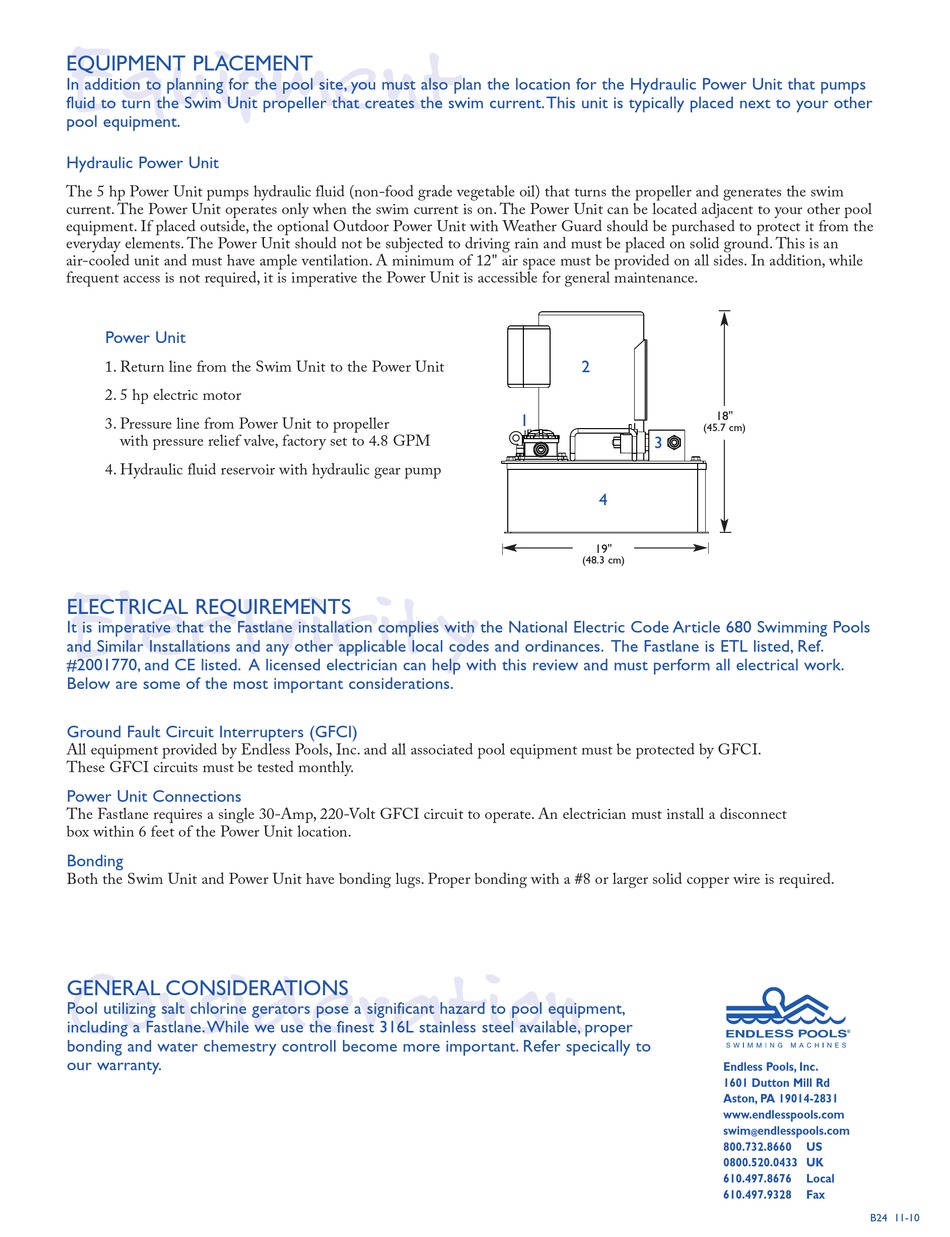

EQUIPMENT PLACEMENT
In addition to planning for the pool site, you must also plan the location for the Hydraulic Power Unit that pumps
fluid to turn the Swim Unit propeller that creates the swim current.This unit is typically placed next to your other
pool equipment.
Hydraulic Power Unit
The 5 hp Power Unit pumps hydraulic fluid (non-food grade vegetable oil) that turns the propeller and generates the swim
current. The Power Unit operates only when the swim current is on. The Power Unit can be located adjacent to your other pool
equipment. If placed outside, the optional Outdoor Power Unit with Weather Guard should be purchased to protect it from the
everyday elements. The Power Unit should not be subjected to driving rain and must be placed on solid ground. This is an
air-cooled unit and must have ample ventilation.
frequent access is not required, it is imperative the Power Unit is accessible for general maintenance.
Power Unit
1. Return line from the Swim Unit to the Power Unit
2. 5 hp electric motor
3. Pressure line from Power Unit to propeller
with pressure relief valve, factory set to 4.8 GPM
4. Hydraulic fluid reservoir with hydraulic gear pump
Electricity

ELECTRICAL REQUIREMENTS

It is imperative that the Fastlane installation complies with the National Electric Code Article 680 Swimming Pools
and Similar Installations and any other applicable local codes and ordinances. The Fastlane is ETL listed, Ref.
#2001770, and CE listed. A licensed electrician can help with this review and must perform all electrical work.
Below are some of the most important considerations.
Ground Fault Circuit Interrupters (GFCI)
ll equipment provided by Endless Pools, Inc. and all associated pool equipment must be protected by GFCI.
These GFCI circuits must be tested monthly.
Power Unit Connections
The Fastlane requires a single 30- mp, 220-Volt GFCI circuit to operate. n electrician must install a disconnect
box within 6 feet of the Power Unit location.
Bonding
Both the Swim Unit and Power Unit have bonding lugs. Proper bonding with a #8 or larger solid copper wire is required.
Consideration
GENERAL CONSIDERATIONS
Pool utilizing salt chlorine gerators pose a significant hazard to pool equipment,
including a Fastlane.While we use the finest 316L stainless steel available, proper
bonding and water chemestry controll become more important. Refer specically to
our warranty.
minimum of 12" air space must be provided on all sides. In addition, while
1
2
18"
(45.7 cm)
3
4
19"
(48.3 cm)
