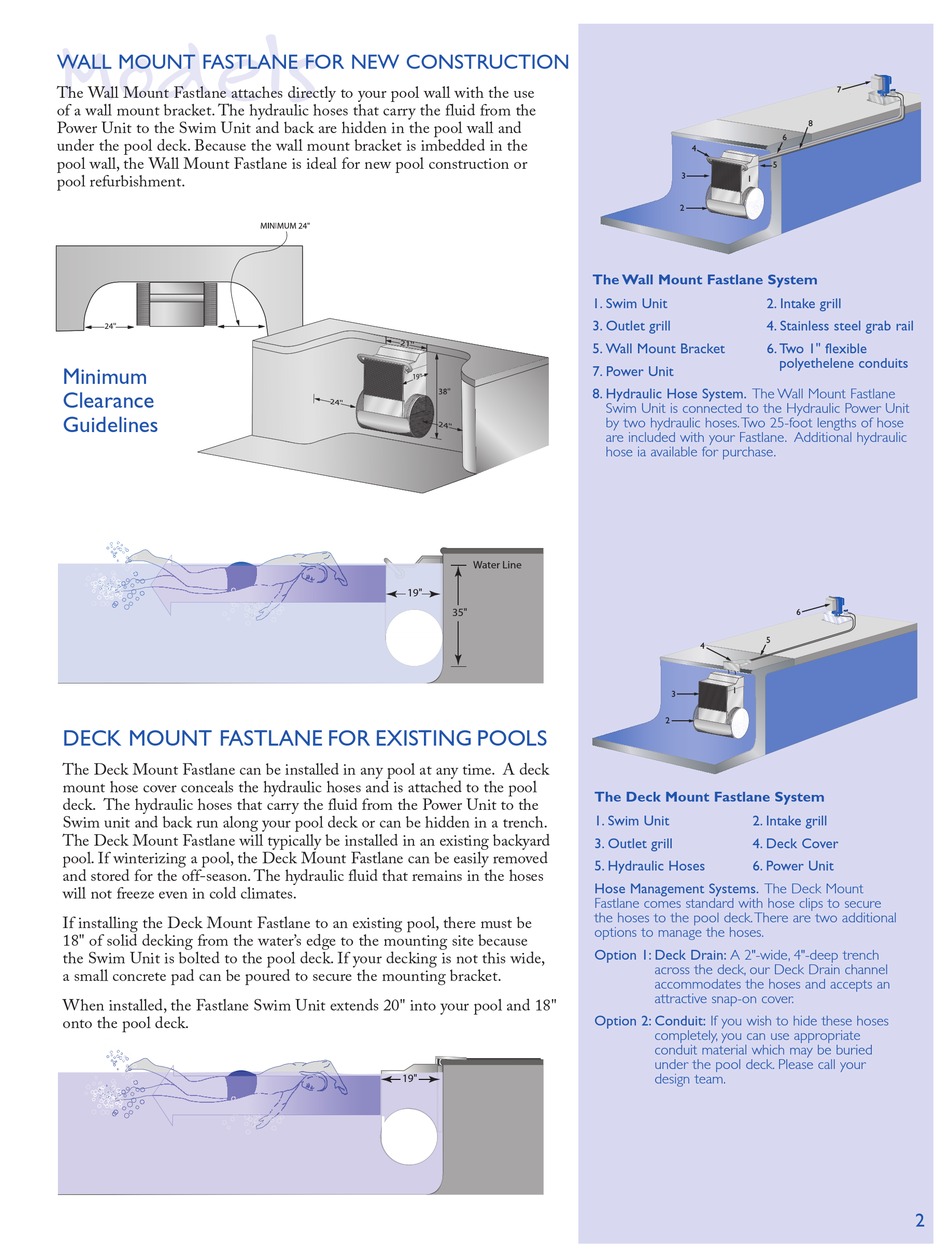

Endless Pools Fastlane Planning Manual page 3

Models
WALL MOUNT FASTLANE FOR NEW CONSTRUCTION
The Wall Mount Fastlane attaches directly to your pool wall with the use
of a wall mount bracket. The hydraulic hoses that carry the fluid from the
Power Unit to the Swim Unit and back are hidden in the pool wall and
under the pool deck. Because the wall mount bracket is imbedded in the
pool wall, the Wall Mount Fastlane is ideal for new pool construction or
pool refurbishment.
Minimum
Clearance
Guidelines
DECK MOUNT FASTLANE FOR EXISTING POOLS
The Deck Mount Fastlane can be installed in any pool at any time.
mount hose cover conceals the hydraulic hoses and is attached to the pool
deck. The hydraulic hoses that carry the fluid from the Power Unit to the
Swim unit and back run along your pool deck or can be hidden in a trench.
The Deck Mount Fastlane will typically be installed in an existing backyard
pool. If winterizing a pool, the Deck Mount Fastlane can be easily removed
and stored for the off-season. The hydraulic fluid that remains in the hoses
will not freeze even in cold climates.
If installing the Deck Mount Fastlane to an existing pool, there must be
18" of solid decking from the water's edge to the mounting site because
the Swim Unit is bolted to the pool deck. If your decking is not this wide,
a small concrete pad can be poured to secure the mounting bracket.
When installed, the Fastlane Swim Unit extends 20" into your pool and 18"
onto the pool deck.
Water Line
19"
35"
deck
19"
4
5
3
1
2
The Wall Mount Fastlane System
1. Swim Unit 2. Intake grill
3. Outlet grill 4. Stainless steel grab rail
5. Wall Mount Bracket 6.
7. Power Unit
8. Hydraulic Hose System. The Wall Mount Fastlane
Swim Unit is connected to the Hydraulic Power Unit
by two hydraulic hoses.Two 25-foot lengths of hose
are included with your Fastlane. Additional hydraulic
hose ia available for purchase.
5
4
1
3
2
The Deck Mount Fastlane System
1. Swim Unit 2. Intake grill
3. Outlet grill 4. Deck Cover
5. Hydraulic Hoses 6. Power Unit
Hose Management Systems. The Deck Mount
Fastlane comes standard with hose clips to secure
the hoses to the pool deck.There are two additional
options to manage the hoses.
Option 1: Deck Drain: A 2"-wide, 4"-deep trench
across the deck, our Deck Drain channel
accommodates the hoses and accepts an
attractive snap-on cover.
Option 2: Conduit: If you wish to hide these hoses
completely, you can use appropriate
conduit material which may be buried
under the pool deck. Please call your
design team.
7
8
6
Two 1" flexible
polyethelene conduits
6
2
