Remote Sensing & Zoning Installation Guide
Pro1 Technologies
P.O. Box 3377
Springfield, MO 65804
Toll Free : 888-776-1427
Web: www.pro1iaq.com
Hours of Operation: M-F 9AM - 6PM Eastern
Table of Contents
Table of Contents
Quick Reference
Mounting Locations
This manual covers the following models:
• RZ251W (For use with T955WH remote sensing
thermostat and the Z955W zoning system).
Congratulations on purchasing our Wireless System.
This remote sensor was designed to the highest reliability
and ease of use standards. Thank you for choosing our
quality products.
A trained, experienced technician
must install this product.
Carefully read these instructions.
You could damage this product or
cause a hazardous condition if you
fail to follow these instructions.
Una version en espanol de este
manual se puede descargar en la
pagina web de la compania.
U.S. Registered Trademark. Patents pending
Copyright
2018 All Rights Reserved.

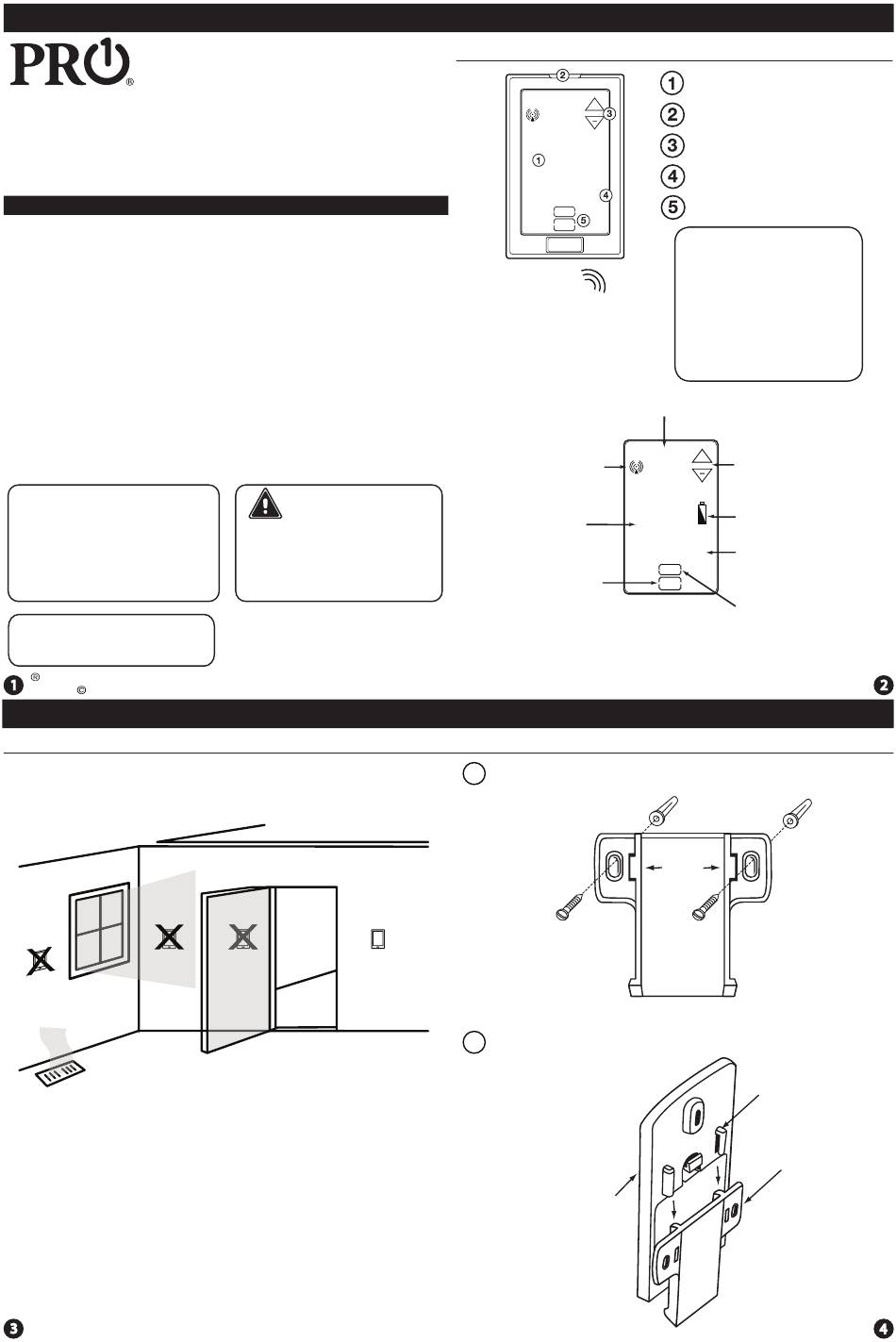

Mounting Locations
Recommended Wall Mounting Locations
The remote sensor should be mounted or placed approximately 4 to 5 feet above the
floor. Select an area with average temperature and good air circulation.
NO
NO
Do not mount or place Remote Sensors in locations:
• Close to hot or cold air ducts
• That are in direct sunlight
• With an outside wall behind the thermostat
• In areas that do not require conditioning
• Where there are dead spots or drafts (in corners or behind doors)
• Where appliances could radiate heat
• Do not set it next to or on hot appliances
• Do not put it in your pocket or hold in your hands for a long period of time.
• Body heat will distort the temperature reading.
RZ251W
Page
1
Technical Setup
Remote Sensor Config
2
3
New Features
4-6
7-8
Establishing Comms (Zoning)
9
Technical Setup (Zoning)
Specifications (Zoning)
Caution: Equipment
Damage Hazard
Do not operate the cooling
system if the outdoor
temperature is below 50˚F
(10˚ C) to prevent possible
compressor damage.
NO
Getting to know your indoor remote sensor or zone control
74
REMOTE 1
Page
10-11
12
13-14
15
16
Wireless Range
17-18
Range between the remote and the
19
master thermostat is
approximately 100 feet with no
obstructions and approximately 50
feet in standard residential metal,
brick, and concrete construction.
Temperature
Indicates the current
ambient temperature.
Clean Key
Pressing the CLEAN key will
allow 30 seconds to clean the
display. The keys will be
inoperable during this time.
NOTE: The SHOW SET mode
must be set to YES in tech
setup menu before the CLEAN
key will be displayed.
Rev. 1820
Wall Mount - Removable
1
Mount T-bracket on the wall.
YES
Slide the Remote Sensor over the
2
mounted T-bracket.
LCD
Set At
74
+
Glow in the Dark Light Button*
Temperature Setpoint Keys**
Remote Name
Run and Clean Keys**
Run
Clean
*NOTE ABOUT THE LIGHT BUTTON:
This button is used to light up the display.
DO NOT hold the light button down for
longer than 3 seconds or you will enter the
technician setup screens. If inadvertently
enter the tech setup press and release the
light button a second time to exit the tech
screens.
**NOTE ABOUT SETPOINT, RUN, AND
CLEAN KEYS:
These keys will only be shown if they have
been turned on in Technician Setup menu.
Setpoint Temperature
Displays the user selectable
setpoint temperature
Set At
88
+
Wireless Icon
88
REMOTE 1
Run
Clean
Wall
mount
slots
T-bracket
Back View
of Subbase
of Remote
Sensor
Quick Reference
Setpoint Adjustment Keys
NOTE: The SHOW SET must
be set to YES in tech setup
menu before the setpoint
keys will be shown in the
display.
Low Battery Indicator
Replace batteries when
this indicator is shown.
Remote Label
Each indoor remote sensor
can be labeled. The label
options can be found
during tech setup.
Run Key
RUN only shows if the remote
sensor setpoint has been
changed. Pressing RUN will
cancel the temporary setpoint
hold. Note: The SHOW SET
must be set to YES in tech set-
up menu before the RUN key
will be shown in the display.
Mounting Options
Wall mount
slot holders.
T-bracket
mounted on
the wall
