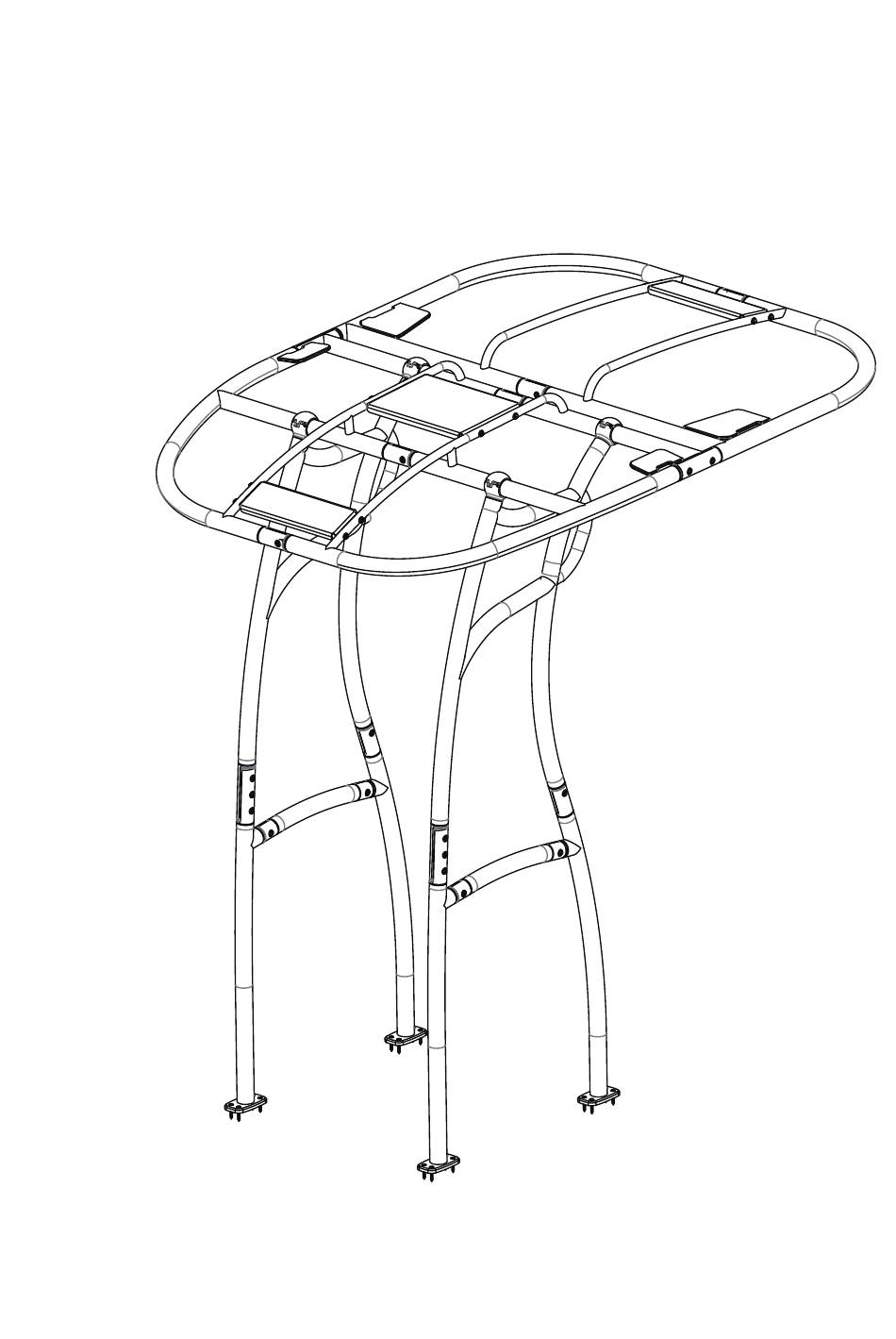

- Page 1 600 T-TOP INSTALLATION GUIDE Please take a few minutes to read the entire installation instructions before installation.
-
Page 2: Part List
PART LIST Canopy Frame Accy Plate 1x Front stbd 1x Front port 1x Centre Plate 1x Rear stbd 1x Rear port1x Side Frame Lower Port Port Port Stbd Stbd Stbd... -
Page 3: Other Parts
Side Upper Frame Port 1x Stbd 1x Other Parts 1/2 Inch 1/4 Inch CANVAS Rope 1x 1/4 Inch 1/4 Inch 1/4 Inch... - Page 4 Before Install Layout all the parts so that you know which piece goes where. A helper is needed for installation. The two main components are the side legs and the canopy frame.The side legs are mirror images to provide right and left legs.These are hinged in the center to allow the T-Top to be folded forward.The legs are typically mounted with the bolt heads to the outside for folding the T-Top...
- Page 5 STEP 2 IMPORTANT NOTE: SO IT IS VERY IMPORTANT TO CONSIDER THEIR PLACEMENT NOW BEFORE CONTINUING TO THE NEXT STEP OF THE PROCESS. RECOMMENDED DISTANCE FROM CONSOLE RECOMMENDED MOUNTING AREA MEASUREMENTS FROM THE SIDES AND AFT OF THE BOAT.
- Page 6 STEP 3 USE A MARKER TO MARK OUT WHERE THE FEET ARE POSITIONED. NOTE: MAKE SURE THAT THE MARKER IS USED ON THE MASKING TAPE AND DOES NOT MARK UP THE DECK. STEP 4 ASSEMBLE THE SIDE SECTIONS PORT & STARBOARD SIDES...
- Page 7 STEP 5 MEASURE THE WIDTH OF YOUR MARKED MOUNTING LOCATIONS. THIS WIDTH WILL SIDES TO THE CANOPY. STEP 6 ASSEMBLE THE FRONT TOP SECTION. FIRST ASSEMLE THE PORT SIDE TO THE STARBOARD SIDE. THEN ASSEMBLE THE ACCESSORY PLATE AND THE MIDDLE PLATE.
- Page 8 STEP 7 ASSEMBLE THE REAR CANOPY FRAME FIRST ASSEMLE THE PORT SIDE TO THE STARBOARD SIDE. THEN ASSEMBLE THE ACCESSORY PLATE AND THE MIDDLE PLATE. DO NOT JOINT THE FRONT TO THE REAR YET STEP 8 NOTE: ASSEMBLE THE CANOPY TO THE SIDE SECTION WHILE ON LAND. THE ASSEMBLY WILL THEN BE WALKED ONTO THE BOAT AND PLACED IN THE MARKED LOCATION.
- Page 9 STEP 9 CONCOLE. POSITION THE MOUNTING FEET OVER THE MARKED LOCATIONS. MARKED LOCATIONS LOWER INTO POSITION POSITION MOUNTING FEET OVER MARKED LOCATIONS...
- Page 10 STEP 10 DRILL PILOT HOLE WITH A SMALL DRILL BIT Gelcoat Fibreglass LOCATION AND DRILL A LARGER HOLE FOR THE MOUNTING HARDWARE. COUNTERSINK THE GELCOAT TO PREVENT STRESS CRACKING DURING INSTALLATION.
- Page 11 STEP 10 REMOVE MASKING TAPE. APPLY MARINE GRADE SEALANT. WE RECOMEND: 3M 5200 MARINE ADHESIVE OR EQUIVALENT. THE SEALANT AND LOWER INTO PLACE. INSTALL SCREWS AND TIGHTLY FASTEN THE MOUNTING FEET TO THE DECK OF THE BOAT. REMOVE EXCESS SEALANT FROM AROUND THE MOUNTING FOOT.
- Page 12 STEP 11 MOUNT AFT SECTION OF CANOPY STEP 12 canvas...
- Page 13 STEP 13 USE ZIP TIES TO FASTEN THE CANOPY IN PLACE BEFORE LACING IT TO THE FRAME. TIP: USE THE ZIP TIES IN THE CORNERS TO CREATE TENSION CANVAS IN THE CANOPY. STEP 14 TIE A KNOT IN EACH END TO START AND STOP THE CORD.
