Deciding the Swivel Setting (Swivel Version Only)
Before attaching the Swiveling Hook Plate you need to decide
which swivel setting is best for you. There are 3 different
swivel settings which are shown in Figure 5, Max Tilt (7
Degrees) in Top Position. Each setting has its own advantages.
The Center Swivel gives you a lot of travel in each direction
but has the thickest profile (See Figure 1 for Profile
Thicknesses). The Left and Right Swivels are the lowest
profile and can swing the farthest either to the right or the left,
but not both.

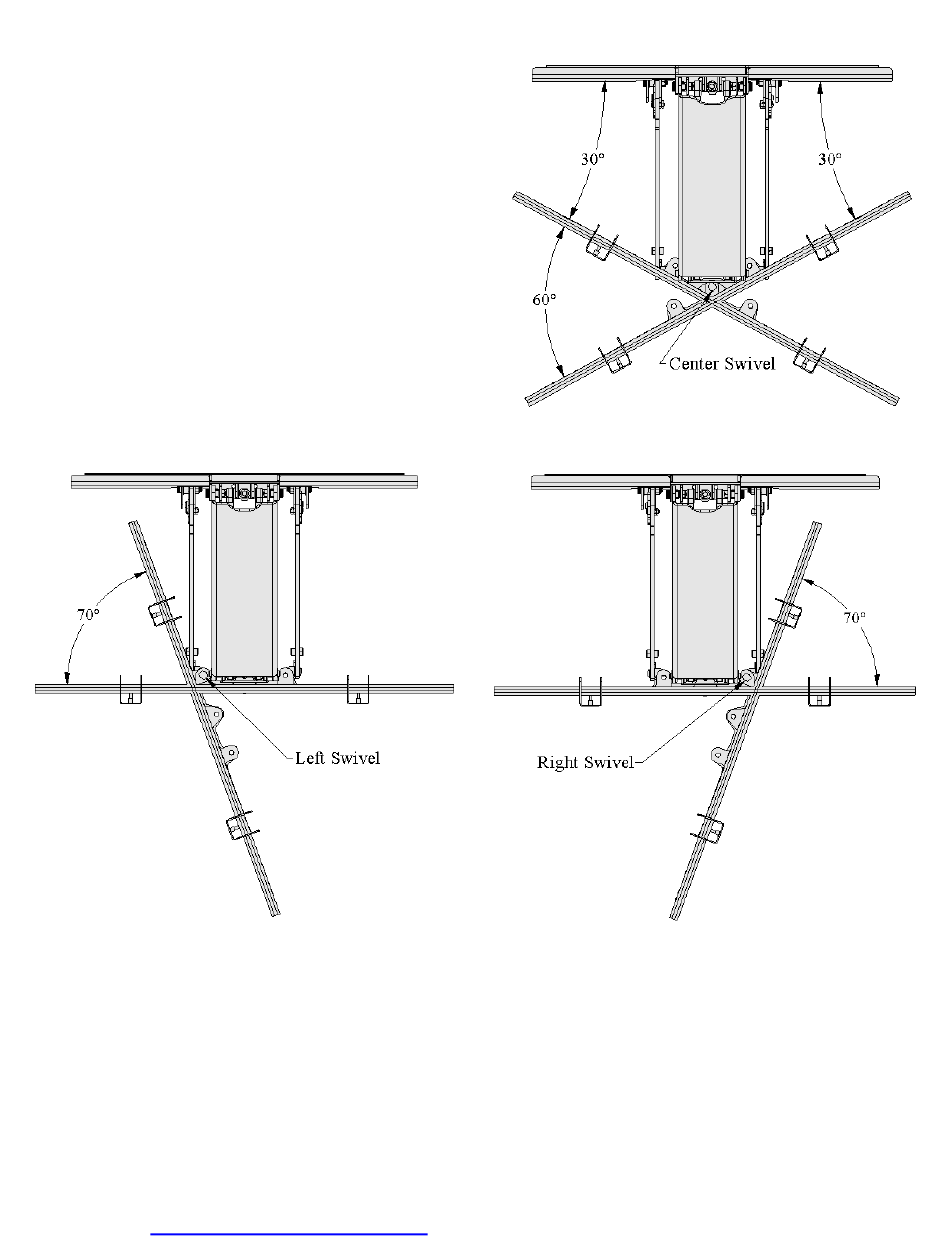

Figure 3, Maximum Travel of the 3 different Swivel Settings
Install Video at
www.DynamicMounting.com/Install
5
