CAUTION:
These wall mounting instructions and hardware are for mounting to wood studs only. It is up to you to verify that
the material supplied will work for your setup; other materials may need to be purchased by you. For concrete, brick or other
mounting materials consult an expert.
Consult your TV's owner manual before mounting your television, it contains relevant information.

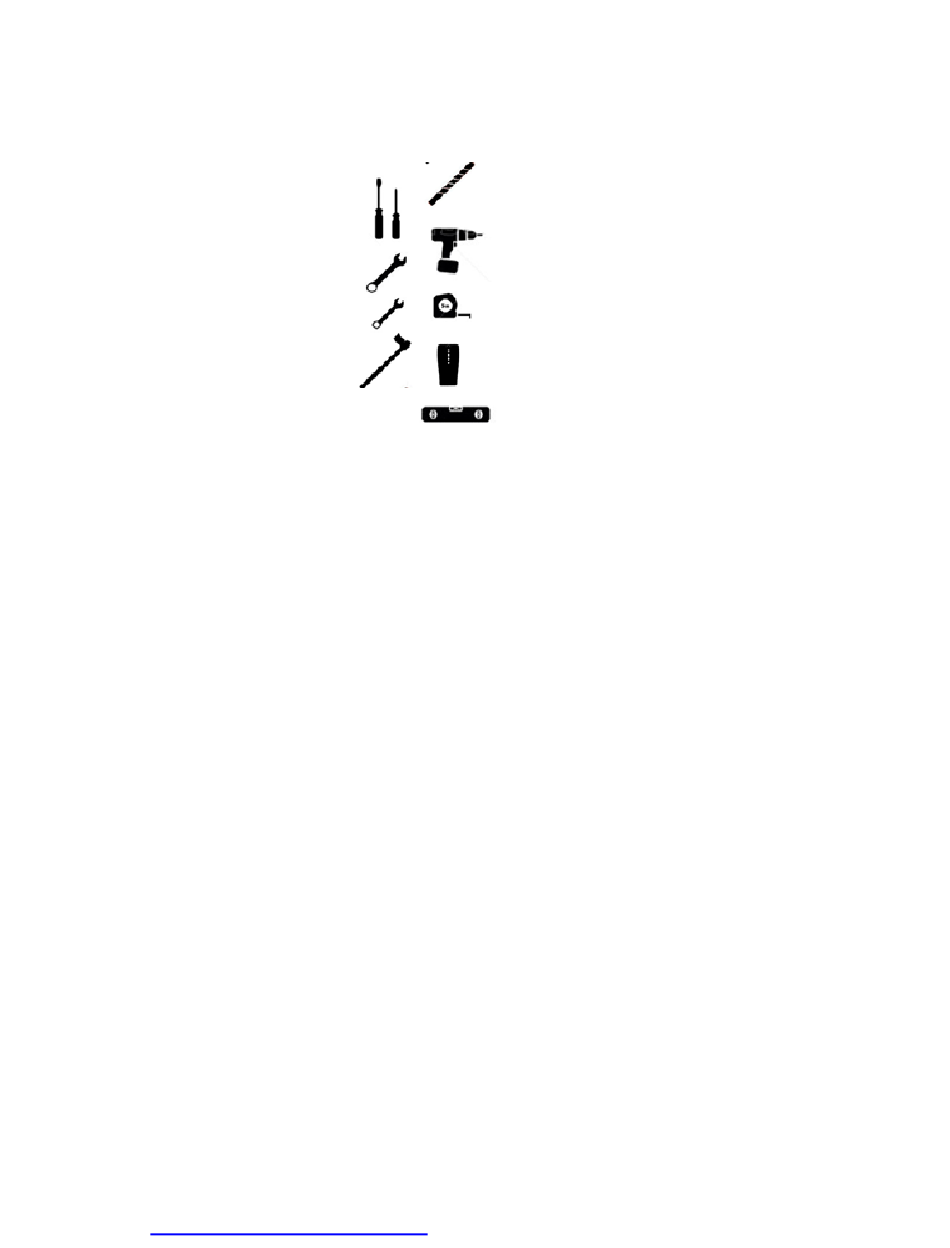

Tools Needed

7/16" open ended wrench

1/2" box or ratchet wrench

9/16" box or ratchet wrench

1/4" Drill Bit

Drill

Tape Measure

Stud Finder

Level

Phillips Screwdrivers

A friend or 2, depending on how heavy
your television is
Parts Included

1 Up and Over Fixed or Swivel Mount

1 Wall Frame (Excluded from Single Stud)

1 Swiveling Hook Plate (Swivel Version Only)

2 U&O TV Hangers with #10 Washer and Screw

2 Paintable Plastic Covers (Excluded from Single Stud)
Fasteners for Attaching Swiveling Hook Plate (Swivel Version Only) (Assembled on the Left or Right Swivel Setting, remove if
different setting needed)

1 5/16" diameter x 7" Hex Head Machine Screw (Swivel Pivot Bolt)

1 5/16" Nylock Nut (Swivel Pivot Nut)

2 5/16" Washers

Table of Contents

Mount Overview Drawings .................................................. 3
Deciding the Swivel Setting (Swivel Version Only) ........... 5
Attaching Swiveling Hook Plate to Mount (Swivel Version
Only) .................................................................................... 6
Adjusting the Swivel Tension (Swivel Version Only) ......... 6
Attaching TV Hangers to Television ................................... 6
Determining Where to Put Mount ........................................ 7
Conditions for Mounting the Frame to the Wall .................. 8
Mounting Frame to Wall ...................................................... 8
Attaching Mount to Frame ................................................... 8
Conditions for Mounting Single Stud to the Wall................ 9
Mounting Single Stud to the Wall ........................................ 9
Attaching the Television to the Mount............................... 10
TV Level ............................................................................ 10
Moving the Television Up and Down ................................ 10
These Directions are for the Up and Over Fixed and Swivel Mount, on the Frame or Single Stud (No Frame) Version.

Figure 1 is the overview with the Frame

Figure 3 is the overview of the Single Stud

Page 5 and 6 are for the Swivel Mount only
Install Video at www.DynamicMounting.com/Install
Various Items (All in One Bag)

4 3/8" by 3" long lag screw with washer

4 Lag Screw Cover

4 Washer for Lag Screw Cover

4 Zip Ties

1 #12 x 3" long Wood Screw

2 Sticky T-grips for covers

1 1/4" x 8" Bolt with Nut
Fasteners for Mounting the Television to the TV Hangers
(All in One Bag)

4 M6 x 20 mm (.78") long Phillips head machine screw

4 M6 x 35 mm (1.38") long Phillips head machine screw

4 M8 x 20 mm (.78") long Phillips head machine screw

4 M8 x 35 mm (1.38") long Phillips head machine screw

4 1/4" tall plastic spacers

8 .1" tall plastic spacers

4 Steel M6 washers
Positions Mount Will Stay At. ............................................ 11
Under Ledge Mounting ...................................................... 11
Adjusting the Counterbalance ............................................. 12
Setting the Tilt .................................................................... 13
Maximum Down Tilt in Top Position................................. 13
Vertical Tilt in the Top Position ......................................... 13
Tilt in the Bottom and Out Positions .................................. 13
Paintable Plastic Covers ..................................................... 14
Wire Management .............................................................. 14
Maintenance ....................................................................... 14
Handle Accessory Assembly .............................................. 15
Handle Parts ........................................................................ 15
Handle Install ...................................................................... 15
Lifetime Limited Warranty ................................................. 16

Page 8 shows how to mount the Frame to the wall

Page 9 shows how to mount the Single Stud, without Frame,
to the wall.
