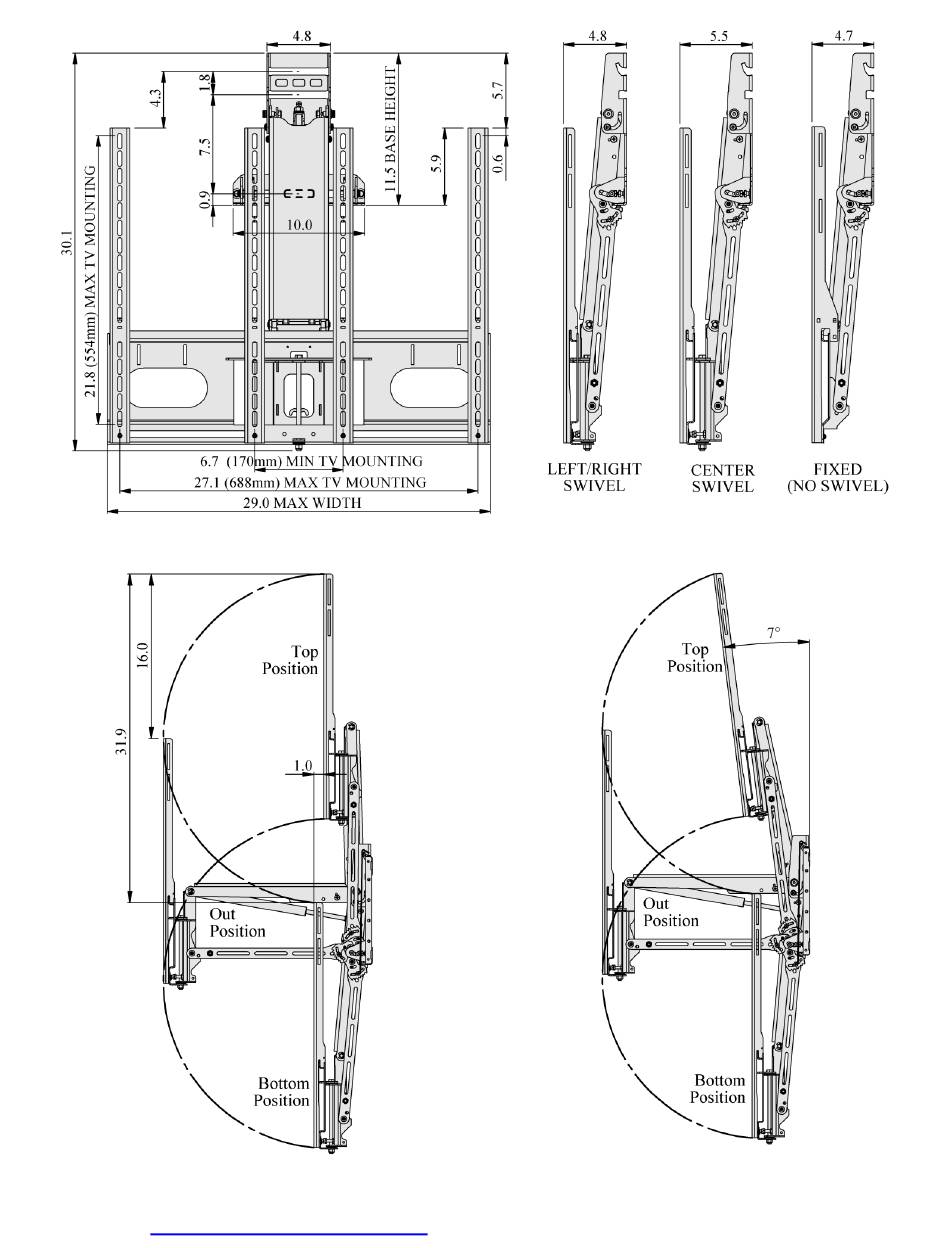

Figure 3, Mount Overall Size without Frame, Television Mounting Hole Pattern Range, Wall Mounting Hole Pattern Range
Note: Mount Only Comes with 2 television Mounting Arms, Not the 4 Shown
Figure 4, Vertical in Top Position
Figure 5, Max Tilt (7 Degrees) in Top Position
Vertical tolerance in Out and Bottom Positions is +/-1 degree.
Install Video at
www.DynamicMounting.com/Install
4
