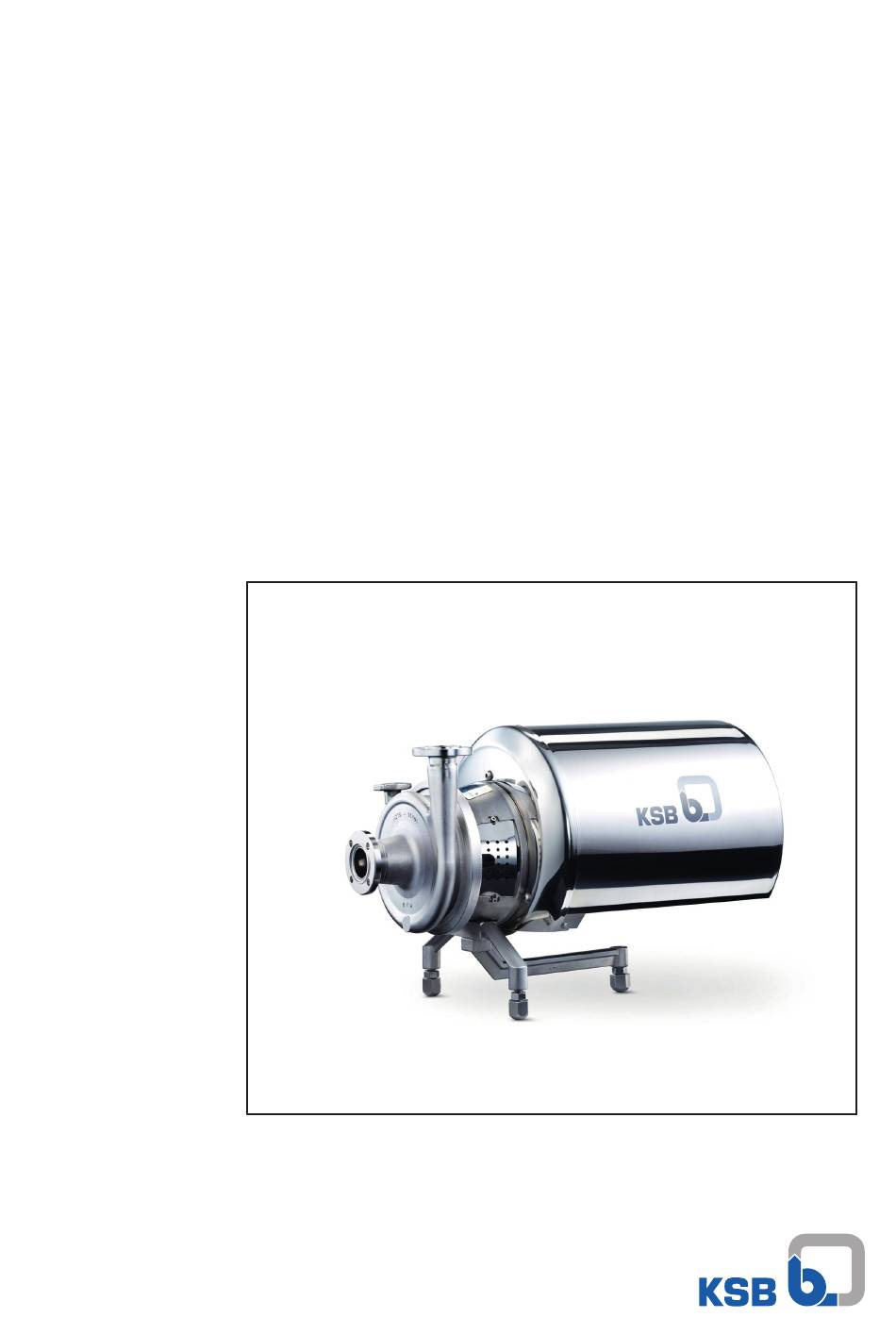

  • Page 1 Hygienic Pump Vitacast / Vitacast Bloc Installation/Operating Manual...
  • Page 2 All rights reserved. The contents provided herein must neither be distributed, copied, reproduced, edited or processed for any other purpose, nor otherwise transmitted, published or made available to a third party without the manufacturer's express written consent. Subject to technical modification without prior notice. © KSB SE & Co. KGaA, Frankenthal 17/09/2018...

  • Page 3: Table Of Contents

    5.3.2 Permissible forces and moments at the pump nozzles.............. 29 5.3.3 Auxiliary connections......................... 29 Enclosure/insulation ............................ 29 Checking the coupling alignment ......................... 30 Electrical connection ............................ 31 5.6.1 Setting the time relay ........................ 31 5.6.2 Connecting the motor ........................ 32 Vitacast / Vitacast Bloc 3 of 80...
  • Page 4 Recommended spare parts stock for 2 years' operation to DIN 24296 .......... 65 Trouble-shooting.......................... 67 Related Documents .......................... 69 General assembly drawings with list of components................... 69 9.1.1 Vitacast ............................... 69 9.1.2 Vitacast-Bloc ............................ 73 EU Declaration of Conformity ...................... 76 Certificate of Decontamination...................... 77 Index .............................. 78 Vitacast / Vitacast Bloc 4 of 80...

  • Page 5: Glossary

    Procedure during which the inside of the pump is sterilised with steam. The pump does not need to be dismantled. Suction lift line/suction head line The pipeline which is connected to the suction nozzle Vitacast / Vitacast Bloc 5 of 80...

  • Page 6: General

    In the event of damage, immediately contact your nearest KSB Service centre to maintain the right to claim under warranty. 1.2 Installation of partly completed machinery To install partly completed machinery supplied by KSB refer to the sub-sections under Servicing/Maintenance.

  • Page 7: Key To Safety Symbols/Markings

    In conjunction with one of the signal words this symbol indicates a hazard involving electrical voltage and identifies information about protection against electrical voltage. Machine damage In conjunction with the signal word CAUTION this symbol indicates a hazard for the machine and its functions. Vitacast / Vitacast Bloc 7 of 80...

  • Page 8: Safety

    Deficits in knowledge must be rectified by means of training and instruction provided by sufficiently trained specialist personnel. If required, the operator can commission the manufacturer/supplier to train the personnel. Training on the pump (set) must always be supervised by technical specialist personnel. Vitacast / Vitacast Bloc 8 of 80...

  • Page 9: Consequences And Risks Caused By Non-Compliance With This Manual

    ▪ Only perform work on the pump set when it has been disconnected from the power supply (de-energised). ▪ The pump (set) must have cooled down to ambient temperature. ▪ Pump pressure must have been released and the pump must have been drained. Vitacast / Vitacast Bloc 9 of 80...

  • Page 10: Unauthorised Modes Of Operation

    The temperature class specifies the maximum permissible temperature at the surface of the pump set during operation. For the permissible operating temperature of the pump in question refer to the data sheet. Vitacast / Vitacast Bloc 10 of 80...

  • Page 11: Monitoring Equipment

    60 °C If the pump is to be operated at a higher temperature, if there is no data sheet or if the pump is part of a pool of pumps, contact KSB for the maximum permissible operating temperature. Motor supplied by the...

  • Page 12: Transport/Temporary Storage/Disposal

    1. On transfer of goods, check each packaging unit for damage. 2. In the event of in-transit damage, assess the exact damage, document it and notify KSB or the supplying dealer and the insurer about the damage in writing immediately.

  • Page 13: Storage/Preservation

    4. Always complete and enclose a certificate of decontamination when returning the pump. Indicate any safety measures and decontamination measures taken. (ð Section 11, Page 77) NOTE If required, a blank certificate of decontamination can be downloaded from the following web site: www.ksb.com/certificate_of_decontamination Vitacast / Vitacast Bloc 13 of 80...

  • Page 14: Disposal

    2. Separate and sort the pump materials, e.g. by: - Metals - Plastics - Electronic waste - Greases and other lubricants 3. Dispose of materials in accordance with local regulations or in another controlled manner. Vitacast / Vitacast Bloc 14 of 80...

  • Page 15: Description Of The Pump (Set)

    16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 0 4 0 - 0 See name plate and data sheet See data sheet Table 7: Designation key Position Code Description Pump type Vitacast Vitacast / Vitacast Bloc 15 of 80...
  • Page 16 Q1Q1VGG BQ1EGG Q1Q1EGG Q1U3EGG Q1U3VGG Seal code, single mechanical seal, internal, with encapsulated spring GCVGG Q1CEGG Q1CVGG Q1U3EGG Q1U3VGG Q1Q1EGG Q1Q1VGG U3U3EGG Q2Q2EGG** U2U2VGG* U3U3VGG BQ1VGG* U3U3EGG Seal code, single mechanical seal, external Vitacast / Vitacast Bloc 16 of 80...
  • Page 17 Stainless steel 1.4409 Super duplex stainless steel 1.4469 / 1.4410 Hastelloy C276 2.4819 Impeller material Stainless steel 1.4409 Super duplex stainless steel 1.4469 / 1.4410 Hastelloy C276 2.4819 Motor shroud Without shroud With shroud Design Vitacast / Vitacast Bloc 17 of 80...

  • Page 18: Designation

    Single mechanical seal, internal, dead-end arrangement, external flushing (quench) Double mechanical seal, external, in back-to-back arrangement Single mechanical seal, internal, dead-end arrangement, internal circulation Single mechanical seal, external, without flushing 24-26 Seal code, single mechanical seal, internal GCEGG Blank Vitacast / Vitacast Bloc 18 of 80...
  • Page 19 Seal code, double mechanical seal, external, back-to-back arrangement GCEGG GBEGG U3CEGG GCEGG U3U3EGG U3BGG U3U3VGG BU3VGG U3U3VGG U3U3VGG U3U3TGG U3CTGG Pipe connection Flange Threaded connection DIN 11864-1A Flange DIN 11864-2A Clamped connection DIN 11864-3A Threaded connection DIN 11853 Threaded connection Vitacast / Vitacast Bloc 19 of 80...
  • Page 20 2.4819 Motor shroud Without shroud With shroud Design Standard Non-standard (BT3D, BT3), including ATEX Drain Casing drain with plug No drain Casing drain via pipeline Casing drain via valve Generation Vitacast Bloc Blank Vitacast / Vitacast Bloc 20 of 80...

  • Page 21: Name Plate

    67227 Frankenthal Deutschland VAB 032-025-145 0402KB T81ME Jahr E-Nr 2016 20 m 2900 1/min Fig. 1: Name plate of a Vitacast-Bloc (example) Type series, size and version KSB order number Manufacturer's No. Flow rate Head Speed Year of construction 4.5 Design details Design ▪...
  • Page 22 4 Description of the Pump (Set) Drive Standard design: ▪ KSB surface-cooled IEC three-phase current squirrel-cage motor ▪ 50 Hz winding, 220 - 240 V / 380 - 420 V ≤ 2.20 kW ▪ 50 Hz winding, 380 - 420 V / 660 - 725 V ≥ 3.00 kW ▪ 60 Hz winding, 440 - 480 V ≤ 2.60 kW ▪ 60 Hz winding, 440 - 480 V ≥ 3.60 kW ▪ Type of construction IM V1 ≤ 4.00 kW ▪...

  • Page 23: Configuration And Function

    4 Description of the Pump (Set) 4.6 Configuration and function 2 3 4 5 6 9 10 Fig. 2: Sectional drawing of a Vitacast Bloc Volute channel Discharge nozzle Clamping piece Pump shaft Rolling element bearing for pump Drive lantern shaft...

  • Page 24: Scope Of Supply

    ▪ Pump foot or foot base (e.g. 3-point ball feet) ▪ Trolley with switch and power cable 4.9 Dimensions and weights For dimensions and weights please refer to the general arrangement drawing/outline drawing of the pump/pump set. Vitacast / Vitacast Bloc 24 of 80...

  • Page 25: Installation At Site

    For pump sets with a motor rating > 30 kW installation without a foundation is not recommended. Always install the pump set in a horizontal position. Table 11: Installation type Motor size Installation type 71 ... 180 Ball feet 71 ... 180 Motor foot Vitacast / Vitacast Bloc 25 of 80...

  • Page 26: Installation On A Foundation

    In this case, only fasten the flexible elements at the baseplate after the piping has been connected. NOTE Expansion joints can be fitted between the pump and the suction/discharge line. Vitacast / Vitacast Bloc 26 of 80...

  • Page 27: Installation Without Foundation

    Incorrect earthing during welding work at the piping Destruction of rolling element bearings (pitting effect)! ▷ Never earth the electric welding equipment on the pump or baseplate. ▷ Prevent current flowing through the rolling element bearings. Vitacast / Vitacast Bloc 27 of 80...
  • Page 28 Use a filter with laid-in wire mesh (mesh width 0.5 mm, wire diameter 0.25 mm) of corrosion-resistant material. Use a filter with a filter area three times the cross-section of the piping. Conical filters have proved suitable. 5. Connect the pump nozzles to the piping. Vitacast / Vitacast Bloc 28 of 80...

  • Page 29: Permissible Forces And Moments At The Pump Nozzles

    Explosion hazard! ▷ Make sure the space between the casing cover/discharge cover and the bearing cover is sufficiently vented. ▷ Never close or cover the perforation of the bearing bracket guards (e.g. by insulation). Vitacast / Vitacast Bloc 29 of 80...

  • Page 30: Checking The Coupling Alignment

    ü The coupling guard and its footboard, if any, have been removed. 1. Loosen the support foot and re-tighten it without transmitting any stresses and strains. 2. Place the straight-edge axially on both coupling halves. Vitacast / Vitacast Bloc 30 of 80...

  • Page 31: Electrical Connection

    ▷ Keep switch-over intervals between star and delta as short as possible. Table 12: Time relay settings for star-delta starting: Motor rating Y time to be set [kW] ≤ 30 < 3 > 30 < 5 Vitacast / Vitacast Bloc 31 of 80...

  • Page 32: Connecting The Motor

    Damage to the pump! ▷ Refer to the arrow indicating the direction of rotation on the pump. ▷ Check the direction of rotation. If required, check the electrical connection and correct the direction of rotation. Vitacast / Vitacast Bloc 32 of 80...
  • Page 33 5. If the motor is running in the wrong direction of rotation, check the electrical connection of the motor and the control system, if any. 6. Fasten motor shroud 683 with screws 900.1. Vitacast / Vitacast Bloc 33 of 80...

  • Page 34: Commissioning/Start-Up/Shutdown

    Insufficient quantity of lubricating oil in the reservoir of the constant level oiler Damage to the bearings! ▷ Regularly check the oil level. ▷ Always fill the oil reservoir completely. ▷ Keep the oil reservoir properly filled at all times. Vitacast / Vitacast Bloc 34 of 80...

  • Page 35: Priming And Venting The Pump

    ▷ The pump internals in contact with the fluid to be handled, including the seal chamber and auxiliary systems must be filled with the fluid to be handled at all times. ▷ Provide sufficient inlet pressure. ▷ Provide an appropriate monitoring system. Vitacast / Vitacast Bloc 35 of 80...

  • Page 36: Start-Up

    ü The system piping has been cleaned. ü Pump, suction line and inlet tank, if any, have been vented and primed with the fluid to be pumped. ü The lines for priming and venting have been closed. Vitacast / Vitacast Bloc 36 of 80...

  • Page 37: Checking The Shaft Seal

    1. Close the shut-off element in the suction line. 2. Close any auxiliary lines. If the fluid to be handled is fed in under vacuum, also supply the shaft seal with barrier fluid during standstill. Vitacast / Vitacast Bloc 37 of 80...

  • Page 38: Seal Supply System

    Periodically check the quench liquid for contamination (replace quench liquid and clean quench system if necessary). 6.1.7.3.1.3 Applications For seal types T and H, operating mode BQ Make sure the circulation line diameter is ≥ ¼". Vitacast / Vitacast Bloc 38 of 80...
  • Page 39 The flow rate of the barrier fluid system depends on the shaft diameter, speed and fluid temperature. Valid for unbalanced mechanical seals flushed with clean water of 20 °C. Vitacast / Vitacast Bloc 39 of 80...

  • Page 40: Operating Limits

    (e.g. fill level monitoring). 6.2.1 Ambient temperature CAUTION Operation outside the permissible ambient temperature Damage to the pump (set)! ▷ Observe the specified limits for permissible ambient temperatures. Observe the following parameters and values during operation: Vitacast / Vitacast Bloc 40 of 80...

  • Page 41: Frequency Of Starts

    +45 to +60 Flushing Washing lye +70 to +95 20 to 30 Intermediate flushing Water +60 max. 5 to 10 Flushing See table below 10 to 15 Flushing Water +15 to +25 10 to 15 Vitacast / Vitacast Bloc 41 of 80...

  • Page 42: Steaming In Place (Sip)

    ≈ 25 % of Q opt. The calculation formula below can be used to check if an additional heat build-up could lead to a dangerous temperature increase at the pump surface. Best efficiency point Vitacast / Vitacast Bloc 42 of 80...

  • Page 43: Shutdown/Storage/Preservation

    1. For prolonged shutdown periods, start up the pump (set) regularly between once a month and once every three months for approximately five minutes. ð This will prevent the formation of deposits within the pump and the pump intake area. Vitacast / Vitacast Bloc 43 of 80...

  • Page 44: Returning To Service

    If the equipment has been out of service for more than one year, replace all elastomer seals before returning the equipment to service. Verify that the type of the new elastomers (material, certification) corresponds with that of the previous ones. Vitacast / Vitacast Bloc 44 of 80...

  • Page 45: Servicing/Maintenance

    DANGER Improper cleaning of coated pump surfaces Explosion hazard by electrostatic discharge! ▷ When cleaning coated pump surfaces in atmospheres of Explosion group IIC, use suitable anti-static equipment. Vitacast / Vitacast Bloc 45 of 80...

  • Page 46: Servicing/Inspection

    NOTE All maintenance work, service work and installation work can be carried out by KSB Service or authorised workshops. For contact details please refer to the enclosed "Addresses" booklet or visit "www.ksb.com/contact" on the Internet.
  • Page 47 – The bearing temperature must not exceed 100 °C (measured in the oil sump). CAUTION Operation outside the permissible bearing temperature Damage to the pump! ▷ The bearing temperature of the pump (set) must never exceed 90 °C (measured on the outside of the motor housing). Vitacast / Vitacast Bloc 47 of 80...

  • Page 48: Inspection Work

    ▷ Clean filter at appropriate intervals. 7.2.2.4 Checking the flushing liquid Periodically check the flushing liquid for contamination. If necessary, drain the flushing liquid. Clean the flushing system and fill it with new flushing liquid. Vitacast / Vitacast Bloc 48 of 80...

  • Page 49: Lubrication And Lubricant Change Of Rolling Element Bearings

    ▷ Wear safety clothing and a protective mask if required. ▷ Collect and dispose of any lubricants. ▷ Observe all legal regulations on the disposal of fluids posing a health hazard. At least once a year Vitacast / Vitacast Bloc 49 of 80...
  • Page 50 Motor size < 160 / 11 kW The bearings are grease-packed for life. Motor size ≥ 160 / 11 kW Fig. 10: Arrangement of lubricating nipples (1) Vitacast-Bloc, up to motor size 180 Vitacast-Bloc, motor size 200 Depending on the pump size and rotational speed, re-lubricate the rolling element bearings or replace the grease at regular intervals.

  • Page 51: Drainage/Cleaning

    2. Always flush the pump if it has been used for handling harmful, explosive and hot fluids or other fluids posing a risk. Always flush and clean the pump before transporting it to the workshop. Provide a certificate of decontamination for the pump. Vitacast / Vitacast Bloc 51 of 80...

  • Page 52: Dismantling The Pump Set

    In case of damage you can always contact KSB Service. NOTE All maintenance work, service work and installation work can be carried out by KSB Service or authorised workshops. For contact details please refer to the enclosed "Addresses" booklet or visit "www.ksb.com/contact" on the Internet.

  • Page 53: Preparing The Pump Set

    7.4.4 Removing the pump casing and impeller 1. Undo clamping piece 81-44. ð On Vitacast 150-125-350 and Vitacast 200-150-350 pump casing 101 is screwed on. In this case, undo studs 902.1 and nuts 920.1 instead of clamping piece 81-44.
  • Page 54 ð Pull the spring together with the seal off shaft 210. 433.1 5. If applicable, remove pipe 710.2 for the flushing connection of casing cover 161 from drive lantern 341. Fig. 14: Removing the mechanical seal Vitacast / Vitacast Bloc 54 of 80...
  • Page 55 7 Servicing/Maintenance 7.4.5.5 Seal type Q, operating mode DB (Vitacast) 901.5 710.2 ü The pump casing and impeller have been removed. 1. Remove both pipes 710.2 of the flushing connections. 2. Undo and remove hexagon head bolts 901.4 on the rear side of seal cover 471.

  • Page 56: Removing The Motor And Bearings

    210 or gently tap shaft 210 with a rubber mallet. Take care not to damage shaft 210. 11. Clean rolling element bearings 320.1/.2 with a degreasing agent. Check for any damage. 12. If rolling element bearings 320.1/.2 need to be replaced: ð Undo nut 920.1. Vitacast / Vitacast Bloc 56 of 80...

  • Page 57: Reassembling The Pump Set

    ▷ Use an original motor or a motor of identical design from the same manufacturer. ▷ The permissible temperature limits at the motor flange and motor shaft must be higher than the temperatures generated by the pump. (Contact KSB for temperatures). WARNING...

  • Page 58: Installing The Bearings

    320.1. 3. Slide rolling element bearing 320.2 onto shaft 210 from the drive end. To do so, exert gentle pressure on the inner ring of bearing 320.2. Vitacast / Vitacast Bloc 58 of 80...

  • Page 59: Installing The Mechanical Seal

    2. Fit casing cover 161 on shaft 210 and gently slide it into its specified location on drive lantern 341. 3. Slide the primary ring of mechanical seal 433.1, fitted with spacer discs 551, onto shaft 210. Move it into its specified location. Fig. 20: Installing the mechanical seal Vitacast / Vitacast Bloc 59 of 80...
  • Page 60 3. If applicable, fit pipe 710.2 for the flushing connection. 4. Fit casing cover 161 on shaft 210 and gently slide it into its specified location on drive lantern 341. 433.1 Fig. 22: Installing the mechanical seal Vitacast / Vitacast Bloc 60 of 80...
  • Page 61 7 Servicing/Maintenance 7.5.3.5 Seal type Q, operating mode DB (Vitacast) CAUTION The keyway could damage the seal faces and O-rings Damage to the mechanical seal! ▷ Always handle seal faces with utmost care. 901.5 710.2 ü The rolling element bearings have been properly installed.

  • Page 62: Fitting The Impeller

    7 Servicing/Maintenance 7.5.3.6 Seal type Q, operating mode DB (Vitacast-Bloc) CAUTION The keyway could damage the seal faces and O-rings Damage to the mechanical seal! ▷ Always handle seal faces with utmost care. 412.2 ü The rolling element bearings have been properly installed.

  • Page 63: Adjusting The Clearances

    100 112 132 160 180 200 225 250 032-025-145 34,8 35,2 ✘ ✘ ✘ ✘ 032-025-175 ✘ ✘ ✘ ✘ 34,3 34,6 040-032-110 ✘ ✘ 29,8 30,2 040-032-145 37,8 38,1 ✘ ✘ ✘ ✘ ✘ ✘ Vitacast / Vitacast Bloc 63 of 80...

  • Page 64: Mounting The Pump Casing

    3. Fasten motor 801 to bearing housing 350 with hexagon head bolts 901.2. 4. Align the pump horizontally. 5. Fit the flushing connections. Applies to: versions T and H, operating mode BQ; version Q, operating mode DB Vitacast / Vitacast Bloc 64 of 80...

  • Page 65: Spare Parts Stock

    25 % shaft 320.1 + 320.2 Set of rolling element bearings, pump 25 % shaft 320.1 + 320.2 Set of rolling element bearings, bearing 25 % pedestal 412.1 O-ring, casing 150 % Vitacast only Vitacast / Vitacast Bloc 65 of 80...
  • Page 66 30 % Only version Q, operating mode DB and versions T and H, operating mode BQ Only Vitacast 150-125-350 and 200-150-350, seal type T, operating mode BQ Only Vitacast 150-125-350 and 200-150-350, seal type T Motor size 160 and larger...

  • Page 67: Trouble-Shooting

    If problems occur that are not described in the following table, consultation with the KSB customer service is required. A Pump is running, but does not deliver B Insufficient flow rate...
  • Page 68 ✘ Rolling element bearings lubricated Replace bearings. Provide correct grease insufficiently. or oil quantity. Observe maintenance intervals. ✘ Water enters pump bearings. Clean the bearings. Fill in new lubricants. Replace joint rings. Vitacast / Vitacast Bloc 68 of 80...

  • Page 69: Related Documents

    9.1 General assembly drawings with list of components 9.1.1 Vitacast 81-44 81-92 81-92 914.2 412.3 901.2 320.2 940.2 940.1 412.1 903.2 901.1 433.1 914.1 320.1 554.3 901.3 421.1 Fig. 31: General assembly drawing, shaft diameter 28 mm, 43 mm Vitacast / Vitacast Bloc 69 of 80...
  • Page 70 554.3 421.1 Fig. 32: General assembly drawing, shaft diameter 55 mm 931 710.3 Version with inducer Seal type T, Seal type T, operating mode I, operating mode I, shaft diameter: 28 mm, 43 mm shaft diameter: 55 mm Vitacast / Vitacast Bloc 70 of 80...
  • Page 71 Washer Shaft Constant level oiler Impeller Venting device Inducer 710.1/.2/.3/.4 Pipe 320.1/.2 Rolling element bearing 81-44 Clamping piece Drive lantern 81-92 Cover plate Bearing housing 901.1/.2/.3/.4/.5 Hexagon head bolt Bearing cover 902.1/.2 Stud Vitacast / Vitacast Bloc 71 of 80...
  • Page 72 903.1/.2/.3 Screw plug 412.1/.2/.3/.4/.6/.7/.8 O-ring Grub screw 421.1/.2 Lip seal 914.1/.2/.5 Hexagon socket head cap screw 433.1/.2 Mechanical seal 920.1/.2 Shaft seal housing Impeller nut Seal cover Lock washer Thrower 940.1/.2 Shaft sleeve Vitacast / Vitacast Bloc 72 of 80...

  • Page 73: Vitacast-Bloc

    900.2 81-92 412.3 914.2 182.2 909.1 320.1 909.2 412.1 182.1 920.3 901.2 914.1 920.2 914.4 Fig. 33: General assembly drawing, motor size IEC 71-112 421.1 909.2 920.2 182.2 Fig. 34: General assembly drawing, motor size IEC 132-180 Vitacast / Vitacast Bloc 73 of 80...
  • Page 74 Fig. 35: General assembly drawing, motor size IEC 200 551.1 Version with inducer Seal type T, Seal type H, operating mode I, operating mode I, shaft diameter: 20 mm, 28 mm, shaft diameter: 20 mm, 28 mm, 43 mm 43 mm Vitacast / Vitacast Bloc 74 of 80...
  • Page 75 Joint ring (V-ring) 901.1/.2 Hexagon head bolt 412.1/.2/.3/.4/.6/.7 O-ring 909.1/.2 Adjusting screw 421.1/.2 Lip seal 914.1/.2/.3/.4/.5 Hexagon socket head cap screw Mechanical seal Plug Shaft seal housing 920.1/.2/.3 Seal cover Impeller nut Thrower Vitacast / Vitacast Bloc 75 of 80...

  • Page 76: Eu Declaration Of Conformity

    10 EU Declaration of Conformity 10 EU Declaration of Conformity Manufacturer: KSB SE & Co. KGaA Johann-Klein-Straße 9 67227 Frankenthal (Germany) The manufacturer herewith declares that the product: Vitacast, Vitacast-Bloc, Vitaprime, Vitastage KSB order number: ....................▪ is in conformity with the provisions of the following Directives as amended from time to time: –...
