8. Continued.....
f. Test the locking and unlocking function.
If you cannot lock the unit from the exterior or cannot rotate the interior turn-
piece, proceed with the following steps to remedy the situation. 1. Insert the
key and rotate clockwise to the horizontal position. 2. Loosen the set screw
and pull the lever away from the unit, about 1/4". 3. Rotate the key 180°
clockwise. With the key remaining in the horizontal position, push the lever
back to seat and tighten the set screw. 4. Test the locking and unlocking
function and repeat these steps if required.
LEVER NOTES
Action of exterior lever: When the unit is in the locked position the exterior
lever is still allowed to turn, but it will not retract the latch. When the unit is in
the unlocked position, the exterior lever will turn firmly, retracting the latch for
entry.
Important note should you need to remove the exterior lever: 1. insert key into
exterior lever and rotate clockwise to a horizontal (unlocked) position.
2. Loosen set screw and pull the lever, cylinder and key - away from keypad
assembly.
Important note: This product has a panic free interior, which will allow
interior lever to always retract the latch and allow exit. Caution: if you exit
and plan re-entry without a key or code, make sure the turnbutton on the
interior lever is in the unlocked (horizontal) position before exiting.
9. Install batteries

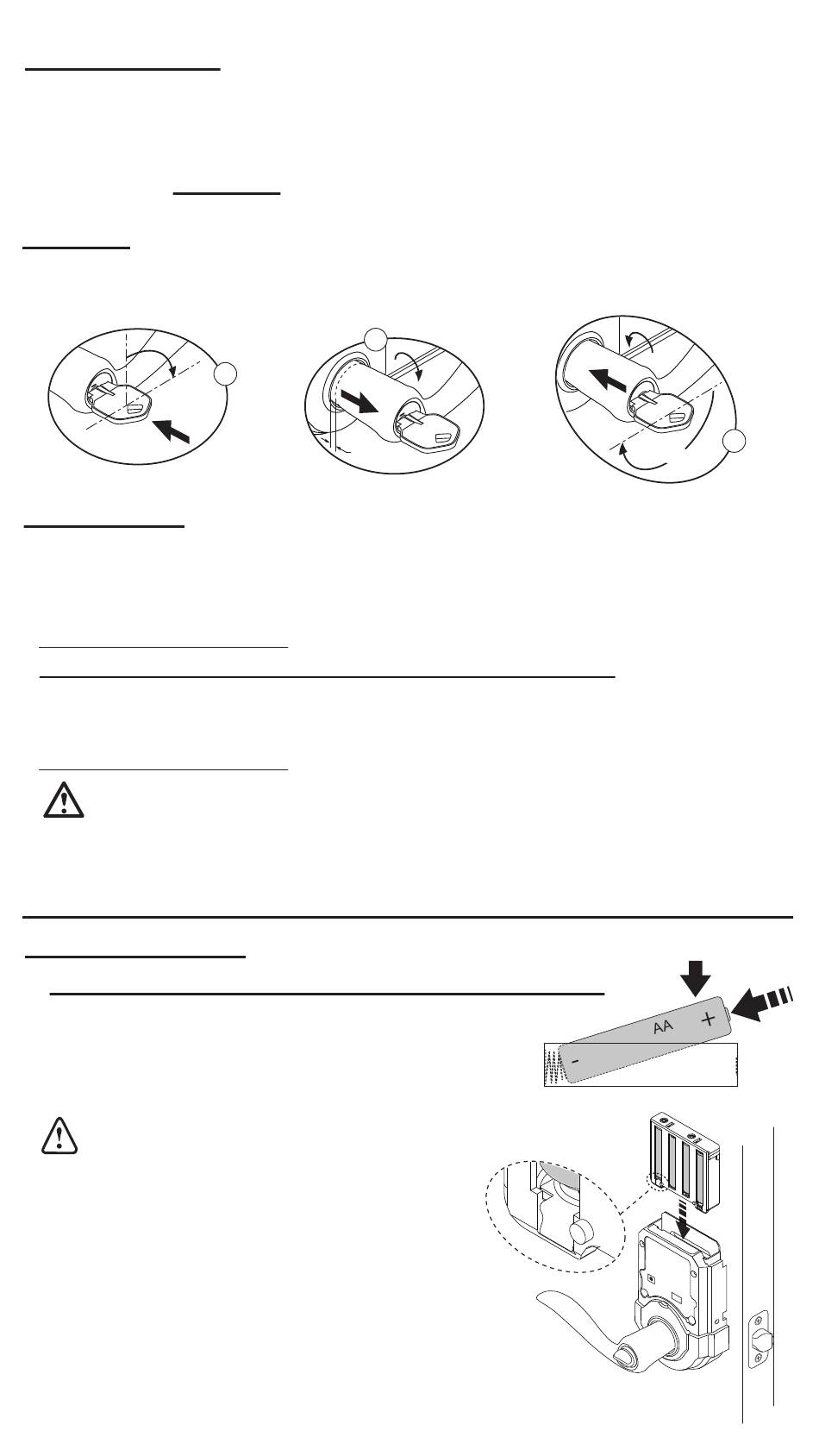

a. Install 4 new AA Alkaline batteries into battery pack.
Install the new batteries as indicated in illustration.
Make sure batteries lie flat in holder. For best
performance, rechargeable batteries are not
recommended.
Alkaline Battery WARNING:
Do not dispose of in fire, recharge, put in
backwards, disassemble, mix with used
or other battery types. May explode or
leak and cause personal injury.
b. Install battery pack into unit as shown. Unit will
beep and the LED will flash green.
6
2
1
1/4" (6mm)
3
180°
2
1
I N
T E
R I
O R
