Separating the charging cables for use in showrooms:
The charging cables can be separated using the connector socket to facilitate placing the
device underneath the vehicle. (See Figure 3)
ATTENTION: The charging cables may only be separated once the device has been
switched off and unplugged from the mains.
Note: The charging cables show in Figure 3 are only used with DBLW301-14 and
DBLW501-14. From DBLW751-14 upwards, charging cables without a decoupler are
used.
Steps:
1. Disconnect the device from the mains socket.
2. Separate the charging cables at the connector sockets which are located in the
middle of the charging cables.
3. Feed the free charging cable with the connector socket on it down through the
engine compartment.
4. Connect the charging cable to the device at the connector socket.
5. Connect the charging clamps to the charging points provided on the vehicle
6. Plug the power cable into a mains socket (100~240 V AC).
7. To signal that the device has started, LEDs 2–4 will illuminate in a running
sequence.
8. By default, after being connected to the mains or after a restart, the device will enter
the last used operating mode when put into active mode. When the device is
switched on for the first time, it will enter cable compensation mode when put into
active mode.
Note: You cannot change operating modes in active mode.
DBLW Series Operating Instructions

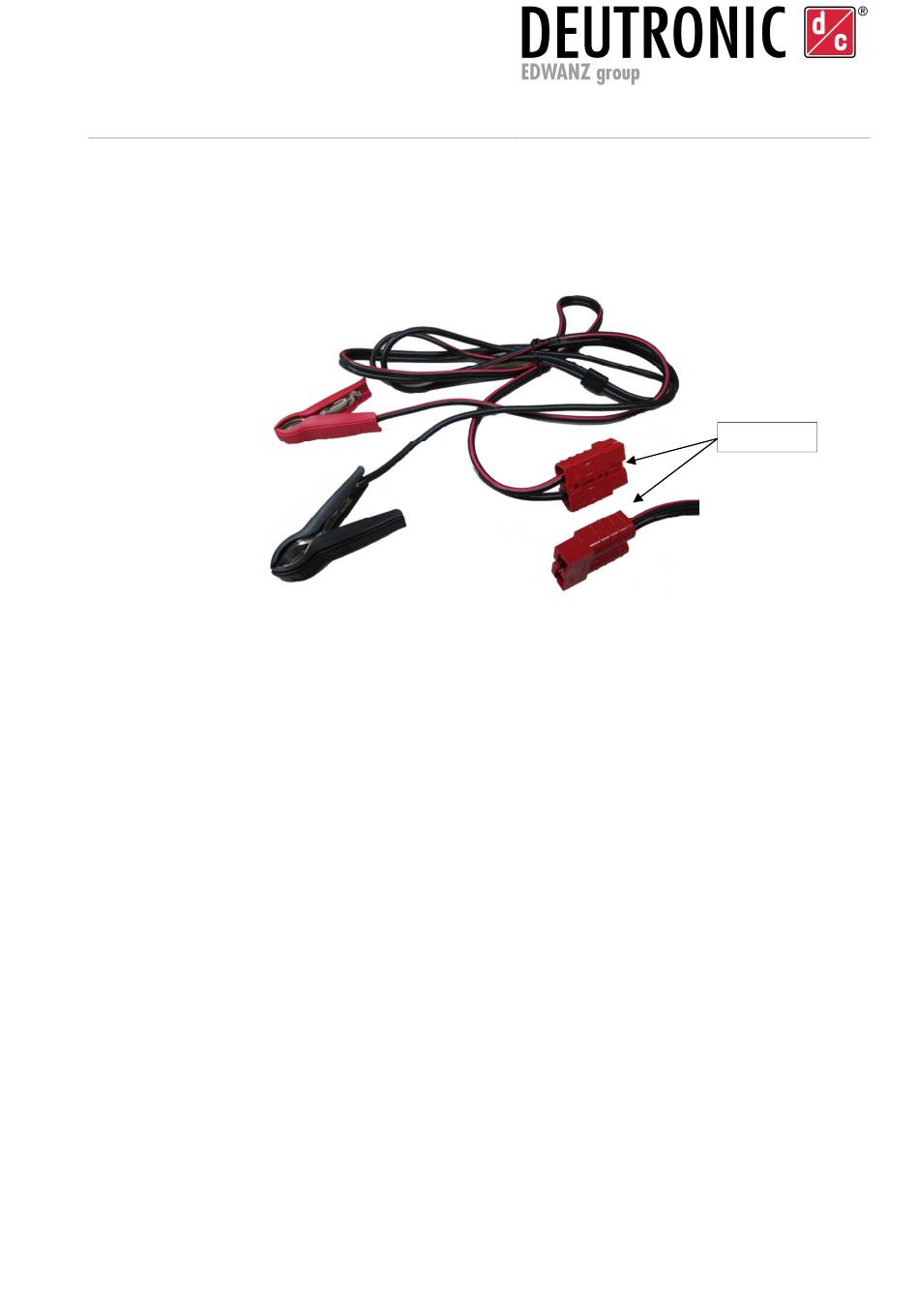

Figure 3 Charging cables in the DBLW series
