Deutronic DBL 75-14 Operating Instructions Manual

Smart charger for 12v lifepo4- and all types of 12v lead-acid batteries
Hide thumbs
Table of Contents

Advertisement

Quick Links

Deutronicstraße 5, 84166 Adlkofen / Germany
Tel.:
+49 (0) 8707 920-199
Fax:
+49 (0) 8707 1004
E-Mail: sales@deutronic.com
http://www.deutronic.com

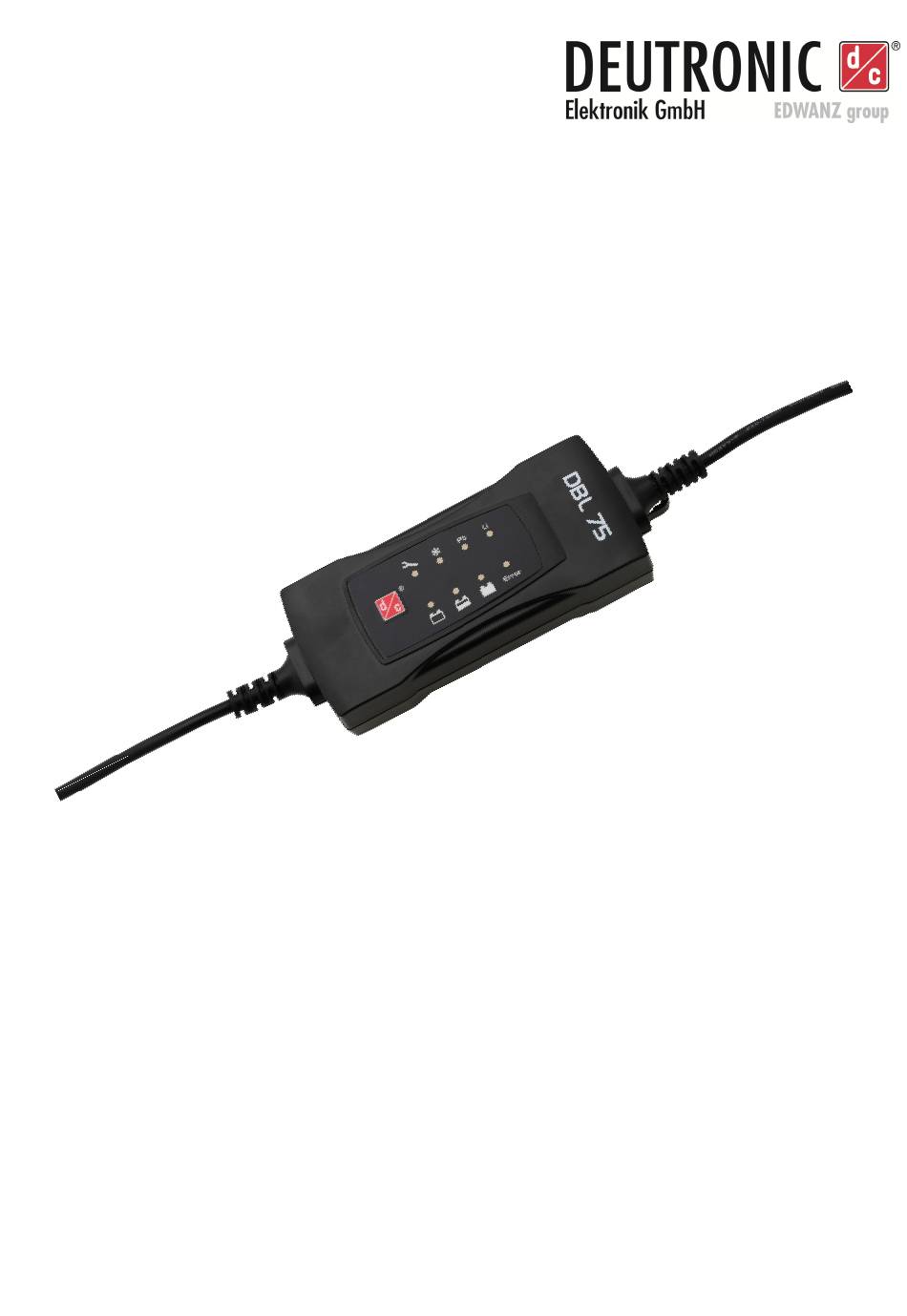

For 12V LiFePO4- and all types of 12V lead-acid batteries

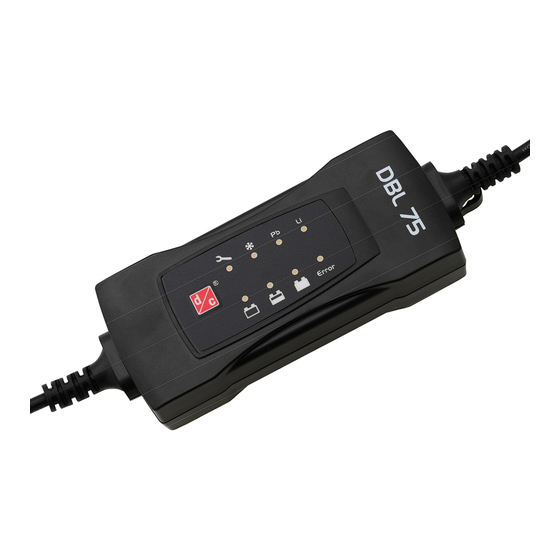

The DBL 75-14 is a microprocessor controlled trickle charger for battery care of automotive batteries.
Equipped with an intelligent, adaptive charging- and regeneration process and automatic battery
chemistry detection. It is suitable for all types of 12V lead-acid batteries including GEL and AGM, also
for 12V LiFePO4 batteries. It is able to recognition lightly sulphated lead-acid batteries. The battery
charger automatically detects type of battery and automatically selects an ideal charging process.
**Please read this manual carefully and follow the instructions**
Smart Charger
Products are described by information contained in catalogs and data-sheets.It is not be considered as assured qualities.Stresses listed under „Maximum Rating" (one at a time) may be applied to devices without resulting in permanent
damage. The operation of the equipment for extended periods may affect device reliability. Limiting value tolerance are subject to usual fluctuation margins.
State 29.09.2017
DBL75 – 14 Smart Charger

-Operating Instructions-

All data at nominal input, full load and 25
0
C ambient temperature, if not marked otherwise.
Technical modifications and mistakes reserved.
170901_DBL75_manual_EN.doc
DBL75 - 14
Page 1 of 14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DBL 75-14 and is the answer not in the manual?

Questions and answers

Related Manuals for Deutronic DBL 75-14

Summary of Contents for Deutronic DBL 75-14

  • Page 1: Operating Instructions

    For 12V LiFePO4- and all types of 12V lead-acid batteries -Operating Instructions- The DBL 75-14 is a microprocessor controlled trickle charger for battery care of automotive batteries. Equipped with an intelligent, adaptive charging- and regeneration process and automatic battery chemistry detection. It is suitable for all types of 12V lead-acid batteries including GEL and AGM, also for 12V LiFePO4 batteries.

  • Page 2: Important Safety Instructions

    Deutronicstraße 5, 84166 Adlkofen / Germany Tel.: +49 (0) 8707 920-199 Fax: +49 (0) 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Important Safety Instructions This charger is designed for only maintain above-named battery types. For indoor use only. Explosion hazard: A battery being charged could emit explosive gases. Therefore avoid smoking or open sparks or naked flames in the vicinity of the battery.
  • Page 3 Deutronicstraße 5, 84166 Adlkofen / Germany Tel.: +49 (0) 8707 920-199 Fax: +49 (0) 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Safety Instructions: Save these instructions. This manual contains important safety and operating instructions. Do not expose charger to rain or snow.
  • Page 4 +49 (0) 8707 920-199 Fax: +49 (0) 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Use charger for charging above-named battery types only. Do not use battery charger for charging dry-cell batteries that are commonly used with home appliances. These batteries may burst and cause injury to persons and damage to property.
  • Page 5 Tel.: +49 (0) 8707 920-199 Fax: +49 (0) 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Follow these steps when battery is outside vehicle. A spark near the battery may cause battery explosion. To reduce risk of spark near battery: Plug in the charger to AC mains.
  • Page 6 Tel.: +49 (0) 8707 920-199 Fax: +49 (0) 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com WEEE Notice Disposal of Waste Electrical and Electronic Equipment and/or Battery by users in private households in the European Union. This symbol on the product or on the packaging indicates that this can not be disposed of as a household waste.

  • Page 7: Control Panel

    Deutronicstraße 5, 84166 Adlkofen / Germany Tel.: +49 (0) 8707 920-199 Fax: +49 (0) 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Control Panel LED / BUTTON FUNCTION Select Pre-conditioning: Via Pre-conditioning (Pre current) batteries with terminal voltage >7VDC can be charged. ATTENTION: In standard mode charging starts just above...

  • Page 8: Device Status

    Deutronicstraße 5, 84166 Adlkofen / Germany Tel.: +49 (0) 8707 920-199 Fax: +49 (0) 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Device Status Explanation LED Signalling* Turn-on delay LED 2 lights permanently Desulphation LED 2, 4, 5 and 6 light permanently SoC-detection...
  • Page 9 3. Plug in the charger to AC mains (100~240V AC). 4. LED’s flowing in a circle are signalling charger self-test. 5. The DBL 75-14 automatically starts analyzing the battery followed by the charging or maintenance process. Disconnect/Power off When you disconnect the battery charger from the battery during the charging mode LED 6 will be flashing.
  • Page 10 Deutronicstraße 5, 84166 Adlkofen / Germany Tel.: +49 (0) 8707 920-199 Fax: +49 (0) 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Procedure Power on The device will start when the DBL is connected to the mains supply. The following situations can occur.
  • Page 11 Tel.: +49 (0) 8707 920-199 Fax: +49 (0) 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Regeneration The regeneration mode is intended to refresh Pb batteries. It starts after the Pb battery is charged. After maximum 240 minutes the regeneration mode will be interrupted.

  • Page 12: Safety Features

    Deutronicstraße 5, 84166 Adlkofen / Germany Tel.: +49 (0) 8707 920-199 Fax: +49 (0) 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Safety Features Spark prevention: The DBL75-14 will not begin charging process before load (battery) was detected on charger output. Reverse polarity protection: If the polarity is reversed by wrong connection of the output cables, the charger doesn’t start charging...

  • Page 13: Error Messages

    Deutronicstraße 5, 84166 Adlkofen / Germany Tel.: +49 (0) 8707 920-199 Fax: +49 (0) 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Error messages Type of fault Signalling Reversed polarity LED 9 flashes rapidly The output cable was connected in reversed polarity to the battery.

  • Page 14: Technical Data

    Deutronicstraße 5, 84166 Adlkofen / Germany Tel.: +49 (0) 8707 920-199 Fax: +49 (0) 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Technical Data Input voltage 100-240V, 50/60Hz~, 1.5A 13,8 VDC / 1A cont. Max. charging current 12,0 VDC / 5A, 10 min.
