Deutronic DBL User Manual

With mpc4-board and 14vdc output voltage (12vdc lead based batteries)

Hide thumbs

Table Of Contents

Deutronicstrasse 5

D-84166 Adlkofen / Germany

Tel.: +49 (0)8707 / 920-199

Fax: +49 (0)8707 / 1004

E-Mail:

sales@deutronic.com

http://www.deutronic.com

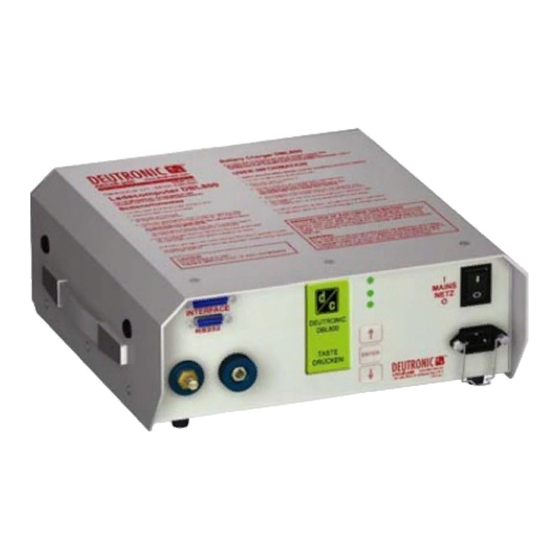

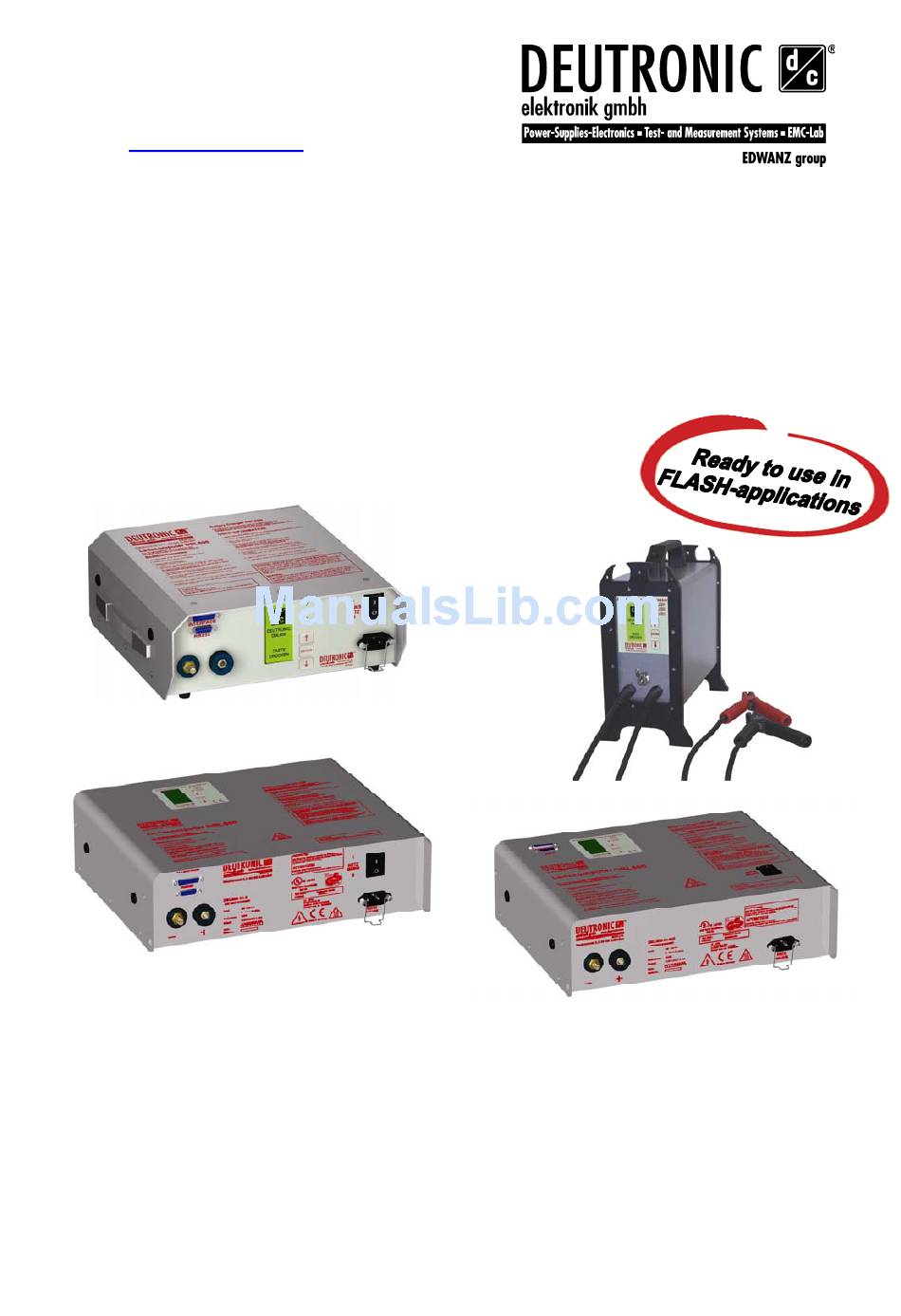

Deutronic Battery Charger with MPC4-Board and

14VDC output voltage (12VDC lead based batteries)

B-Version

Important note:

Deutronic DBL Manual (MPC4) - 14VDC - EN

DBL Manual

Standard-Version

Only qualified personnel is allowed to use the charger. Do not use the

charger in applications for which the device was not originally designed!

Read operation instructions carefully and in any case pay attention to

the guidelines of the battery manufacturer!

- 1 / 20 -

M-Version

BM-Version

10 / 2006

Table of Contents

Need help?

Do you have a question about the DBL and is the answer not in the manual?

Questions and answers

Summary of Contents for Deutronic DBL

Page 1 Read operation instructions carefully and in any case pay attention to the guidelines of the battery manufacturer! Deutronic DBL Manual (MPC4) - 14VDC - EN - 1 / 20 - 10 / 2006...
Page 2: Table Of Contents
Mains cables must always be in a proper state, renew defective cables immediately. The device mustn’t be opened because as well the test certification as the warranty expires. Deutronic DBL Manual (MPC4) - 14VDC - EN - 2 / 20 -...
Page 3 Review cautionary marking on these products and on engine. POUR RÉDUIRE LE RISQUE D´EXPLOSION, LIRE CES INSTRUCTIONS ET CELLES QUI FIGURENT SUR LA BATTERIE. Deutronic DBL Manual (MPC4) - 14VDC - EN - 3 / 20 - 10 / 2006...
Page 4 Determine voltage of battery by referring to car owner‘s manual and make sure it matches output rating of battery charger. Deutronic DBL Manual (MPC4) - 14VDC - EN - 4 / 20 - 10 / 2006...
Page 5 Connect NEGATIVE (BLACK) charger clip to free end of cable. d) Do not face battery when making final connection. e) When disconnecting charger, always do so in reverse sequence of connecting procedure. Deutronic DBL Manual (MPC4) - 14VDC - EN - 5 / 20 - 10 / 2006...
Page 6 Make sure that the charger is connected to an outlet having the same configuration as the plug. No adapter should be used with this charger. Figure - Grounding Methods Source: UL1236 Battery Chargers Deutronic DBL Manual (MPC4) - 14VDC - EN - 6 / 20 - 10 / 2006...
Page 7: Technical Data
2) Technical Data For detailed technical data like input voltage, required mains fuse etc. see respective data sheet, that you can get on our product CD, on our webpage www.deutronic.com or on request direct from Deutronic. 3) Connections and Control Elements...
Page 8: Initial Operation / Handling
Note: Some parameters can only be configured when the DBL is not in supply or charge mode (e.g. changing the operation mode like AUTO-MODE, SUPPLY-MODE, CHARGE-MODE etc.). - MENU: Device configuration (as the case may be it is protected with a key lock)
Page 9 (selection is done with the UP/DOWN button and confirmation with the ENTER-button). Active Key lock: If the key lock is activated on the DBL – so the display shows the following. Deactivate the key lock: Activate the input field with the ENTER-button, change the code number...
Page 10: Operation Mode
I and I FC current 1 to 20 Ampere (I = typ. 2,5 .. 10 A) Current limit, below this value the DBL switches to trickle charge mode Recharge 0,5 to 30 Ampere (I = typ. 1,0.. 2,5 A) current...
Page 11 Note: Signalization of ‘battery full’ state is independent from any trickle current limit SHORTCELL: Definition / explanation – see 7) Annex – CELLCHECK / SHORT CELL DETECT ON / DETECT Deutronic DBL Manual (MPC4) - 14VDC - EN - 11 / 20 - 10 / 2006...
Page 12: C) Devicemenu - For Device Specific Parameter Setting
If the voltage on the output drops below the preset value, so a short circuit is recognized and the current is limited to 0,5A. Deutronic DBL Manual (MPC4) - 14VDC - EN - 12 / 20 - 10 / 2006...
Page 13 / short circuit is present longer. Altogether three pulses are given out from the DBL – should the overload / short circuit be present any longer then no more trials are taken and current is limited to max.
Page 14 ON / OFF Activate / deactivate display sleep mode. After about 1 min of no user action on the DBL the display goes into sleep mode (see picture below). Note: Useful if operation state should only be signalized by the signal LEDs or an external control unit / signal lamp.
Page 15: Operation Mode / Status / Error Messages
Contact service station reduced output power) HIGH TEMP. Temperature to high - device is not On high temperature the DBL reduces the output working within the specified current and displays the message " HIGH TEMP." temperature range (DBL works with...
Page 16: Annex - Cellcheck / Short Cell Detect
During that stop the charger measures the battery voltage and the internal algorithm separates good and bad batteries. In case of defect batteries stops the charging process and in the display appears “SHORT CELL DETECT”. Deutronic DBL Manual (MPC4) - 14VDC - EN - 16 / 20 - 10 / 2006...
Page 17: Annex - Indication / Led And Signal Lamp
8) Annex – Indication / LED and Signal Lamp Deutronic DBL Manual (MPC4) - 14VDC - EN - 17 / 20 - 10 / 2006...
Page 18: Annex - Characteristic Curves
9) Annex – Characteristic Curves Output rating curve – on the example of DBL800: Charging characteristic I-Uo-U: Deutronic DBL Manual (MPC4) - 14VDC - EN - 18 / 20 - 10 / 2006...
Page 19: Notes
Notes Deutronic DBL Manual (MPC4) - 14VDC - EN - 19 / 20 - 10 / 2006...
Page 20: Annex - Accessories
To ensure a fast and smooth processing it is absolutely important that every device sent to Deutronic for repair has a fully filled out return service scripture in which for every device all relevant data (e.g. address, name contact person, phone number etc.) as well as a detailed fault description is included.
