For 12V lead based Wet, Sealed, GEL & AGM Batteries
Introduction
The EBL70-12 is a switch mode trickle charger for battery care, with MCU controlled constant current
Bulk, pulse Absorption and pulse Float / Maintenance charge. It is suitable for all types of 12V lead
acid batteries including GEL and AGM. It can recondition lightly sulphated lead acid battery. It is not
suitable for long-term charging and long-term applications.Though it is primarily designed for indoor
use, it has a splash proof sealed polycarbonate casing.
**Please read this manual carefully and follow the instructions.**
Features
1.
Multiple Stage Charge / consecutive charging phase
A.
Check and Qualifying battery to Desulphate Charging
B.
If required: Desulphate Charging
C.
Constant current Bulk charge
D.
Absorption / Pulse charge
E.
Float / Maintenance charge
2.
Motorcycle battery, Car battery or Car battery at low surrounding temperature (< +10°C)
3.
Select-and-forget operation and can be connected to battery for months
4.
Auto recover to last selected Charge Mode on return from AC power blackout
5.
Electronic protections against wrong battery connection, short circuit and sparks
6.
Over Temperature Protection from decrease in output current to shut down.
7.
Splash proof sealed polycarbonate casing
8.
The Microprocessor unit (MCU) controls charging and monitors battery state of charge with
advanced charging program which makes it faster and saver charge your battery without
overcharging or undercharging.
Contents
EBL70 - - - - 12 12 12 12 Smart Charger
EBL70
EBL70
EBL70
-Short User's Manual-
● Smart charger with lead terminals
● Detachable leads with protection cover & crocodile clips
● Connecting leads with protection cover & ring terminals
Advertisement
Table of Contents
Related Manuals for Deutronic EBL70-12
Summary of Contents for Deutronic EBL70-12

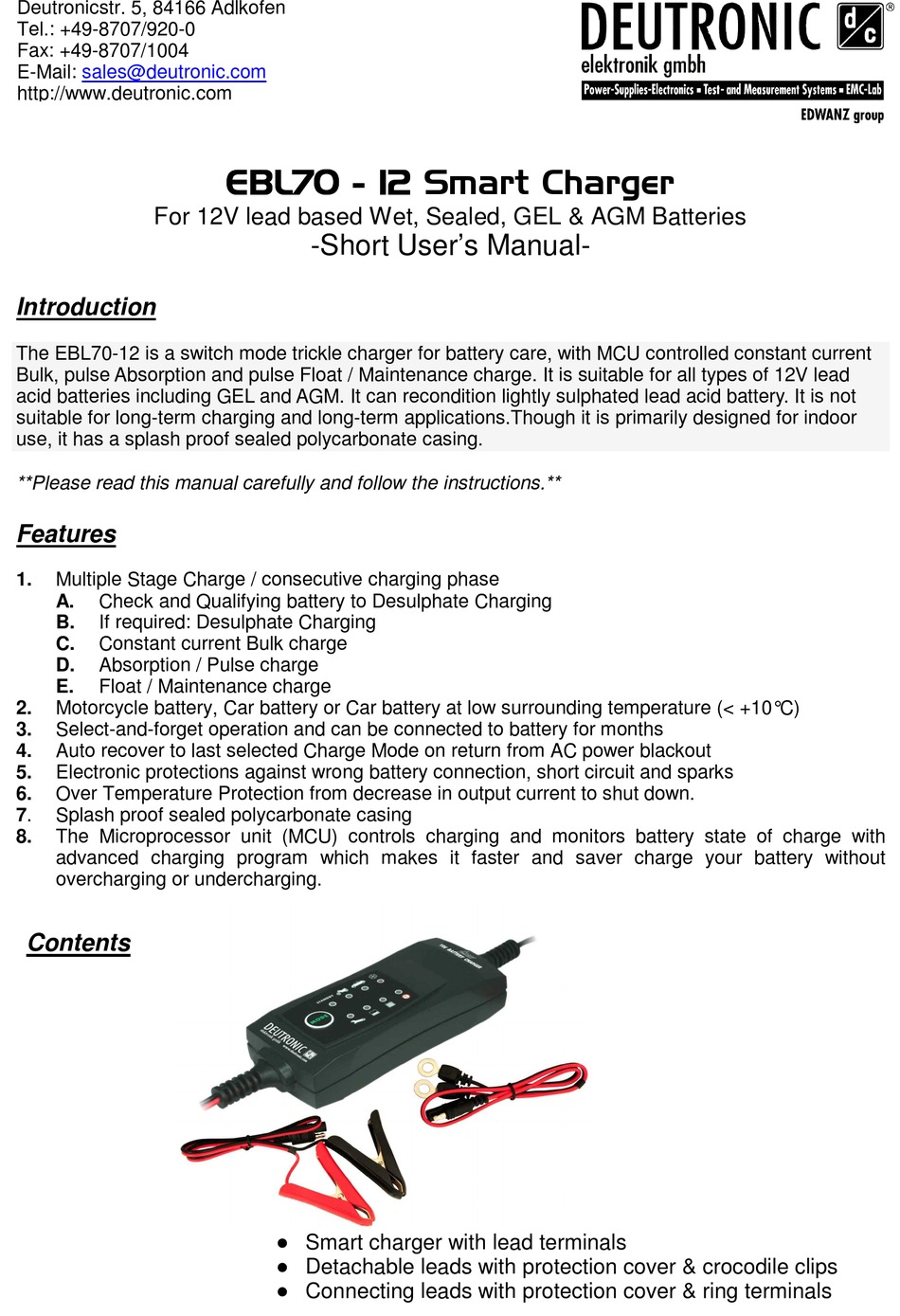

- Page 1 -Short User’s Manual- Introduction The EBL70-12 is a switch mode trickle charger for battery care, with MCU controlled constant current Bulk, pulse Absorption and pulse Float / Maintenance charge. It is suitable for all types of 12V lead acid batteries including GEL and AGM. It can recondition lightly sulphated lead acid battery. It is not suitable for long-term charging and long-term applications.Though it is primarily designed for indoor...
- Page 2 Warning! ● This trickle charger is designed for only charging 12V lead acid batteries of 5 to 120Ah. ● Do not use this trickle charger for any other purpose ● For indoor use only ● Explosion hazard: A battery being charged could emit explosive gases. ●...
-
Page 3: Control Panel
Control Panel LED / BUTTON FUNCTION a a a a Activate & Mode Select: Motorcycle, Car and Low Temperature Modes s s s s Standby Mode Steady light on : AC mains connected but trickle charger is not yet connected to battery. Blinking light on : Battery is connected, 1 minute to select charge mode before trickle charger enters to last selected Charge Mode. - Page 4 LED / BUTTON FUNCTION h h h h Check-Phase Steady light on : For a few seconds initially for normal battery, charger checking battery. (Attention – note the important hint concerning regeneration phase Steady light on : For longer time, trickle charger in *desulphate phase. Blinking light on : When connected to battery showing the battery is not suitable for charge.
- Page 5 Operation Plug in the trickle charger to AC mains (100 - 240V) wall socket. The indicators light up one by one as trickle charger goes through a series of self checks. Then all lights are on together and off except the operation “Standby” indicator, to indicate the end of checks. Connect the red output lead to the positive terminal of the battery and the black lead to the chassis or in case of an disconnected battery to the negative battery terminal.
-
Page 6: Charging Phases
Charging Phases Bulk : Here, the battery is charged up to about 80% fully. MODE: Car battery / Low temperature mode Here, the battery is charged with a constant charging current of 5A until the battery voltage rises to a preset value. - Page 7 Alarm and Faults The blinking Alarm indicates faulty connections or charge condition so that the trickle charger does not provide any power to the output. Once the fault has been corrected the trickle charger will continue to operate normally. The following faults are detected: A.
-
Page 8: Specifications
Specifications AC Input 100-240V, 50/60Hz~, 1.5A Maximum Output Charging Current Max. Power Efficiency >78% Maximum Output Charging Current for Car/Low Temp. Mode Maximum Output Charging Current for Motorcycle Mode 1.5A Absorption Voltage (Motor cycle/Car Mode) 14.4V Absorption Voltage (Low Temperature Mode) 14.7V Housing Splash-proof...
