Summary of Contents for Monti Bristle Blaster Pneumatic

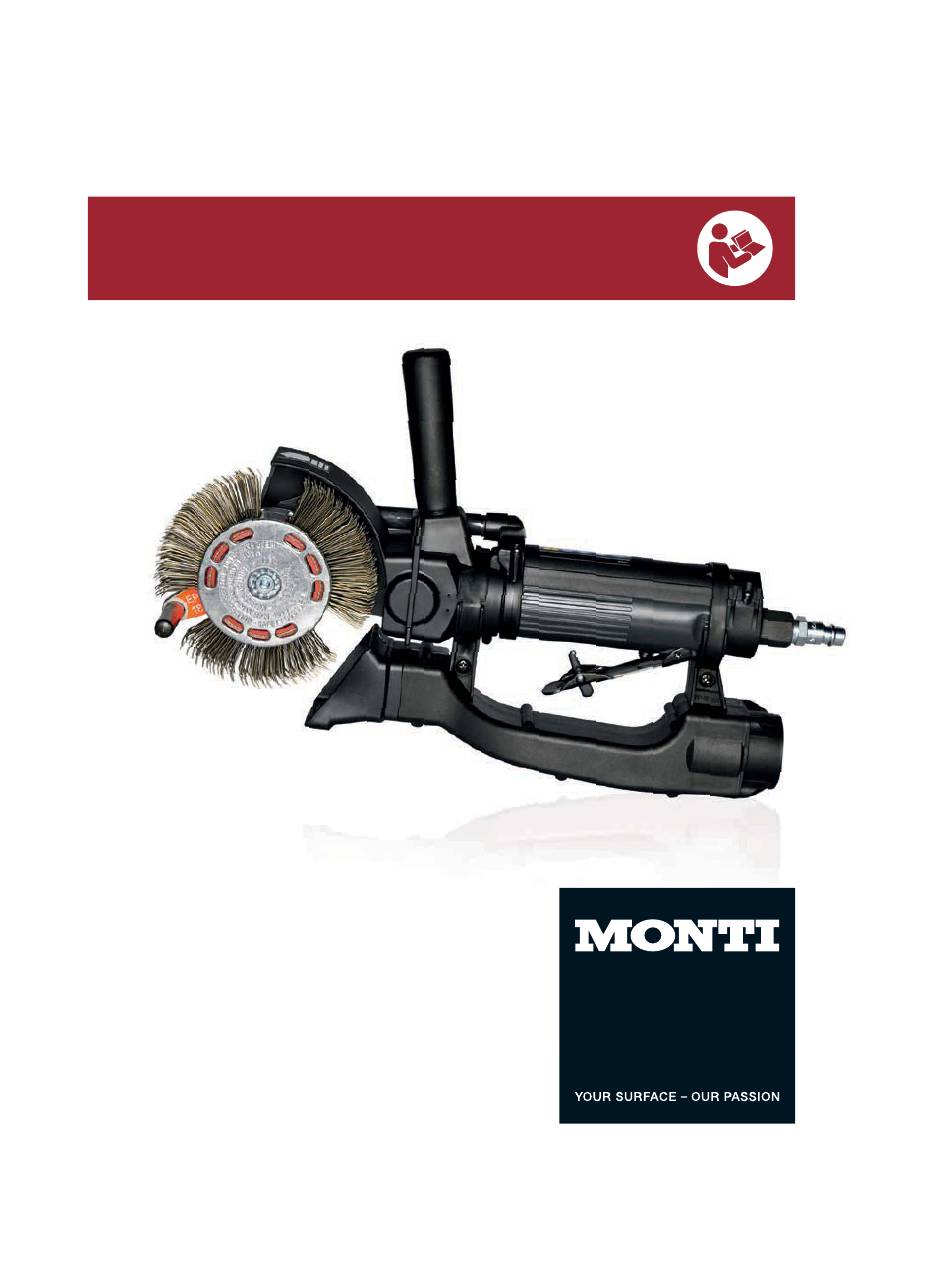

- Page 1 Bristle Blaster Pneumatic ®...
- Page 2 Bristle Blaster Pneumatic Betriebsanleitung ® Konformitätserklärung MONTI - Werkzeuge GmbH Reisertstr. 21 53773 Hennef Deutschland erklären in alleiniger Verantwortung, dass das Produkt Bristle Blaster Pneumatic ® auf das sich diese Erklärung bezieht, mit den folgenden Normen übereinstimmt DIN EN 792-7...
-
Page 3: Table Of Contents
Dear customer! MONTI thanks you for the purchase of one of its products and invites you to read these operating instructions. All the necessary information for the correct use of the tool purchased is included here. It is therefore recommended to read the instructions completely and to follow the information they contain. -
Page 4: Responsibility Of The Owner And/Or User Of The Tool
GB/US Bristle Blaster Pneumatic Operating instructions ® RESPONSIBILITY OF THE OWNER AND/OR USER OF THE TOOL These operating instructions form part of the items supplied for the Bristle Blaster Pneumatic and must always ® accompany this tool, also if sold. The owner and /or user of the Bristle Blaster Pneumatic must be familiar with the instructions for use before ®... -
Page 5: Utilisation In Zone 1 (Category 2 Equipment In Accordance With Atex 94/9/Ec)
GB/US Operating instructions Bristle Blaster Pneumatic ® After maintenance tasks, all safety features removed must be correctly re-fitted. The safety features and their protective action must be checked by an expert prior to placing the tool in operation. Removing, disengaging and / or bypassing safety features (covers, trim panels, starting lever, etc.) and/or safety guards can cause injury or damage and are therefore strictly forbidden by the manufacturer! The manufacturer provides a warranty for the Bristle Blaster Pneumatic in accordance with its general terms and... -
Page 6: Working Area
GB/US Bristle Blaster Pneumatic Operating instructions ® WORKING AREA 1. Keep your working place clean. Cluttered working places and workbenches are risks of injury. 2. Never allow children, unauthorised individuals or individuals without safety glasses and other protective equipment to enter the working area. 3. -
Page 7: Special Safety Instructions
GB/US Operating instructions Bristle Blaster Pneumatic ® Special safety instructions 1. Prior to operating the tool, always check for faulty and defective parts or any other conditions that might affect the operativeness. Never use tool if damaged or adjusted incorrectly. Any damaged safety features, starter lever or other faulty parts are to be repaired or replaced by an authorised service engineer, provided there are no other instructions in this manual. -
Page 8: Compressed Air Supply
GB/US Bristle Blaster Pneumatic Operating instructions ® COMPRESSED AIR SUPPLY This compressed air tool is designed for a maximum flow pressure of 90 psi (6.2 bar) at the tool. On the usage of the Bristle Blaster 23 mm Belt, a flow pressure of 90 psi (6.2 bar) at the tool is necessary. On the usage of the ®... -
Page 9: Placing In Operation
GB/US Operating instructions Bristle Blaster Pneumatic ® PLACING IN OPERATION Application: This tool is used for the removal of corrosion and coatings, and for producing a rough surface profile (anchor profile) using a specially developed Bristle Blaster Belt. ® 1. Use suitable sealing material such as Teflon Band to fasten ®... - Page 10 GB/US Bristle Blaster Pneumatic Operating instructions ® Correct direction of Less pressure = longer service life and Observe the correct working position! operation higher performance Holding machine Angle machining If the tool does not work correctly, check the following: Æ Are you using a suitable Bristle Blaster Belt for the surface to be machined? –...
-
Page 11: Technical Data
GB/US Operating instructions Bristle Blaster Pneumatic ® TECHNICAL DATA Technical data: Bristle Blaster Pneumatic ® Air consumption ............Litre/min. (CFM) Ø 500 (17,5) ± 10 % Compressed air connection ..................R 1/4" Necessary hose size.................. 3/8" ID (9,5 mm) Weight .........................1,1 kg Technical data: Air Pressure regulator Max. -
Page 12: Service Instructions
GB/US Bristle Blaster Pneumatic Operating instructions ® SERVICE INSTRUCTIONS 1. The tool is to be serviced exclusively by qualified staff members or by the dealer who has sold it. Repair or servicing by unqualified personnel may result in injuries and/or damage to the tool. 2.
