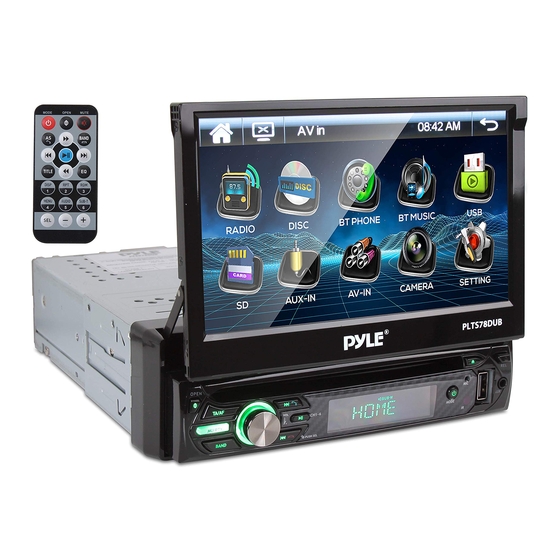

Pyle PLTS78DUB User Manual

Car stereo video receiver with wireless bt streaming, hands-free talking, motorized fold-out touchscreen, 7 inch display, mp3/usb/sd/am/fm radio, single din
Hide thumbs Also See for PLTS78DUB:

Advertisement

Table of Contents

See also: Owner's Manual
PLTS78DUB
Car Stereo Video Receiver
with Wireless BT Streaming, Hands-Free Talking,
Motorized Fold-Out Touchscreen, 7'' Display,
MP3/USB/SD/AM/FM Radio, Single DIN
Download the 'PyleBT' App

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLTS78DUB and is the answer not in the manual?

Questions and answers

Related Manuals for Pyle PLTS78DUB

Summary of Contents for Pyle PLTS78DUB

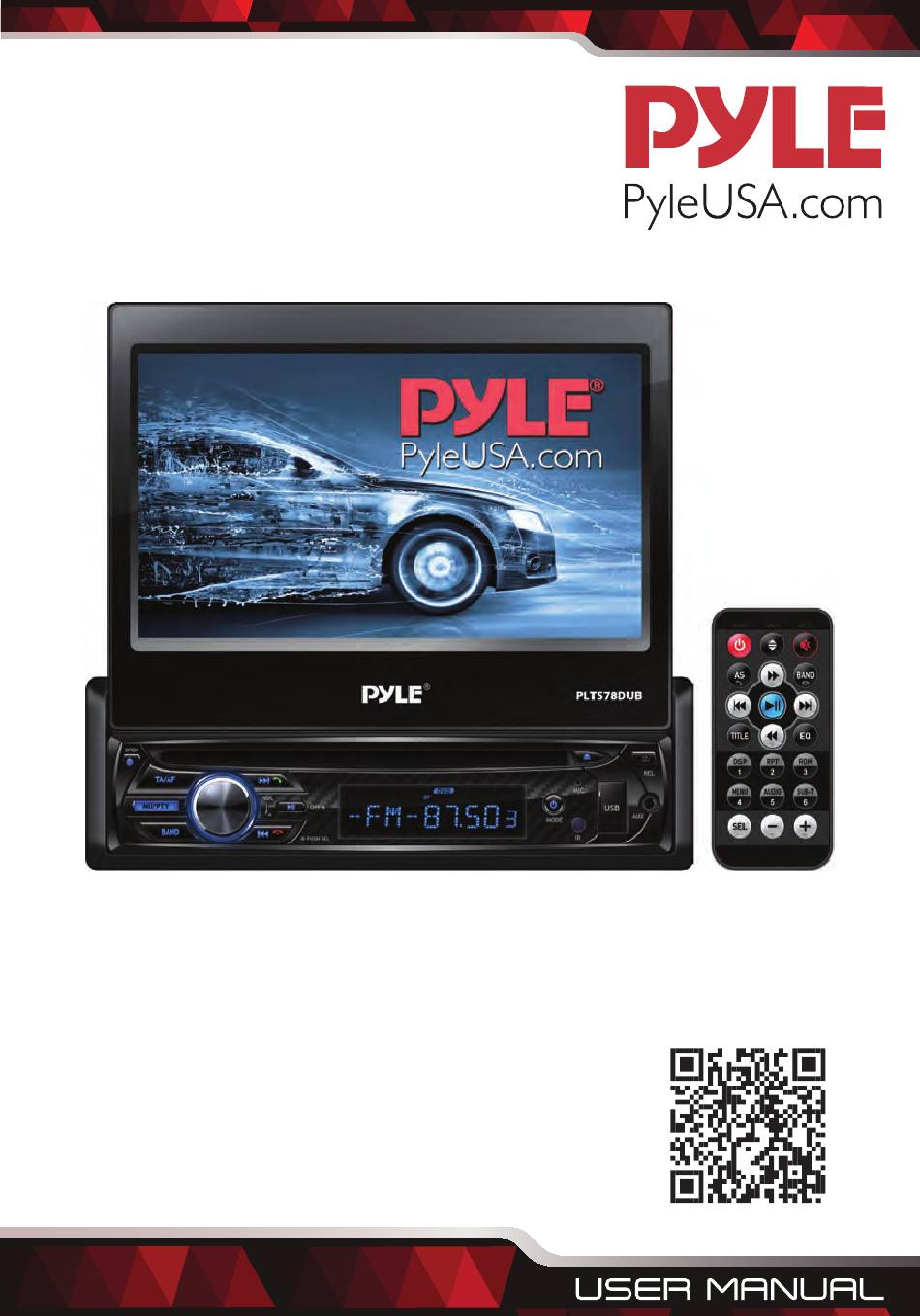

  • Page 1 PLTS78DUB Car Stereo Video Receiver with Wireless BT Streaming, Hands-Free Talking, Motorized Fold-Out Touchscreen, 7’’ Display, MP3/USB/SD/AM/FM Radio, Single DIN Download the 'PyleBT' App...

  • Page 2: Table Of Contents

    CONTENTS Safety Information Precautions Installation Control Panel Remote Control Set Up Operations Audio Settings Operations USB/Mini SD Card Operations Bluetooth Operations Features Technical Specs www.PyleUSA.com...

  • Page 3: Safety Information

    IMPORTANT: • Do not operate this digital video player while the vehicle is moving. • This is a safety feature to prevent driver distraction. • It’s illegal in most country for the driver to view video while the vehicle is moving.

  • Page 4: Installation

    Copyright Notes: This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
  • Page 5 INSTALLATION: Dash Board Metal Mounting Hex Nut Strap Spring Washer Console Plain Washer Tapping Screw Slide Bracket Housing Hex Bolt Screwdriver Key Plate Plastic Tabs Trim Out Key Plate Wiring Connections: RADIO ANTENNA JACK CAMERA V-IN V-OUT1 V-OUT2 SUB2 AV-L SUB1 AV-R www.PyleUSA.com...
  • Page 6 BLACK SWC - GND BROWN SWC - 1 BROWN / WHITE SWC - 2 YELLOW ORANGE REVERSE (+) PINK BLACK PARKING BRAKE (B-) GROUND ORANGE / BLACK BLUE ILLUMINATION (+) POWER ANTENNA GRAY WHITE FRONT LEFT FRONT RIGHT CHANNEL SPEAKER CHANNEL SPEAKER WHITE/BLACK GRAY / BLACK...

  • Page 7: Control Panel

    Control Panel Buttons: 1. OPEN/ BUTTON Briefly press to slide the monitor out of slot or slide the monitor inside of slot. Press and hold this button to tilt up and down the monitor. /MODE BUTTON In power o mode, press it to turn ON the unit. Long press to turn o the unit. In power on mode, short press it repeatedly to select one mode of the RADIO, DISC, USB, SD, AUX IN, AV IN and BT.
  • Page 8 8. MUTE ON/OFF, PTY (Program Types) In power on mode, press the MUTE button to toggle mute on or o . In radio mode, press and hold the PTY button, you can select speci c stations of a certain program type such as News, Info, sports, Talk, Rock etc.. (PLAY/PAUSE) /CH 1-6 (PRESET RADIO STATION) In Disc/USB/SD/BT music playback mode Press this button to pause playback, touch again to resume playback.

  • Page 9: Remote Control

    14. AUXILIARY INPUT JACK Insert an external device to this 3.5mm auxiliary jack in order to have audio output of the device through the unit. 15. Release the detachable front panel If you want to insert or remove the SD card, remove the front panel form the chassis, press the release button to detach this little front panel.
  • Page 10 1. OPEN / Brie y press to slide the monitor out of slot or slide the monitor inside of slot. Press and hold this button to tilt up and down the monitor. 2. Power ON/OFF, MODE Press it to turn the unit ON , press and hold to turn the unit OFF. During power on, press it brie y to select between RADIO, DISC, USB, SD, AUX IN, AV IN and BT.

  • Page 11: Setup Operations

    18. EQ Press repeatedly to cycle through the di erent equalizer curve presets you may wish to use. 19. RDM / 3 In Disc/USB/SD card Playback mode, press to play tracks in random order, press again to cancel the RDM function. In radio mode, press to store or recall the preset station 3.
  • Page 12 A. General: OSD Language, Animation, Key Beep, RearView Camera, Parking Guideline) • OSD Language: English, French, Portuguese, German, Spanish, Italian • Animation: 10, 30, 60, 90 Seconds, 2, 3, 4 Minutes, O • Key Beep: Enables or Disables beep buzzer signal to con rm use. •...
  • Page 13 • Menu Language: English, French, Portuguese, German, Spanish, Italian, O • Aspect Ratio: 4:3 PS, 4:3 LB, 16:9 This is to select the appropriate TV aspect (4:3 Pan Scan, 4:3 letter box or 16:9) according to the connected TV set. •...
  • Page 14 I. Steering Wheel icon to set up the steering wheel function. • Steering wheel: Enables or Disables steering wheel. • Study: Tap “Study” to enter stary operation menu. First, make sure the SWC connecting wires have been connected to this unit. •...

  • Page 15: Audio Settings Operations

    • QR: Tap “QR” to view QR code. Then user can scan QR code and access the Google Play Store to free download APP. You can also log onto this link to download the APK: https://play.google.com/store/apps/details? id=com.sharp.plye&hl=en Smart Phone Control Car Audio(For Android Only) Connect your phone to this digigal video player through bluetooth, then tap the APP and turn on it on your phone, now you can control the audio...
  • Page 16 Radio Operations: Press MODE button on the control panel or on the remote control, or tap the “Radio” icon on touch screen until Tuner is selected. 1. Home Page 10. Next Page 2. Information Display 11. Local/Dx(Distant) 3. Tune/Seek Down 12.
  • Page 17 1. Home Page 12. Random Play 2. Information Display 13. Menu 3. Shortcuts for switch BT 14. Title (Bluetooth) mode 15. Multi-Audio Language 4. Mute On/o 16. Multi-Subtitle Language 5. Previous Track / Fast backward 17. TA(Tra c Announcement) 6. Play/Pause 18.

  • Page 18: Usb/Mini Sd Card Operations

    USB/Mini SD Card Operations: • USB Playback: First, open the plastic lid, then connect your USB device to the control panel USB port. If it is properly connected, the USB device will be mounted and start playing automatically. Press MODE button on the control panel or on the remote control, or tap the “USB”...

  • Page 19: Bluetooth Operations

    1. Home Page 11. Repeat Play 2. Information Display 12. Zoom In/Out 3. Shortcuts for switch BT 13. Rotate Photo (Bluetooth) mode 14. TA(Tra c Announcement) 4. Mute On/o 15. AF(Alternative Frequencies) 5. Previous Photo 16. Tilt up monitor 6. Play/Pause 17.
  • Page 20 • Transfering Audio icon to transfer audio between this digital video player and your mobile phone. • Streaming Audio icon on homepage to enter the music control menu. icon to skip to the previous track. icon to play or pause the music. icon to advance to the next track.
  • Page 21 www.PyleUSA.com...

  • Page 22: Features

    PLTS78DUB Car Stereo Video Receiver with Wireless BT Streaming, Hands-Free Talking, Motorized Fold-Out Touchscreen, 7’’ Display, MP3/USB/SD/AM/FM Radio, Single DIN Features: • Versatile Stereo Radio System • 7’’ -inch HD Video Display • Bluetooth Wireless Music Streaming • Built-in Microphone for Hands-Free Talking •...

  • Page 23: Technical Specs

    Technical Specs: • Single DIN Size Universal Standard • Power Output: 4 x 80 Watt (320 Max.) • Wide Screen TFT - LCD Display • Pixel Resolution: 800 x 480 Pixels • Brightness: 400 Nits • Aspect Ratio 16:9 High Definition •...
