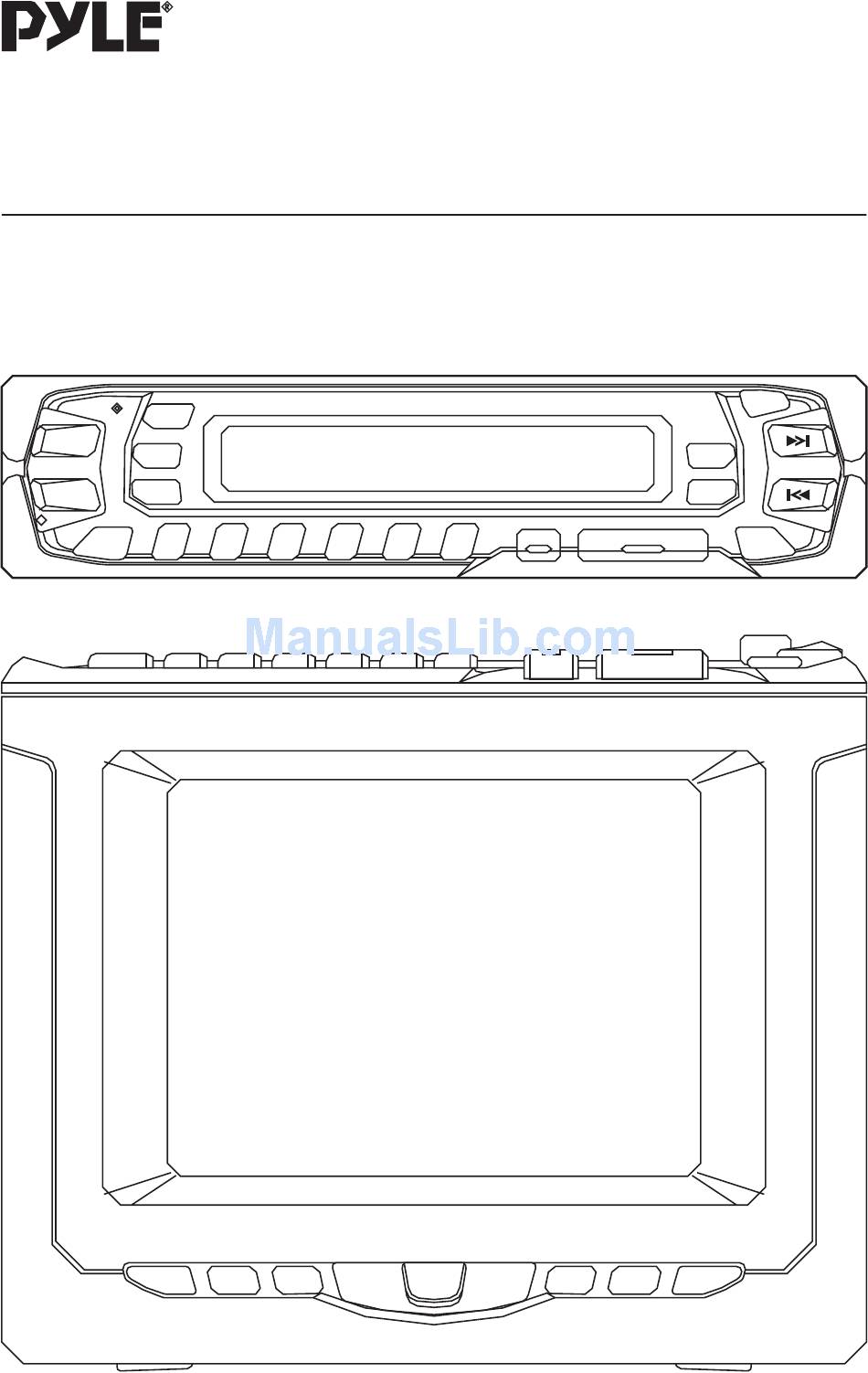

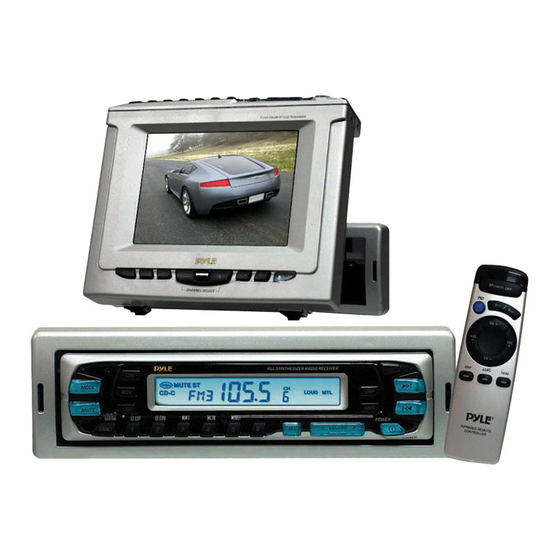

PLTVR5
OWNER'S MANUAL
COLOR LCD TV/RECEIVER WITH
CD CHANGER CONTROL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLTVR5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pyle PLTVR5

Summary of Contents for Pyle PLTVR5

  • Page 1 PLTVR5 OWNER’S MANUAL COLOR LCD TV/RECEIVER WITH CD CHANGER CONTROL...

  • Page 2: Installation Hardware

    INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. •...

  • Page 3: Install The Display Unit

    MOUNTING THE TUNER UNIT Step 1 1. Bracket (A) 2. Mounting Bolt (M5 x 5) 3. Bracket (B) 4. Hexagonal Bolt with Washer (M6 x 12) 8. Double Sided Tape INSTALL THE DISPLAY UNIT Before install the display unit, please remove its tail screw and cable parts. This unit can be properly installed either from “front”...

  • Page 4: Din Rear-Mount

    (Fig. 2) Removing the unit DIN REAR-MOUNT Installation using the screw holes on the both sides of the unit. 1. Dashboard 2. Nut (M5) 3. Spring Washer 4. Tapping Screw with Washer (M5 x 25) 5. Screw 6. Plain Washer 7.
  • Page 5 HOW TO OPEN AND CLOSE THE SCREEN DISPLAY 1. Press release button to draw out the screen display. Release Button 2. Turning the display upward. 3. Adjusting the viewing angle. Angle should be adjusted slowly without applying unreasonable force.
  • Page 6 4. Turning the display downward. Make sure to return the display to centre position before drawing in. It cannot be draw in with its angles adjusted. 5. Push the panel, the display will be drawn in.

  • Page 7: Electrical Connection

    ELECTRICAL CONNECTION RADIO/TV MAIN UNIT (VIEW FROM REAR) TV DIVERSITY ANTENNA INPUT CDC INPUT TO POWER SUPPLY CAUTION: 1. If the TV control grey cable is connected to car brake, when the car is running, you cannot switch into TV mode. 2.

  • Page 8: Operation

    OPERATION 20 21...

  • Page 9: General Operation

    GENERAL OPERATION • ON/OFF Switch on the unit by pressing POWER button (1). When system is on, press it again to turn it off. • FACEPLATE RELEASE Press REL button (2) to draw out the faceplate, push the panel to draw in. When the faceplate is drawn out, turn the faceplate upward and adjust TV display.

  • Page 10: Setting The Clock

    • MONO/STEREO Press MON button (10) to select mono or stereo mode. In radio operation, press the button to select mono or stereo reception for radio station. You can sometime improve reception of distant stations by select mono mode. • SETTING THE CLOCK Press DSP button (5) to change the display into clock display.

  • Page 11: Radio Operation

    RADIO OPERATION • SELECTING BAND Press BAND button (11) to change between three FM bands and two AM bands. Each band stores up to six preset stations. • SELECTING STATION During radio mode, press decrease frequency by one step of channel spacing. Hold the button longer for fast tuning.

  • Page 12: Cdc Operation

    CDC OPERATION • SELECTING TRACK During CDC mode, press previous track or the next track. The track number shows on the display. • SELECTING CD Press D.UP button (17) to select next disc and D.DN button (18) to select previous disc.

  • Page 13: Selecting Channel

    TV OPERATION • SELECTING RECEIVING MODE Press TV/AV button (31) to select among TVch/AV1/AV2. • PICTURE ADJUSTMENT/PROGRAM SETTING/SYSTEM CONTROL In TV mode, press MENU button (23) to enter the main menu. And the menu includes three sub-menus: PICTURE MENU, TUNER MENU and SYSTEM MENU. Press the button repeatedly or press CHANNEL SELECT + button (28) or CHANNEL SELECT –...

  • Page 14: Screen Display

    In the course of scanning, press SCAN button (26), “SCAN OFF” will also display on the screen and it stops on the TV channel just scanning. • SCREEN DISPLAY Press DISP button (27), the screen will display the current status such as TVch/AV1/AV2, the COLOR SYSTEM and the SOUND SYSTEM on the right-top corner.

  • Page 15: Remote Control Handset

    REMOTE CONTROL HANDSET CONTROL & FUNCTION KEYS POWER = Press POWER to turn the unit ON or OFF TV/AV = Switch between TV/AV1/AV2 0 - 9 = Numeric buttons, press to select the corresponding channel -/-- = Digital selecting button, cooperatively used with numeric buttons MUTE = Press to mute the sound.

  • Page 16: Specification

    SPECIFICATION GENERAL Power Supply Voltage Maximum Power Load Impedance Tone Controls - Bass (at 100 Hz) - Treble (at 10 KHz) Monitor Screen Size Resolution TV Sensitivity RADIO Frequency Coverage Sensitivity (30 dB S/N) Image Rejection Stereo Separation Frequency Coverage Sensitivity (20 dB S/N) Image Rejection : DC 12 Volts, Negative Ground...
