Slot load DVD player
•
ISO Din Mounting or portable
•
Audio CD/CD-R/CD-RW/MP3 compatible
•
DVD/CD resume function
•
TV mode (16:9/4:3 PAN & SCAN or 4:3 Letter Box)
•
Default regional code
•
On-screen user friendly setup menu
•
Parental lock with security lock
•
Full function remote control
•
Included cigarette lighter plug
•
Audio/Video out x 2
•
Front AV In x 1
•
Rear Audio/Video IN x 1
•
Digital / S-Video Out
•
DC In & DC out
•
Remote repeater for monitor to control DVD unit
OWNER'S MANUAL
Audio/Video System
www.pyleaudio.com
PLTD145

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLTD145 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pyle PLTD145

Summary of Contents for Pyle PLTD145

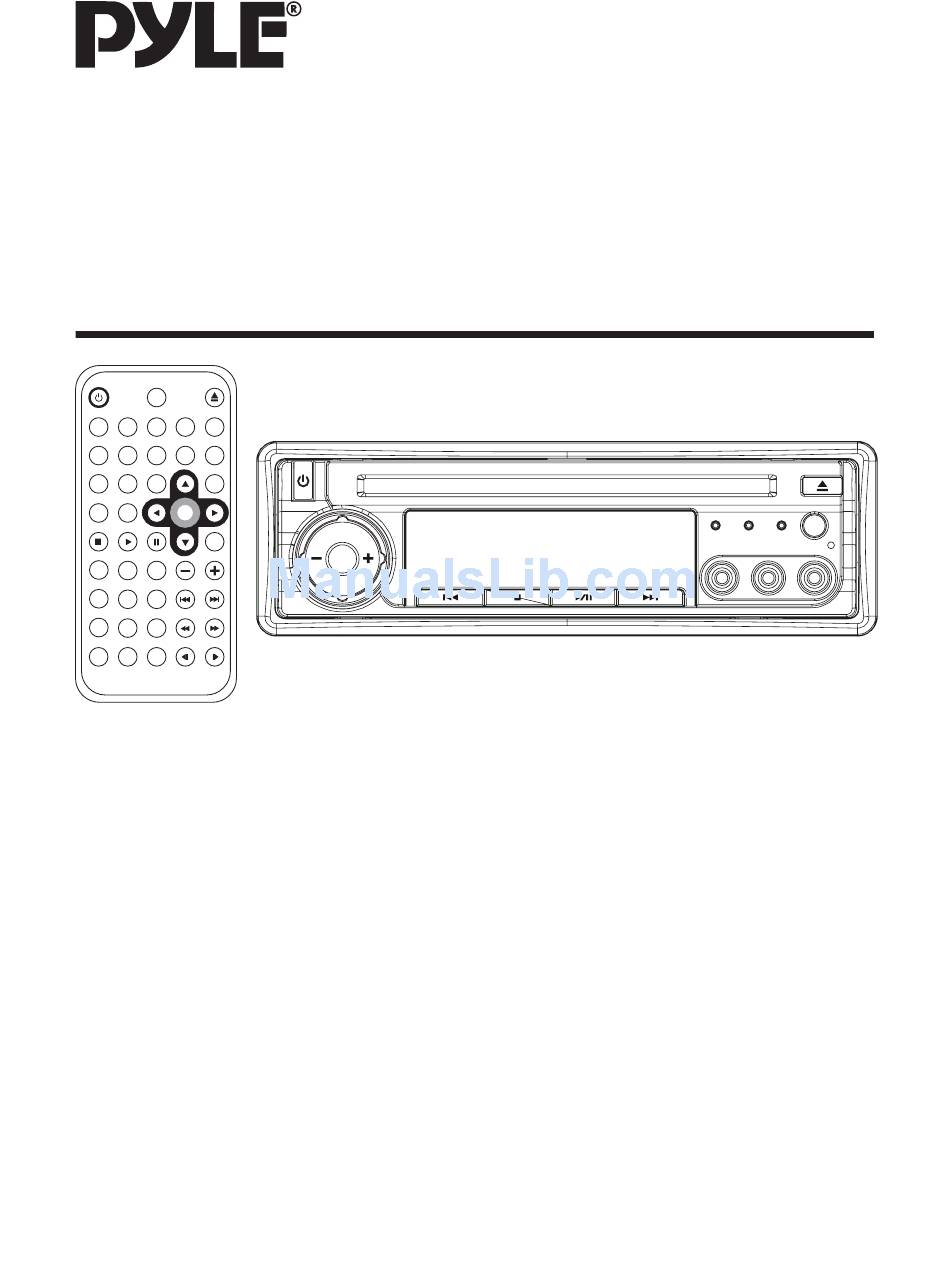

  • Page 1 Audio/Video out x 2 • Front AV In x 1 • Rear Audio/Video IN x 1 • Digital / S-Video Out • DC In & DC out • Remote repeater for monitor to control DVD unit OWNER’S MANUAL Audio/Video System www.pyleaudio.com PLTD145...

  • Page 2: Use This Product Safely

    FEATURES Compatible with PAL DVD (Video CD) and NTSC DVD (Video CD) This player can play discs recorded in either PAL or NTSC format. • A single LSI chip now integrates all major DVD playback circuit functions including MPEG2 decoder, video D/A converter, and audio decoders.

  • Page 3: Table Of Contents

    CONTENTS Safety Information ...4 Disc Notes...5 The Player ...6 Front View...6 Back View ...7 Remote Control ...8 Location and Function of Keys...8 Preparing the Remote Control...10 General Operation ...11 Turn the unit On/Off ...11 Basic Play ...11 Mode Selection...11 Last Play Memory ...11 Menu function...12 Advanced Operation ...13 Repeat Play/Paragraph Repeat Play ...13...

  • Page 4: Safety Information

    SAFETY INFORMATION CAUTION: MOBILE DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS MOBILE DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE MOBILE DVD PLAYER CORRECTLY AS INSTRUCTED.

  • Page 5: Disc Notes

    DISC NOTES Disc formats supported by this player 12 cm disc Video CD 12 cm disc 12 cm disc 12 cm disc Handling and Cleaning • Dirt, dust, scratches and warping disc will cause misoperation. • Do not place stickers or make scratches on discs.

  • Page 6: The Player

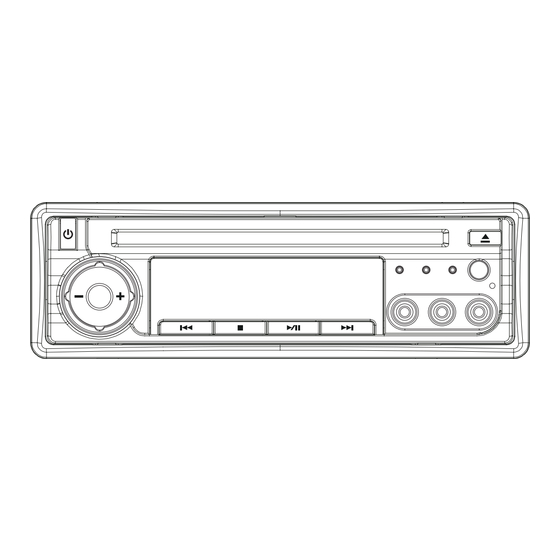

    THE PLAYER FRONT VIEW (POWER) (Eject Button) 3. MODE 4. TV SCAN/MENU 5. Reset Button 6. Disc Slot (PLAY/PAUSE) (Stop) 9. PREV ( )/CH- 10. NEXT ( )/CH+ 11. VOL- 12. VOL+ 13. AUDIO IN R 14. IR 15. Indicator Light for DVD 16.

  • Page 7: Back View

    THE PLAYER BACK VIEW 20. ANT IN 21. DC 12V INPUT Socket 22. DC 12V OUTPUT Socket 23. AV OUTPUT TYPE Switch 24. REMOTE Socket 25. AUDIO/VIDEO OUTPUT 1 26. AUDIO/VIDEO OUTPUT 2 AUDIO/VIDEO OUTPUT...

  • Page 8: Remote Control

    REMOTE CONTROL Location and Function of Keys...
  • Page 9 REMOTE CONTROL POWER Press POWER to turn the unit ON or OFF. MUTE Press to mute the sound. SUB-T Changing of the SUBTITLE language on multi-subtitle language DVD disc. ANGLE Changing of the view angle on multi-angle DVD disc. DISPLAY Display statistical disc information during playback.

  • Page 10: Preparing The Remote Control

    REMOTE CONTROL Preparing the Remote Control Inserting the Batteries 1. Open the battery compartment cover. 2. Insert the new battery. Make sure that the positive and negative terminals of the battery are oriented as indicated. 3. Close the cover. • Battery: a button cell lithium battery (CR2025 3V) Using the Remote Control Face the remote control towards the...

  • Page 11: General Operation

    GENERAL OPERATION TURNING THE UNIT ON/OFF Turning on the Player After all connections are completed correctly, Press power button on the front panel to turn on the power. When the unit is on, it will search the disc automatically. If there is a disc in the disc slot, the unit will start playback automatically.

  • Page 12: Dvd Video Menu Play

    GENERAL OPERATION DVD VIDEO MENU PLAY When playing a DVD disc in the DVD player: 1) The disc will be played automatically and stop at menu picture. 2) Use cursor buttons on the remote control to move between the highlight bars in the menu. 3) Press OK button on the remote control to confirm the selected item.

  • Page 13: Advanced Operation

    ADVANCED OPERATION REPEAT PLAY/ PARAGRAPH REPEAT PLAY Repeat play: When you want to repeat playing the whole disc or a track or a chapter in the disc. 1) Press REPEAT button repeatedly to select different repeat modes. 2) For different kinds of disc, pressing REPEAT button has different effects.

  • Page 14: Goto Function

    ADVANCED OPERATION The meaning of the menu is the same with the DVD menu above. GOTO FUNCTION FOR DVD: Press GOTO button, the screen will display the following message: Use the number keys to input the desired Title, Chapter or Time, then press OK key to confirm.
  • Page 15 ADVANCED OPERATION to 8. The player can be set in a similar way. If the player’s parental level is set to 8 it will play all discs. If the player’s parental level is set below 8, only discs with a lower or equal parental level will play.

  • Page 16: Special Function For Vcd And Cd

    ADVANCED OPERATION SPECIAL FUNCTIONS FOR VCD AND For VCD and CD discs, there is one special function “Program Play” which makes it different from DVD discs. • The function is effective in PBC OFF mode.Press PROGRAM button can activate program edit interface. Prog- 1 [ ] 5[ ]...

  • Page 17: Setup

    SETUP In DVD mode, when the disc is playing or in the stop mode, press SETUP on the remote control to enter setup menu. • When the cursor is on the topside, use buttons to move between the different pages. •...

  • Page 18: Tv Operation

    TV OPERATION Press the MODE button on front panel to switch among TV mode. When in TV mode, the function of the buttons served in DVD mode is locked. Menu function in TV mode Press the MENU button on the unit during DVD, TV and AV mode to display the adjustment items on the screen.

  • Page 19: Trouble Shooting

    TROUBLE SHOOTING If it appears that your DVD unit is faulty, first consult this checklist. It may be that something simple has been overlooked. Under no circumstances should you try to repair the player yourself, as this will invalidate the warranty. Only qualified service personnel can remove the cover or service this player.

  • Page 20: Specifications

    SPECIFICATIONS Supply Voltage Current Consumption Signal System Discs Played Audio Output Level Audio Signal Output Characteristics Note: Specifications and design are subject to modification, without notice, due to improvements in technology. This product incorporates copyright protection technology that is protected by method claims of certain U.S.
