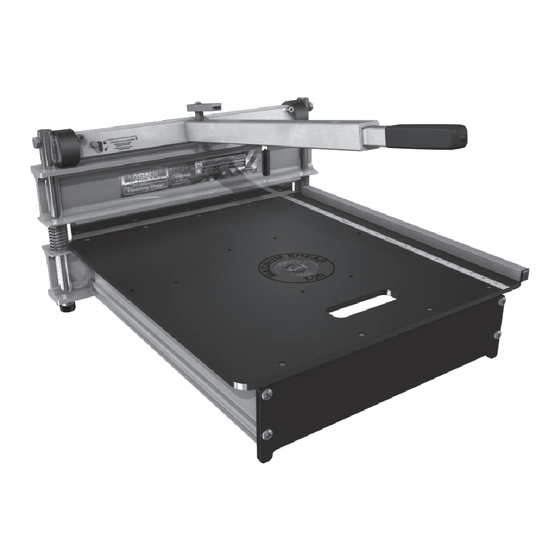

- Page 1 USER GUIDE Read Before Use! Read Before Use! Applies to Model Numbers: 909, 913 & 920 www.BulletTools.com • 208-772-0175 PRT-INS-9000Rev.C.11.14 ©2014 Bullet Tools...
- Page 2 15. Warning: The dust generated by cutting certain wood, wood fiber, fiber cement, and/or PVC products can be injurious to your health. 16 Bullet Tools does not endorse or warrant inferior "knock off" imitations of our designs. Using these may be dangerous, please contact the manufacturer about any defects with these.
-
Page 3: Hardware Kit
SET UP WELCOME! YOUR MAGNUM SHEAR COMES READY TO ASSEMBLE.* *You will need #2 & #3 Phillips head screwdrivers Please Review and Verify Parts Included in Box: 1. Power Assembly 2. Handle Assembly 3. Fence 4. Table 5. Tail 6. Rails (2) 7. -
Page 4: Attach Handle
• IMPORTANT • Avoid cross-threading by using your fingers to start all screws Start all screws BY HAND when assembling your shear. This will help avoid cross-threading. 3. ATTACH TABLE A. Attach table to base starting with front, start screws with hand, using Item D machine screws. -
Page 5: Safety Lock
MAKING CUTS The MAGNUM™ Flooring Shear is operated manually. The two-part extendable handle is grasped by the operator and pushed down to make a cut. USE EXTREME CAUTION! Blade is very sharp. CUTTING 1. Unlock safety lock by sliding knob over and down. 2. -
Page 6: Custom Settings
CUSTOM SETTINGS Factory Setting Set to cut over 3/4" or 19mm BACKSTROKE STOP To cut approved products over 3/4" / 19mm thick, loosen Phillips head screw on the Backstroke Stop; turn the Backstroke Stop 180º and tighten screw. For more convenience when cutting thinner products, restore factory setting. -
Page 7: Maintenance
MAINTENANCE WHEN TO HONE TO HONE There are three situations when it is very important With the blade in the machine, it is quick and to hone the blade (remove burrs) on the flat side of easy to hone; Simply pull the handle down the blade. -
Page 8: Changing The Blade
MAINTENANCE CHANGING THE BLADE WARNING Blade is extremely sharp! Use hand protection when removing, honing, or sharpening blade! Jack Screws 1. TURN SHEAR UPSIDE DOWN Tip: put the shear on the edge of a sturdy table. 2. LOOSEN BLADE Using a Phillips screwdriver, remove the Item D screws. -
Page 9: Available Accessories
AVAILABLE ACCESSORIES REPLACEMENT BLADES 9" MAGNUM Flooring Blade #909B ™ 13" MAGNUM ™ Flooring Blade #913B 20" MAGNUM Flooring Blade #920B ™ #701S HONE STONE Keep your blade honed for longer use! #709 SHEAR STAND Provides a sturdy, raised platform for use or display. Mounting brackets sold separately (#900MB). - Page 10 Your MAGNUM Flooring Shear cuts a wide variety ™ of products. Please refer to this cut guide for recommended products and thicknesses. MAGNUM Flooring Shear ™ CUT GUIDE Maximum Thickness = 25mm or 1” Material P e c a n s e w o o a n R o B o l i v i...
- Page 11 30 Day Satisfaction Guarantee Bullet Tools™ is confident that you will be absolutely pleased with the purchase of our product. If, for any reason, you are not completely satisfied with your tool, we will refund your purchase price at any time within 30 days of your original purchase (receipt required).
