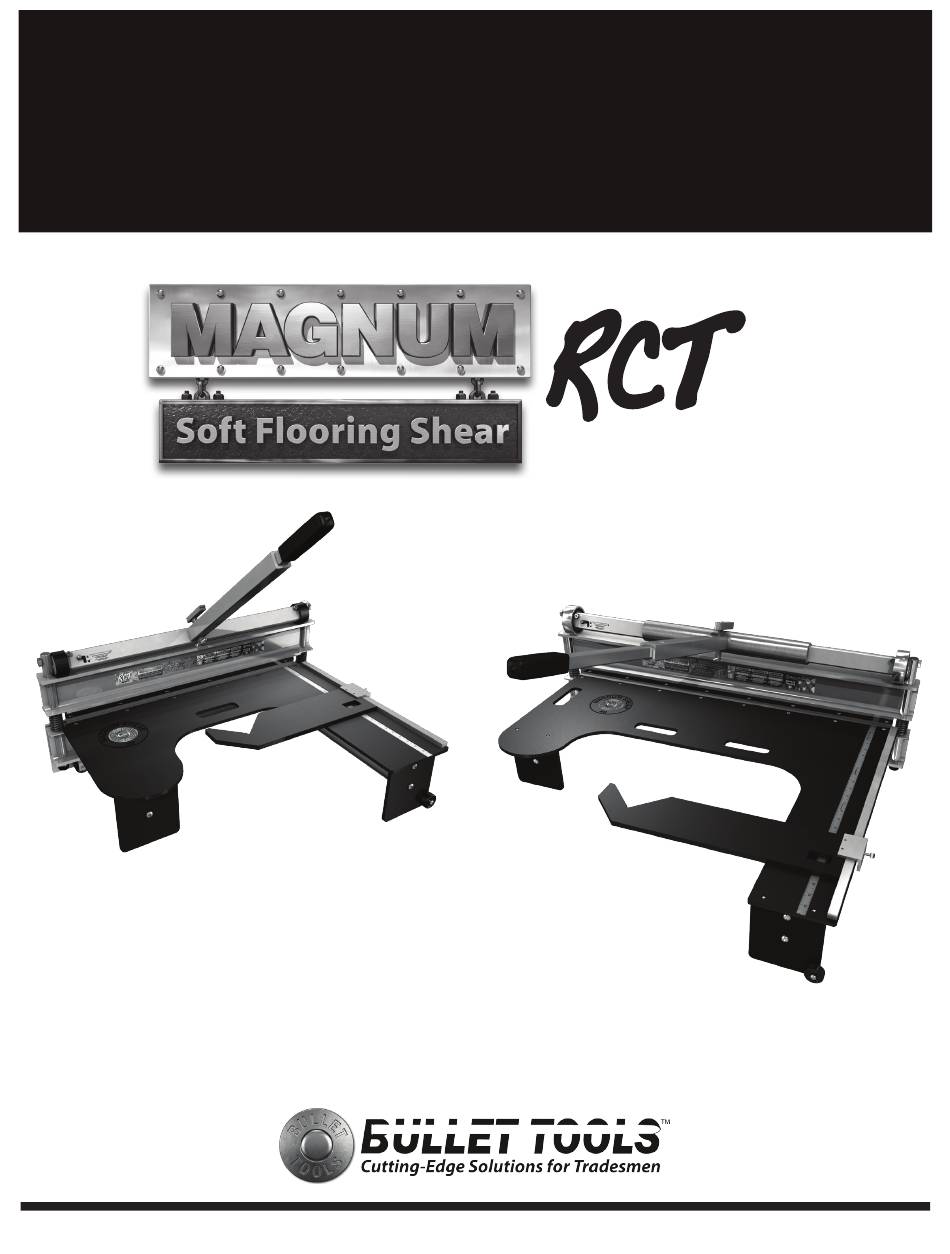

- Page 1 USER GUIDE Read Before Use! ™ ™ SERIES RCT 930 RCT 940 www.BulletTools.com • 208-772-0175 PRT-INS-9RCT.RevE.6.17 ©2017 Bullet Tools...
- Page 2 WARNING: FAILURE TO FOLLOW THIS GUIDE MAY RESULT IN SERIOUS INJURY! USING THIS MACHINE WITH RESPECT AND CAUTION WILL CONSIDERABLY REDUCE THE RISK OF PERSONAL INJURY. SAFETY GUIDE FOR THE MAGNUM RCT SERIES ™ 1 �����READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE OPERATING THE RCT� 2 �����If you are not thoroughly familiar with the operation of the RCT Shear, obtain advice from a qualified instructor or call 800-406-8998 (Intl.: 208-772-0175).
-
Page 3: Hardware Kit
IN THE BOX RCT SHEAR COMES READY TO ASSEMBLE. * WELCOME! YOUR MAGNUM ™ Please Review and Verify Parts Included in Box: *You will need #2 & #3 Phillips head screwdrivers and a 1/2” (13mm) socket or wrench. 1. Power Assembly 2. - Page 4 • IMPORTANT • Avoid cross-threading by using your fingers to start all screws Start all screws BY HAND when assembling your shear. This will help avoid cross-threading. ASSEMBLY 3. ATTACH TABLE Item E A. Attach front of table to base, using Item D screws.
- Page 5 MAKING CUTS Caution! Wear hand and eye protection while operating your shear. Unlock safety lock by sliding knob over and down. Place product on table. Bring handle down until blade touches material. Push the handle down until the material is completely cut. Using the Wall Gauge Cut Line RCT Shears are equipped with casters set in-line with the blade for quick...
-
Page 6: Maintenance
MAINTENANCE Honing the Blade Greasing / Lubricating Grease Hone every 100 cuts Push the handle down until blade is 1/4” (6mm) open. Lay the hone stone against the flat face of the blade (side toward the table). Slide from end to end 2 or 3 After every 100 cuts, lubricate the wear points of the times. -
Page 7: Custom Settings
CUSTOM SETTINGS Backstroke Stop Factory Setting Set to cut over 3/4" or 19mm To cut approved products over 3/4" (19mm) thick, loosen Phillips head screw on the Backstroke Stop; turn the Backstroke Stop 180º and tighten screw. For more convenience when cutting thinner products, restore factory setting. -
Page 8: Warranty
30 Day Satisfaction Guarantee RCT CUT GUIDE Bullet Tools™ is confident that you will be absolutely pleased with the purchase of our product. If, for any reason, you are not completely satisfied with your tool, we will refund your purchase price at any time Maximum Thickness = 25mm or 1”...
