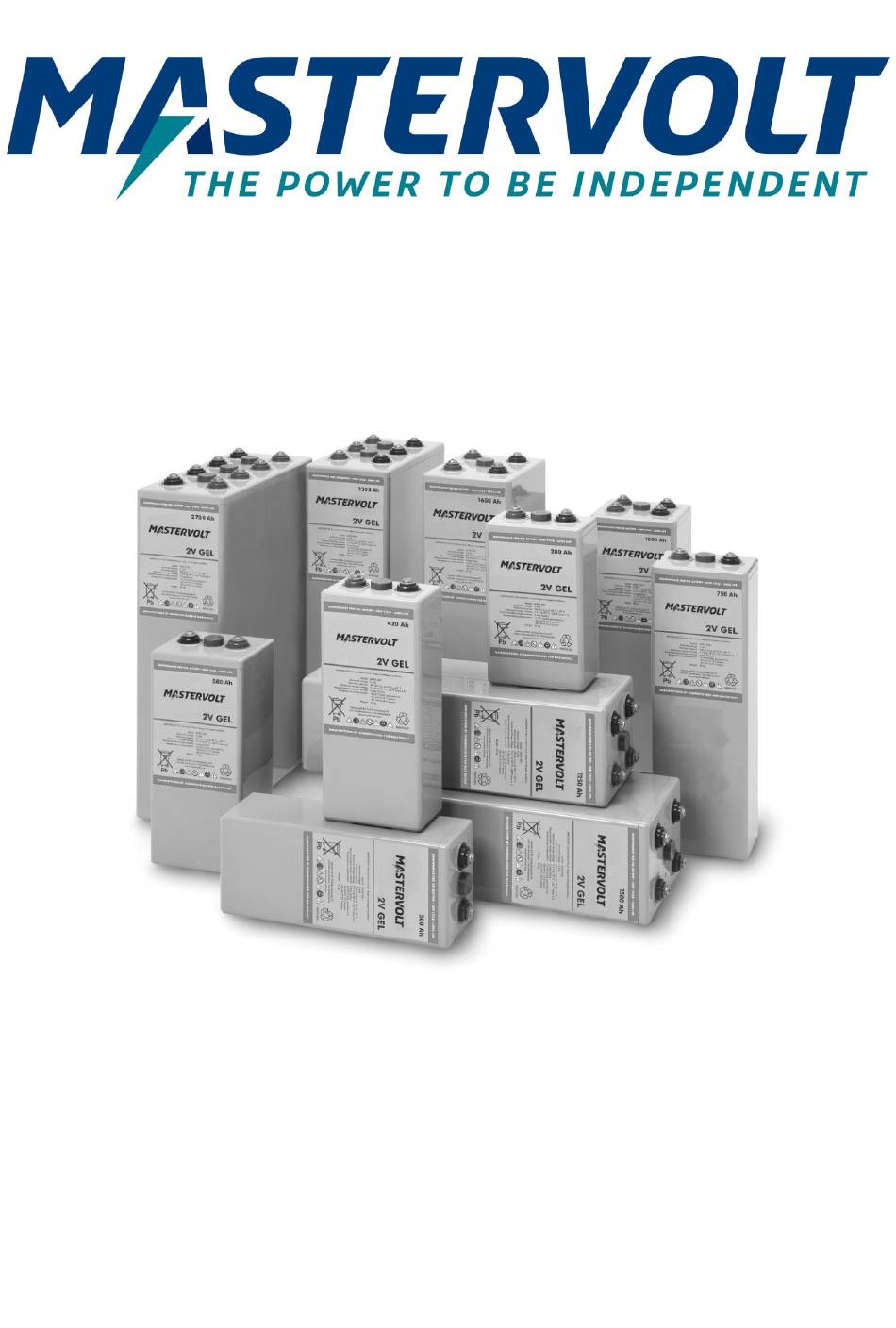

- Page 1 2 VOLT GEL CELLS MVSV series USER AND INSTALLATION MANUAL 10000010113/06 To download this manual in other languages, please visit our website: www.mastervolt.com...
- Page 2 MVSV 2V Gel Cells – User and Installation Manual...
-
Page 3: Table Of Contents
MVSV 2V Gel Cells – User and Installation Manual CONTENTS SAFETY GUIDElINES AND MEASURES .......................... 4 GENERAl INFORMATION ..............................5 2.1 Use of this manual ..............................5 2.2 Validity of this manual ..............................5 2.3 Disclaimer ................................... 5 2.4 Guarantee specifications ............................5 2.5 liability .................................. -
Page 4: Safety Guidelines And Measures
MVSV 2V Gel Cells – User and Installation Manual 1 SAFETY GUIDELINES AND MEASURES Observe these instructions and keep them Electrolyte is very corrosive. In normal located near the battery for future reference. working conditions contact with the electrolyte is impossible. If the battery container is Work on the battery should be carried out by damaged, do not touch the exposed qualified personnel only. -
Page 5: General Information
All of the specifications, provisions and instructions contained in this manual apply solely to standard versions Mastervolt can accept no liability for: of the Mastervolt MVSV gel batteries that were delivered consequential damage due to use of the batteries;... -
Page 6: Installation
Control of insulation resistance: New batteries: > 1MΩ A = 28 x Q [cm²] Used batteries: > 100 Ω/Volt. Example: LOCATION TO INSTALL Given: 24V battery bank consisting of 12 pieces Mastervolt MVSV 800 gel batteries, C = 998 Ah, 3.2.1 General... -
Page 7: Connection
CONNECTION the centre of the battery bank. To avoid corrosion of the battery poles Mastervolt Connect the battery with the correct polarity to the charger recommends lubricating the inserts and connections (positive pole to positive terminal). Note that the position of... -
Page 8: Models Mvsv 1000, Mvsv 1250, Mvsv 1500 And Mvsv 1650
MVSV 2V Gel Cells – User and Installation Manual 3.4.2 Models MVSV 1000, MVSV 1250, MVSV 1500 and MVSV 1650 (2 X) 12 Volt B (8 X) (6 X) (2 X) (16 X) 24 Volt (20 X) Alternative 24V configuration. Note: additional 4 pcs. -
Page 9: Model Mvsv 2200
MVSV 2V Gel Cells – User and Installation Manual 3.4.3 Model MVSV 2200 C (9 X) C (3 X) 12 Volt (24 X) B (12 X) (30 X) (3 X) 24 Volt Alternative 24V configuration. Note: Additional 6 pcs. cable type C (see Standard configuration. -
Page 10: Model Mvsv 2700
MVSV 2V Gel Cells – User and Installation Manual 3.4.4 Model MVSV 2700 C (4 X) C (12 X) 12 Volt B (32 X) B (16 X) C (4 X) 24 Volt B (40 X) Alternative 24V configuration. Standard configuration. Note: additional 8 pcs. -
Page 11: Operation
Recommended charging method: three step battery The recommended operation temperature range for charger with IUoUo characteristic. Voltage settings Mastervolt MVSV batteries is 10°C to 30°C, best at 20°C (@ 25ºC / 77ºF): (50°F to 86°F, best at 68°F). Higher temperatures will seriously reduce service life. -
Page 12: Maintenance
BATTERY MAINTENANCE AND CONTROL FAULTS Keep the battery clean and dry to avoid leakage currents. Call a Mastervolt service representative immediately if Plastic parts of the battery, especially the containers, must faults in the battery or the battery charger are found. -
Page 13: Specifications
MVSV 2V Gel Cells – User and Installation Manual 6 SPECIFICATIONS WHAT’S IN THE BOX The following parts are included in the delivery: Description Part No.* Battery Cable 70mm , l=135mm 67909016 Battery Cable 70mm , l=155mm 67909017 Battery Cable 70mm , l=165mm 67909025 Battery Cable 70mm... -
Page 14: Physical Specifications
MVSV 2V Gel Cells – User and Installation Manual PHYSICAL SPECIFICATIONS General –20ºC to 45ºC (–4ºF to 113ºF) Operating temperature: Nominal operating temperature: 10ºC to 30ºC (50 ºF to 86ºF), recommended at 20ºC (68ºF) –40°C to 55°C (–40°F to 131ºF) Storage temperature: Material of the battery container: Styrene-acrylonitrile copolymer (SAN), Ul classification 94 HB... -
Page 15: Electrical Specifications
MVSV 2V Gel Cells – User and Installation Manual ELECTRICAL SPECIFICATIONS 6.3.1 General Model Part number Nominal Nominal Discharge Pole Internal Short circuit voltage capacity* current I pairs resistance** current** 0.79mΩ MVSV 280 68000280 280Ah 28.0A 2700A 0.62mΩ MVSV 420 68000420 416Ah 41.6A... -
Page 16: Constant Current Discharge
MVSV 2V Gel Cells – User and Installation Manual CONSTANT CURRENT DISCHARGE 1.90V/cell – Discharge in A @ 20°C (68°F) Model Part number 10min 15min 30min MVSV 280 68000280 95.3 74.5 57.1 39.0 26.8 22.9 MVSV 420 68000420 90.0 65.3 44.8 36.7 MVSV 500... - Page 17 MVSV 2V Gel Cells – User and Installation Manual 1.83V/cell – Discharge in A @ 20°C (68°F) Model Part number 10min 15min 30min MVSV 280 68000280 89.3 68.6 47.5 32.8 27.5 MVSV 420 68000420 72.9 49.8 40,9 MVSV 500 68000500 87.5 59.8 49.1...
- Page 18 MVSV 2V Gel Cells – User and Installation Manual 1.70V/cell – Discharge in A @ 20°C (68°F) Model Part number 10min 15min 30min MVSV 280 68000280 76.0 50.3 34.1 28.4 MVSV 420 68000420 78.2 52.4 43.0 MVSV 500 68000500 93.8 62.9 51.6 MVSV 580...
- Page 19 MVSV 2V Gel Cells – User and Installation Manual...
- Page 20 N86 W12500 Westbrook Crossing 42 Apollo Drive, Rosedale 1105 AN AMSTERDAM Menomonee Falls, WISCONSIN 53051 AUCKLAND 0632 The Netherlands New Zealand +31 (0)20 34 22 100 +1 800 307 6702, Option 1 + 64 9 415 7261 info@mastervolt.com technical@marinco.com enquiries@bepmarine.com...
