P C S O F T W A R E - O P E R AT I O N
Main Software Interface
Fixture Display
& Data Entry
Step 1:

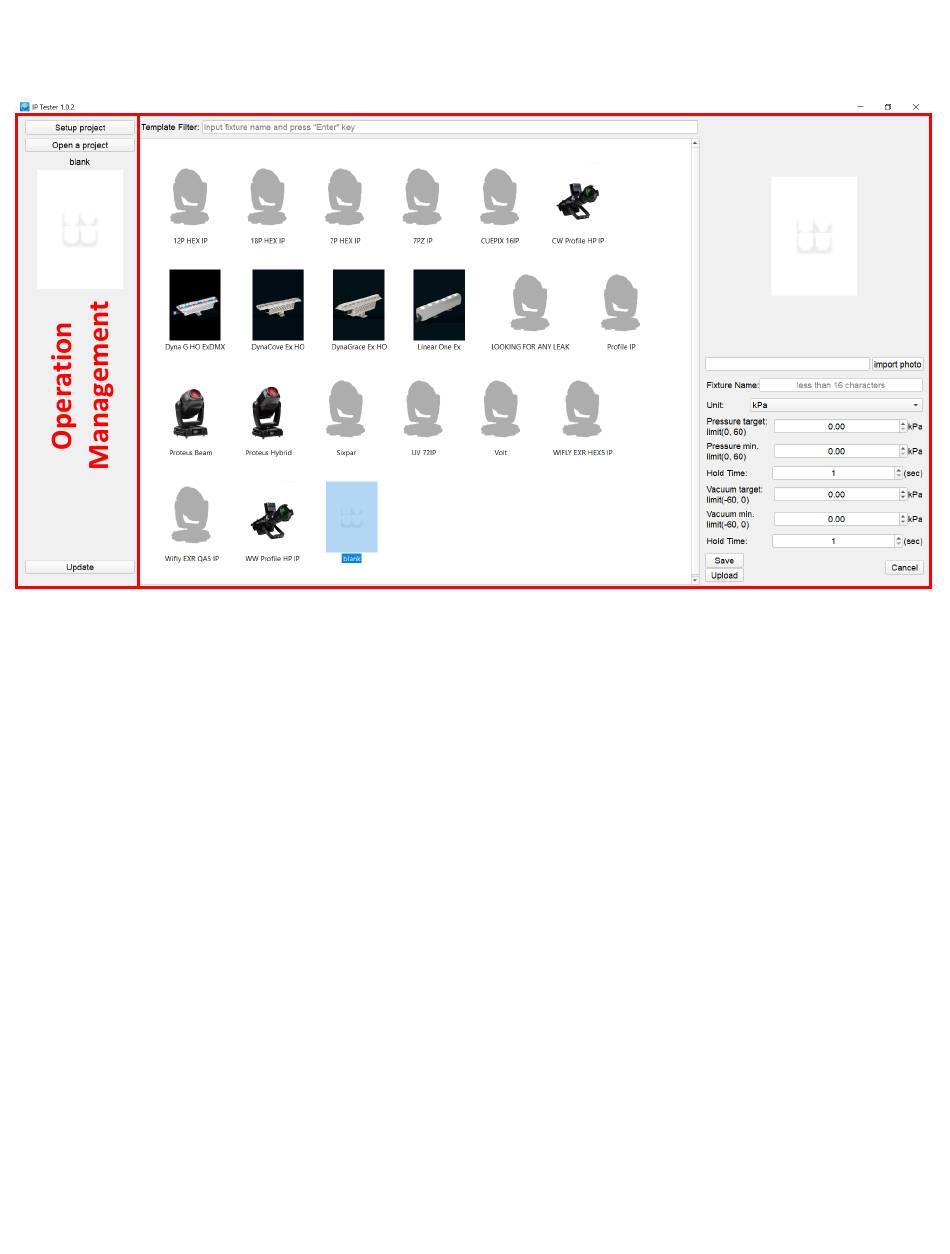

Click the 'blank' area to upload a new fixture and enter new data.
- import photo: Upload fixture photo in png. or jpg. format
- Fixture name: Enter fixture name
- Unit: Choose between kPa and psi.
- Pressure target: Enter maximum pressure value.
- Pressure min.: Enter minimum pressure value.
- Hold Time: Enter number of seconds for Pressure test.
- Vacuum target: Enter maximum vacuum value.
- Vacuum min.: Enter minimum vacuum value.
- Hold Time: Enter number of seconds for Vacuum test.
