Summary of Contents for Elation C-LOADER II
- Page 1 C-LOADER II Software Uploader user guide...
- Page 2 ©2019 ELATION PROFESSIONAL all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ELATION logo and identifying product names and numbers herein are trademarks of ELATION. Copyright protection claimed includes all forms and matters of copyrightable materials and in- formation now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
CONTENTS General Information Limited Warranty (USA Only) Safety Guidelines Overview Compatible Elation Models Operation Recharging Internal Battery Specifications Optional Components & Accessories ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands... -
Page 4: General Information
Please do not discard the shipping carton in the trash. Please recycle whenever possible. ELATION CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. -
Page 5: Limited Warranty (Usa Only)
2. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States. -
Page 6: Safety Guidelines
SAFETY GUIDELINES This device is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. The manufacturer of this device is not responsible for injury and/or damages resulting from the misuse of this device due to the disregard of the information printed in this manual. -
Page 7: Overview

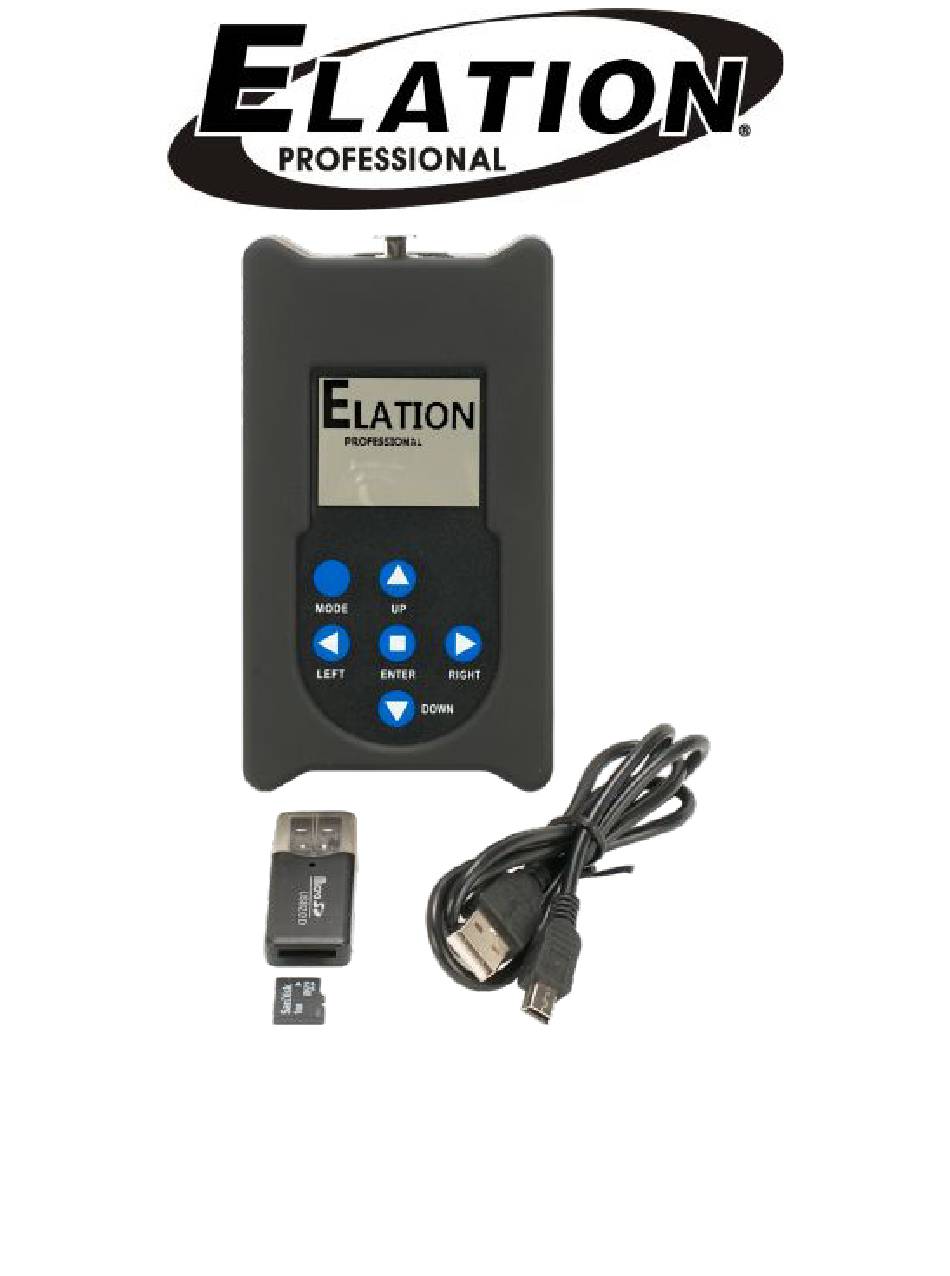

O V E R V I E W The C-LOADER II™ is a battery powered hand held software uploader device used to update Elation compatible lighting fixtures. Easily upload a software update to an Elation lighting fixture by connecting the C-LOADER II™ to the fixture using the included 3pin DMX cable. Elation software updates (not included) are stored on a MICRO SD card (included) and inserted into the uploader. -
Page 8: Compatible Elation Models
COMPATIBLE ELATION MODELS: * Partial listing of models. Contact Elation Service for more details. ACL BAR ACL 360 MATRIX ACL 360 ROLLER ACL 360i ACL 360 BAR ACL CURTAIN ACL PAR 200 ACL PAR 200 IP COLOUR CHORUS 12 / 24 / 48 / 72... -
Page 9: Operation
C-Loader II. left side of the C-Loader II. A 3pin to 5pin DMX adapter (not included) is necessary to connect the C-LOADER II to Elation fixtures and can be purchased at www.elationlighting.com 4. Use MODE to return to main menu. Use ¬... - Page 10 O P E R A T I O N R D M Clicking on RDM begins the Discovery process and opens the Software Update files. None Response! displays if SD card is empty, has not been inserted, or if unit is not connected to fixture. R E C E I V E Select Receive, then use ¯...
- Page 11 ¿ ¬ ® ¯ Set Fade time by pressing <Enter> and using to change minutes, and to change seconds ¿ ¬ ® ¯ Set Speed by pressing <Enter> and using to change minutes, and to change seconds ¿ End selected, Set RunSet by pressing <Enter>...
- Page 12 U P D A T E ¬ ® Select Update, then use to select between a UpdateSpeed:Fast or UpdateSpeed:Slow. ¿ UpdateSpeed:Fast is selected by default and is recommended. With UpdateSpeed selected, press <Enter> again to enter the Software Update folder. With the Software Update files open, note that there will be some corrupted files among them, which show as similar to above.
- Page 13 When you have completed the Software Updates, selecting Finish brings you back to the main menu. D E V I C E I N F O Select DeviceInfo to display the Model, Software, and Date information of the device. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands...
-
Page 14: Recharging Internal Battery
R E C H A R G I N G I N T E R N A L B A T T E R Y DO NOT USE DEVICE IF THE BATTERY IS DAMAGED, DEFORMED, OR HAS AN ODOR! DO NOT DISASSEMBLE THE BATTERY! DISPOSE OF BATTERY PROPERLY ACCORDING TO LOCAL, STATE, AND COUNTRY REGULATIONS! DO NOT OPERATE DEVICE IF YOU ARE NOT QUALIFIED TO DO SO! -
Page 15: Specifications
SPECIFICATIONS Features: Size / Weight: Firmware Upload Tool Length: 4.89” (124.15mm) DMX Tester (Send and Receive DMX Signal) Width: 2.73” (69.46mm) DMX Programmer for Test Programs Vertical Height: 1.48” (37.5mm) RDM Sender Receiver Weight: 0.4lbs. (0.2kg) Control / Connections: Electrical:- 6 Button Touch Control Panel USB Powered (Internal Battery) LCD Menu Display... -
Page 16: Optional Components & Accessories
O P T I O N A L C O M P O N E N T S & A C C E S S O R I E S Model (SKU) Description AC3PM5PFM 1 ft. (0.3m) 3pin Male to 5pin Female DMX Cable AC3PDMX5PRO 5 ft.
