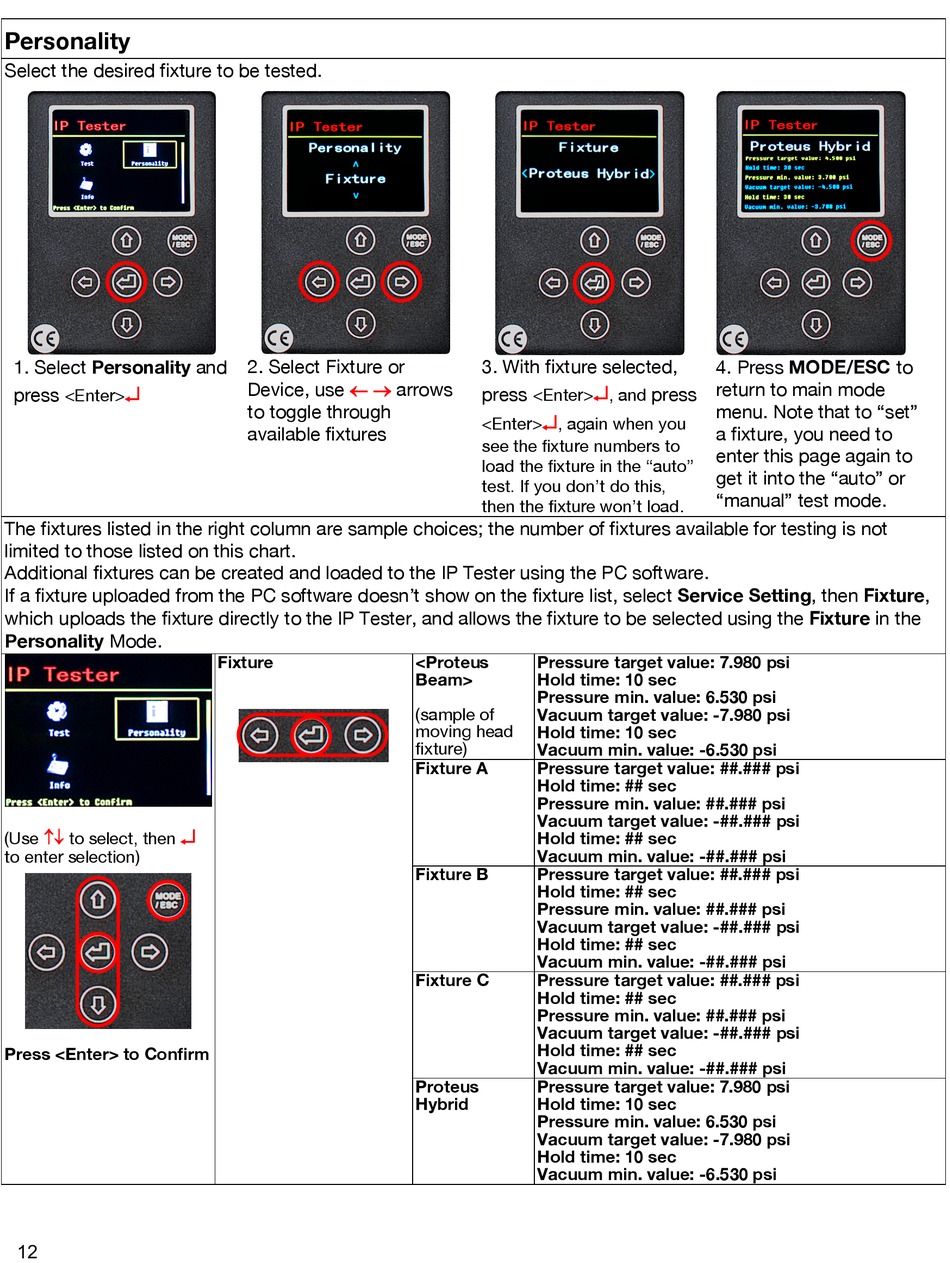

Personality
Select the desired fixture to be tested.
1. Select Personality and
¿
press
<Enter>
The fixtures listed in the right column are sample choices; the number of fixtures available for testing is not
limited to those listed on this chart.
Additional fixtures can be created and loaded to the IP Tester using the PC software.
If a fixture uploaded from the PC software doesn't show on the fixture list, select Service Setting, then Fixture,
which uploads the fixture directly to the IP Tester, and allows the fixture to be selected using the Fixture in the
Personality Mode.
¿
­¯
(Use to select, then
to enter selection)
Press <Enter> to Confirm
12
2. Select Fixture or
¬ ®
Device, use arrows
to toggle through
available fixtures
Fixture
/
3. With fixture selected,
¿
press
<Enter>
¿
<Enter> , again when you
see the fixture numbers to
load the fixture in the "auto"
test. If you don't do this,
then the fixture won't load.
<Proteus Pressure target value: 7.980 psi
Beam> Hold time: 10 sec
Pressure min. value: 6.530 psi
(sample of Vacuum target value: -7.980 psi
moving head
Hold time: 10 sec
fixture)
Vacuum min. value: -6.530 psi
Fixture A Pressure target value: ##.### psi
Hold time: ## sec
Pressure min. value: ##.### psi
Vacuum target value: -##.### psi
Hold time: ## sec
Vacuum min. value: -##.### psi
Fixture B Pressure target value: ##.### psi
Hold time: ## sec
Pressure min. value: ##.### psi
Vacuum target value: -##.### psi
Hold time: ## sec
Vacuum min. value: -##.### psi
Fixture C Pressure target value: ##.### psi
Hold time: ## sec
Pressure min. value: ##.### psi
Vacuum target value: -##.### psi
Hold time: ## sec
Vacuum min. value: -##.### psi
Proteus Pressure target value: 7.980 psi
Hybrid Hold time: 10 sec
Pressure min. value: 6.530 psi
Vacuum target value: -7.980 psi
Hold time: 10 sec
Vacuum min. value: -6.530 psi
4. Press MODE/ESC to
return to main mode
press
, and
menu. Note that to "set"
a fixture, you need to
enter this page again to
get it into the "auto" or
"manual" test mode.
