Installation steps

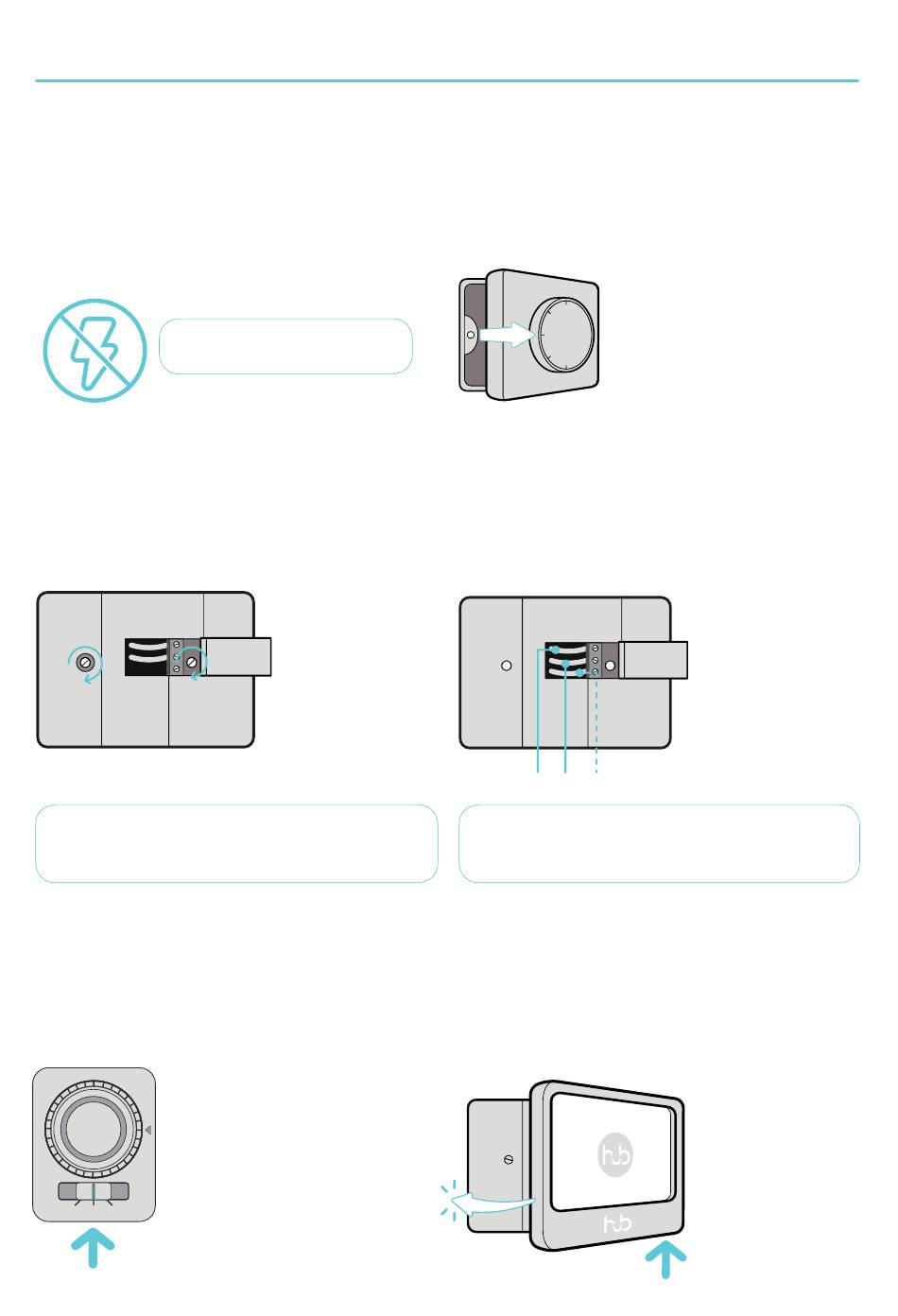

Step 1
Establish that the existing heating controls are in fact
controlling the heating. Turn off the power to your
heating system at the mains. To ensure the wires do
NOT have power running to them, use a mains tester.
WARNING! HIGH VOLTAGE
Step 3
Tighten the HUB base plate to your wall using the
screws provided. Don't forget to use the washer to
make sure it's level.
NOTE! Overtightening the screws may interfere
with proper operation.
Step 4a
If applicable, set your programmer or time clock to
always on.
Turn on the mains electrical power.
ON
OFF CLOCK
ON
6
Step 2
Remove your existing thermostat or time clock or
programmer. If required, test each wire to determine
its function. Label and safely disconnect the wires.
Step 4
Identify your wiring, and then see the appropriate
wiring diagram. Connect the L to the top, V1 to the
centre, and, if applicable, N to the bottom. If this is
your first installation, you may want ot check the
troubleshooting section for more info.
L V1 N
WARNING! Installing the wires incorrectly will
damage your HUB.
Step 5
Connect the HUB Display to the base plate aligning
the display with the right side of the base plate.
Then push the left side into place until it 'clicks' . The
HUB Controller will start automatically, so follow the
on-screen instructions to proceed to setup.
CLICK
L
Live wire
V1 Control wire
N
Neutral wire
