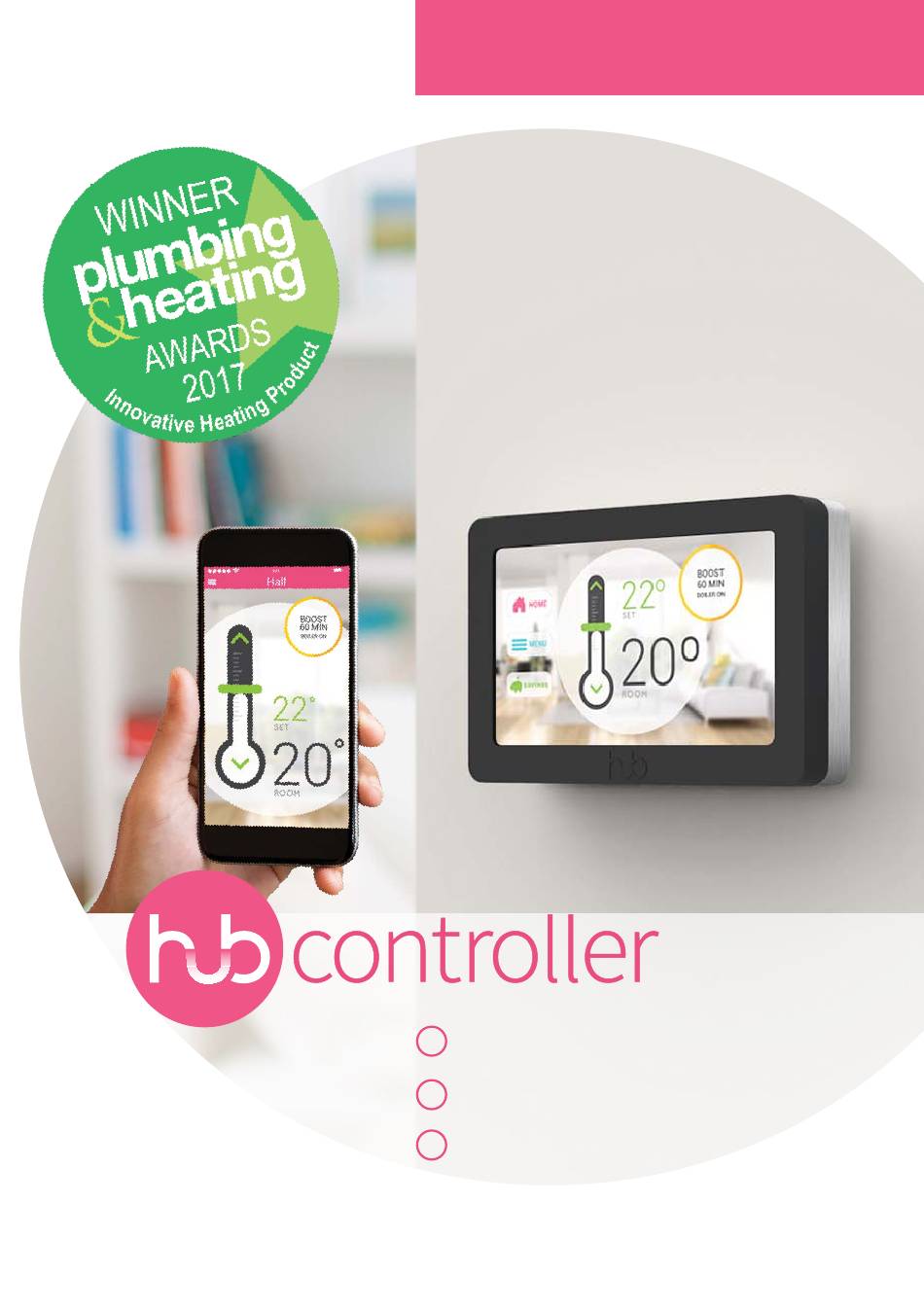

- Page 1 Installation Guide Award winning smart thermostat installation guide Smartphone control No additional wiring Works with all heating systems...
-
Page 2: Table Of Contents
Contents Technical specifications Compatibility Replacing a mechanical thermostat Wiring diagram single zone Wiring diagram two zones Wiring diagram three zones Replacing a time clock Wiring diagram single zone Installation steps Setup Alternative installation modes Switching a pump In parallel with a time clock Troubleshooting... -
Page 3: Technical Specifications
Temperature sensor range and accuracy: 0°- 65° ± 1.0°C Depth: 1.29 in (32.75mm) Box contents This is everything you will need to HUB display Screwdriver install the HUB Controller. HUB back plate Screws Screwdriver Washer Child-safe removal tool Quick start guide... -
Page 4: Compatibility
3-wire system. If there is neither a mechanical thermostat nor a programmer or a timer clock controlling the heating system, the HUB Controller may still be compatible. Please call +353 1 901 0367 and we’ll evaluate the system. Power requirements... -
Page 5: Replacing A Mechanical Thermostat
The HUB Controller can replace any mechanical thermostat, regardless of the fuel type. Mechanical thermostats usually only use 2 wires and the HUB Controller has been designed to work specifically in this situation. It has a rechargeable battery that is powered by the existing 2 wires on the wall. -
Page 6: Wiring Diagram Two Zones
N connector. Wiring diagram three zones brown 230 V~ 50Hz valve brown time clock cylinder stat valve NOTE: In case of fitting the HUB Controller in a multizone system, you will need a HUB Controller per zone. -
Page 7: Replacing A Time Clock
Replacing a time clock In a heating system without a thermostat, the HUB Controller can replace a time clock or a programmer. Because the existing time clock/programmer is directly controlling a boiler or a pump, there is always a neutral wire. -
Page 8: Installation Steps
Turn on the mains electrical power. Then push the left side into place until it ‘clicks’ . The HUB Controller will start automatically, so follow the on-screen instructions to proceed to setup. CLICK... -
Page 9: Setup
Setup After the installation is complete, the HUB Controller will start automatically. Step 1 Step 2 Select the network Enter the network details The device will begin to scan for wireless networks. Once the Wi-Fi network has been selected, type in Once the HUB has discovered all the available net- the password to access it. -
Page 10: Alternative Installation Modes
Alternative installation modes Switching a pump 230 V~ | 50Hz time clock pump IMPORTANT! Connecting a HUB directly to a pump requires use of neutral wire. In parallel with a time clock 230 V~ 50Hz time clock boiler NOTE: Put your programmer or clock to always off. -
Page 11: Troubleshooting
Troubleshooting How to test a power supply? WARNING! HIGH VOLTAGE 230V Measuring the voltage After you turn on the mains electrical power, check voltage 230 V AC between L & N. 50mA Measuring the current in 2-wire system Measuring the current in 3-wire system The switching current between L &... - Page 12 HUB Controls T: 01623 272577 (UK) T: 01 901 0367 (RoI) sales@thehubcontroller.com www.thehubcontroller.com...
