Summary of Contents for Sennheiser e 608

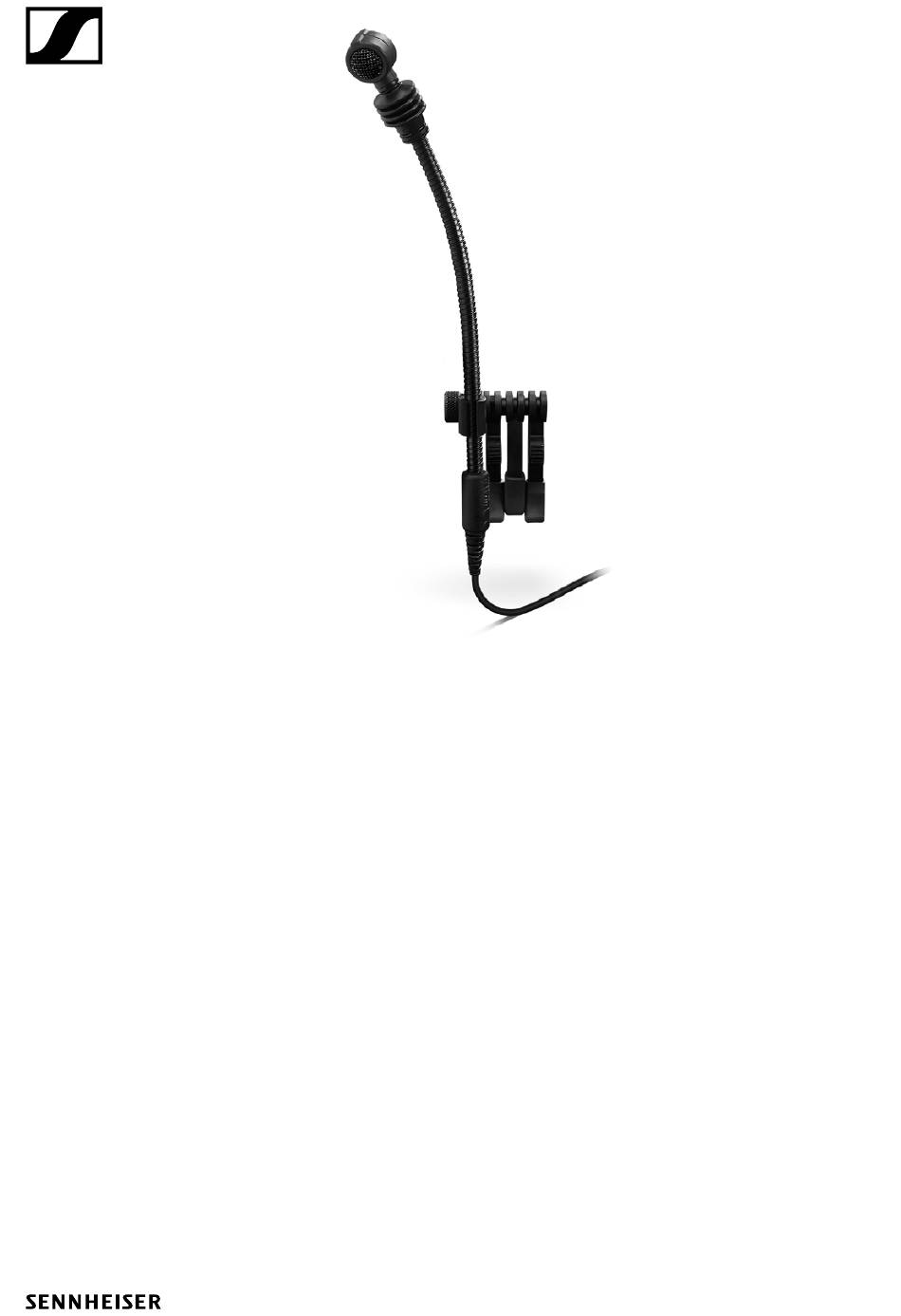

- Page 1 608 Instruction manual...
- Page 2 Delivery includes • e 608 • microphone clamp • connection cable • pouch • quick guide • safety guide Product overview 1. Microphone head 2. Elastic suspension 3. Gooseneck 4. Microphone clamp 5. 3.5 mm jack plug e 608 | 2/8...
- Page 3 Installation Installation Attaching the microphone Carefully bend the flexible goose neck. Connecting the microphone Connect the XLR-3 socket of the microphone cable (optional accessories) to the XLR-3 socket of the microphone. e 608 | 3/8...
- Page 4 The MZH 9 08 D (left image) and MZH 9 08 B (right image) clips are available as optional accessories for the e 6 08. Remove the attached clip from the goose neck. Unscrew the screw on the clip. Press the clip firmly onto the goose neck. Tighten the screw on the clip. e 608 | 4/8...
- Page 5 Operation Operation Positioning the microphone on a wind instrument Use the microphone clamp to attach the e 608 to the bell of the instrument. It is vital to observe the following notes: Position Resulting sound Commentary Reduced ambient noise Use the supplied clamp to attach the microphone to the bell of the instrument.
- Page 6 Cleaning and maintaining the e 608 Positioning the monitor loudspeakers To prevent feedback and crosstalk, postion your monitor loudspeakers in the angle area of the highest cancellation of the microphone (approx. 120°). 120° Cleaning and maintaining the e 608 CAUTION LIQUIDS CAN DAMAGE THE ELECTRONICS OF THE PRODUCT! Liquids entering the housing of the product can cause a short-circuit and damage the electronics.
- Page 7 90° 90° 2,000 Hz 4,000 Hz 8,000 Hz 120° 120° 16,000 Hz 150° 150° 180° 180° Frequency response - 40 - 50 - 60 - 70 - 80 - 90 0°, 1 m 0°, 5 cm e 608 | 7/8...
- Page 8 • e 906 • • • • • • e 908 • • • • • • • • e 914 • • e 935 • • e 945 • • • • • e 965 e 608 | 8/8...
