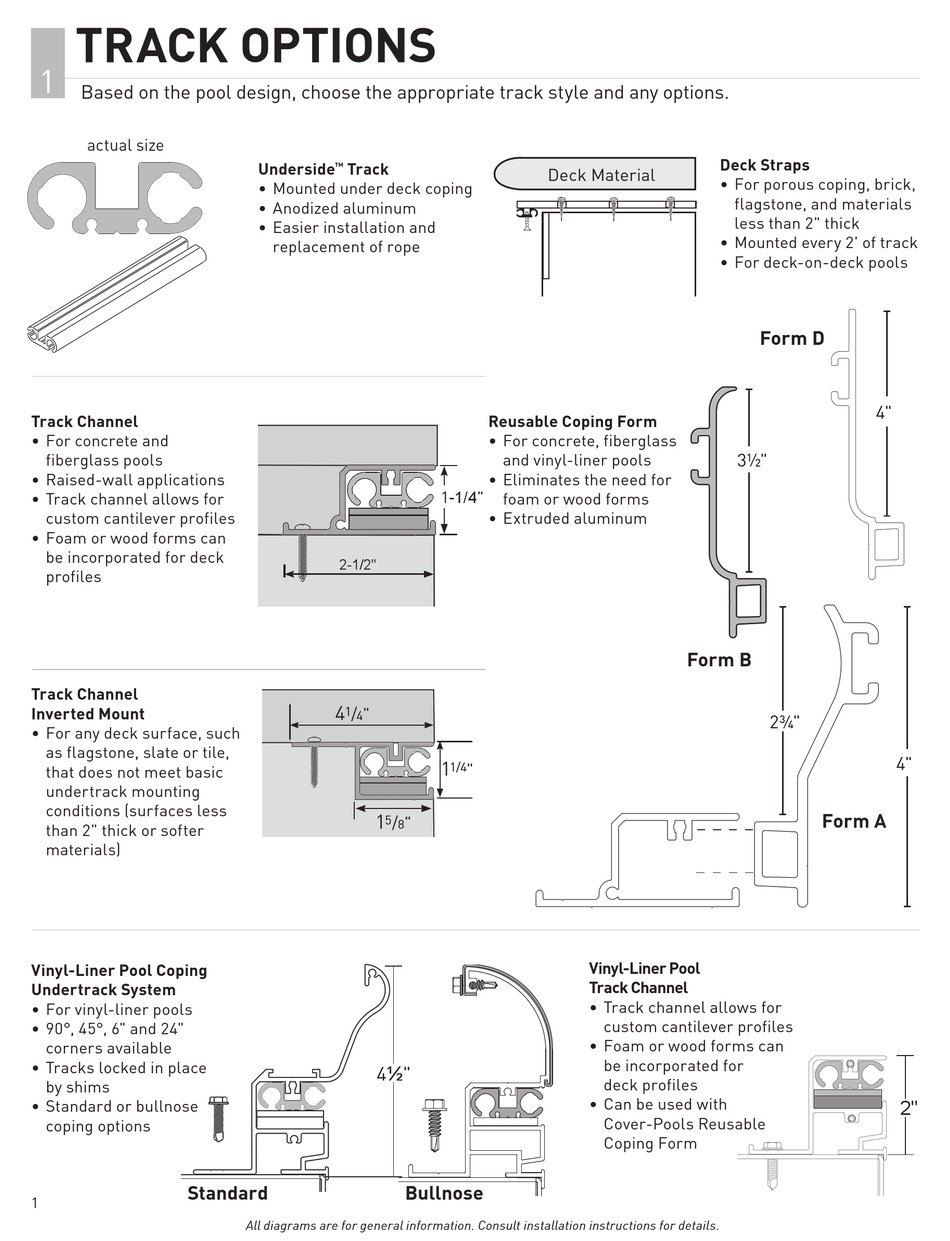

TRACK OPTIONS
1
Based on the pool design, choose the appropriate track style and any options.
The Track Channel can be set in a recessed notch below stone
actual size
or coping level. A light mortar or grout layer can be applied under
the stone surface and used to fill in behind channel if necessary.
RECESSED MOUNTING FOR STONE OR COPING
Track Channel
• For concrete and
fiberglass pools
• Raised-wall applications
• Track channel allows for
custom cantilever profiles
• Foam or wood forms can
be incorporated for deck
profiles
Track Channel
Inverted Mount
• For any deck surface, such
as flagstone, slate or tile,
that does not meet basic
undertrack mounting
conditions (surfaces less
than 2" thick or softer
materials)
Vinyl-Liner Pool Coping
Undertrack System
• For vinyl-liner pools
• 90°, 45°, 6" and 24"
corners available
• Tracks locked in place
by shims
• Standard or bullnose
coping options
Standard
1
Underside
Track
™
• Mounted under deck coping
• Anodized aluminum
• Easier installation and
replacement of rope
2-1/2"
4
1
/
"
4
1
5
/
"
8
4½"
Bullnose
All diagrams are for general information. Consult installation instructions for details.
Deck Material
Reusable Coping Form
• For concrete, fiberglass
and vinyl-liner pools
• Eliminates the need for
1-1/4"
foam or wood forms
• Extruded aluminum
1
1/4
"
Vinyl-Liner Pool
Track Channel
• Track channel allows for
custom cantilever profiles
• Foam or wood forms can
be incorporated for
deck profiles
• Can be used with
Cover-Pools Reusable
Coping Form
Deck Straps
• For porous coping, brick,
flagstone, and materials
less than 2" thick
• Mounted every 2' of track
• For deck-on-deck pools
Form D
3½"
Form B
2¾"
Form A
4"
4"
2"
