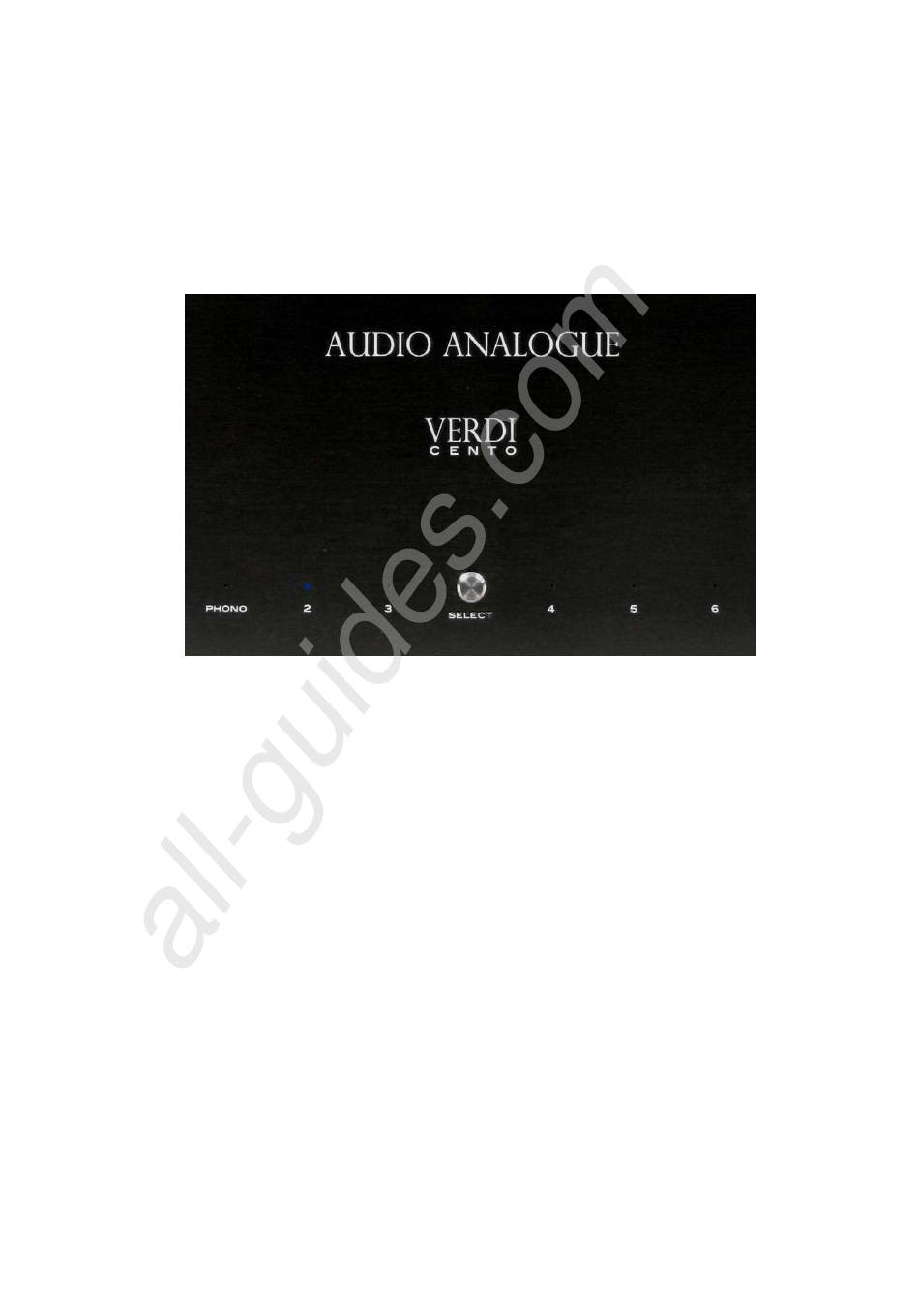

  • Page 1 All manuals and user guides at all-guides.com AUDIO ANALOGUE verdi C E N T O HYBRID INTEGRATED AMPLIFIER OWNER’S MANUAL MANUALE D’ISTRUZIONI Manual rev. 1.0...
  • Page 2 All manuals and user guides at all-guides.com...
  • Page 3 Caro Audiofilo, congratulazioni e grazie per aver scelto il Verdi Cento, un apparecchio nel quale la tecnologia valvolare e quella a stato solido si uniscono compiutamente per esaltare i rispettivi pregi dando vita ad un suono caldo e vigoroso.
  • Page 4 All manuals and user guides at all-guides.com INTRODUCTION AUDIO FUTURA spa, AUDIO ANALOGUE producer and distributor, does not take any responsibility in the following cases: Whenever the operational procedures related to the use and the maintenance of the equipment as described in this manual are not respected.
  • Page 5 All manuals and user guides at all-guides.com PREMESSA AUDIO FUTURA spa, produttore e distributore AUDIO ANALOGUE, non accetta responsabilità nei casi in cui: Le procedure operative di utilizzo e manutenzione dell’apparato descritte nel manuale non siano rispettate. I danni si verifichino in seguito a riparazioni o modifiche dell’apparato eseguite da personale non autorizzato o a seguito di normale deterioramento dell’apparato.
  • Page 6 All manuals and user guides at all-guides.com Front panel 1) Power button. 2) SELECT. Input selector. It allows the selection of the desired source. One of the blue leds indicates the selected source. 3) PH, 2, 3, 4, 5, 6. Blue leds that indicate the selected input. A fix light indicates the selected source and the normal operative status of the unit, while a blinking light indicates the unit is in mute mode.

  • Page 7: Amplifier Functions

    All manuals and user guides at all-guides.com Back panel 1) RIGHT SPEAKER OUT. Right speaker out connector. 2) LEFT SPEAKER OUT. Left speaker out connector. 3) EARTH. Turntable ground connector (to be used when phono input is in use) 4) PHONO. MM/MC phono input. 5) 2, 3, 4, 5, 6.
  • Page 8 Please use only high-quality cables with gold plated connectors. When this is done, connect Verdi Cento outputs to the speakers. At last, after checking that the power button is in the OFF position, plug the power cord into the Verdi Cento inlet and into the wall outlet.

  • Page 9: Right Channel

    All manuals and user guides at all-guides.com Connection examples A) Connection with a source such as the Rossini CD Player REV2.0. A) Collegamento con una sorgente ad esempio Rossini CD Player REV2.0. Right Channel Left Channel Back View / Visuale Posteriore settanta settanta Right Out...
  • Page 10 Le valvole hanno bisogno di un minuto circa di tempo per scaldarsi e funzionare correttamente. Per questo motivo, il Verdi Cento effettuerà un’attesa iniziale ad ogni accensione, segnalata da un una luce blu che ruota attorno alla manopola del volume.

  • Page 11: Input Selection

    IN+ o IN- del telecomando. Recorder outputs The Verdi Cento has two output connectors for recording. The signal you have on the REC OUT is the same you have on the input selected. Connect the tape outs to the inputs of your recorder.

  • Page 12: Phono Input

    When you are using the Verdi Cento Pre/Mono Output to drive a power amplifier or a subwoofer, be careful when you turn the system on and off to avoid any noise or bump in the speakers. When you turn on the system, turn on the Verdi Cento first and then turn on the equipment connected to the Pre/Mono Output.

  • Page 13: Amp Setup

    All manuals and user guides at all-guides.com Other features The Verdi Cento Integrated Amplifier has other interesting new functionalities that permits you to set different parameters of the product. The functions are: • Balance regulation. • Bypass mode. • Volume scale selection.
  • Page 14 All manuals and user guides at all-guides.com Durante il normale funzionamento dell’apparecchio, selezionare una sorgente che stia riproducendo musica, selezionare il livello di ascolto normalmente utilizzato, quindi mantenere premuto il tasto “Amp Setup” del telecomando finché i leds del volume non cambiano il loro stato (come indicato nella immagine seguente, che indica la posizione centrale, ossia nessuno sbilanciamento).
  • Page 15 Selezione/Attivazione modalità By-Pass Questa funzione permette di utilizzare il Verdi Cento come amplificatore finale. Per configurare la modalità By-Pass si deve selezionare l’ingresso linea dove si andrà a connettere il preamplificatore e attivare la funzione con il telecomando dopo la riaccensione dell’apparecchio.
  • Page 16 All manuals and user guides at all-guides.com • Obviously it is impossible to select the Phono Input as the Bypass Input for the bypass mode. This is why its input led never turns on during the bypass mode setting procedure. NOTE: •...
  • Page 17 All manuals and user guides at all-guides.com NOTA: la scala volume selezionata verrà ricaricata ad ogni accensione dell’apparecchio finchè non ne verrà settata una diversa. Volume Leds SCALA VOLUME Volume Leds SCALA VOLUME (default) Volume Leds SCALA VOLUME Volume Leds 0,00 SCALA VOLUME 10,00...
  • Page 18 Thermal shutdown The Verdi Cento is an extremely reliable product and a lot of protective systems have been built into in it. In addition to the traditional protection against current overload and short-circuit the Verdi cento has two different kinds of overheating protection on the power stages and a specific heat protection placed into the toroidal transformer.
  • Page 19 All manuals and user guides at all-guides.com Technical Data Parameter Measurement conditions Value Channels: Line gain: 4.6dB Power Amp gain: 32.5dB Phono gain: 60dB (MM), 80dB (MC) Line Input Impedance: 40KOhm Phono Input Impedance: 56KOhm (MM), 100Ohm (MC) 1W @ 0.03% THD + N 10W @ 0.05% THD + N Power on 8Ohm load: 100W @ 0.15% THD + N...

  • Page 20: Troubleshooting

    Turn volume knob right No sound Faulty or incorrectly plugged signal Check cords and their connection connectors between Verdi Cento and the sources Off or incorrectly selected source Check if the source is on and active and if it is correctly selected using the...

  • Page 21: Ricerca Guasti

    Led di un ingresso acceso Volume regolato al minimo Alzare il volume Nessun suono Cavi di segnale tra sorgente e Verdi Cento Controllare lo stato dei cavi e/o la non connessi correttamente oppure corretta connessione difettosi...
  • Page 22 Please contact your Audio Analogue dealer who will inform you about the take-back and recycling. Small products (and apparecchiature elettriche ed elettroniche insieme ai small amounts) might be taken back by your local collection facilities. normali rifiuti domestici. Per tali prodotti è previsto un sistema di raccolta a parte.
  • Page 23 All manuals and user guides at all-guides.com...
  • Page 24 All manuals and user guides at all-guides.com Audio Analogue Manufactured and Distributed by: AUDIO FUTURA Via Maestri Del Lavoro 583 51015 Monsummano Terme (PT) Italy Tel. 0572 954513 fax 0572 958099 www.audioanalogue.com - info@audioanalogue.com...
