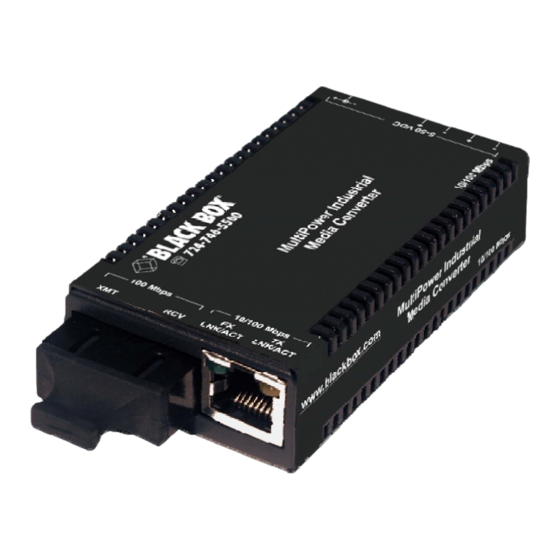

- Page 1 LIC022A-R2 LIC026A-R2 LIC054A-R2 LIC023A-R2 LIC027A-R2 LIC055A-R2 LIC024A-R2 LIC052A-R2 LIC056A-R2 LIC025A-R2 LIC053A-R2 LIC057A-R2 MultiPower Industrial Media Converters Choose from four different ways to power these hardened media converters.
- Page 2 TRADEMARKS USED IN THIS MANUAL Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. Page 2 877-877-2269 | blackbox.com...
- Page 3 FCC and IC RFI Statements FCC and Industry Canada RF Interference Statements Class A (using DC terminal power or Power over Ethernet (PoE). This equipment has been tested and found to comply with the limits for a Class B computing device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 4 Certifications Certifications Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste. This symbol indicates that the equipment should be disposed of separately from regular household waste.
-
Page 5: Table Of Contents
Powering the MultiPower Industrial Media Converters ......10 About Power over Ethernet (PoE) and MultiPower Industrial Media Converters.................... 10 DC Terminal Block Wiring Instructions..........10 Operation....................11 Contacting Black Box ................12 Fiber Optic Cleaning Guidelines ............13 Electrostatic Discharge Precautions ............ 14 LIC022A-R2 877-877-2269 | blackbox.com... -
Page 6: Part Numbers
Part Numbers Part Numbers Part Description Number LIC022A-R2 TP-TX/FX-MM1300-ST (5 km) LIC023A-R2 TP-TX/FX-MM1300-SC (5 km) LIC024A-R2 TP-TX/FX-SM1310/PLUS-ST (30 km) LIC025A-R2 TP-TX/FX-SM1310/PLUS-SC (30 km) LIC026A-R2 TP-TX/FX-SM1310/LONG-ST (80 km) LIC027A-R2 TP-TX/FX-SM1310/LONG-SC (80 km) LIC052A-R2 TP-TX/SSFX-SM1310-SC (1310xmt/1550rcv) (20km) LIC053A-R2 TP-TX/SSFX-SM1550-SC (1550xmt/1310rcv) (20km) LIC054A-R2 TP-TX/SSFX-SM1310/PLUS-SC (1310xmt/1550rcv) (40km) LIC055A-R2... -
Page 7: Specifications
Chapter 1: Specifications 1. Specifications • Ethernet Connections 10/100 BaseT • Auto Negotiation • Auto-Cross • Flow Control • 1916 MTU • Full Line-Rate Forwarding DC terminal 7 to 50 VDC, 1 to0.1A DC (jack) 5 VDC When MultiPower Industrial Media Converters use PoE technology to be a PD, the maximum supply voltage is 50V AC Wall Adapter... -
Page 8: Overview: About The Multipower Industrial Media Converters
Chapter 2: Overview 2. Overview: About the MultiPower Industrial Media Converters The MultiPower Industrial Media Converters provide a single conversion between 10/100 Base-T twisted pair and 100 Base-SX/FX fiber. This device Auto Negotiates speed and duplex on the copper port and the fiber is 100Mbps, FDX. -
Page 9: Install The Multipower Industrial Media Converters
Chapter 3: Install the MultiPower Industrial Media Converters 3. Install the MultiPower Industrial Media Converters The MultiPower Industrial Media Converters install virtually anywhere as standalone devices in locations with extremely limited space. Installation options include: • Velcro strips • DIN rail mounting with DIN Rail clips •... -
Page 10: Powering The Multipower Industrial Media Converters
Chapter 3: Install the MultiPower Industrial Media Converters 3.3 Powering the MultiPower Industrial Media Converters The MultiPower Industrial Media Converters include multiple powering options: • A country-specific, high-reliability AC power adapter (included) • The IEEE 802.3af Power over Ethernet standard; draws power from power sourcing equipment •... -
Page 11: Operation
Chapter 4: Operation 4. Operation The MultiPower Industrial Media Converters include two LEDs, located on the RJ-45 connector. LED functions are as follows: LED functions are as follows (above illustration is representative): FX LNK/ACT Glows green when a link is established on the fiber port; blinks green when activity is detected on the fiber port. -
Page 12: Contacting Black Box
Chapter 5: Contacting Black Box 5. Contacting Black Box Black Box Customer Service Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) Free technical support, 24 hours a day, 7 days a week. Call: 877-877-2269 or Fax: 724-746-0746... -
Page 13: Fiber Optic Cleaning Guidelines
2. Dust caps are installed at Black Box to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. -
Page 14: Electrostatic Discharge Precautions
Chapter 7: Electrostatic Discharge Precautions 7. Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products. 1. - Page 15 Notes LIC022A-R2 877-877-2269 | blackbox.com Page 15...
- Page 16 877-877-2269 LIC022A-R2 Rev. 1 55-80722BB-00 Rev. B3...
