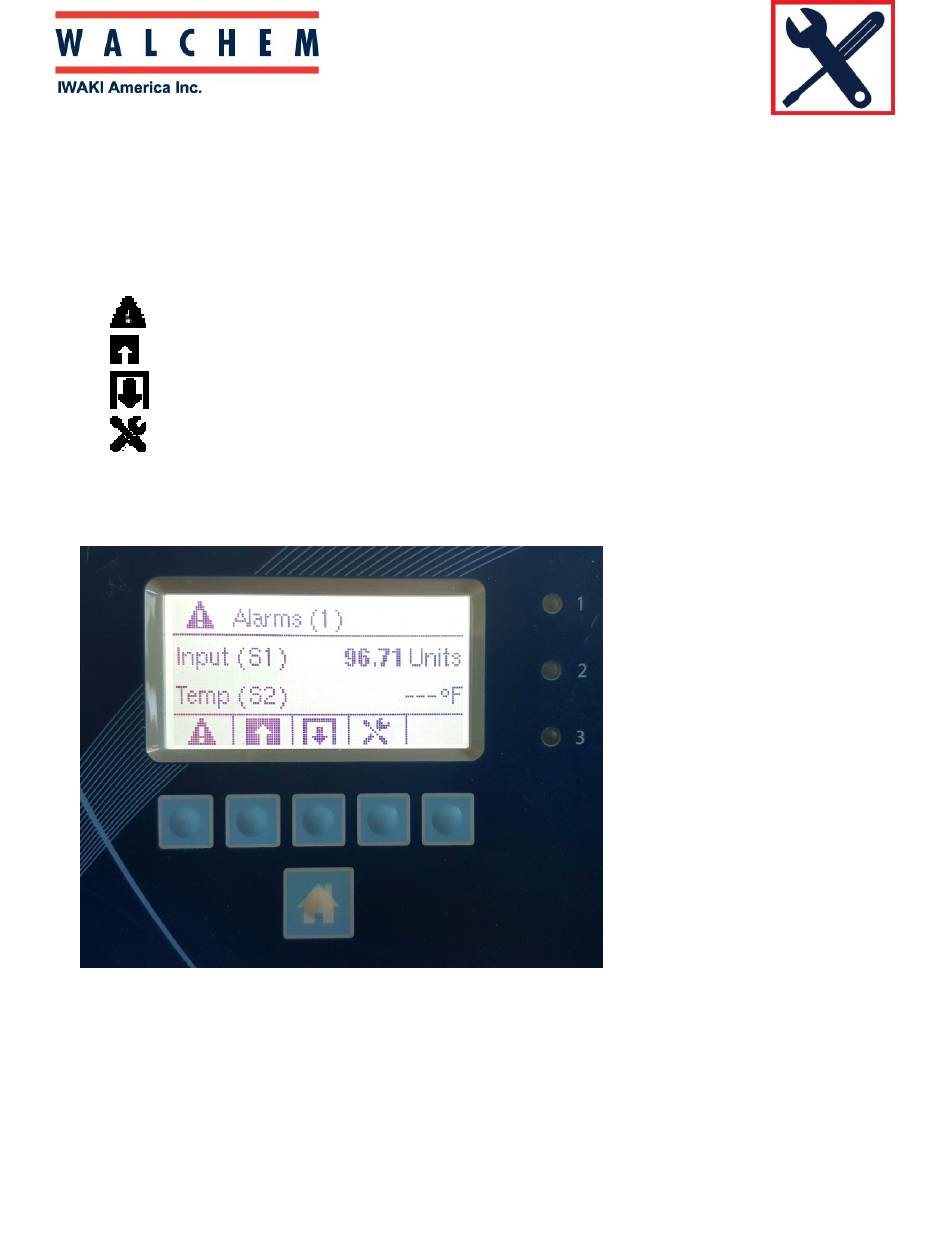

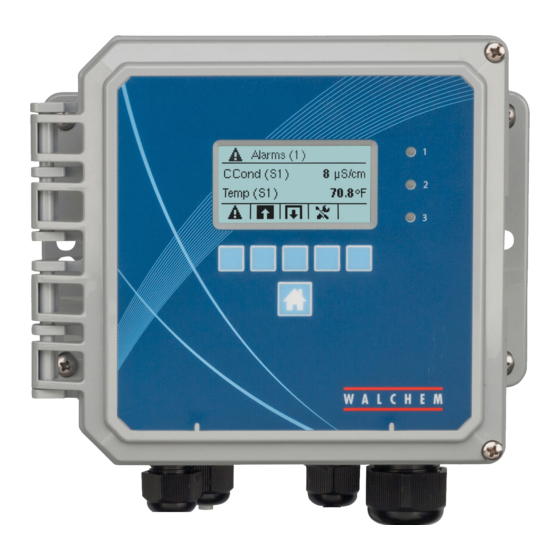

Programming the W100 controllers
The W100 controller is menu-driven programming, with 4 major icons.
Theses icons appear on the Home screen from left to right:
Alarm Menu
Inputs Menu (Direct sensors, analog, digital inputs)
Outputs Menu (Relays)
Configurations menu
Press the key below the icon to get to the main menu selections. The UP Arrow will get you to the
Inputs Menu; The DOWN Arrow will get you to the Relays Menu.
Pressing the HOME (bottom) button at any time will return you to the page above.
100 Programming
W
Advertisement
Related Manuals for Walchem W100
Summary of Contents for Walchem W100
- Page 1 100 Programming Programming the W100 controllers The W100 controller is menu-driven programming, with 4 major icons. Theses icons appear on the Home screen from left to right: Alarm Menu Inputs Menu (Direct sensors, analog, digital inputs) Outputs Menu (Relays) Configurations menu Press the key below the icon to get to the main menu selections.
- Page 2 From the Home screen, Press (Inputs) key, bringing you to the Inputs screen: The W100 has only one sensor input. Input (S1) is for the sensor’s reading, and Temp (S2) is for the temperature input (if the sensor has temp-comp). Press the ENTER Key to enter the Input (S1) menu.
- Page 3 100 Programming Setting up and programming a direct sensor (con’t): After pressing the Configurations key , press the DOWN Arrow until TYPE is highlighted, then press ENTER to enter the Type menu: Once in the Type menu you can use the down arrow to scroll through the sensor types.
- Page 4 100 Programming Setting up and programming Relay outputs: Before you start programming set points, you need to select the relay mode. From HOME: Press OUTPUTS . This will bring you to the OUPUTS page: Press the DOWN arrow to scroll through the 3 relay outputs.
- Page 5 100 Programming Setting up and programming Relay outputs: Once you’ve selected your relay, press ENTER to enter the relay menu: And then the Configuration Key into the settings...
- Page 6 100 Programming Press the DOWN Arrow until you get to the MODE. At MODE, press ENTER Use the Down Arrow to scroll through the modes. Highlight the desired mode, and press the ENTER to set the mode.
